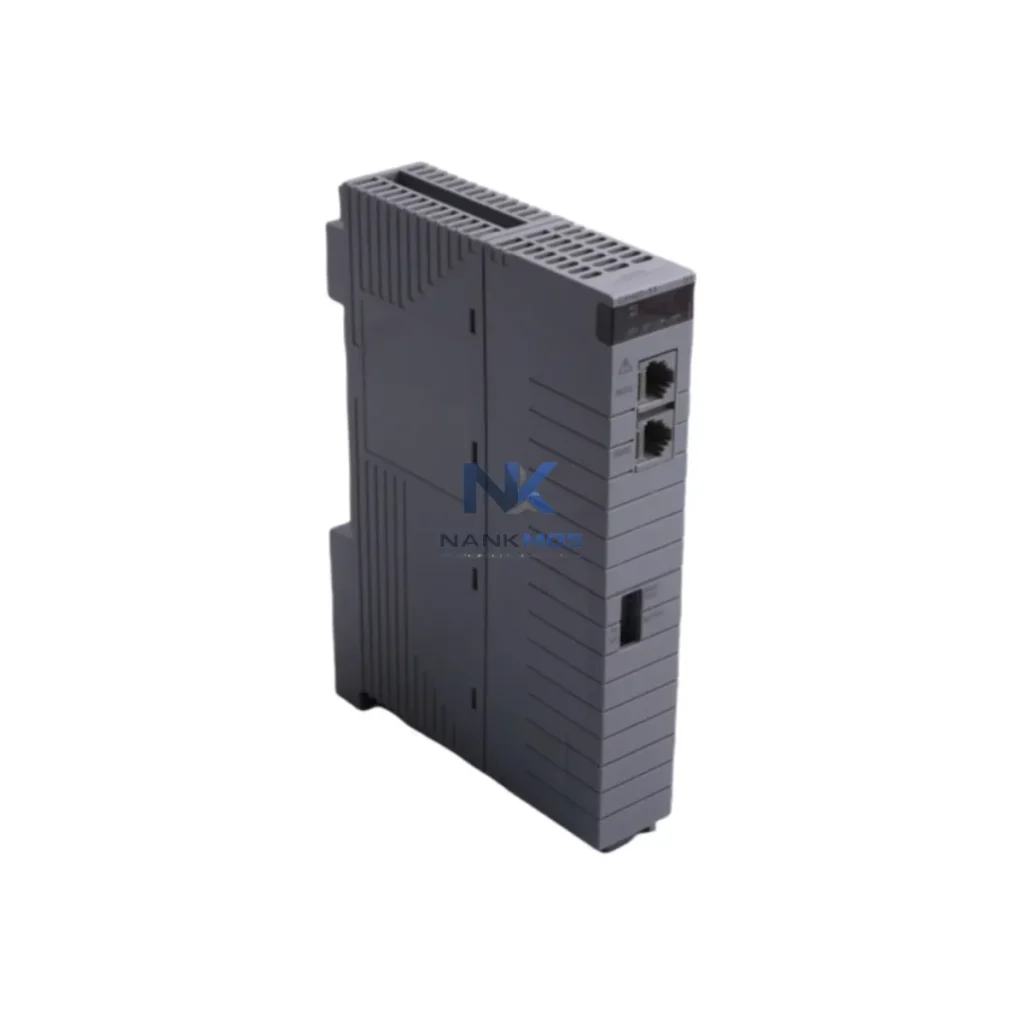

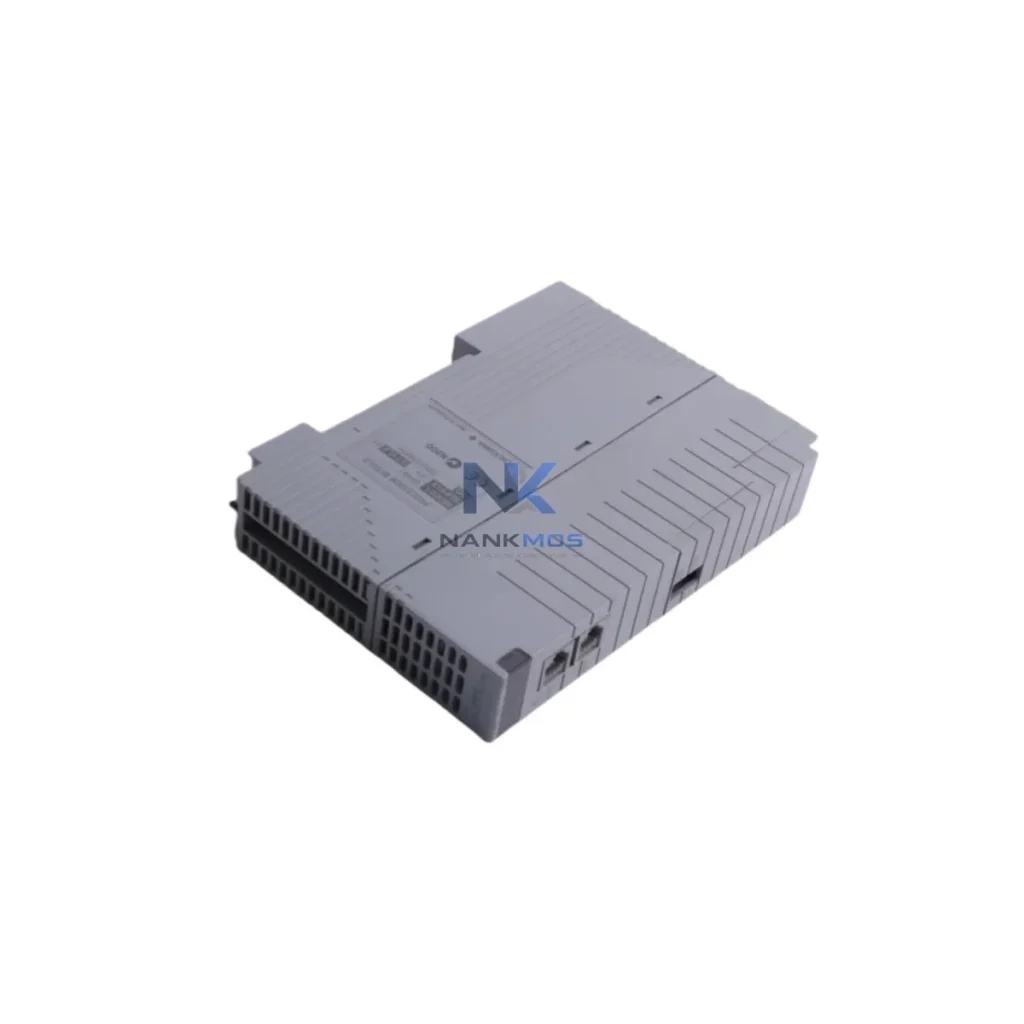

Yokogawa CP401-11 S1 DCS Processor Module

Product Details

CP401-11 S1 Product Description

The Yokogawa CP401-11 S1 is a field-proven central processing unit engineered for deployment within the CENTUM CS3000 Distributed Control System (DCS) platform. Designed to serve as the computational backbone of the control layer, this processor module delivers deterministic scan-cycle execution, high-availability redundancy support, and seamless integration across the full automation stack — from I/O field devices to supervisory HMI stations. Whether deployed in greenfield process plants or as a like-for-like replacement in legacy CENTUM CS3000 installations, the CP401-11 S1 maintains architectural consistency, reduces commissioning risk, and extends the operational lifespan of existing control infrastructure.

In modern industrial automation, no processor module operates in isolation. The CP401-11 S1 is architected to function as the central node in a layered control hierarchy, coordinating signal acquisition from field I/O modules, executing regulatory and advanced control strategies, managing inter-controller communication via Vnet/IP or legacy V-net bus, and delivering real-time process data to operator stations running CENTUM CS3000 HIS (Human Interface Station). Its role spans the control layer, communication layer, and diagnostic layer simultaneously — making it a critical asset in any high-availability process control architecture.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification and is backed by a 12-Month Warranty, ensuring operational confidence from day one of installation.

The CP401-11 S1 achieves its full performance potential when deployed within a coherent CENTUM CS3000 system architecture. At the control layer, the processor pairs directly with redundant Field Control Station chassis, where dual CP401-11 S1 units operate in hot-standby mode, ensuring bumpless transfer in the event of a primary CPU fault. This redundancy architecture is foundational in continuous process industries such as oil refining, LNG processing, and chemical manufacturing, where unplanned control interruptions carry significant safety and economic consequences.

At the I/O layer, the CP401-11 S1 interfaces with CENTUM CS3000 analog input modules such as the AAI141 and AAI143 (4–20 mA HART-capable), digital input/output modules including the ADV151 and ADV161, and pulse input modules for flow measurement integration. Signal integrity across these I/O nodes is maintained through the internal V-net or Vnet/IP bus, which the CP401-11 S1 manages with deterministic cycle timing — critical for tight regulatory loops in distillation columns, reactor temperature control, and compressor surge protection.

At the communication layer, the CP401-11 S1 connects to the plant-wide Vnet/IP Ethernet backbone, enabling real-time data exchange with other Field Control Stations, the CENTUM CS3000 Engineering Workstation (EWS), and Exaopc OPC server for third-party SCADA or MES integration. For legacy installations still operating on coaxial V-net, the CP401-11 S1 maintains backward compatibility, protecting existing infrastructure investments while enabling phased migration to Vnet/IP topology.

At the power layer, the CP401-11 S1 operates within FCU chassis powered by Yokogawa PW481 or PW482 redundant power supply modules, which provide dual-feed 24 VDC distribution with automatic switchover. Stable power architecture is a prerequisite for CPU scan-cycle consistency, and the integration of redundant power supplies with the CP401-11 S1 eliminates single points of failure at the power distribution level.

At the HMI layer, operator stations running CENTUM CS3000 HIS software receive real-time process variable data, alarm states, and trend histories sourced directly from the CP401-11 S1 execution environment. The HIS interface supports faceplates, trend displays, and alarm management workflows that are tightly coupled to the function block database maintained by the CP401-11 S1 — ensuring that what operators see on screen accurately reflects the live control state.

At the diagnostic and maintenance layer, the CP401-11 S1 supports online diagnostics through the CENTUM CS3000 EWS, enabling engineers to monitor CPU load, communication bus health, I/O module status, and redundancy switchover history without interrupting process control. This capability significantly reduces mean time to diagnose (MTTD) during fault events and supports predictive maintenance strategies in long-cycle production environments.

Oil, Gas & Petrochemical: The CP401-11 S1 is widely deployed in upstream and downstream hydrocarbon processing facilities, where it manages regulatory control loops for crude distillation units, hydrotreaters, and gas compression trains. Its redundant CPU architecture and deterministic scan execution meet the availability requirements of SIL-adjacent process control applications, and its compatibility with HART-enabled I/O modules supports asset health monitoring across field instrumentation.

Power Generation & Utilities: In thermal power plants and combined-cycle facilities, the CP401-11 S1 coordinates boiler combustion control, turbine governor interfacing, and auxiliary system automation. Its Vnet/IP communication capability enables integration with plant-level DCS networks spanning multiple control rooms, supporting centralized monitoring of distributed generation assets.

Chemical & Specialty Manufacturing: Batch and continuous chemical processes rely on the CP401-11 S1 for precise temperature, pressure, and flow regulation across multi-stage reactor systems. The module's function block execution environment supports complex cascade and ratio control strategies without requiring external logic controllers, simplifying system architecture and reducing inter-device communication latency.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the CP401-11 S1 to automate dosing control, filtration sequencing, and effluent monitoring. Its modular I/O compatibility allows incremental system expansion as treatment capacity grows, while the 12-Month Warranty and pre-shipment testing protocol reduce procurement risk for public infrastructure operators.

Metals, Mining & Minerals Processing: In smelting, flotation, and mineral concentration applications, the CP401-11 S1 manages high-density I/O environments with mixed analog and digital signal types. Its robust operating temperature range and industrial-grade chassis mounting make it suitable for control rooms adjacent to high-heat or high-vibration process areas.

Q1: Is the CP401-11 S1 compatible with both V-net and Vnet/IP communication architectures? Yes. The CP401-11 S1 supports both legacy coaxial V-net and the newer Ethernet-based Vnet/IP communication bus, making it suitable for existing CENTUM CS3000 installations operating on either topology. For sites planning a phased migration from V-net to Vnet/IP, the CP401-11 S1 can be deployed in mixed-bus environments during the transition period, preserving system continuity without requiring a full cutover. Confirm your specific FCU chassis revision and bus interface card configuration with your system integrator prior to installation.

Q2: Can the CP401-11 S1 be configured in a redundant CPU pair, and what is the failover behavior? Yes. The CENTUM CS3000 architecture supports dual-redundant Field Control Station configurations using paired CP401-11 S1 modules operating in hot-standby mode. In the event of a primary CPU fault — whether due to hardware failure, communication loss, or watchdog timeout — the standby CP401-11 S1 assumes control with bumpless transfer, maintaining all active control loops without process interruption. Redundancy switchover events are logged in the EWS diagnostic history for post-event analysis. This configuration is strongly recommended for continuous process applications where control interruption carries safety or production consequences.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed? Every CP401-11 S1 unit supplied by NANKMOS is subject to pre-shipment functional verification, which includes power-on self-test, communication bus initialization check, and I/O interface continuity validation. The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions from the date of delivery. Units that exhibit failure within the warranty period are eligible for replacement or repair at no additional cost. For mission-critical applications requiring extended coverage or on-site spare management, contact NANKMOS directly to discuss tailored supply and support arrangements.
