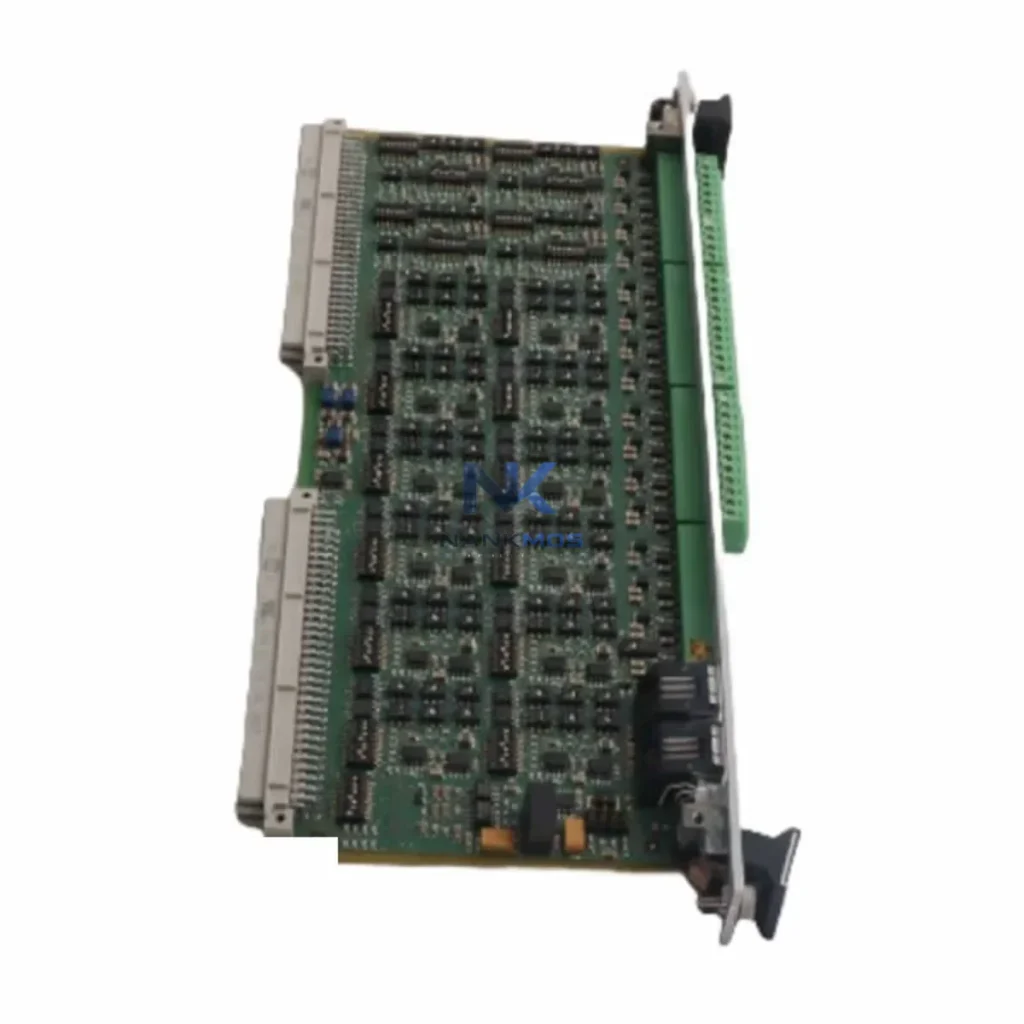

Yokogawa EP3-A DCS Analog Input Card

Product Details

EP3-A Product Description

The Yokogawa EP3-A is a high-performance analog input card engineered for the CENTUM VP Distributed Control System, operating natively over the Vnet/IP deterministic industrial Ethernet backbone. Designed for continuous process industries including oil and gas, petrochemical, power generation, and advanced manufacturing, the EP3-A serves as a critical node in the plant-wide data chain — converting field-level analog signals into structured, real-time process data that flows seamlessly across the control network to supervisory systems, historian platforms, and SCADA dashboards.

In a modern smart factory architecture, the EP3-A does not operate in isolation. It functions as the first link in a layered data pipeline: field transmitters and sensors deliver 4–20 mA or voltage signals to the EP3-A input channels, where signal conditioning and analog-to-digital conversion occur at the card level. The digitized process values are then transmitted over the Vnet/IP network — Yokogawa's proprietary high-speed, fault-tolerant industrial Ethernet protocol — to the CENTUM VP Field Control Station (FCS), where control logic executes in real time. From the FCS, data propagates upward through the Vnet/IP domain to the Human Interface Station (HIS), enabling operators to monitor live process variables, configure alarm thresholds, and initiate control actions from centralized HMI consoles.

The EP3-A integrates directly with the CENTUM VP system bus architecture, supporting hot-standby redundancy configurations when paired with redundant FCS units and dual Vnet/IP network segments. This design ensures that a single card or network fault does not interrupt process visibility or control continuity — a requirement in safety-critical and high-availability production environments. When deployed alongside the Yokogawa STARDOM FCN/FCJ remote I/O controllers or the ProSafe-RS Safety Instrumented System, the EP3-A contributes to a unified, multi-layer control and safety architecture where analog field data, digital status signals, and safety interlock states are all accessible from a single integrated engineering environment.

For facilities implementing Industrial IoT and smart manufacturing initiatives, the EP3-A's Vnet/IP connectivity enables direct data exchange with Yokogawa's Exaquantum plant historian and OPC DA/UA server interfaces. Process values captured by the EP3-A can be time-stamped, archived, and made available to MES platforms, energy management systems, and cloud-based analytics engines without requiring additional protocol gateways or data concentrators. This reduces integration complexity and latency in the data path from field sensor to enterprise dashboard.

Remote diagnostics and predictive maintenance workflows benefit significantly from the EP3-A's network-native design. Maintenance engineers can query card-level diagnostics — including channel health, signal quality indicators, and hardware fault codes — directly from the CENTUM VP engineering workstation or via the Yokogawa FieldMate device management tool, without physical access to the field cabinet. This capability supports condition-based maintenance strategies and reduces unplanned downtime in facilities where process continuity is paramount.

The EP3-A is also compatible with the Yokogawa Versatile Data Server (VDS) and can be integrated into multi-vendor SCADA environments through OPC server configurations, allowing process data from CENTUM VP domains to be shared with third-party supervisory platforms such as Wonderware System Platform, Ignition SCADA, or Emerson DeltaV historian bridges. In multi-DCS or hybrid automation architectures, this interoperability ensures that the EP3-A's analog input data remains accessible across system boundaries, supporting plant-wide data transparency and cross-system alarm correlation.

Every Yokogawa EP3-A unit supplied by NANKMOS undergoes pre-shipment functional verification, including channel-by-channel signal integrity checks and Vnet/IP communication validation. In-stock inventory is maintained to support urgent replacement and MRO procurement requirements. All units are covered by a 12-Month Warranty, with technical support available for integration, configuration, and commissioning assistance.

The EP3-A anchors the analog signal layer of a CENTUM VP-based smart factory data architecture. Field-mounted pressure transmitters, temperature sensors, and flow meters deliver analog process signals to the EP3-A input channels mounted in the CENTUM VP I/O nest. After analog-to-digital conversion, the EP3-A transmits structured process data over the Vnet/IP network to the Field Control Station (FCS), where the Yokogawa CP461-50 or CP451-50 CPU module executes continuous control logic — PID loops, cascade control, and feedforward strategies — at deterministic scan rates.

From the FCS, real-time process values propagate across the Vnet/IP domain to the Human Interface Station running CENTUM VP HIS software, where operators interact with process graphics, trend displays, and alarm summary screens. Simultaneously, the Yokogawa Exaquantum historian archives time-series data from the EP3-A channels, enabling long-term process analysis, regulatory compliance reporting, and KPI trending for production optimization teams.

In facilities requiring remote I/O expansion, the EP3-A architecture extends naturally to Yokogawa STARDOM FCN autonomous controllers deployed at remote field locations, with data aggregated back to the central CENTUM VP domain over Vnet/IP or standard Ethernet. For safety-critical loops, the ProSafe-RS Safety Instrumented System operates in parallel, with safety I/O modules monitoring the same field devices and cross-referencing process values against safety interlock logic — all within the same integrated engineering environment.

Edge connectivity is supported through Yokogawa's OPC UA server interface, which exposes EP3-A process data to edge computing platforms, IoT gateways, and cloud analytics pipelines. Industrial Ethernet switches with managed VLAN configurations segment the Vnet/IP traffic from general IT networks, maintaining deterministic communication performance while enabling secure data extraction for MES and ERP integration. The complete data chain — from field sensor through EP3-A analog input, FCS control execution, HIS visualization, historian archiving, and edge gateway export — represents a fully connected, transparent smart factory data infrastructure built on the EP3-A as its field-level foundation.

Many process plants face persistent data gaps caused by aging I/O infrastructure, protocol fragmentation, and isolated control domains. The EP3-A addresses these challenges directly within the CENTUM VP ecosystem. Where legacy analog I/O cards lack network diagnostics, the EP3-A provides channel-level health monitoring accessible from the engineering workstation — eliminating the need for manual field inspections to identify signal degradation or wiring faults.

Protocol fragmentation between DCS domains, SCADA platforms, and MES systems is resolved through the EP3-A's native Vnet/IP connectivity combined with OPC DA/UA server interfaces, enabling process data to flow from field level to enterprise systems without custom middleware or proprietary data bridges. Data silos between the CENTUM VP control domain and third-party historian or analytics platforms are eliminated through standardized OPC interfaces, ensuring that EP3-A analog data is available wherever it is needed across the plant information architecture.

Remote monitoring requirements — increasingly critical in facilities with distributed field cabinets or multi-site operations — are met through the EP3-A's network-native design, which allows remote diagnostics, channel configuration, and alarm acknowledgment from centralized control rooms or remote engineering workstations without physical cabinet access. Production line transparency is enhanced by integrating EP3-A data streams into SCADA dashboards and HMI trend displays, giving operations teams real-time visibility into process variable behavior, alarm histories, and equipment performance metrics. System expansion is straightforward: additional EP3-A cards can be added to existing CENTUM VP I/O nests without network reconfiguration, supporting phased capacity increases as production requirements grow.

Q: What communication protocol does the Yokogawa EP3-A use, and is it compatible with standard industrial Ethernet networks? A: The EP3-A operates over Vnet/IP, Yokogawa's proprietary deterministic industrial Ethernet protocol designed for the CENTUM VP DCS platform. Vnet/IP runs on standard 100 Mbps Ethernet physical infrastructure but uses Yokogawa's deterministic communication stack to guarantee real-time data delivery. It is not directly compatible with Modbus TCP, PROFINET, or EtherNet/IP without a protocol gateway, but process data can be exposed to third-party systems via OPC DA/UA server interfaces integrated into the CENTUM VP engineering environment.

Q: Does the EP3-A support redundant network configurations for high-availability applications? A: Yes. The EP3-A is compatible with CENTUM VP dual-redundant Vnet/IP network configurations, where two independent network segments provide automatic failover in the event of a cable fault, switch failure, or network segment interruption. When paired with a redundant FCS configuration using dual CPU modules such as the CP461-50, the system maintains uninterrupted control and data acquisition continuity — a requirement for continuous process industries where production downtime carries significant operational and safety consequences.

Q: Can the EP3-A be diagnosed and configured remotely without physical access to the field cabinet? A: Yes. Channel-level diagnostics, signal quality monitoring, and configuration parameters for the EP3-A are accessible remotely through the CENTUM VP engineering workstation and the Yokogawa FieldMate device management tool over the Vnet/IP network. Maintenance engineers can identify channel faults, review signal history, and update configuration parameters from the control room or a remote engineering station, supporting predictive maintenance workflows and reducing the frequency of physical field inspections.

Q: What warranty and pre-shipment testing does NANKMOS provide for the EP3-A? A: All Yokogawa EP3-A units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional verification, including analog channel signal integrity testing and Vnet/IP communication validation. In-stock units are available for immediate dispatch to support urgent MRO replacement and scheduled maintenance requirements. For technical inquiries, integration support, or volume procurement, contact NANKMOS at [email protected] or +86 18359268345.
