Yokogawa F3BU06-0N Base Module

Product Details

F3BU06-0N Product Description

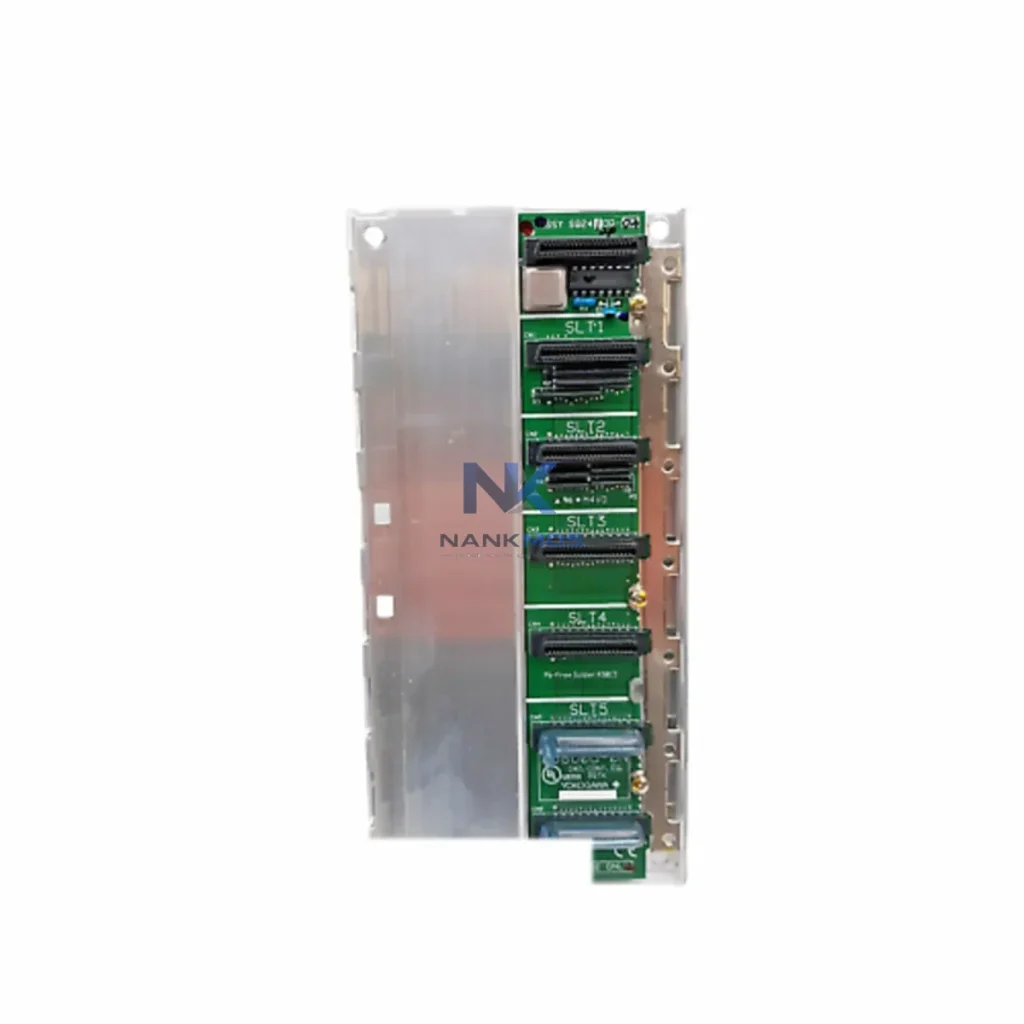

The Yokogawa F3BU06-0N is a 6-slot base module engineered for the FA-M3 modular PLC platform, purpose-built to serve as the structural and electrical backbone of energy-conscious industrial automation architectures. In modern smart production environments where energy cost, thermal load, and equipment utilization are under constant scrutiny, the F3BU06-0N delivers a stable, low-impedance backplane that minimizes internal power dissipation while supporting high-density I/O and communication module configurations. Its compact form factor and passive thermal design make it an ideal foundation for energy-optimized control panels across process manufacturing, discrete assembly, and utility automation sectors.

Designed to host up to six FA-M3 series modules — including CPU units, analog and digital I/O modules, communication modules, and specialty function cards — the F3BU06-0N enables system architects to build tightly integrated control nodes that reduce wiring overhead, shorten signal paths, and lower the aggregate power draw of the control cabinet. When paired with Yokogawa FA-M3 CPU modules such as the F3SP71-4N or F3SP76-7N, the base module supports high-speed scan cycles that reduce idle processing time and allow the controller to enter low-activity states between production bursts, directly contributing to measurable energy savings at the machine level.

The F3BU06-0N functions as the integration hub for a complete FA-M3 energy-aware control node. In a typical smart production line deployment, the base module hosts a combination of the FA-M3 F3SP76-7N CPU module for high-speed logic execution, FA-M3 analog input modules such as the F3AD08-6R for real-time current and voltage signal acquisition from field sensors, and FA-M3 digital output modules for actuator control. This tight co-location of processing and I/O on a single backplane eliminates the need for remote I/O drops in many applications, reducing the number of powered field nodes and the associated standby energy consumption.

For drive-intensive production lines, the F3BU06-0N-based control node communicates directly with Yokogawa or third-party variable frequency drives (VFDs) via FA-M3 communication modules supporting PROFIBUS-DP or Modbus RTU protocols. This allows the FA-M3 CPU to issue speed reference commands and read back drive status — including output frequency, motor current, and fault codes — enabling closed-loop load management that prevents motors from running at full speed during low-demand production phases. The result is a measurable reduction in motor energy consumption and thermal stress, extending motor and drive service life.

Power monitoring is further enhanced when the F3BU06-0N node is integrated with FA-M3 power measurement modules or external power quality analyzers connected via the FA-M3 Ethernet communication module. Real-time kWh data fed into the FA-M3 CPU allows the control program to implement demand-response logic — shedding non-critical loads during peak tariff windows and redistributing production tasks to off-peak periods. When this data is forwarded to a SCADA system or energy management platform via OPC-UA or Modbus TCP, plant engineers gain full visibility into per-machine energy consumption, enabling data-driven decisions on equipment scheduling and maintenance intervals.

HMI panels connected to the FA-M3 network — such as Yokogawa's touch-panel operator interfaces — can display live energy dashboards sourced directly from the F3BU06-0N control node, giving line operators immediate feedback on power draw, cycle efficiency, and alarm states. This operator visibility is a key enabler of behavioral energy savings, as operators can identify and report abnormal consumption patterns before they escalate into equipment failures or unplanned downtime events.

In high-throughput manufacturing environments, the F3BU06-0N contributes to production line energy optimization through several interconnected mechanisms. First, by consolidating control functions onto a single FA-M3 backplane, the module reduces the total number of powered control enclosures required per production cell, directly lowering the baseline electrical load of the automation infrastructure. Second, the FA-M3 platform's deterministic scan cycle — enabled by the stable backplane timing provided by the F3BU06-0N — allows production engineers to implement precise takt-time control, ensuring that motors, conveyors, and actuators are energized only during their required operational windows rather than running continuously in standby.

Thermal load management is a critical consideration in enclosed control panels, where excessive heat accelerates component aging and increases cooling energy consumption. The F3BU06-0N's passive backplane design generates minimal self-heating, reducing the thermal burden on panel cooling systems and allowing higher ambient temperature operation without additional HVAC investment. When combined with FA-M3 power supply modules that feature active power factor correction, the overall control node achieves a high power factor, reducing reactive power losses in the facility's electrical distribution system.

Predictive maintenance integration is another key energy optimization pathway enabled by the F3BU06-0N platform. FA-M3 specialty modules for vibration monitoring or temperature measurement can be installed in adjacent slots, feeding condition data into the CPU for trend analysis. Early detection of bearing wear, insulation degradation, or cooling fan failure prevents the energy waste associated with degraded equipment operating at reduced efficiency before eventual failure. Combined with inventory availability and rapid shipment of replacement FA-M3 modules, planned maintenance windows can be executed with minimal production disruption, preserving both energy efficiency and output throughput.

Every F3BU06-0N unit supplied by NANKMOS undergoes pre-shipment functional testing to verify backplane continuity, slot integrity, and power rail stability before dispatch. This ensures that the module performs to Yokogawa's published specifications from day one of installation, avoiding the energy waste and production losses associated with infant-failure events. Stock is maintained for prompt fulfillment, and all units are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions.

Q1: How does the F3BU06-0N contribute to measurable energy savings on a production line? The F3BU06-0N consolidates FA-M3 control modules onto a single low-dissipation backplane, reducing the number of powered control nodes, shortening signal paths, and enabling precise takt-time control via the FA-M3 CPU. When integrated with VFDs and power monitoring modules, the platform supports closed-loop load management that can reduce motor energy consumption during low-demand production phases. Actual savings depend on application configuration and baseline energy profile.

Q2: Which FA-M3 modules are compatible with the F3BU06-0N, and can it support communication modules for SCADA integration? The F3BU06-0N is compatible with the full range of Yokogawa FA-M3 series modules, including CPU units, digital and analog I/O modules, Ethernet communication modules, PROFIBUS-DP modules, Modbus RTU modules, and specialty function cards. FA-M3 Ethernet modules enable direct SCADA and energy management system integration via Modbus TCP or OPC-UA, supporting real-time energy data aggregation at the plant level.

Q3: Can the F3BU06-0N replace an existing FA-M3 base module, and what is the recommended replacement process? The F3BU06-0N is a standard FA-M3 6-slot base module and is a direct form-fit-function replacement for equivalent FA-M3 base units of the same slot count. The recommended replacement process involves powering down the control node, documenting the existing module slot assignments, transferring modules to the new base unit, and performing a functional verification test before returning the node to service. NANKMOS recommends consulting the FA-M3 hardware manual and verifying power supply module compatibility before replacement.

Q4: What does the 12-Month Warranty cover, and how is the testing process conducted before shipment? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Prior to dispatch, each F3BU06-0N unit undergoes pre-shipment functional testing covering backplane continuity, slot rail integrity, and power distribution verification. Units that do not meet Yokogawa's published specifications are quarantined and not shipped. In the event of a warranty claim, NANKMOS provides replacement or repair support — contact [email protected] for warranty service initiation.
