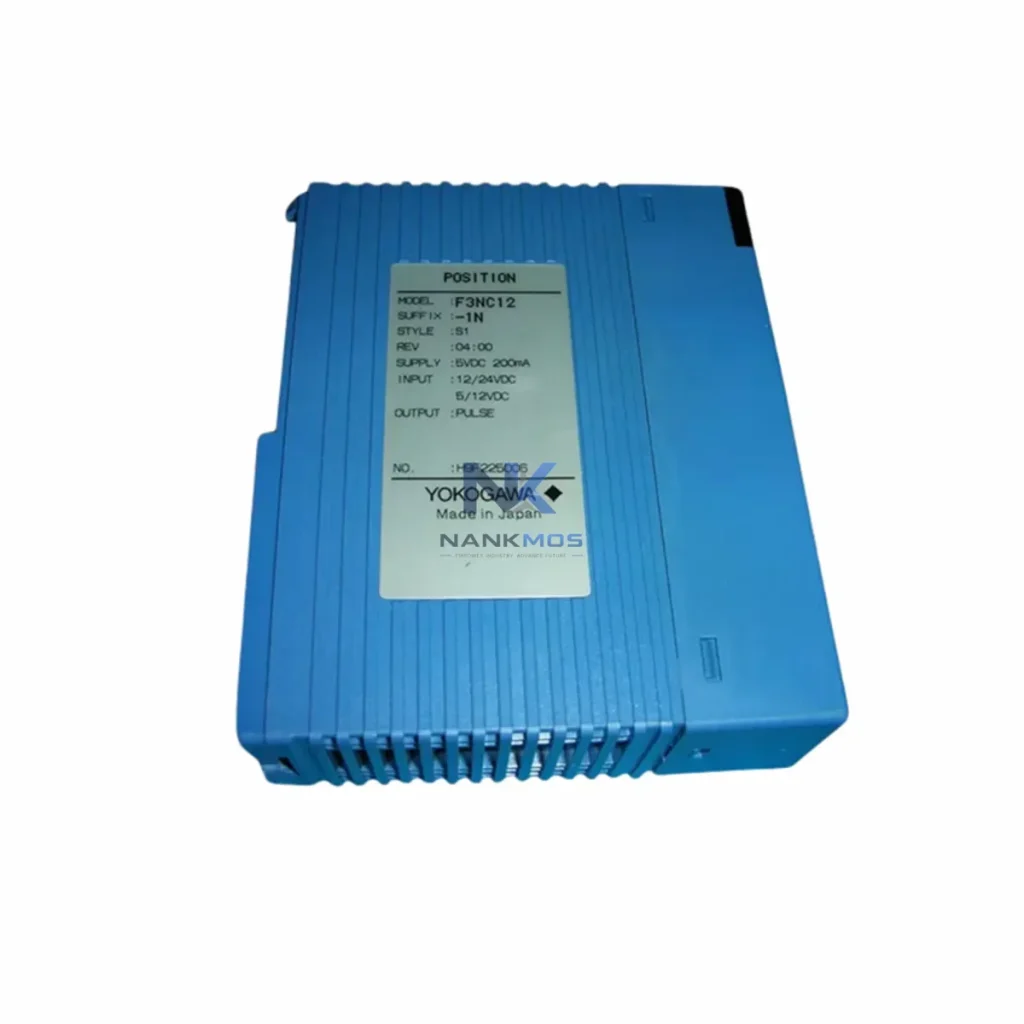

Yokogawa F3NC12-1N Position Control Module

Product Details

F3NC12-1N Product Description

The Yokogawa F3NC12-1N is a high-performance position control module engineered for seamless integration within the FA-M3 programmable controller platform. Designed to operate as a precision motion coordination node within multi-axis and multi-layer industrial control architectures, the F3NC12-1N delivers deterministic pulse output, encoder feedback processing, and synchronized axis management across demanding manufacturing and process automation environments. Its role within the FA-M3 rack system extends beyond standalone motion control — it functions as a contextually integrated component that reinforces system consistency, expands modular capability, and sustains long-term operational reliability across the full automation stack.

Within a complete FA-M3 automation platform, the F3NC12-1N operates as the motion coordination layer, interfacing directly with the FA-M3 CPU module — such as the F3SP71-4S or F3SP76-7S — via the high-speed internal backplane bus. This architecture eliminates external communication latency and ensures that position commands, feedback data, and interrupt signals are exchanged within deterministic scan cycles, which is critical for synchronized multi-axis applications in packaging lines, semiconductor handling, and precision assembly.

The power architecture supporting the F3NC12-1N is managed by the FA-M3 power supply module, such as the F3PU20-0S or F3PU30-0S, which provides regulated 5 VDC and 24 VDC rails across the base unit. Stable power delivery is essential for maintaining pulse output accuracy and encoder signal integrity, particularly in environments with variable load conditions or high-frequency switching from adjacent I/O modules.

Digital I/O coordination is handled by modules such as the F3XD32-3H (32-point DC input) and F3YD32-3H (32-point transistor output), which manage limit switch inputs, home position signals, and servo enable/disable commands. These I/O modules share the same FA-M3 backplane, allowing the F3NC12-1N to receive real-time positional interlocks without additional wiring or external relay logic.

For applications requiring network-level integration, the FA-M3 platform supports communication modules such as the F3LE12-1N (Ethernet module) and F3LP02-0N (PROFIBUS-DP module), enabling the F3NC12-1N's motion data to be accessible from SCADA systems, MES platforms, or remote HMI terminals. This contextual integration capability allows position feedback, axis status, and alarm data to be transmitted upstream without interrupting the real-time motion control loop.

HMI coordination is typically achieved through Yokogawa's WT Series or third-party SCADA terminals connected via Ethernet or serial links to the FA-M3 CPU. Operators can monitor axis positions, configure motion profiles, and acknowledge alarms through these interfaces, while the F3NC12-1N continues executing pre-loaded motion programs autonomously. This separation of HMI and motion execution layers enhances system resilience and reduces the risk of operator-induced motion faults.

In redundancy-critical applications, the FA-M3 platform supports hot-standby CPU configurations using paired F3SP71-4S modules with redundancy base units. While the F3NC12-1N itself operates in a single-module configuration, its integration within a redundant CPU architecture ensures that motion programs and axis parameters are mirrored to the standby CPU, enabling rapid failover without loss of position data. This design is particularly relevant in continuous process industries such as petrochemical, power generation, and water treatment, where unplanned motion stops carry significant operational risk.

Manufacturing & Assembly Lines: The F3NC12-1N is widely deployed in automotive component assembly, electronics manufacturing, and precision machining centers where multi-axis coordinated motion is required. Its deterministic pulse output and encoder feedback processing support high-speed pick-and-place operations, rotary indexing tables, and linear servo positioning with sub-millimeter repeatability.

Packaging & Material Handling: In packaging machinery, the F3NC12-1N manages servo-driven film feeders, label applicators, and carton erectors. Its ability to synchronize multiple axes via the FA-M3 backplane allows complex cam-profile motion sequences to be executed without external motion controllers, reducing panel footprint and simplifying commissioning.

Power & Energy Infrastructure: Substation automation and turbine governor control systems benefit from the F3NC12-1N's stable pulse output characteristics. In these environments, the module manages valve actuator positioning and generator excitation control, where precise angular positioning and fast response to setpoint changes are operationally critical.

Petrochemical & Process Control: In refinery and chemical plant environments, the F3NC12-1N supports reactor feed valve positioning, compressor surge control actuators, and distillation column tray positioning. Its compatibility with the FA-M3 redundancy architecture ensures that motion control functions remain available during CPU switchover events.

Water Treatment & Utilities: Pump station automation and water treatment facilities use the F3NC12-1N to manage variable-speed pump positioning, gate valve actuators, and chemical dosing systems. The module's low-maintenance design and long operational lifespan align with the extended service intervals typical of utility infrastructure.

Mining & Metallurgy: Conveyor positioning systems, ore crusher feed control, and smelter electrode positioning benefit from the F3NC12-1N's robust pulse output and encoder feedback capabilities. Its operation within the FA-M3 platform allows integration with existing plant-wide control networks without requiring dedicated motion controllers.

Q1: Is the F3NC12-1N compatible with all FA-M3 base unit configurations, and can it be mixed with other F3 series I/O modules in the same rack? Yes. The F3NC12-1N is designed for direct slot installation in any standard FA-M3 base unit, including the F3BU04-0N (4-slot), F3BU08-0N (8-slot), and F3BU16-0N (16-slot) configurations. It coexists with digital I/O modules (F3XD, F3YD series), analog modules (F3AD, F3DA series), and communication modules (F3LE, F3LP series) within the same rack. Slot assignment is managed through the FA-M3 system configurator, and the CPU automatically recognizes the F3NC12-1N during initialization. No hardware jumpers or DIP switch settings are required for basic slot recognition.

Q2: What servo amplifier types and communication protocols are supported for axis connection, and how is encoder feedback wired? The F3NC12-1N outputs differential pulse signals (line driver, RS-422 compatible) suitable for connection to most industry-standard servo amplifiers, including Yokogawa, Yaskawa Σ series, Mitsubishi MR-J series, and Panasonic MINAS A series. Encoder feedback is accepted as incremental A/B/Z phase signals via line driver input. The module does not support absolute encoder serial protocols (e.g., EnDat, BiSS) natively — absolute positioning applications should use the encoder's incremental output mode or an external absolute-to-incremental converter. Wiring should follow FA-M3 installation guidelines with shielded twisted-pair cables and proper grounding at the control panel earth bus.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and pre-shipment testing process? All F3NC12-1N units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. This warranty covers functional defects, communication failures, and hardware faults under normal operating conditions. Each unit undergoes pre-shipment functional testing, including pulse output verification, encoder input signal integrity check, and backplane communication validation. Units are shipped with original or equivalent protective packaging. Lead time for in-stock units is typically 3–7 business days for international destinations. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 for stock confirmation and shipping arrangements.
