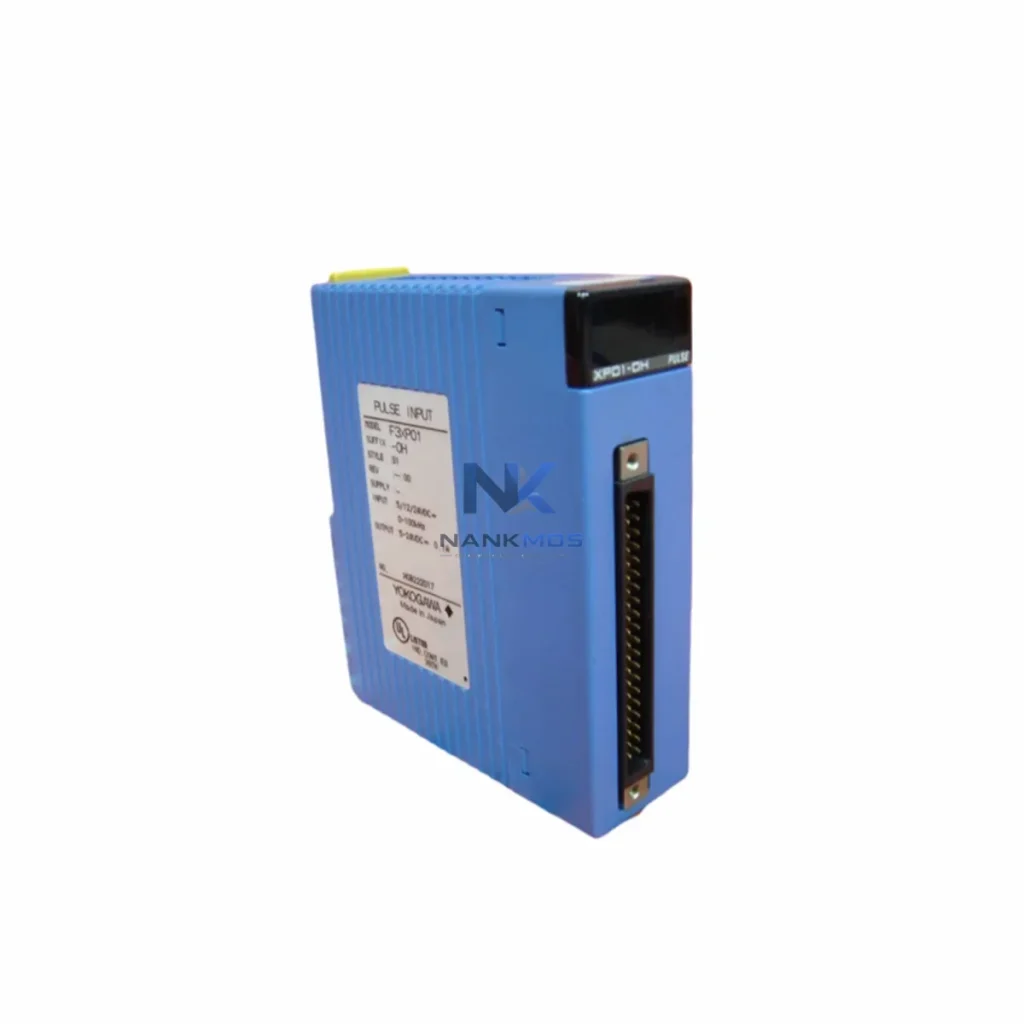

Yokogawa F3XP01-0H PLC Counter Module

Product Details

F3XP01-0H Product Description

The Yokogawa F3XP01-0H is a high-speed pulse counter module engineered for the FA-M3 programmable logic controller platform, purpose-built to deliver precise energy control and production line optimization in demanding industrial environments. Designed for integration into energy-aware automation architectures, the F3XP01-0H captures high-frequency pulse signals from encoders, flow meters, and power transducers with exceptional accuracy — enabling real-time load monitoring, motor feedback analysis, and consumption-based control decisions that directly reduce energy waste across the production floor.

In modern smart manufacturing, every watt counts. The F3XP01-0H addresses this by providing the FA-M3 CPU module with granular, timestamped count data that feeds directly into energy management logic. When paired with Yokogawa's F3SP series CPU modules, the counter data can be processed to trigger variable frequency drive (VFD) speed adjustments, modulate servo drive torque profiles, and coordinate with power monitoring modules to enforce load-shedding strategies during peak demand windows. This closed-loop approach eliminates the inefficiency of fixed-speed motor operation and reduces thermal load on drive cabinets — extending equipment service life and lowering cooling energy requirements.

The F3XP01-0H is most effective when deployed as part of a coordinated, power-aware automation architecture. In a typical FA-M3 control cabinet, the module slots alongside F3SP series CPU modules and F3YP analog output modules to form a tightly integrated control node. Pulse data from the F3XP01-0H feeds the CPU's energy management routines, which in turn issue speed reference signals to connected Yaskawa GA700 or Omron MX2 variable frequency drives — reducing motor energy consumption by matching drive output to actual process demand rather than running at fixed rated speed.

For servo-driven axes, the counter module's position and velocity feedback supports coordinated control with Yokogawa-compatible servo drive systems, enabling precise cycle-time management without over-driving motors during low-load phases. On the I/O side, F3XD series digital input modules and F3AD analog input modules complement the F3XP01-0H by capturing additional process signals — temperature, pressure, and flow — that inform the energy optimization logic running in the FA-M3 CPU.

Communication to higher-level systems is handled through FA-M3 communication modules supporting PROFIBUS, Modbus TCP, or EtherNet/IP, allowing the counter data and derived energy metrics to be published to SCADA platforms such as Yokogawa FAST/TOOLS or third-party historians. Operators monitoring the line via F3DU series HMI panels or remote SCADA workstations gain live visibility into pulse counts, accumulated energy consumption, and drive utilization rates — enabling informed decisions about load balancing and shift scheduling. Industrial power supply units such as the Yokogawa PW series ensure stable 24 VDC rail voltage to the FA-M3 rack, preventing counter errors caused by supply transients during motor start sequences.

Factories integrating the Yokogawa F3XP01-0H into their energy management strategy gain a measurable advantage in production line efficiency. By continuously counting pulses from flow meters, energy transducers, and rotary encoders, the module provides the FA-M3 controller with the real-time data needed to implement demand-responsive control — slowing conveyors during buffer-full conditions, reducing pump speeds during low-throughput periods, and coordinating motor start sequences to avoid simultaneous inrush current spikes that inflate peak demand charges.

Thermal load reduction is a direct benefit of this approach. When drives operate at reduced speed during partial-load conditions — guided by F3XP01-0H counter feedback — heat generation in motor windings and drive power stages decreases proportionally. This extends mean time between failures (MTBF) for both motors and drives, reduces the duty cycle of cooling fans and HVAC systems in the control room, and lowers the risk of thermal shutdowns that cause unplanned downtime.

Production line rhythm (takt time) stability also improves. The counter module's high-speed pulse capture ensures that the FA-M3 CPU receives accurate, low-latency feedback on machine cycle rates, enabling predictive adjustments before bottlenecks develop. Combined with predictive maintenance logic — where accumulated count data is trended to detect bearing wear or pump degradation — the F3XP01-0H contributes to a proactive maintenance posture that minimizes unscheduled stops and maximizes overall equipment effectiveness (OEE).

All units are shipped following functional verification and output testing. Stock is maintained for prompt dispatch, and each F3XP01-0H is covered by a 12-Month Warranty against manufacturing defects under normal operating conditions, providing procurement teams with the supply reliability and risk assurance required for critical production line deployments.

Q1: How does the F3XP01-0H contribute to energy savings on a production line?The F3XP01-0H provides the FA-M3 CPU with high-resolution pulse count data from energy transducers, flow meters, and encoders. This data enables demand-based control of variable frequency drives and servo systems — reducing motor speed during partial-load conditions, cutting unnecessary energy consumption, and lowering thermal stress on drive components. The result is measurable reduction in kWh consumption per production unit without sacrificing throughput.

Q2: Which control systems and drives is the F3XP01-0H compatible with?The F3XP01-0H is designed for the Yokogawa FA-M3 PLC platform and integrates with F3SP series CPU modules, F3AD/F3YP analog I/O modules, and FA-M3 communication modules supporting Modbus TCP, PROFIBUS, and EtherNet/IP. It is compatible with VFD systems from major manufacturers including Yaskawa and Omron when interfaced through the FA-M3 CPU's control logic, and supports SCADA connectivity via standard industrial protocols.

Q3: Can the F3XP01-0H replace an existing counter module, and what is the verification process?The F3XP01-0H is a direct-fit module for FA-M3 racks. Before replacement, confirm rack slot compatibility and FA-M3 firmware version with your system documentation. Each unit supplied by NANKMOS undergoes pre-shipment output testing to verify pulse counting accuracy and I/O integrity. For critical applications, we recommend a bench validation against your existing counter configuration before live installation.

Q4: What does the 12-Month Warranty cover, and how is inventory availability managed?The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage from incorrect installation, overvoltage, or environmental conditions outside the module's rated specifications. NANKMOS maintains standing inventory of the F3XP01-0H to support urgent procurement needs, with standard lead times available on request. Contact [email protected] or +86 18359268345 for stock confirmation and RMA procedures.
