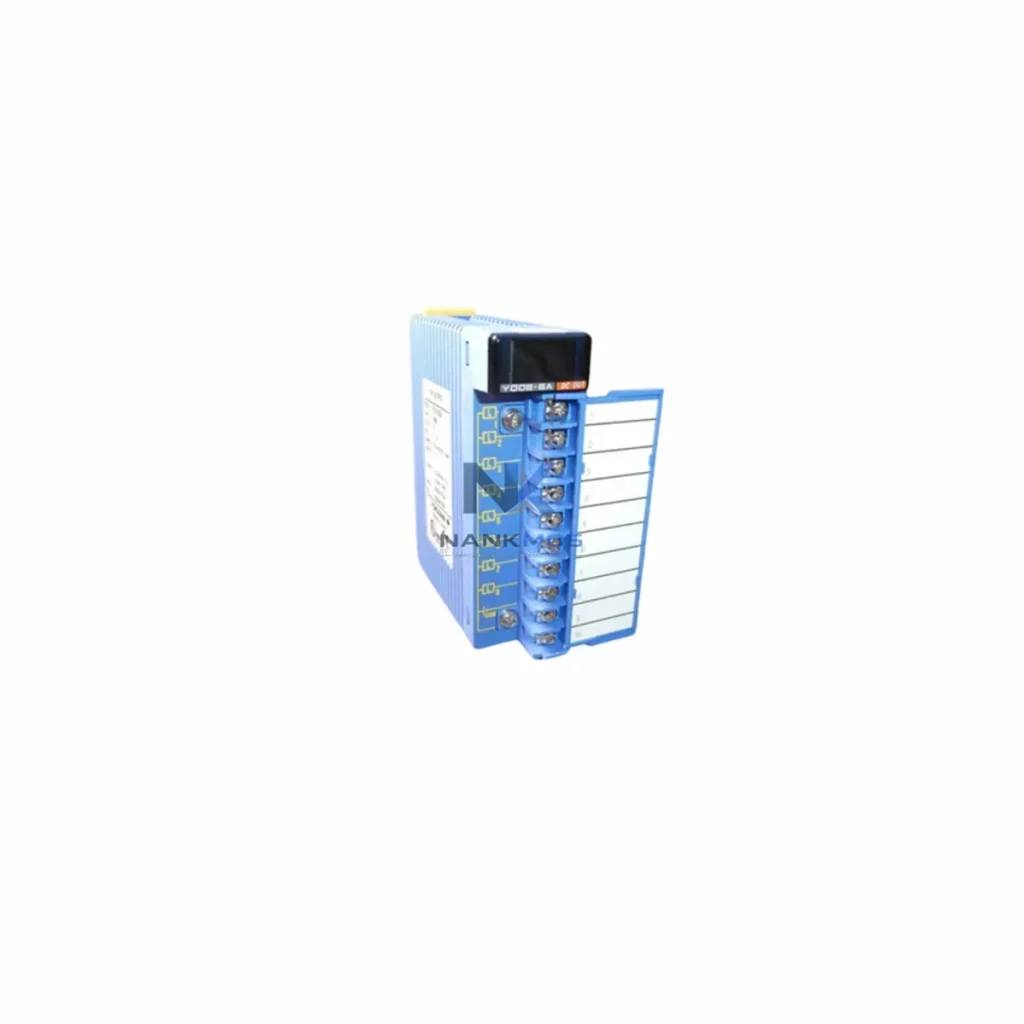

Yokogawa F3YD08-6A Digital Output Module

Product Details

F3YD08-6A Product Description

The Yokogawa F3YD08-6A is an 8-point transistor-type digital output module engineered for the FA-M3 Range-free Multi-controller platform. Designed to deliver precise, low-latency switching control across demanding industrial environments, the F3YD08-6A plays a central role in energy-aware automation architectures — enabling production lines to reduce unnecessary actuator energization, minimize idle-state power draw, and maintain tight synchronization between control commands and field devices. With a rated output voltage of 12–24 VDC and a per-point load current of up to 0.5 A, this module supports a broad range of inductive and resistive loads while maintaining thermal stability across continuous duty cycles.

In modern smart production lines, digital output modules are no longer passive switching devices — they are active participants in energy management. The F3YD08-6A integrates directly into the FA-M3 backplane, communicating with Yokogawa F3SP CPU modules (such as the F3SP71-4S or F3SP76-7S) via the internal high-speed bus. This tight coupling allows the CPU to execute energy-optimized ladder logic that sequences actuator activation only when process conditions demand it, eliminating unnecessary coil energization during idle periods.

When paired with Yokogawa F3LE12-0T Ethernet communication modules, the F3YD08-6A output states can be monitored in real time by SCADA systems or MES platforms, enabling supervisory-level energy dashboards to track actuator duty cycles and flag anomalous power consumption patterns. In drive-intensive applications, the module's output channels are commonly wired to the digital input terminals of Yaskawa GA700 or Siemens SINAMICS G120 variable frequency drives, where the FA-M3 CPU issues run/stop and speed-reference commands based on production throughput targets — ensuring motors operate only at the load levels required by the current production takt.

For power monitoring integration, the F3YD08-6A works alongside Yokogawa WT series power analyzers or third-party power measurement modules connected via Modbus RTU or PROFIBUS DP. When a power monitoring module detects that a motor or actuator group is drawing above its efficiency threshold, the FA-M3 CPU can use the F3YD08-6A to trigger load-shedding sequences — deactivating non-critical outputs in a defined priority order to bring total line power consumption back within target. This closed-loop energy control strategy is particularly effective in facilities operating under peak-demand tariff structures.

The module also coordinates with Yokogawa F3AD08-6A analog input modules and F3DA04-6A analog output modules to support mixed digital-analog control loops. In a typical motor control panel, the F3YD08-6A handles contactor enable/disable commands while the analog modules manage speed reference signals to servo amplifiers or soft starters. Yokogawa F3XD32-3H digital input modules provide feedback from field sensors — limit switches, proximity sensors, and encoder index pulses — completing the control loop and allowing the CPU to confirm actuator state before committing to the next production step. This confirmation-before-advance logic prevents wasted motion cycles and reduces mechanical wear, both of which contribute to lower energy consumption per unit produced.

In HMI-integrated environments, operators interact with the system through Yokogawa UM33A or compatible touch panel HMIs, where real-time output channel status, cycle counts, and energy consumption trends are displayed. Maintenance teams can use HMI screens to manually force individual F3YD08-6A output points during commissioning or troubleshooting without interrupting the broader production sequence — a capability that reduces diagnostic downtime and keeps energy-intensive restart sequences to a minimum.

Factory energy optimization begins at the field device level. The Yokogawa F3YD08-6A contributes to line-wide energy reduction through several mechanisms. First, its sub-millisecond switching response allows the FA-M3 CPU to implement precise on-time control for solenoid valves, contactors, and relay coils — replacing fixed-duration energization timers with demand-driven activation logic. In pneumatic systems, this translates directly to reduced compressor duty cycles and lower compressed-air energy consumption.

Second, the module's low OFF-state leakage current (≤ 0.1 mA per point) ensures that deactivated outputs do not contribute measurable phantom loads to the 24 VDC field power supply. In large installations with dozens of output modules, this characteristic compounds into meaningful reductions in field power supply sizing requirements and associated heat dissipation.

Third, the F3YD08-6A supports the FA-M3's multi-task execution model, which allows energy management routines to run as background tasks without impacting the deterministic scan time of the primary control program. This means energy optimization logic — such as load rotation, standby sequencing, and peak-shaving algorithms — can be implemented directly in the PLC without requiring a separate energy management controller, reducing system complexity and hardware cost.

From a predictive maintenance perspective, the module's output channel diagnostics (accessible via FA-M3 system function blocks) allow the CPU to log actuator activation counts and cumulative on-time per channel. These metrics feed into maintenance scheduling systems, enabling condition-based replacement of contactors and solenoids before failure — avoiding unplanned downtime events that force energy-intensive cold-start restart sequences. Combined with inventory readiness and pre-shipment functional testing at NANKMOS, the F3YD08-6A is delivered verified and ready for immediate integration, minimizing commissioning time and accelerating return to productive operation.

Every F3YD08-6A unit supplied by NANKMOS undergoes outgoing quality inspection including point-by-point output switching verification, isolation resistance testing, and power consumption measurement under rated load. Units are shipped with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence to plan long-horizon maintenance budgets without unplanned replacement cost exposure.

Q1: How does the F3YD08-6A contribute to measurable energy savings on a production line? The F3YD08-6A enables demand-driven actuator control through the FA-M3 CPU, replacing fixed-timer energization with condition-based switching. Combined with its low leakage current design, this reduces both active and standby power consumption at the field device level. When integrated with power monitoring modules and VFD control logic, the module participates in closed-loop load management that can reduce line energy consumption during partial-load production periods.

Q2: Is the F3YD08-6A compatible with third-party PLCs or drives outside the Yokogawa FA-M3 ecosystem? The F3YD08-6A is a dedicated FA-M3 backplane module and requires a compatible FA-M3 base unit (F3BU series) and CPU module for operation. Its output terminals are standard 24 VDC transistor outputs and can drive any field device within the rated current and voltage specifications, including contactors, relay inputs on Siemens or Mitsubishi drives, and solenoid valve coils. For cross-platform integration, the FA-M3 communication modules (Modbus, PROFIBUS, EtherNet/IP) bridge the FA-M3 system to third-party control networks.

Q3: What is the recommended replacement or upgrade path if the F3YD08-6A reaches end of service life? Yokogawa's FA-M3 platform maintains long-term module compatibility across generations. The F3YD08-6A can be replaced in-kind with a current-production unit without CPU firmware changes in most configurations. For applications requiring higher point density or enhanced diagnostics, the F3YD16-6A (16-point variant) is a direct form-factor upgrade. NANKMOS maintains stock of both variants and can advise on compatibility based on your specific base unit and CPU revision.

Q4: What testing and warranty coverage is provided with NANKMOS-supplied F3YD08-6A units? All F3YD08-6A units supplied by NANKMOS are subject to pre-shipment functional testing covering output switching, isolation, and load current verification. Each unit is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under specified operating conditions. Warranty claims are processed directly through NANKMOS with replacement or repair turnaround coordinated to minimize production impact. Contact [email protected] for warranty registration and support.
