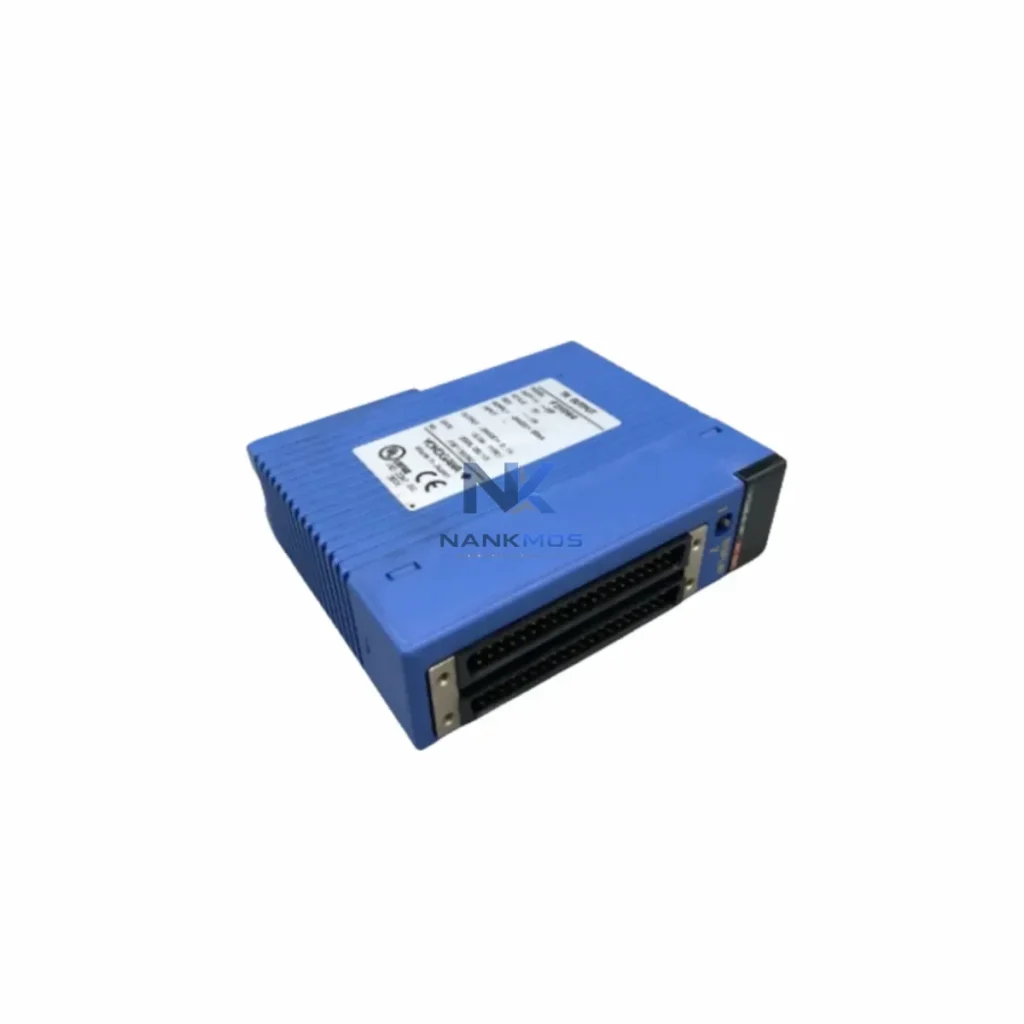

Yokogawa F3YD64-1F Digital Output Module

Product Details

F3YD64-1F Product Description

The Yokogawa F3YD64-1F is a 64-point transistor digital output module engineered for the FA-M3 programmable controller platform and STARDOM network-based control systems. Designed to serve as a high-density, network-ready output interface, the F3YD64-1F bridges the gap between field-level actuators and upper-layer automation systems — enabling seamless data flow across the entire smart factory architecture. From discrete signal output to real-time status feedback, this module plays a central role in building transparent, responsive, and scalable industrial networks.

In modern smart factory deployments, the ability to transmit accurate output states across multiple protocol layers is no longer optional — it is foundational. The F3YD64-1F supports integration with Ethernet/IP, PROFIBUS-DP, and Modbus TCP/RTU communication frameworks, making it compatible with a wide range of SCADA platforms, HMI systems, and edge computing gateways. Whether deployed in process automation, discrete manufacturing, or energy management, this module delivers the output density and network transparency required for Industry 4.0 connectivity.

In a fully integrated smart factory, the F3YD64-1F operates as a critical output node within a multi-layer data chain. Signal acquisition begins at the sensor and field device level — where devices such as Yokogawa EJA-series pressure transmitters and YTA-series temperature transmitters feed real-time process values into the FA-M3 controller via analog input modules like the F3AD08-1N or F3AD04-1N. The FA-M3 CPU — for example the F3SP71-4N or F3SP76-7N — processes these inputs and issues discrete control commands through the F3YD64-1F output module to downstream actuators, motor starters, solenoid valves, and variable frequency drives.

On the network side, the FA-M3 system communicates upstream via the F3LE01-5T Ethernet communication module, transmitting I/O status and alarm data to SCADA platforms such as Yokogawa FAST/TOOLS or third-party systems via Modbus TCP. For PROFIBUS-DP environments, the F3LP02-0N PROFIBUS master module enables the FA-M3 to coordinate with distributed I/O stations and intelligent field devices across the plant floor. The F3YD64-1F output states are continuously mirrored to the SCADA historian, enabling real-time data visualization, trend analysis, and alarm management at the operator workstation or HMI panel.

Edge computing gateways — such as the Yokogawa STARDOM FCN autonomous controller — can aggregate output status data from multiple F3YD64-1F modules and relay structured datasets to cloud-based MES or ERP platforms via OPC-UA or MQTT. This architecture supports remote diagnostics: maintenance engineers can monitor individual output channel states, detect welded contacts or open-circuit faults, and initiate corrective actions without physical site access. When integrated with the F3BU04-0N base unit and appropriate power supply modules such as the F3PU20-0S, the F3YD64-1F forms a compact, high-density output subsystem capable of controlling up to 64 discrete field devices from a single backplane slot.

For applications requiring mixed I/O density, the F3YD64-1F can be combined with digital input modules such as the F3XD64-3H to create balanced I/O racks that support both signal acquisition and actuation within the same FA-M3 chassis. This modular approach reduces wiring complexity, simplifies cabinet design, and accelerates commissioning timelines — key advantages in greenfield smart factory projects and brownfield retrofit deployments alike.

Many industrial sites face persistent challenges around protocol fragmentation, data silos, and limited remote visibility. The F3YD64-1F addresses these issues directly through its native integration with the FA-M3 communication architecture. When legacy equipment communicates over Modbus RTU while newer systems use Ethernet/IP, the FA-M3 platform — with appropriate gateway modules — acts as a protocol bridge, normalizing data formats and ensuring consistent output command delivery regardless of the upstream protocol stack.

Data island problems — where output states are visible only at the local PLC level — are eliminated by routing F3YD64-1F channel status through the FA-M3 Ethernet module to centralized SCADA or historian systems. Operators gain full production line transparency: every output activation, deactivation, and fault event is timestamped, logged, and available for post-event analysis. Alarm tracking becomes systematic rather than reactive, with configurable thresholds triggering notifications to HMI panels, email systems, or mobile devices via SCADA middleware.

System expansion is straightforward: additional F3YD64-1F modules can be added to the FA-M3 rack without reconfiguring the network topology, and the STARDOM FCN architecture supports hot-standby redundancy for mission-critical output control. Remote diagnostics capabilities allow engineering teams to perform channel-level fault isolation, review output cycle counts, and validate actuator response times — all from a centralized control room or remote access terminal.

Q1: What communication protocols does the Yokogawa F3YD64-1F support for SCADA integration? The F3YD64-1F operates within the FA-M3 platform, which supports Ethernet/IP, PROFIBUS-DP, Modbus TCP, and Modbus RTU via dedicated communication modules. This enables direct integration with major SCADA systems including Yokogawa FAST/TOOLS, Wonderware, and Ignition, as well as OPC-UA-compatible historian platforms.

Q2: How does the F3YD64-1F perform in high-speed output switching applications? The transistor output design of the F3YD64-1F supports rapid switching cycles with low response latency, making it suitable for high-frequency discrete control tasks such as conveyor sequencing, valve actuation, and motor starter control. Network transmission latency is managed at the FA-M3 CPU scan cycle level, ensuring deterministic output response times.

Q3: Can the F3YD64-1F be used in redundant control architectures? Yes. When deployed within a STARDOM FCN hot-standby configuration or an FA-M3 dual-CPU redundancy setup, the F3YD64-1F participates in seamless failover operations. Output states are synchronized between primary and standby controllers, ensuring uninterrupted field device control during controller switchover events.

Q4: What warranty and pre-shipment testing does the F3YD64-1F include? All F3YD64-1F units supplied by NANKMOS are covered by a 12-Month Warranty and undergo functional output testing prior to shipment. Each module is verified for channel integrity, transistor switching performance, and backplane communication before dispatch, ensuring reliable operation from day one of installation.
