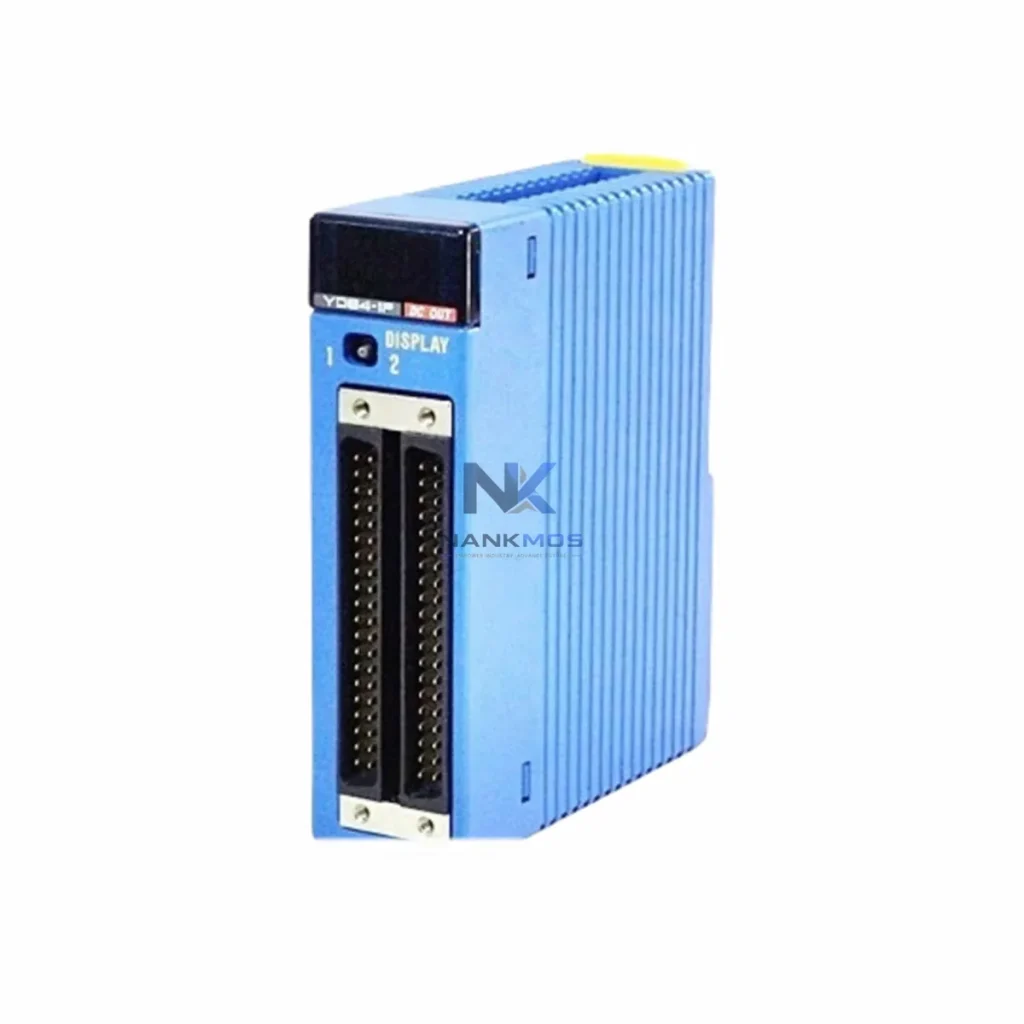

Yokogawa F3YD64-1P Digital Output Module

Product Details

F3YD64-1P Product Description

The Yokogawa F3YD64-1P is a 64-channel digital output module engineered for the STARDOM FCN/FCJ controller platform — a distributed control architecture purpose-built for process automation, remote monitoring, and smart factory data integration. In modern industrial environments where every field device must participate in a unified data chain, the F3YD64-1P serves as a critical output node that bridges PLC logic decisions to physical actuators, relays, solenoid valves, and motor starters across the plant floor.

Deployed within the STARDOM FCN autonomous controller rack, the F3YD64-1P receives command signals from the FCN CPU module and drives 64 discrete output channels simultaneously — enabling high-density control of production lines, conveyor systems, valve manifolds, and safety interlocks. Its tight integration with the STARDOM I/O bus ensures deterministic signal delivery with minimal latency, a prerequisite for real-time process control in chemical, oil & gas, water treatment, and power generation facilities.

In a fully connected smart factory, the F3YD64-1P occupies a decisive position in the output layer of the automation data chain. The data flow begins upstream at the sensor and field device level — where instruments such as pressure transmitters, flow meters, and proximity switches feed analog and digital signals into the STARDOM FCN remote I/O modules (e.g., F3AD08-1N analog input or F3XD32-3H digital input modules). These raw field signals are processed by the FCN CPU module, which executes control logic and issues output commands routed through the I/O bus to the F3YD64-1P.

The FCN controller communicates upstream via Modbus TCP or OPC-UA to SCADA platforms such as Yokogawa FAST/TOOLS or third-party systems like Wonderware InTouch and Ignition SCADA. HMI panels — including Yokogawa's own operator stations or standalone industrial touchscreens — display real-time output status, alarm states, and process variables drawn directly from the FCN data model. This bidirectional data path allows operators to issue manual override commands from the HMI, which propagate through the SCADA layer, into the FCN CPU, and ultimately toggle specific channels on the F3YD64-1P within milliseconds.

For multi-node plant architectures, the FCN controller can be networked with additional STARDOM FCJ compact controllers or third-party PLCs via industrial Ethernet switches — such as managed switches supporting IEEE 802.3 and VLAN segmentation — ensuring network stability and traffic isolation between control and monitoring domains. Edge gateways installed at the network boundary aggregate data from multiple FCN nodes and forward structured payloads to cloud-based MES or ERP systems, enabling plant-wide production visibility and KPI dashboards.

Variable frequency drives (VFDs) controlling pump motors and fans receive start/stop and speed-reference signals from the F3YD64-1P output channels, while drive status feedback (fault, running, ready) returns via digital input modules in the same FCN rack. Power supplies dedicated to the STARDOM I/O rack — such as the F3PU01-0S power unit — ensure stable 24 VDC bus voltage across all I/O modules, including the F3YD64-1P, even under high-channel-count load conditions. This end-to-end architecture — from field sensor through I/O module, controller, network switch, SCADA, and edge gateway — forms the backbone of a transparent, data-driven smart factory.

Many industrial sites still operate with fragmented control islands: legacy PLCs using proprietary protocols, I/O modules that cannot report status upstream, and SCADA systems that lack real-time visibility into output states. The F3YD64-1P, deployed within the STARDOM FCN platform, directly addresses these gaps.

Protocol Fragmentation: The FCN controller's native support for Modbus TCP and OPC-UA allows the F3YD64-1P's output states to be exposed to any SCADA or MES platform that supports these open protocols — eliminating the need for proprietary gateways or custom drivers. Sites migrating from older Yokogawa CENTUM VP DCS systems can integrate FCN nodes as remote I/O extensions, preserving existing SCADA investments while expanding digital output capacity.

Data Silos and Production Transparency: Each output channel state is logged in the FCN controller's event buffer and forwarded to the SCADA historian, creating a complete audit trail of actuator commands. This enables root-cause analysis of process deviations, alarm tracking, and shift-level production reporting — transforming isolated output signals into actionable plant intelligence.

Remote Monitoring and Diagnostics: The FCN platform supports remote engineering access via standard Ethernet, allowing maintenance engineers to monitor F3YD64-1P channel states, diagnose wiring faults, and verify output integrity without physical site visits. Alarm conditions — such as output short-circuit or load disconnection — are surfaced in real time on the SCADA HMI and forwarded via email or SMS notification to on-call technicians.

System Scalability: The modular STARDOM FCN rack architecture allows additional I/O modules to be added alongside the F3YD64-1P as production lines expand — including analog output modules, communication modules, and specialty I/O — without redesigning the control network. This scalability protects capital investment and shortens commissioning time for future plant expansions.

Shipment Testing and Quality Assurance: Every F3YD64-1P unit supplied by NANKMOS undergoes pre-shipment functional verification, confirming channel-level output integrity before dispatch. Combined with a 12-Month Warranty, this ensures operational confidence from day one of installation.

Q1: What communication protocols does the Yokogawa F3YD64-1P support for SCADA integration? The F3YD64-1P itself communicates via the STARDOM FCN internal I/O bus. At the controller level, the FCN CPU module exposes output data to external SCADA and MES systems via Modbus TCP and OPC-UA — the two most widely supported open protocols in industrial automation. This makes the F3YD64-1P compatible with Yokogawa FAST/TOOLS, Ignition, Wonderware, and any OPC-UA-capable historian or dashboard platform.

Q2: How does the F3YD64-1P maintain network stability in high-density output applications? The module operates on the deterministic STARDOM I/O bus, which provides fixed-cycle scan times independent of Ethernet network load. Output commands are executed within the FCN controller's control cycle — typically 10–100 ms depending on configuration — ensuring consistent actuator response even when the upstream Ethernet network experiences transient congestion. Managed industrial switches with QoS prioritization further protect control traffic from monitoring or IT traffic.

Q3: Can the F3YD64-1P be used for remote diagnostics and predictive maintenance? Yes. The FCN controller logs all output channel state changes, fault events, and communication errors to its internal event buffer, which is accessible remotely via the engineering workstation or SCADA system. Maintenance teams can monitor output load conditions, detect wiring anomalies, and schedule preventive maintenance based on historical output cycle counts — all without interrupting production.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the F3YD64-1P? All F3YD64-1P units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify all 64 output channels operate within specification. In-stock units typically ship within 3–5 business days. For urgent project requirements, expedited shipping options are available — contact [email protected] for availability and lead time confirmation.
