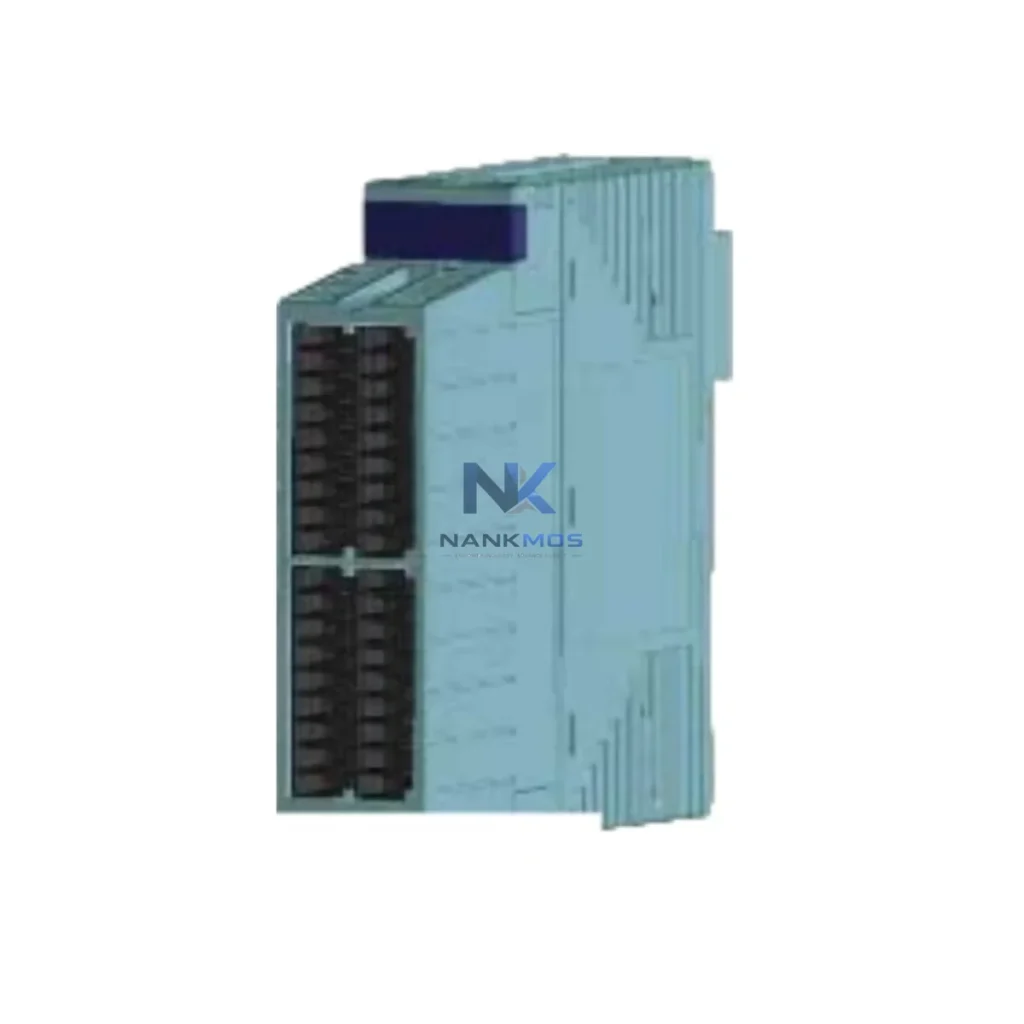

Yokogawa NFAF135-S50 Analog Output Module

Product Details

NFAF135-S50 Product Description

The Yokogawa NFAF135-S50 is a precision analog output module engineered for seamless contextual integration within the CENTUM VP distributed control system (DCS) architecture. Designed to deliver stable, high-resolution 4–20 mA current loop signals to field actuators, control valves, and variable-speed drives, the NFAF135-S50 occupies a critical position in the output layer of any CENTUM VP-based automation platform. Its role extends beyond simple signal conversion — it is a foundational element that ensures signal fidelity, loop integrity, and deterministic response across the full control hierarchy.

In modern industrial automation, the analog output module is the final authoritative link between the controller's computed setpoint and the physical process. The NFAF135-S50 fulfills this role with the engineering precision that Yokogawa's CENTUM VP platform demands, supporting multi-loop process control in power generation, petrochemical refining, oil and gas processing, water treatment, mining, metallurgy, marine propulsion, and continuous manufacturing environments.

The NFAF135-S50 achieves its full engineering value when deployed as part of a complete CENTUM VP field control station (FCS). Within this architecture, the module slots into the node unit alongside complementary I/O modules such as the NFAI135 analog input module, which handles process variable acquisition, and the NFDV151 digital output module for discrete actuator control. The FCS backplane — typically the AFV10D or AFV30D node unit — provides the ESB bus interconnect that synchronizes all I/O modules with the ACF11 or ACF12 field control unit (FCU), the computational core of the CENTUM VP control loop.

Power integrity for the NFAF135-S50 and its co-resident modules is maintained by the PW481 or PW482 power supply units, which provide redundant 24 VDC rails to the node unit. In high-availability installations, dual power supply configurations eliminate single points of failure at the power layer, ensuring that analog output continuity is maintained even during supply module maintenance or fault events.

At the communication layer, the CENTUM VP architecture uses the V-net/IP control network to link field control stations with the HIS (Human Interface Station) and the EWS (Engineering Workstation). The NFAF135-S50's output values are commanded in real time via this deterministic network, with scan cycle times configurable to match process dynamics — from fast-loop flow control to slow-loop temperature regulation. For plants integrating legacy FOUNDATION Fieldbus or HART devices alongside the NFAF135-S50's conventional 4–20 mA outputs, the ALF111 FOUNDATION Fieldbus communication module provides a unified I/O strategy within the same FCS chassis.

In redundant control architectures, the NFAF135-S50 is paired with a standby FCU — such as a second ACF12 unit — configured in dual-redundant mode. Bumpless transfer between primary and standby controllers ensures that analog output signals remain stable during controller switchover, a critical requirement in continuous process industries where output transients can trigger process upsets or safety system activations.

For plants running Yokogawa's Plant Resource Manager (PRM) asset management software, the NFAF135-S50 participates in device health monitoring workflows. PRM aggregates diagnostic data from HART-enabled field devices connected to the module's output channels, enabling predictive maintenance scheduling without interrupting live process control. This integration reduces unplanned downtime and extends the operational life of both the module and the connected field instrumentation.

Power Generation: In combined-cycle and coal-fired power plants, the NFAF135-S50 drives control valve positioners on steam turbine bypass systems, boiler feedwater control loops, and combustion air damper actuators. Its 16-bit resolution ensures fine-grained setpoint tracking across the full 4–20 mA range, supporting tight steam temperature and pressure regulation under variable load conditions.

Petrochemical Refining: Refinery distillation columns and reactor temperature control loops rely on stable, drift-free analog output signals to maintain product quality and process safety. The NFAF135-S50's channel isolation prevents ground loop interference between adjacent control loops — a common source of setpoint deviation in dense I/O installations typical of refinery control rooms.

Oil and Gas Processing: Upstream and midstream facilities deploy the NFAF135-S50 in wellhead pressure control, separator level control, and compressor anti-surge systems. Its compatibility with CENTUM VP's redundant FCS architecture ensures that critical output signals remain available during controller maintenance windows, supporting continuous production without process shutdown.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use the NFAF135-S50 to control chemical dosing pumps, aeration blower variable-speed drives, and filter backwash valve actuators. The module's stable output characteristics support precise chemical feed ratios, directly impacting effluent quality compliance.

Mining and Metallurgy: Ore processing facilities and smelters deploy the NFAF135-S50 in flotation cell level control, furnace temperature regulation, and conveyor speed control loops. The module's robust operating temperature range and vibration tolerance make it suitable for the demanding electrical environments found in mining control rooms.

Marine Propulsion and Offshore: Vessel automation systems and offshore platform control networks use the NFAF135-S50 within CENTUM VP-based integrated automation systems (IAS) to control propulsion governor setpoints, ballast pump speed references, and cargo loading valve positions. Its compact form factor and backplane-powered design minimize panel space requirements in space-constrained marine installations.

Q1: Is the NFAF135-S50 compatible with both CENTUM VP and CENTUM CS 3000 field control stations? The NFAF135-S50 is designed for CENTUM VP node unit installations. Compatibility with CENTUM CS 3000 hardware depends on the specific node unit generation and backplane revision. For cross-generation migration projects, Yokogawa's system migration tools and the CENTUM VP migration guide should be consulted to confirm I/O module interoperability. NANKMOS can assist with compatibility verification prior to order placement.

Q2: Can the NFAF135-S50 be hot-swapped during live process operation? CENTUM VP field control stations support online module replacement (hot-swap) when the FCS is configured with redundant I/O or when the associated control loops are placed in manual mode prior to module extraction. The NFAF135-S50 follows standard CENTUM VP I/O replacement procedures. Pre-shipment testing at NANKMOS ensures that replacement modules are verified against factory specifications before dispatch, minimizing commissioning time during live plant maintenance windows. All units are covered by a 12-Month Warranty from the date of shipment.

Q3: What is the lead time and supply assurance for the NFAF135-S50? NANKMOS maintains in-stock inventory of the NFAF135-S50 to support urgent plant maintenance and capital project schedules. Units are pre-shipment tested and dispatched with full documentation. The 12-Month Warranty covers manufacturing defects and functional performance. For bulk procurement or long-term supply agreements supporting multi-year maintenance contracts, contact NANKMOS directly to discuss inventory reservation and scheduled delivery programs.
