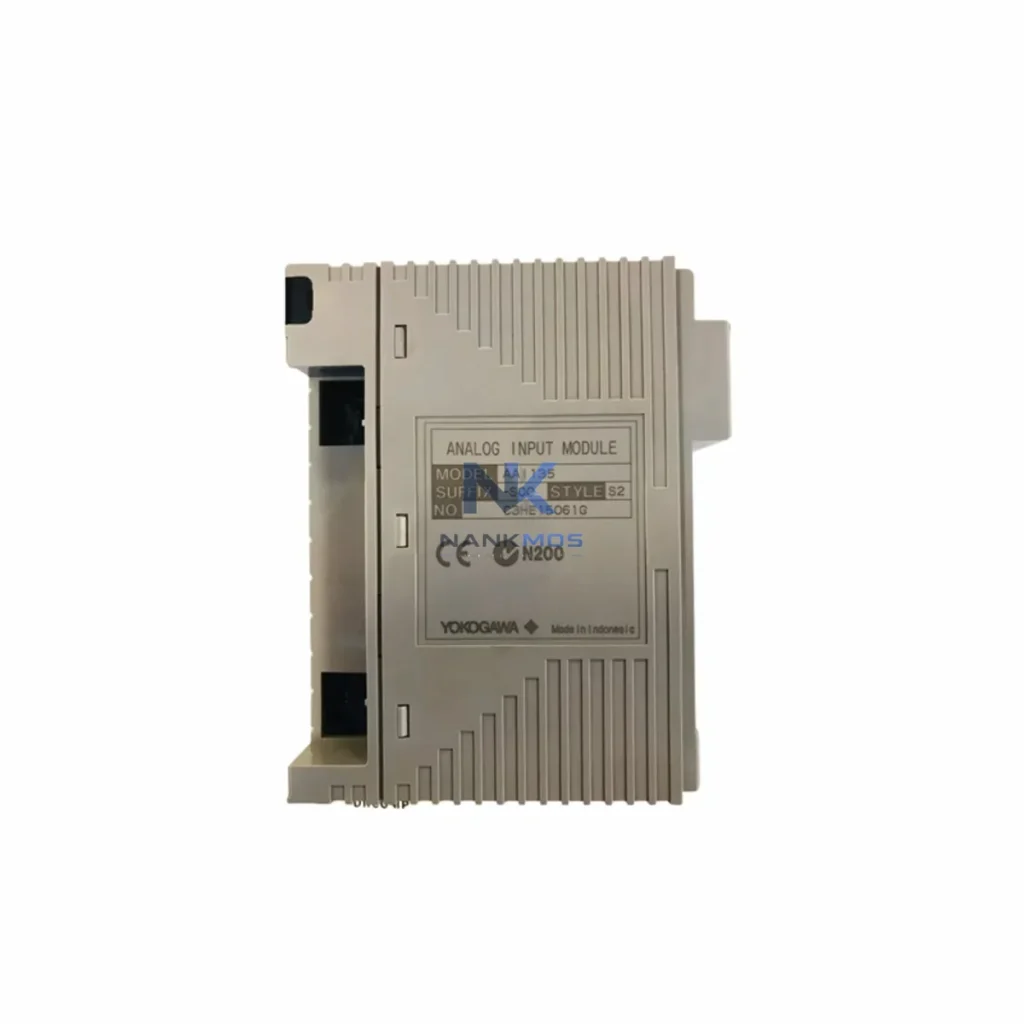

Yokogawa NFAI135-S51 S2 Analog Input Module

Product Details

NFAI135-S51 S2 Product Description

The Yokogawa NFAI135-S51/S2 is a high-precision analog input module engineered for the Centum VP Distributed Control System (DCS), delivering reliable 4–20 mA and HART signal acquisition at the heart of modern smart factory data architectures. Designed for continuous process industries — including oil & gas, petrochemical, power generation, and advanced manufacturing — this module serves as a critical node in the plant-wide data chain, bridging field instrumentation with supervisory control and real-time analytics platforms.

In today's connected factory environment, the integrity of analog signal acquisition directly determines the quality of every downstream decision. The NFAI135-S51/S2 captures process variables from field transmitters — pressure, temperature, flow, and level sensors — and converts them into high-fidelity digital data streams that feed the Centum VP controller bus. From there, data propagates upward through the plant network to SCADA servers, historian databases, and HMI workstations, enabling operators to monitor, trend, and respond to process conditions in real time.

The NFAI135-S51/S2 sits at the signal acquisition layer of a multi-tier industrial data architecture. Field instruments — including Yokogawa EJA-series differential pressure transmitters, Rosemount 3051 pressure transmitters, and Endress+Hauser Promag electromagnetic flowmeters — deliver 4–20 mA analog signals directly to the module's isolated input channels. The HART communication layer superimposed on the same two-wire loop allows the Centum VP system to simultaneously read process values and query device diagnostics, eliminating the need for separate diagnostic wiring infrastructure.

Within the Centum VP cabinet, the NFAI135-S51/S2 communicates over the high-speed V-net/ER backplane bus to the Field Control Station (FCS), where real-time control logic — PID loops, cascade control, and interlock sequences — processes the acquired data. The FCS then forwards consolidated process data to the Centum VP HIS (Human Interface Station), providing operators with live trend displays, alarm management, and process graphics. For plants requiring broader data distribution, the Exaopc OPC-UA server bridges Centum VP data to third-party SCADA platforms such as Wonderware System Platform, AVEVA PI System, Ignition by Inductive Automation, and iFIX, enabling enterprise-wide data visibility.

At the network layer, Centum VP stations interconnect via Vnet/IP — Yokogawa's proprietary real-time Ethernet protocol — running over managed industrial Ethernet switches such as the Hirschmann MACH 100 or Cisco IE-3400 series. Redundant ring topologies ensure that a single cable or switch failure does not interrupt process data flow. For remote sites or geographically distributed plants, Yokogawa STARDOM FCN/FCJ remote controllers and edge gateways aggregate field data and transmit it securely over WAN links to central SCADA and MES systems.

The NFAI135-S51/S2 also integrates naturally with Yokogawa PRM (Plant Resource Manager), the asset management platform that collects HART device diagnostics, calibration records, and predictive maintenance alerts from every connected field instrument. When a transmitter reports a sensor drift or loop fault via HART, PRM captures the alert, timestamps it, and routes a notification to the maintenance management system — closing the loop between field device health and plant operations without manual intervention.

For plants deploying Yokogawa OpreX Field Device Advisor or similar edge analytics tools, the analog data acquired by the NFAI135-S51/S2 feeds machine learning models that detect process anomalies, predict equipment degradation, and recommend corrective actions before unplanned shutdowns occur. This positions the module not merely as a signal conditioner, but as a foundational data source for AI-driven process optimization in Industry 4.0 environments.

Protocol Fragmentation: Many brownfield plants operate a mix of legacy 4–20 mA instruments alongside newer HART-enabled devices. The NFAI135-S51/S2 handles both simultaneously on the same channel, eliminating the need for separate HART multiplexers or protocol converters and reducing panel wiring complexity.

Data Silos: Without a unified DCS backbone, process data from different plant areas often remains trapped in isolated controllers. By centralizing analog acquisition through the Centum VP architecture, the NFAI135-S51/S2 ensures that all field signals — from reactor temperature loops to utility flow meters — are available on a single, unified data bus accessible to SCADA, MES, and ERP systems.

Remote Monitoring Gaps: In geographically distributed facilities, operators cannot physically inspect every field device. The HART diagnostic capability of the NFAI135-S51/S2, combined with Yokogawa PRM and OPC-UA data export, enables remote engineers to monitor device health, review calibration status, and diagnose loop faults from a central control room or even from off-site locations via secure VPN connections.

Production Line Transparency: Real-time analog data from the NFAI135-S51/S2 feeds Centum VP trend displays and historian databases, giving production managers full visibility into process KPIs — yield rates, energy consumption, batch cycle times — without relying on manual data collection or paper-based reporting.

Alarm Fatigue and Traceability: The module's high-accuracy signal acquisition reduces spurious alarms caused by signal noise or poor resolution. Combined with Centum VP's alarm management tools, operators receive only meaningful, actionable alerts, and every alarm event is logged with a precise timestamp for post-incident analysis and regulatory compliance reporting.

System Scalability: As production capacity expands, additional NFAI135-S51/S2 modules can be inserted into existing Centum VP cabinets without system shutdown, supporting hot-swap expansion and minimizing capital expenditure on new control infrastructure.

Q1: Does the NFAI135-S51/S2 support HART pass-through to the Centum VP SCADA layer? Yes. The module supports HART 5 and HART 7 communication, and Yokogawa's Exaopc OPC-UA server can expose HART device variables — including secondary process variables, device status, and diagnostic codes — to any OPC-UA-compatible SCADA or historian platform. This enables full HART transparency from field device to enterprise data layer without additional hardware.

Q2: What is the communication latency between the NFAI135-S51/S2 and the Centum VP FCS? The module communicates over the Centum VP V-net/ER backplane bus with a scan cycle typically configured between 100 ms and 1,000 ms depending on the FCS configuration. For fast-loop control applications, the scan period can be reduced to 100 ms, ensuring that process upsets are detected and acted upon within one control cycle.

Q3: Is the NFAI135-S51/S2 compatible with Centum VP R6 and later software revisions? Yes. The NFAI135-S51/S2 is fully compatible with Centum VP R5 and R6 software environments. It is recognized automatically by the Centum VP engineering environment (System View) upon insertion, and its I/O tags can be configured and downloaded without system restart. Compatibility with Yokogawa's migration path to Centum VP R6 ensures long-term investment protection.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the NFAI135-S51/S2? Every NFAI135-S51/S2 unit supplied by NANKMOS undergoes pre-shipment functional verification, including channel continuity checks, signal accuracy validation, and HART communication confirmation. All units are covered by a 12-Month Warranty from the date of shipment. In-stock units are available for same-week dispatch, and our technical team provides post-sale integration support to ensure successful commissioning in your Centum VP system.
