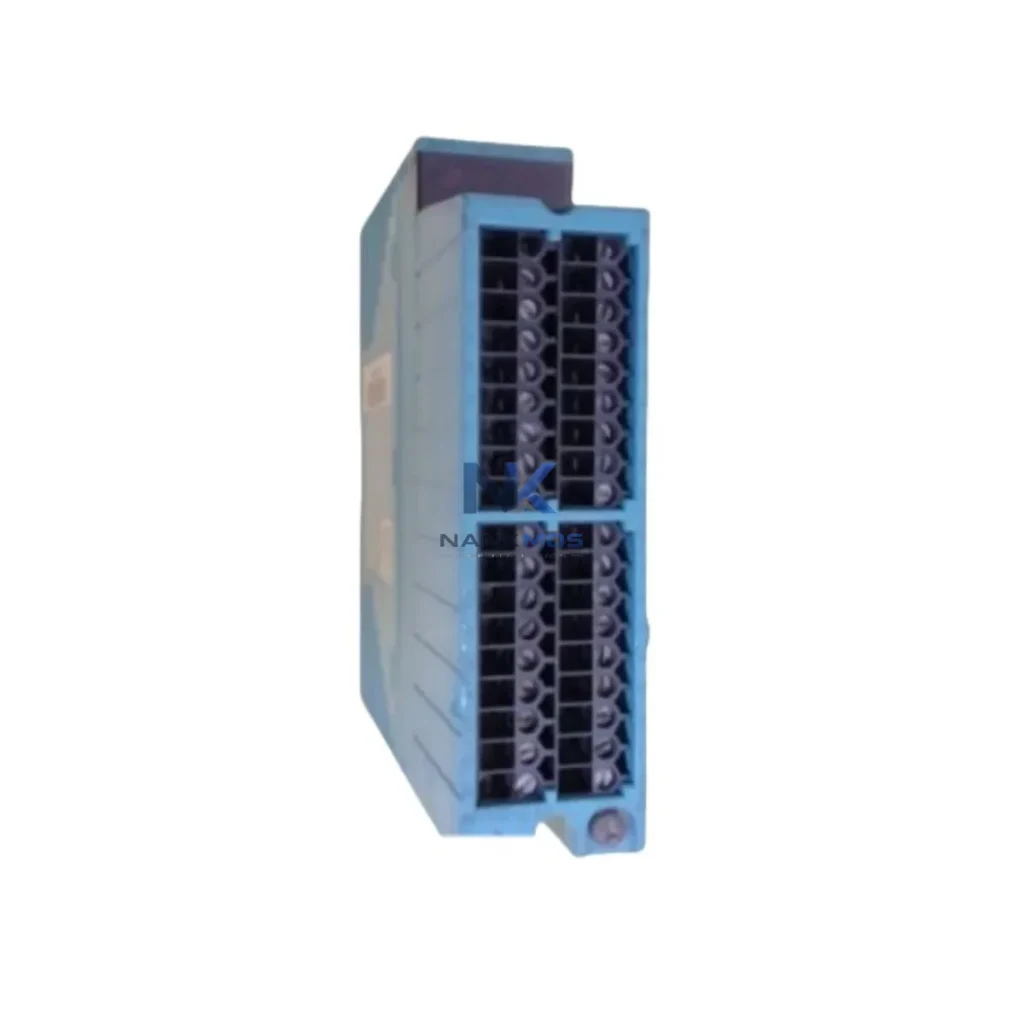

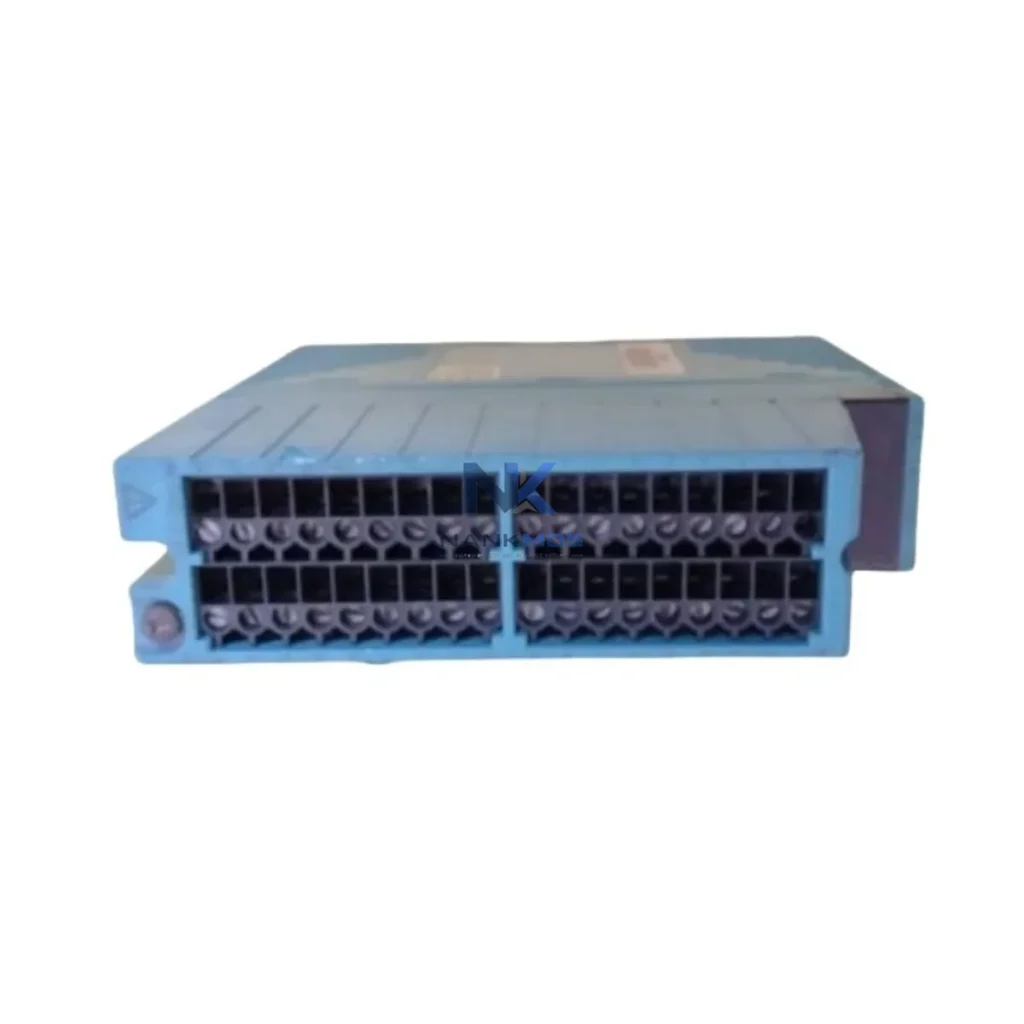

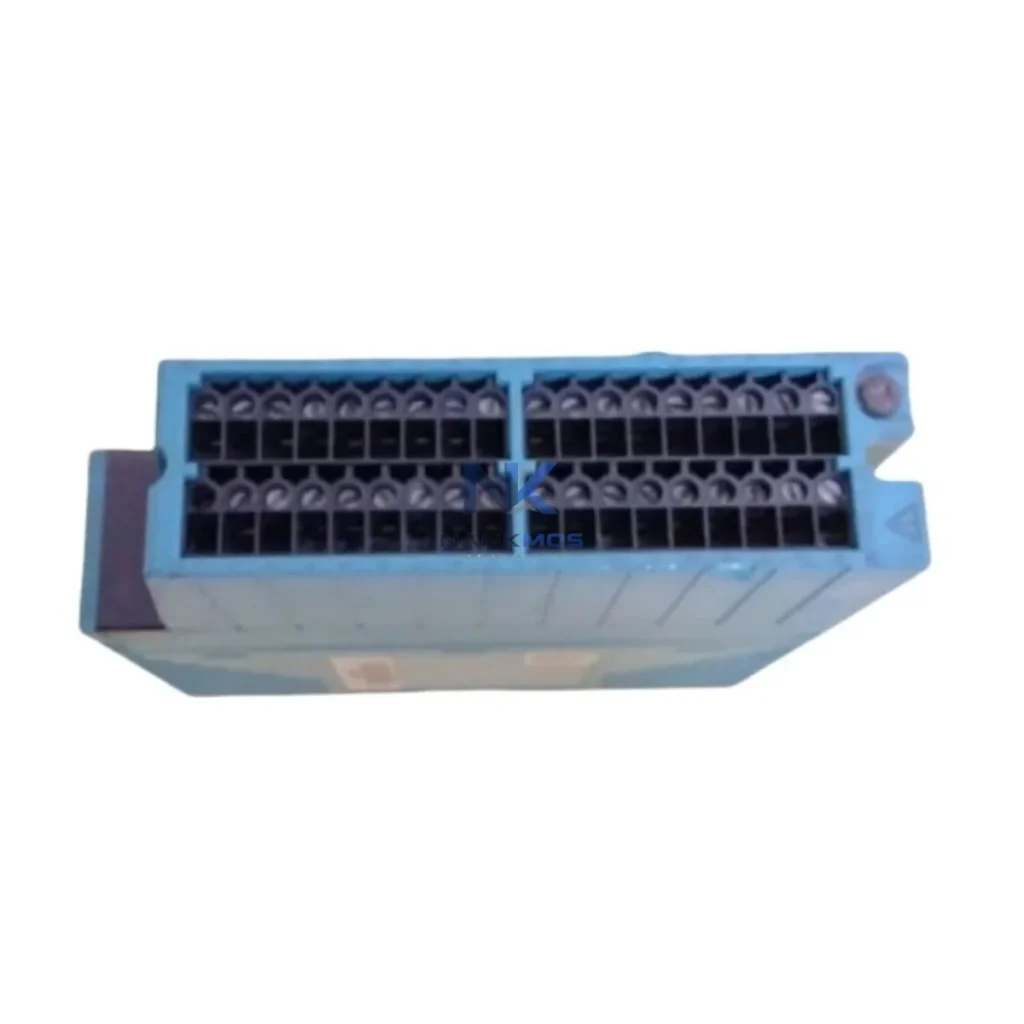

Yokogawa NFAI141-S00 S2 Analog Input Module

Product Details

NFAI141-S00 S2 Product Description

The Yokogawa NFAI141-S00/S2 is a high-integrity analog input module engineered for deployment within the ProSafe-RS Safety Instrumented System (SIS) platform. Designed to meet IEC 61511 and IEC 61508 functional safety requirements, this module serves as a critical signal acquisition node within layered industrial control architectures — bridging field instrumentation with the safety logic solver to ensure reliable, deterministic process protection across demanding industrial environments.

In modern process automation, no module operates in isolation. The NFAI141-S00/S2 is architected to function as an integral component of a broader ProSafe-RS control hierarchy, where signal fidelity, redundancy, and diagnostic transparency are non-negotiable. Its role spans the I/O layer, interfacing upward to the safety CPU and downward to field transmitters, pressure sensors, flow meters, and temperature elements — all while maintaining the signal integrity demanded by SIL-rated safety loops.

The NFAI141-S00/S2 achieves its full operational value when deployed within a complete ProSafe-RS architecture. At the safety logic layer, it interfaces directly with the Yokogawa ProSafe-RS Safety Controller (SCSU) — the central SIL-rated CPU responsible for executing safety logic, managing I/O scan cycles, and coordinating system-wide diagnostics. Redundant SCSU configurations are supported, ensuring that a single controller failure does not compromise safety function execution.

Power integrity is maintained through the ProSafe-RS Power Supply Module (PSPU), which provides redundant 24 VDC distribution across the I/O chassis. The NFAI141-S00/S2 draws power directly from the backplane, eliminating external wiring complexity and reducing potential failure points in the power distribution path.

For process control integration, the ProSafe-RS platform communicates upstream with the Yokogawa CENTUM VP Distributed Control System (DCS) via Vnet/IP — Yokogawa's high-speed, deterministic control network. This integration enables coordinated BPCS-SIS data exchange, allowing operators to monitor safety loop status, acknowledge alarms, and review diagnostic data from a unified Yokogawa HIS (Human Interface Station) running CENTUM VP operator graphics.

At the field interface level, the NFAI141-S00/S2 connects to HART-enabled field transmitters — including Yokogawa EJA-series differential pressure transmitters and YTA-series temperature transmitters — enabling secondary variable extraction and remote device diagnostics without interrupting the primary 4–20 mA safety loop. This HART pass-through capability supports predictive maintenance workflows and reduces the need for physical field access during routine diagnostics.

For installations requiring signal conditioning or galvanic isolation between field devices and the SIS I/O layer, signal isolators and safety barriers (Zener or active) are deployed in the marshalling cabinet, ensuring intrinsic safety compliance in Zone 1 and Zone 2 hazardous areas. The NFAI141-S00/S2 integrates cleanly into this marshalling architecture, with terminal modules and ProSafe-RS field terminal assemblies providing organized, labeled wiring termination points.

System-level redundancy is further enhanced through the ProSafe-RS communication module (RCPU), which manages Vnet/IP node communication and supports dual-ring network topologies for fault-tolerant data transmission. In large-scale SIS deployments — such as those found in LNG terminals, refinery units, or offshore platforms — multiple ProSafe-RS cabinets are interconnected via this communication layer, with the NFAI141-S00/S2 contributing channel-level data to the plant-wide safety database.

For engineering workstation access, Yokogawa ProSafe-RS Engineering Environment (SENG) software provides module configuration, safety logic compilation, online monitoring, and forced I/O management — all essential capabilities during commissioning, FAT (Factory Acceptance Testing), and SAT (Site Acceptance Testing) phases. The NFAI141-S00/S2 is fully configurable within SENG, with channel-level parameterization for input range, HART enable/disable, and diagnostic alarm thresholds.

Oil & Gas and Petrochemical Processing: In upstream and downstream hydrocarbon processing facilities, the NFAI141-S00/S2 is deployed in Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS). It acquires analog signals from pressure transmitters, level sensors, and flow elements monitoring critical process variables — wellhead pressure, separator levels, and pipeline flow rates — feeding this data to the ProSafe-RS safety logic solver for real-time SIL 2 protection function execution.

Power Generation and Utilities: In combined-cycle power plants and cogeneration facilities, the module supports turbine protection systems and boiler safety interlocks. Analog inputs from vibration monitors, bearing temperature sensors, and steam pressure transmitters are processed through the NFAI141-S00/S2, enabling fast-response safety shutdowns that protect rotating equipment and pressure vessels from catastrophic failure.

Chemical and Specialty Manufacturing: Batch and continuous chemical processes rely on precise analog signal acquisition for reactor temperature control, pressure relief monitoring, and toxic gas detection. The NFAI141-S00/S2 provides the SIS I/O infrastructure for these safety loops, ensuring that process deviations trigger appropriate protective actions within the required response time defined by the Safety Requirements Specification (SRS).

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy the NFAI141-S00/S2 within safety systems monitoring pump discharge pressures, chemical dosing flow rates, and tank levels. Its diagnostic capabilities reduce unplanned downtime by enabling early fault detection without requiring process interruption.

Marine and Offshore Platforms: Offshore oil platforms and FPSO vessels operate in harsh environments where module reliability and diagnostic transparency are critical. The NFAI141-S00/S2's robust design, combined with ProSafe-RS redundancy architecture, supports continuous operation in high-vibration, high-humidity marine environments, meeting classification society requirements for safety system certification.

Q1: Is the NFAI141-S00/S2 compatible with existing ProSafe-RS chassis and backplane configurations?Yes. The NFAI141-S00/S2 is designed for direct installation into standard ProSafe-RS I/O chassis and carrier modules. It is compatible with both simplex and redundant ProSafe-RS controller configurations. No additional adapters or interface modules are required for standard installations. Compatibility with specific firmware revisions of the SCSU should be verified against Yokogawa's ProSafe-RS system compatibility matrix prior to deployment.

Q2: Can the NFAI141-S00/S2 be replaced online without shutting down the safety system?Hot-swap capability depends on the ProSafe-RS system configuration and the safety function assignment of the specific I/O channel. In redundant I/O configurations, module replacement can typically be performed with the redundant channel maintaining safety function coverage. For simplex configurations, a bypass or inhibit procedure — documented in the Safety Management System — must be followed prior to module removal. All replacement activities should be conducted in accordance with the site's Management of Change (MOC) procedure.

Q3: What warranty and supply assurance does the NFAI141-S00/S2 carry?Every NFAI141-S00/S2 unit supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional performance. Units are pre-shipment tested against Yokogawa factory specifications before dispatch. We maintain in-stock inventory of ProSafe-RS I/O modules to support urgent replacement requirements, planned turnaround maintenance, and long-term spare parts programs. For volume procurement, framework agreements and scheduled delivery programs are available upon request.
