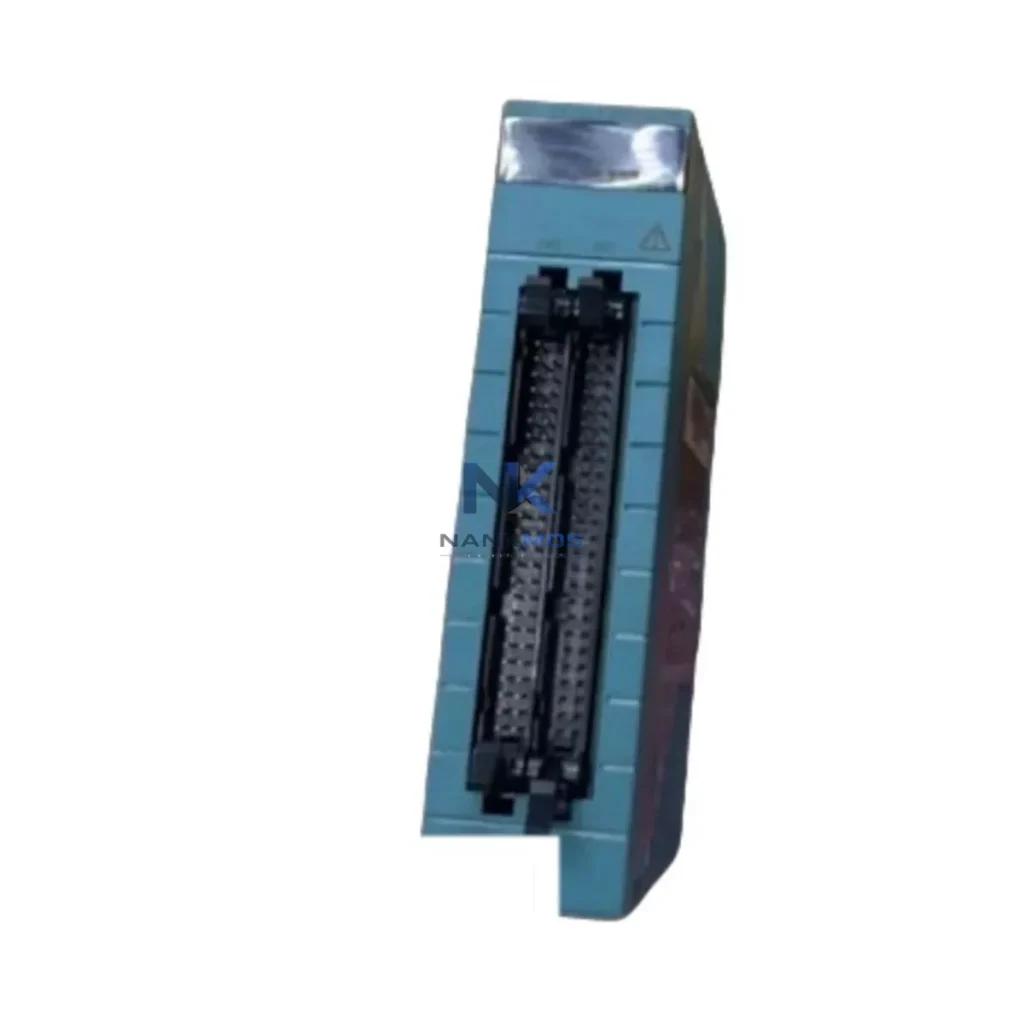

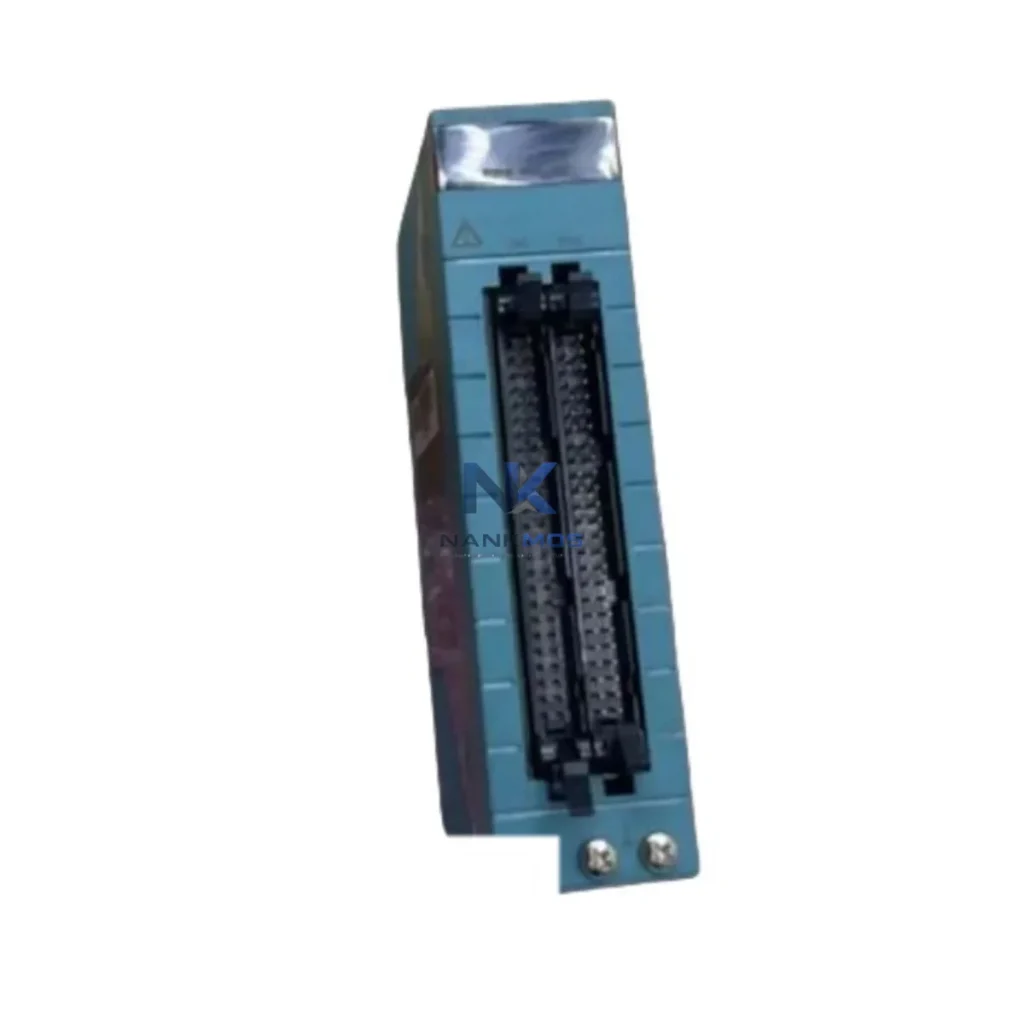

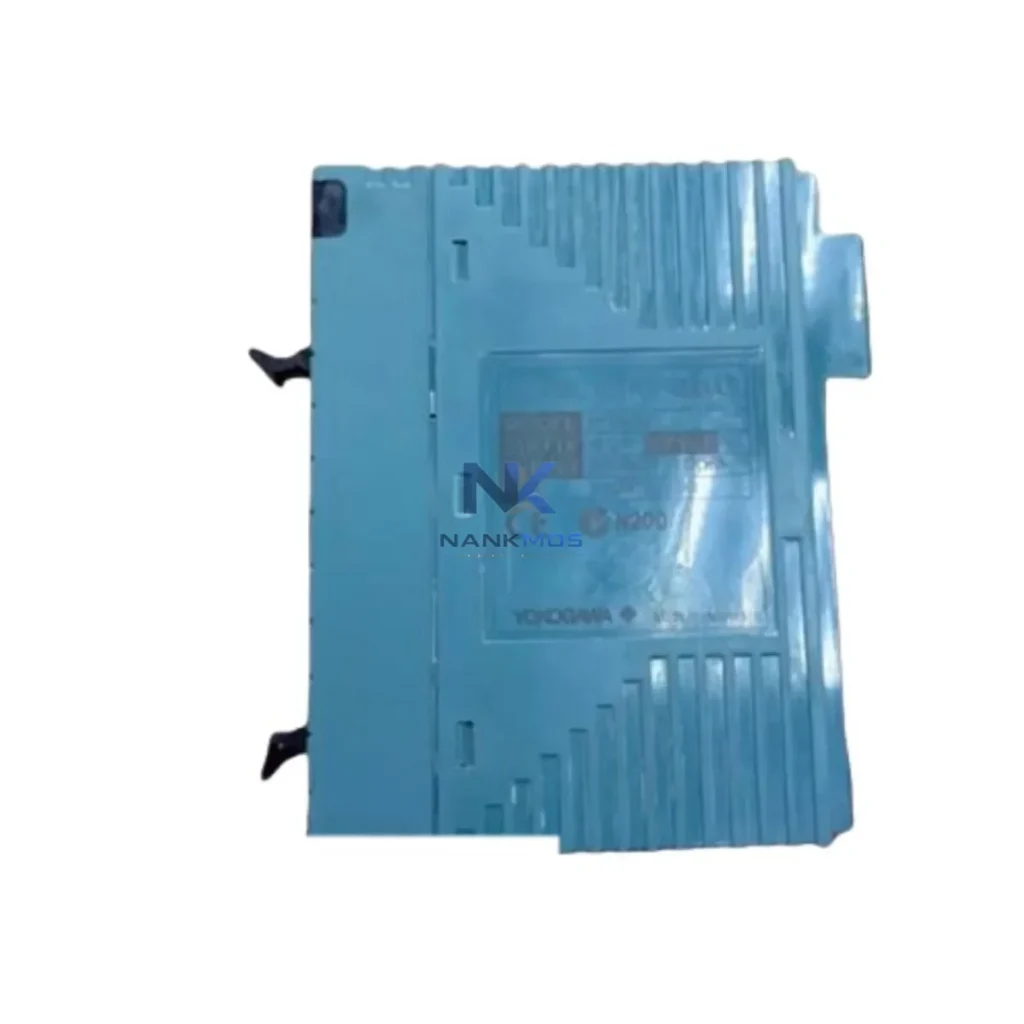

Yokogawa NFAP135-S00 S2 Pulse Input Module

Product Details

NFAP135-S00 S2 Product Description

The Yokogawa NFAP135-S00-S2 is a high-integrity Pulse Input Module engineered for the STARDOM Network-based Control System (NCS), delivering deterministic signal acquisition and seamless data propagation across modern industrial communication architectures. Designed for environments where real-time data fidelity is non-negotiable — power generation, petrochemical processing, water treatment, oil & gas, and marine propulsion — this module serves as a critical node in the connected factory data chain, bridging field-level pulse signals with supervisory control and enterprise analytics layers.

In a smart factory, every measurement counts. The NFAP135-S00-S2 captures high-frequency pulse inputs from flow meters, turbine sensors, encoders, and proximity transducers, converting raw field signals into structured digital data that travels upstream through the STARDOM FCN/FCJ autonomous controllers. From there, data is routed via Modbus/TCP or OPC-UA to SCADA platforms, historian servers, and HMI terminals — enabling operators to monitor process variables in real time, trigger alarms, and initiate corrective actions without manual intervention.

The NFAP135-S00-S2 operates at the foundation of a layered industrial data architecture. At the field level, pulse signals from vortex flow meters, turbine flow sensors, and rotary encoders are wired directly into the module's input terminals. The module digitizes these signals with high temporal resolution, ensuring that even high-frequency pulse trains — common in custody transfer metering and high-speed conveyor monitoring — are captured without data loss.

Once digitized, the pulse data is passed through the STARDOM backplane to the Yokogawa FCN Autonomous Controller (e.g., NFCP100 or NFCP050), which executes local control logic and packages the data for network transmission. The FCN controller communicates upstream via Modbus/TCP over standard Ethernet infrastructure, interfacing with industrial managed switches (such as those in the Hirschmann MACH or Phoenix Contact FL SWITCH series) that enforce VLAN segmentation and QoS prioritization for time-sensitive process data.

At the SCADA layer, the Yokogawa FAST/TOOLS supervisory platform — or third-party systems such as Ignition SCADA or Wonderware System Platform — receives the structured Modbus/TCP data streams and maps them to real-time process displays. Operators at HMI terminals (including Yokogawa's own operator stations or Siemens SIMATIC HMI panels) can view live pulse counts, flow totals, and rate-of-change trends, with configurable alarm thresholds that trigger notifications when values deviate from setpoints.

For remote sites and unmanned substations, the STARDOM FCN-RTU architecture — incorporating modules like the NFAI143 analog input module and NFDO541 digital output module alongside the NFAP135-S00-S2 — enables a complete distributed I/O solution. Data from these remote nodes is aggregated by the FCN controller and forwarded via OPC-UA to enterprise MES or ERP systems, supporting production reporting, energy accounting, and predictive maintenance workflows.

Edge computing gateways — such as the Yokogawa OpreX Edge Gateway or compatible third-party devices running Node-RED or Azure IoT Edge — can subscribe to the OPC-UA data feeds from the FCN controller, applying local analytics before forwarding summarized data to cloud historian platforms. This architecture minimizes WAN bandwidth consumption while preserving the granularity needed for root-cause analysis and remote diagnostics.

Variable frequency drives (VFDs) and motor control centers connected to the same Ethernet backbone can also report operational parameters — speed references, torque feedback, fault codes — through the same Modbus/TCP network, allowing the SCADA system to correlate pump or compressor performance data with the flow measurements captured by the NFAP135-S00-S2. This cross-system data correlation is the backbone of energy optimization and predictive maintenance programs in smart manufacturing facilities.

Protocol Fragmentation: Many legacy automation sites operate with a mix of 4–20 mA analog loops, HART devices, and older serial Modbus RTU instruments alongside newer Ethernet-based systems. The STARDOM FCN platform — with the NFAP135-S00-S2 as a pulse acquisition front-end — acts as a protocol normalization layer, converting diverse field signals into a unified Modbus/TCP or OPC-UA data model that any modern SCADA or historian can consume without custom middleware.

Data Silos: In distributed plant environments, pulse data from flow meters and turbines often remains trapped in standalone PLCs or standalone data loggers with no path to the central control room. By integrating the NFAP135-S00-S2 into the STARDOM NCS architecture, all pulse measurements are immediately available on the plant Ethernet backbone, eliminating data silos and enabling cross-system KPI dashboards.

Remote Monitoring Gaps: Unmanned pump stations, remote metering points, and offshore platforms frequently lack reliable remote monitoring. The FCN-RTU configuration — anchored by modules including the NFAP135-S00-S2 — supports cellular or fiber WAN connectivity, enabling continuous remote diagnostics, alarm forwarding via email or SMS, and remote parameter adjustment without site visits.

Production Line Transparency: Real-time pulse data from the NFAP135-S00-S2 feeds directly into OEE (Overall Equipment Effectiveness) calculations, batch reporting, and energy consumption dashboards. Plant managers gain visibility into throughput rates, cycle counts, and equipment utilization — the foundation of continuous improvement programs aligned with Industry 4.0 objectives.

Alarm Traceability: Timestamped alarm records generated from pulse threshold violations are stored in the SCADA historian with millisecond resolution, enabling post-incident analysis, regulatory compliance reporting, and root-cause investigation without relying on operator memory or paper logs.

System Scalability: The modular STARDOM NCS architecture allows additional NFAP135-S00-S2 modules and complementary I/O cards to be added to the FCN chassis as measurement points expand, without disrupting existing network configurations or requiring controller replacement.

Q1: What communication protocols does the NFAP135-S00-S2 support for SCADA integration? The NFAP135-S00-S2 integrates into the STARDOM FCN/FCJ controller platform, which natively supports Modbus/TCP and OPC-UA for upstream SCADA and historian connectivity. This enables direct integration with Yokogawa FAST/TOOLS, Ignition, Wonderware, and other OPC-UA-compliant supervisory systems without additional protocol converters.

Q2: How does the module perform in high-noise industrial environments with long cable runs? The NFAP135-S00-S2 is designed to Yokogawa's industrial-grade EMC standards, with input filtering and isolation to reject common-mode noise from VFDs, motor starters, and high-voltage switching equipment. For long cable runs, shielded twisted-pair wiring and proper grounding practices are recommended to maintain signal integrity at high pulse frequencies.

Q3: Can the NFAP135-S00-S2 be used in remote or unmanned installations with limited network connectivity? Yes. When deployed within the STARDOM FCN-RTU architecture, the module supports autonomous local control and data buffering, ensuring that pulse counts and flow totals are preserved even during WAN communication interruptions. Upon reconnection, buffered data is synchronized to the central SCADA historian, maintaining data continuity for billing, compliance, and reporting purposes.

Q4: What warranty and pre-shipment testing does the NFAP135-S00-S2 carry? All NFAP135-S00-S2 units supplied by NANKMOS carry a 12-month warranty and are pre-shipment tested to verify channel functionality, communication integrity, and firmware version compliance before dispatch. In-stock units are available for immediate shipment, with documentation packages available upon request for regulated industries.
