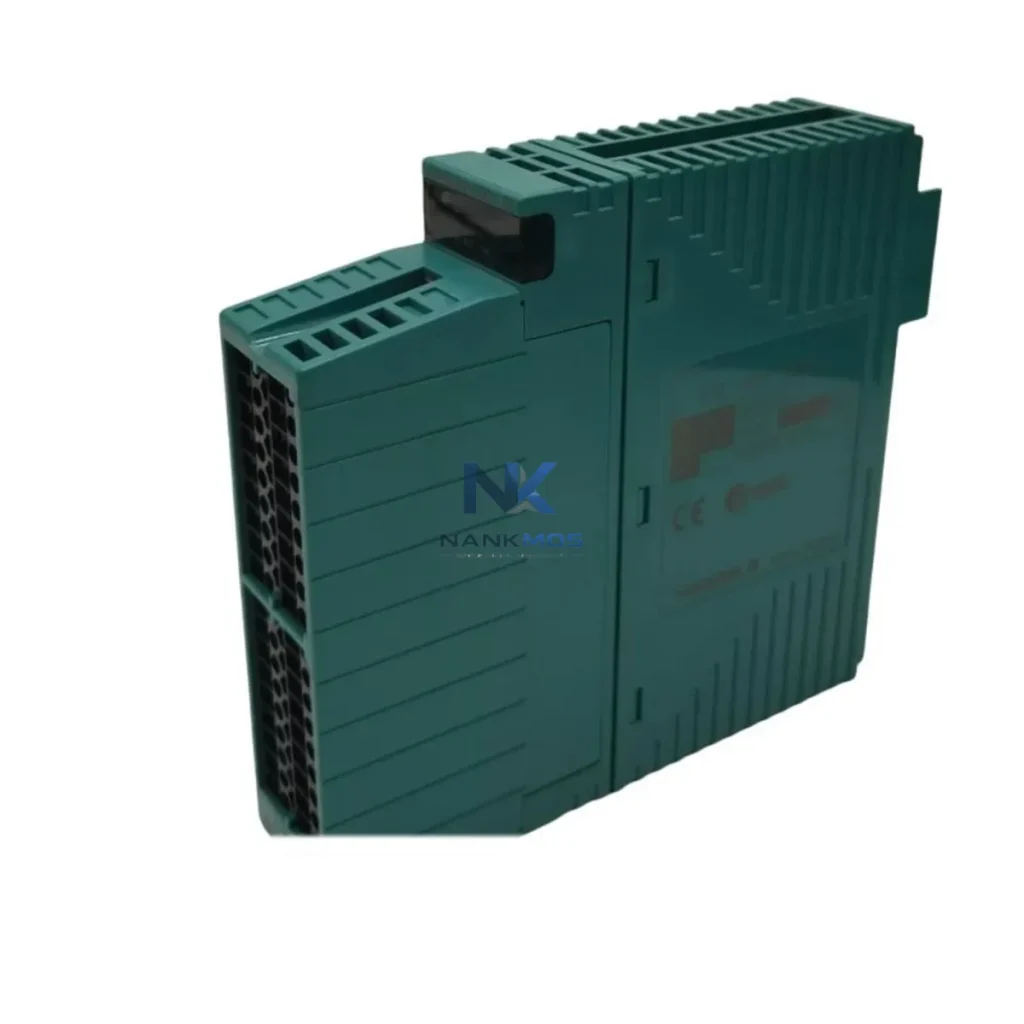

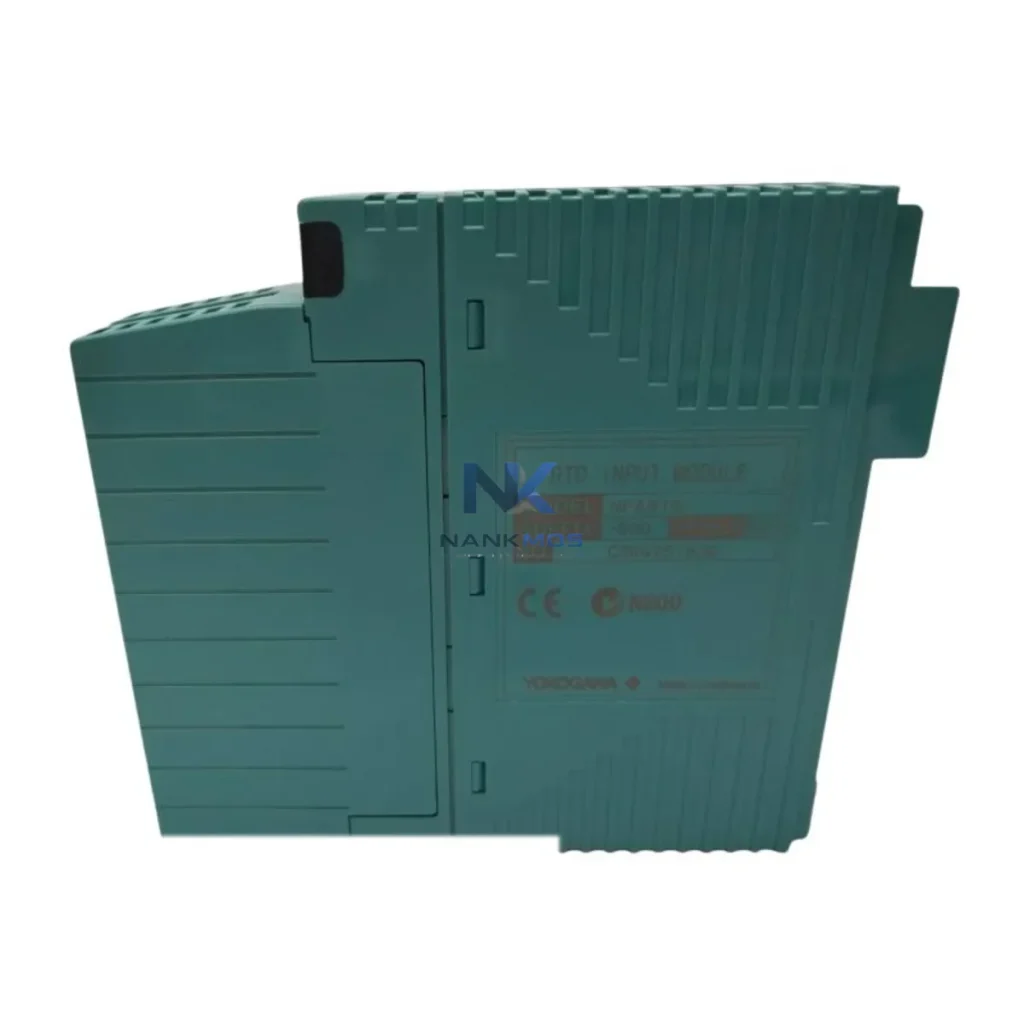

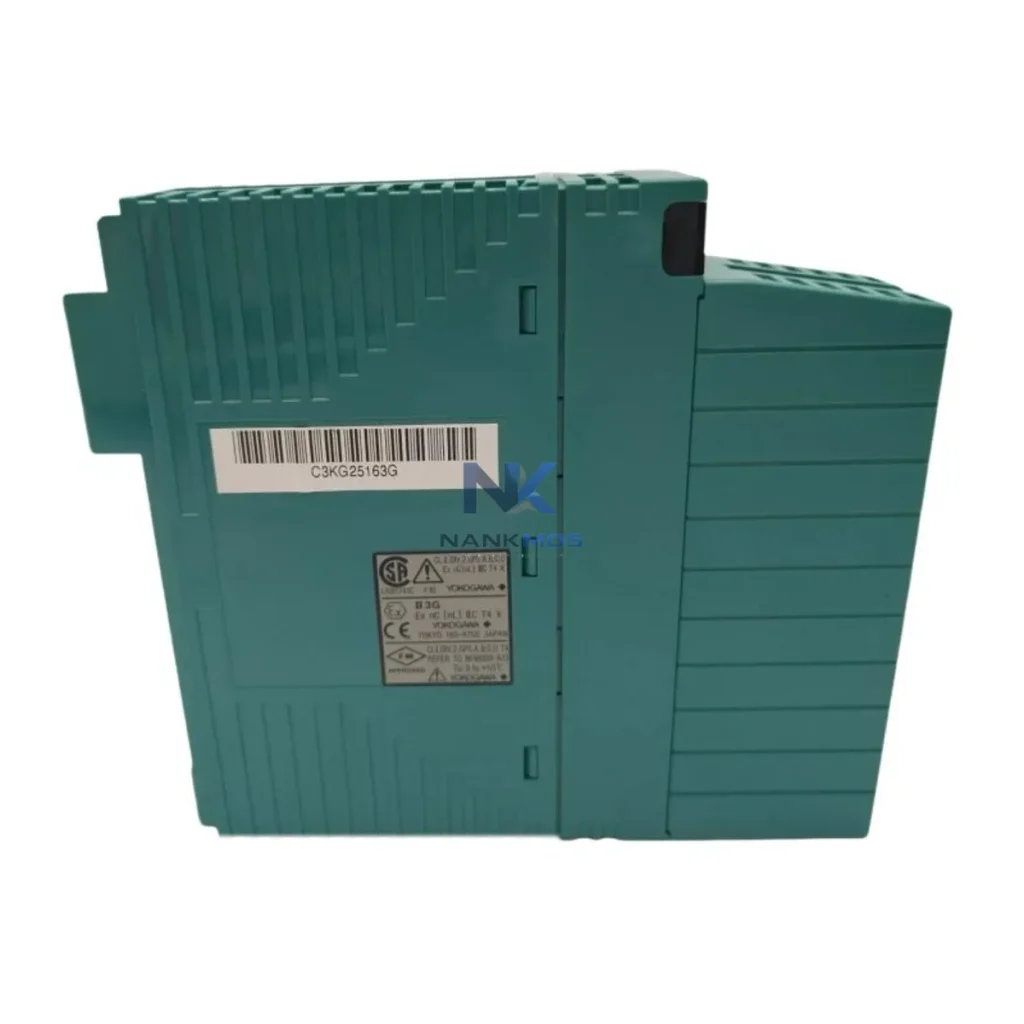

Yokogawa NFAR181-S00 S2 Analog Input Module

Product Details

NFAR181-S00 S2 Product Description

The Yokogawa NFAR181-S00 S2 is a precision analog input module engineered for seamless integration within Yokogawa's CENTUM VP and CENTUM CS 3000 distributed control system (DCS) architectures. Designed to operate as a core signal acquisition component within Field Control Stations (FCS), this module delivers reliable, high-fidelity analog signal processing across demanding industrial environments. Its role within the control hierarchy extends beyond simple signal conversion — it serves as a foundational element that enables system-wide consistency, modular scalability, and long-term operational stability across the full automation stack.

In modern industrial control architecture, analog input modules like the NFAR181-S00 S2 occupy a critical position at the I/O layer, bridging field instrumentation — including pressure transmitters, temperature sensors, flow meters, and level gauges — with the control layer where logic execution and process optimization occur. The module's S2 suffix designation indicates a specific hardware revision that ensures compatibility with current FIO (Field I/O) bus standards, enabling deterministic data transfer between field devices and the FCS processor. This compatibility is essential for maintaining signal integrity across multi-node architectures where timing accuracy and data consistency directly impact process safety and efficiency.

Within a fully integrated CENTUM VP platform, the NFAR181-S00 S2 operates in coordination with a range of complementary modules and system components. The AFV10D and AFV30D Field Control Stations provide the processing backbone, executing control strategies that rely on accurate analog inputs delivered by the NFAR181. The NFAI141 and NFAI841 analog input modules serve parallel signal acquisition roles in adjacent I/O slots, while the NFAO141 analog output module closes the control loop by translating processed signals into actuator commands. Power distribution within the FIO node is managed by dedicated power supply units such as the NFPS141, ensuring stable voltage delivery to all I/O modules including the NFAR181-S00 S2.

Communication integrity across the control architecture is maintained through the FIO bus interface embedded within the NFAR181-S00 S2, which connects to the FCS via high-speed, noise-immune optical or electrical bus segments. This architecture supports redundant bus configurations, allowing the system to maintain continuous operation even in the event of a single communication path failure — a critical requirement in power generation, petrochemical, and oil and gas applications where unplanned downtime carries significant operational and safety consequences. The NFCP701 communication processor and NFCP702 dual-redundant communication modules further reinforce this architecture by providing failover capability at the controller level.

At the HMI and supervisory layer, data acquired by the NFAR181-S00 S2 is presented through Yokogawa's FAST/TOOLS SCADA platform or the integrated CENTUM VP HIS (Human Interface Station), enabling operators to monitor real-time process variables, configure alarm thresholds, and execute trend analysis. This seamless data flow from field sensor through analog input module to operator display exemplifies the contextual integration philosophy that defines modern DCS architecture — every component is selected and configured to function as part of a coherent, interoperable system rather than as an isolated device.

The NFAR181-S00 S2 also supports advanced diagnostic capabilities that reduce maintenance burden and improve system availability. Built-in self-diagnostics detect open-circuit conditions, out-of-range signals, and hardware faults, generating alarm notifications that are propagated through the FCS to the HIS for immediate operator awareness. This diagnostic transparency supports predictive maintenance strategies, allowing engineering teams to schedule module replacements during planned outages rather than responding reactively to unexpected failures. When paired with Yokogawa's Plant Resource Manager (PRM), field device diagnostics can be correlated with I/O module status to provide a comprehensive view of instrument health across the entire control loop.

The NFAR181-S00 S2 is most effectively deployed as part of a fully coordinated Yokogawa automation platform. In a typical CENTUM VP architecture, the module occupies an I/O slot within an AAR181 node unit, which is mounted within the FCS cabinet alongside the AFV10D or AFV30D Field Control Station processor. Adjacent I/O slots may be populated with NFAI141 multi-point analog input modules for high-density signal acquisition, NFDV141 digital input modules for discrete status monitoring, and NFAO141 analog output modules for valve and actuator control. Power to the entire node is supplied by the NFPS141 power supply module, which provides regulated DC power with built-in redundancy support.

Communication between the FIO node and the FCS processor is handled via the FIO bus, with optional redundancy provided by dual NFCP701 communication processor cards. For facilities requiring integration with third-party systems or legacy PLCs, the ALR111 Vnet/IP communication module enables Ethernet-based connectivity to Yokogawa's plant-wide network, supporting OPC-UA and Modbus TCP protocols for SCADA integration. At the supervisory level, the CENTUM VP HIS workstation aggregates all process data, providing operators with a unified view of plant operations that includes real-time values from every NFAR181-S00 S2 channel across the facility.

For applications requiring enhanced signal isolation — common in high-noise environments such as motor control centers or variable frequency drive (VFD) panels — signal isolators and barriers can be installed between field transmitters and the NFAR181-S00 S2 input terminals. This layered approach to signal conditioning ensures that the module receives clean, stable analog signals regardless of electrical interference in the field wiring environment, preserving measurement accuracy and protecting module hardware from transient overvoltage events.

Power Generation: In thermal and hydroelectric power plants, the NFAR181-S00 S2 acquires analog signals from turbine speed sensors, steam pressure transmitters, and generator output transducers. Its integration within the CENTUM VP FCS enables real-time turbine control and load balancing, with redundant bus architecture ensuring continuous monitoring even during partial system maintenance.

Petrochemical and Oil & Gas: Refinery and upstream processing facilities rely on the NFAR181-S00 S2 for accurate acquisition of flow, pressure, and temperature signals from hazardous area transmitters. The module's compatibility with intrinsically safe field devices and its robust diagnostic capabilities support SIL-rated control loops and safety instrumented system (SIS) integration.

Water Treatment and Municipal Utilities: Water treatment plants deploy the NFAR181-S00 S2 to monitor chemical dosing rates, flow volumes, and tank levels across distributed pump stations. Its modular architecture allows incremental system expansion as treatment capacity grows, without requiring changes to the existing FCS configuration.

Mining and Metallurgy: In mineral processing and smelting operations, the module acquires analog signals from conveyor load cells, furnace temperature sensors, and slurry flow meters. Its tolerance for industrial electrical environments and its long-term availability as a Yokogawa standard component support the extended operational lifecycles typical of mining infrastructure.

Marine Propulsion and Offshore Platforms: Offshore oil platforms and LNG carriers integrate the NFAR181-S00 S2 within CENTUM VP-based machinery monitoring systems, acquiring analog data from engine room sensors, ballast system transmitters, and cargo management instrumentation. The module's compact form factor and FIO bus architecture support space-constrained marine control cabinet installations.

Q1: Is the NFAR181-S00 S2 compatible with both CENTUM VP and CENTUM CS 3000 architectures? The NFAR181-S00 S2 is designed for use within Yokogawa's FIO-based control architectures, which are common to both CENTUM VP and CENTUM CS 3000 platforms. The S2 hardware revision ensures compatibility with current FIO bus specifications. For specific version compatibility confirmation, cross-reference the module's hardware revision against your FCS firmware version using Yokogawa's system compatibility documentation. Our team can assist with compatibility verification prior to shipment.

Q2: Does the NFAR181-S00 S2 support redundant bus configurations for high-availability applications? Yes. When installed within a dual-redundant FIO node configuration, the NFAR181-S00 S2 supports continuous operation across both primary and secondary bus paths. In the event of a primary bus failure, the FCS automatically switches to the secondary path without interrupting signal acquisition or control execution. This redundancy architecture is essential for SIL 2 and SIL 3 applications in power generation and petrochemical facilities.

Q3: What warranty and supply assurance does NANKMOS provide for the NFAR181-S00 S2? All NFAR181-S00 S2 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify signal acquisition accuracy, bus communication integrity, and diagnostic reporting. We maintain in-stock inventory of the NFAR181-S00 S2 to support urgent replacement requirements and planned maintenance schedules. For bulk procurement inquiries or long-term supply agreements, contact our engineering team at [email protected] or +86 18359268345.
