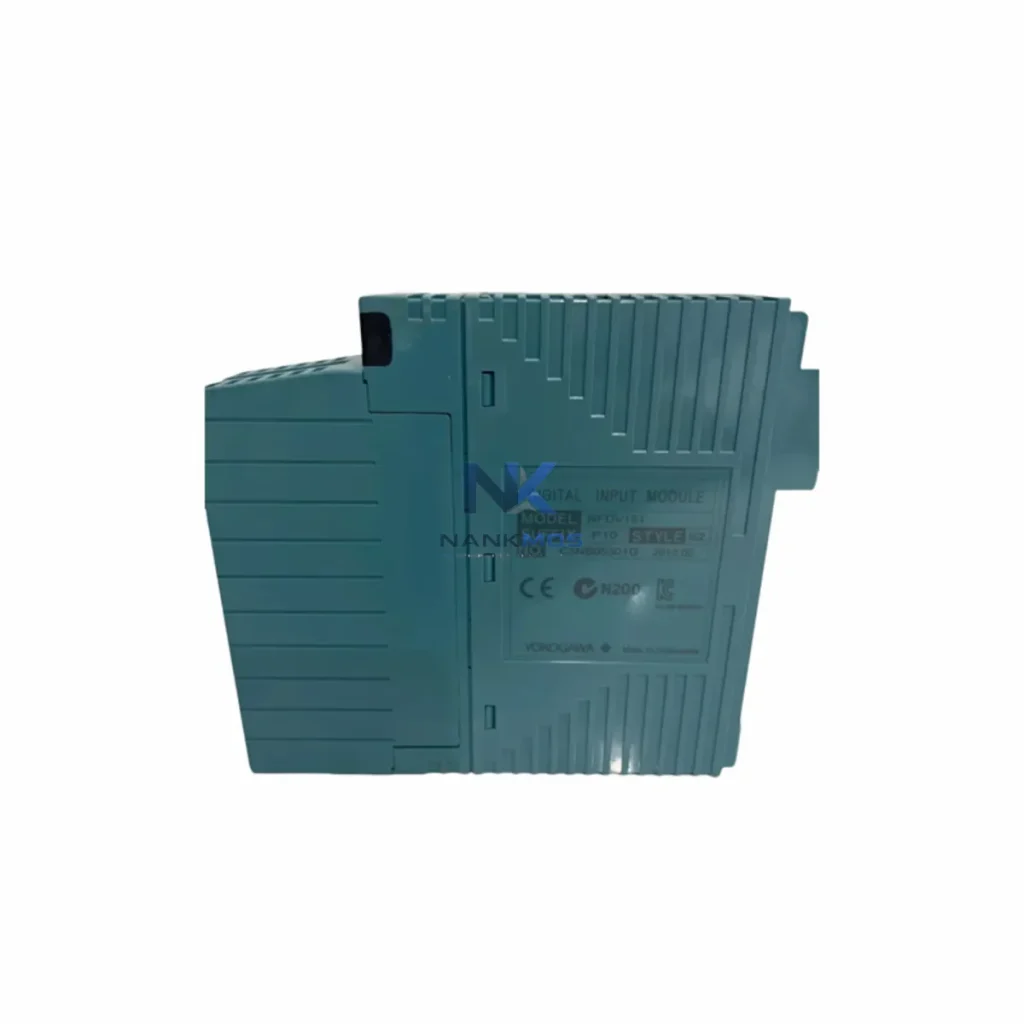

Yokogawa NFDV161-P01 S2 Digital Input Module

Product Details

NFDV161-P01 S2 Product Description

The Yokogawa NFDV161-P01/S2 is a high-density digital input module engineered for the Centum VP Distributed Control System (DCS), one of the most widely deployed process automation platforms in energy-intensive industries including oil and gas, petrochemical, power generation, and advanced manufacturing. Designed to operate within Yokogawa's NFDV-series I/O architecture, this module delivers reliable, low-latency signal acquisition from field devices while minimising the energy overhead associated with traditional I/O subsystems. In an era where smart factories are under increasing pressure to reduce operational energy consumption and improve equipment utilisation, the NFDV161-P01/S2 represents a foundational component in any power-aware automation strategy.

With 16 digital input channels per module, the NFDV161-P01/S2 consolidates field signal collection into a compact, rail-mounted form factor that reduces wiring complexity and associated thermal load within control cabinets. Its low self-consumption design ensures that the module contributes minimally to the overall energy budget of the I/O bus, a critical consideration when scaling DCS architectures across large process plants with hundreds of I/O points. Each channel is individually isolated, protecting upstream controller logic from field-side transients and reducing the risk of cascade failures that can cause unplanned downtime and associated energy waste from emergency restarts.

The NFDV161-P01/S2 does not operate in isolation — its true value is realised when integrated into a coherent, power-aware automation architecture. Within a Centum VP system, this digital input module interfaces directly with the Yokogawa PFCS (Process Field Control Station) and KFCS (Compact Field Control Station) controllers, feeding real-time field status data into the control logic that governs energy-intensive actuators, motors, and drives. When paired with Yokogawa NFAI135-S03 analogue input modules monitoring current and voltage signals from field transmitters, the system gains a comprehensive view of both discrete and continuous process variables — the dual data streams essential for effective energy management.

In motor control applications, the NFDV161-P01/S2 captures run/stop feedback signals from motor control centres (MCCs) and variable frequency drives (VFDs) such as the Yaskawa A1000 or Siemens SINAMICS G120 series. This feedback loop enables the DCS to confirm actual motor state rather than relying solely on command outputs, closing the control loop and preventing scenarios where a motor runs unnecessarily due to a missed stop command — a common source of avoidable energy waste. The module's fast scan rate ensures that transient events such as motor trip signals or contactor state changes are captured within the DCS scan cycle, enabling rapid corrective action.

For servo-driven production lines, the NFDV161-P01/S2 collects position-complete and fault signals from servo drive systems including the Yokogawa UR series or compatible third-party servo amplifiers. These discrete signals are used by the Centum VP sequence control functions to coordinate production line rhythm (takt time), ensuring that each station in the line operates at its designed cycle time without idle energy consumption between steps. Integration with Yokogawa STARDOM FCN/FCJ remote I/O controllers further extends the digital input network to geographically distributed field areas, reducing the need for long signal cable runs and their associated voltage drop and interference losses.

Power monitoring is enhanced when the NFDV161-P01/S2 works alongside Yokogawa WT series power analysers or third-party power quality meters connected via Modbus RTU or PROFIBUS DP communication modules. The digital input module captures alarm and threshold-exceeded signals from these power monitoring devices, triggering DCS logic that can shed non-critical loads, adjust setpoints, or alert operators through the Yokogawa CENTUM VP HMI (Human Machine Interface) workstations. This closed-loop energy management approach — from field measurement through I/O acquisition to operator display — is the backbone of ISO 50001-aligned energy management systems in process industries.

Cabinet thermal management is also improved through the NFDV161-P01/S2's low self-heating profile. In large DCS installations with hundreds of I/O modules, cumulative module heat dissipation is a significant driver of air-conditioning energy consumption. By selecting low-consumption NFDV-series modules, plant engineers can reduce cabinet cooling loads, extend the service life of cooling equipment, and lower the total cost of ownership of the control system infrastructure. This consideration is particularly relevant in tropical and high-ambient-temperature installations where cooling energy represents a disproportionate share of the control room energy budget.

Modern production lines demand more than simple on/off control — they require intelligent, data-driven energy optimisation that responds dynamically to production demand, equipment condition, and energy tariff signals. The NFDV161-P01/S2 contributes to this optimisation at the foundational level by ensuring that every discrete field event — conveyor running, valve open, pump started, safety relay tripped — is accurately and promptly reported to the Centum VP control system.

In energy-intensive batch processes, the module's 16-channel capacity allows a single I/O card to monitor an entire process unit's discrete status points, reducing the number of I/O cards required and the associated power supply loading. When the Centum VP system detects through these inputs that a batch phase has completed ahead of schedule, it can proactively reduce the speed setpoint of associated variable frequency drives controlling agitators, pumps, or compressors, capturing energy savings that would otherwise be lost during the idle portion of the batch cycle.

Predictive maintenance strategies also benefit from the NFDV161-P01/S2's reliable signal acquisition. By monitoring vibration switch outputs, bearing temperature switch contacts, and lubrication pressure switches through the digital input channels, the Centum VP system can accumulate equipment health data over time. When combined with Yokogawa Plant Resource Manager (PRM) asset management software, this data supports condition-based maintenance scheduling, reducing both unplanned downtime and the energy waste associated with emergency restarts of cold equipment. Planned maintenance windows allow equipment to be shut down in an orderly, energy-efficient sequence rather than tripping under load.

Production line takt time stability is another area where the NFDV161-P01/S2 delivers measurable value. By providing the DCS with accurate, low-latency confirmation of each production step's completion, the module enables the Centum VP sequence controller to maintain consistent inter-station timing. Inconsistent takt times — caused by delayed or missed discrete signals — lead to buffer accumulation, unnecessary conveyor running time, and elevated energy consumption per unit produced. The NFDV161-P01/S2's reliable signal integrity, backed by individual channel isolation and Yokogawa's proven NFDV-series hardware design, ensures that takt time variability attributable to I/O signal quality is effectively eliminated.

All NANKMOS-supplied Yokogawa NFDV161-P01/S2 modules are sourced from verified supply channels, undergo pre-shipment functional testing to confirm channel integrity and communication with the Centum VP I/O bus, and are covered by a 12-Month Warranty. In-stock units are available for immediate dispatch, supporting urgent plant maintenance requirements and minimising production downtime.

Q1: How does the NFDV161-P01/S2 contribute to plant energy savings? The module reduces energy waste by providing accurate, real-time discrete signal acquisition that enables the Centum VP DCS to make timely control decisions — shutting down idle equipment, adjusting drive speeds, and shedding non-critical loads. Its low self-consumption design also reduces the cumulative thermal load within control cabinets, lowering cooling energy requirements.

Q2: Is the NFDV161-P01/S2 compatible with existing Centum VP systems? Yes. The NFDV161-P01/S2 is designed for direct integration into the Yokogawa Centum VP I/O bus architecture. It is compatible with PFCS and KFCS field control stations and supports standard Centum VP engineering tools for channel configuration and diagnostics. Compatibility with specific system revisions should be confirmed against the Yokogawa hardware compatibility matrix for your installed Centum VP version.

Q3: Can this module replace an older Yokogawa digital input module in an existing installation? The NFDV161-P01/S2 is intended as a direct replacement or upgrade within the NFDV-series I/O family. Before installation, verify the slot assignment, I/O bus address configuration, and field wiring termination compatibility with your existing I/O nest. NANKMOS technical support can assist with cross-reference verification to confirm suitability for your specific replacement requirement.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? All NANKMOS-supplied NFDV161-P01/S2 modules are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes channel continuity verification, I/O bus communication confirmation, and visual inspection for physical integrity. Test records are available upon request. For warranty claims or technical support, contact NANKMOS at [email protected] or +86 18359268345.
