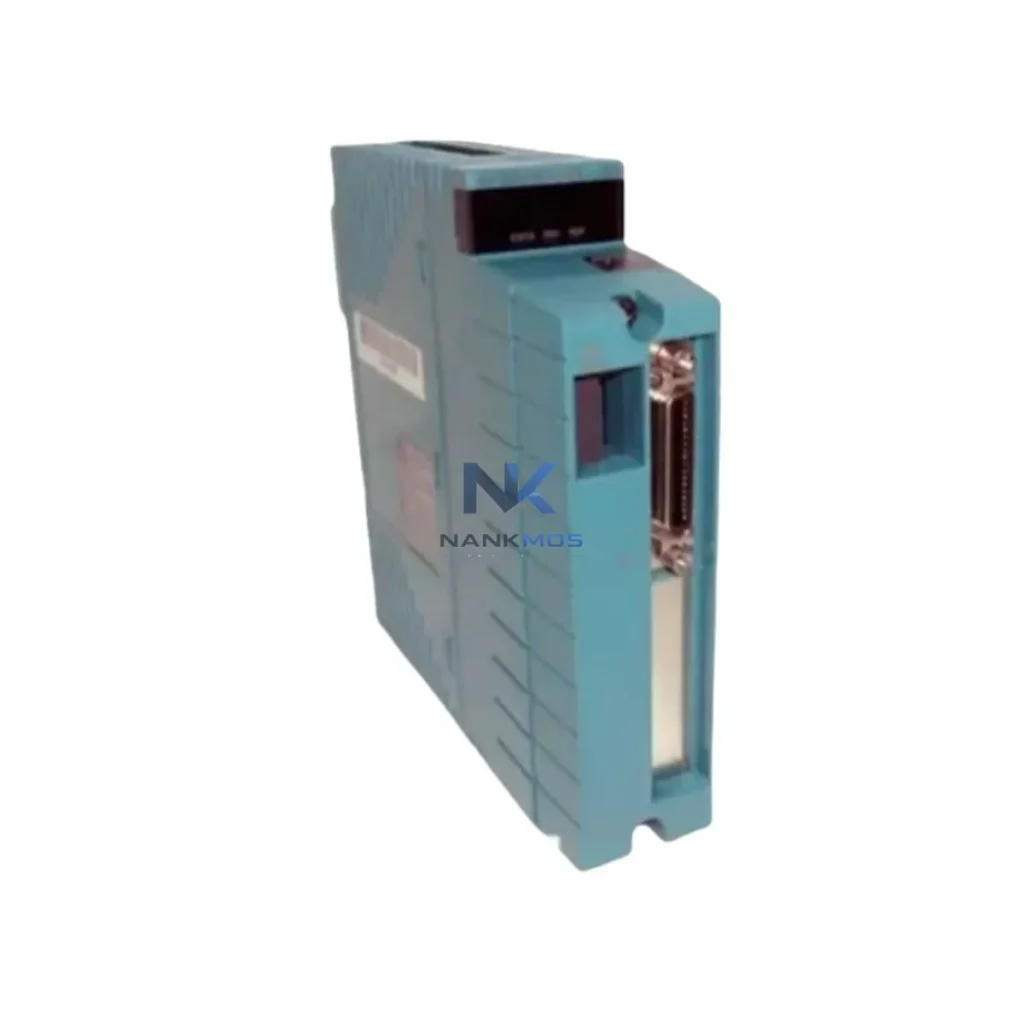

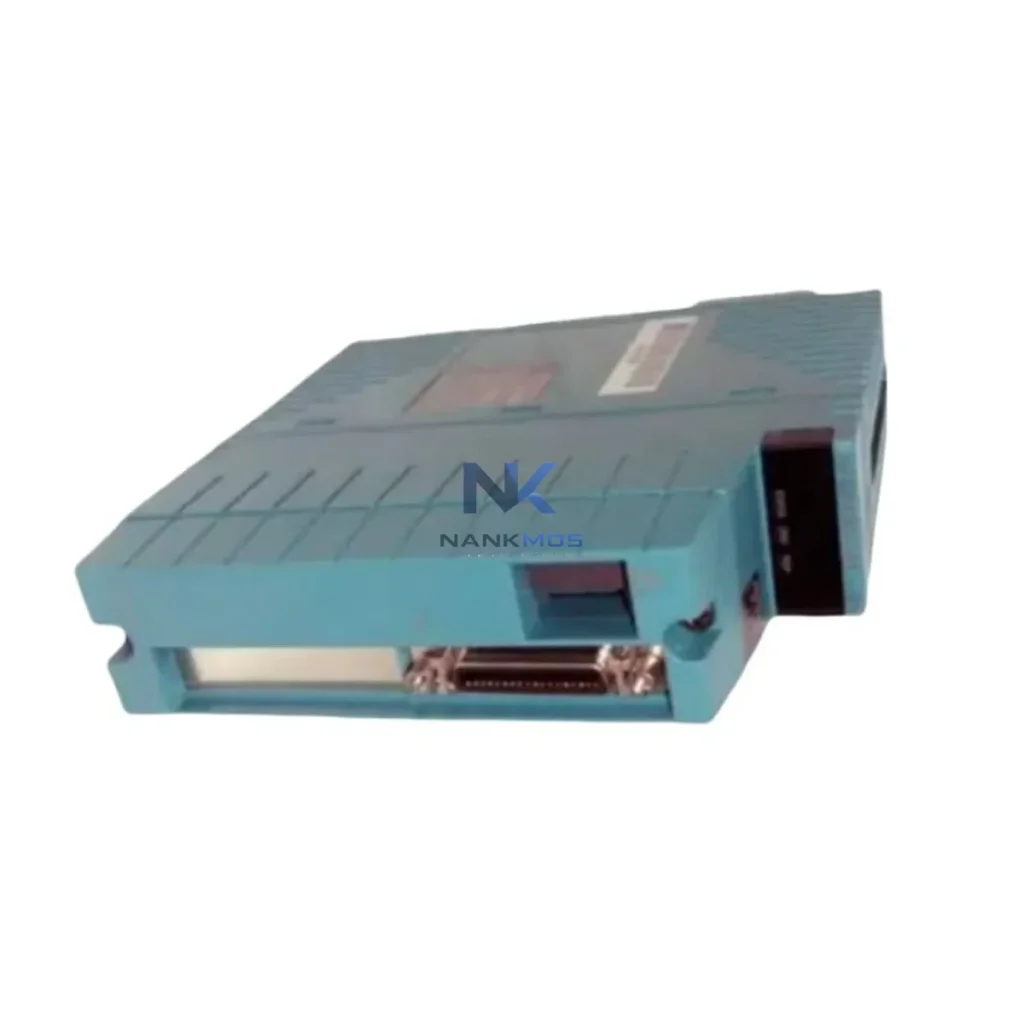

Yokogawa NFTB5S-00 S2 Terminal Block

Product Details

NFTB5S-00 S2 Product Description

The Yokogawa NFTB5S-00/S2 is a precision-engineered terminal block module designed for seamless integration within Yokogawa's CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. As a core field-wiring termination component within the NFTB Series, this module serves a critical role at the I/O layer of the control architecture — bridging field instrument signals to the DCS I/O subsystem with high reliability, signal integrity, and long-term serviceability. In modern industrial automation environments, the terminal block is far more than a passive wiring point; it is a structured interface node that determines signal quality, cabinet organization, maintenance efficiency, and system expandability across the entire control hierarchy.

Engineered to Yokogawa's exacting manufacturing standards and produced in Japan, the NFTB5S-00/S2 is built for demanding process environments including power generation, petrochemical refining, oil and gas upstream and downstream operations, water and wastewater treatment, mining and mineral processing, metallurgical plants, marine propulsion control, and continuous process manufacturing. Its compact, modular form factor supports high-density marshalling cabinet layouts while maintaining clear wiring access, label visibility, and individual circuit isolation — all essential for efficient commissioning, loop testing, and long-term preventive maintenance.

Within a fully integrated Yokogawa DCS architecture, the NFTB5S-00/S2 operates in close coordination with upstream and downstream system layers. At the I/O layer, it interfaces directly with Yokogawa's field control station modules such as the AAI141 and AAI543 analog input/output cards, as well as digital I/O modules including the ADV151 and ADO551. These I/O cards are housed within ANB10D or ANB10S node units, which in turn communicate with the PFCS (Field Control Station) or LFCS2 (Large-scale Field Control Station) processors via the Vnet/IP real-time control network — Yokogawa's proprietary high-speed, redundant Ethernet-based control bus.

Signal flow from field instruments — including 4–20 mA transmitters, RTDs, thermocouples, and discrete contact closures — passes through the NFTB5S-00/S2 terminal block before reaching the I/O module. Proper termination at this stage ensures low-resistance, vibration-resistant connections that minimize signal drift, ground loop interference, and wiring errors. In redundant I/O architectures, dual-path wiring through matched NFTB Series terminal blocks enables seamless switchover without field rewiring, supporting the high-availability requirements of safety-critical process loops.

At the power layer, the NFTB5S-00/S2 is compatible with Yokogawa's PW481 and PW482 power supply modules, which provide regulated 24 VDC to the I/O subsystem. Stable power distribution across the marshalling cabinet is essential for maintaining consistent signal reference levels at the terminal block layer. At the communication layer, the DCS backbone — including BCV1 Vnet/IP communication modules and ESB bus couplers — ensures that data acquired at the I/O termination level is transmitted with deterministic latency to the HIS (Human Interface Station) running CENTUM VP's operator console software.

For engineering teams performing system integration, the NFTB5S-00/S2 simplifies loop documentation and as-built drawing management. Its standardized terminal numbering aligns with Yokogawa's I/O assignment conventions, reducing the risk of wiring errors during multi-discipline engineering handoffs. During commissioning, individual terminal access supports loop calibration, signal injection testing, and continuity verification without disturbing adjacent circuits — a significant advantage in high-channel-count marshalling panels where access space is limited.

Long-term maintainability is a defining characteristic of the NFTB Series design philosophy. Replacement of individual terminal blocks can be performed without full panel shutdown, supporting planned maintenance windows and minimizing unplanned process interruptions. The NFTB5S-00/S2's robust screw-clamp or spring-clamp termination mechanism (per variant specification) maintains consistent contact force over years of thermal cycling and vibration exposure — critical in rotating equipment environments and outdoor substations where ambient conditions fluctuate significantly.

All NFTB5S-00/S2 units supplied by NANKMOS are sourced from verified supply channels, individually inspected prior to shipment, and covered by a 12-Month Warranty against manufacturing defects and functional failure. Pre-shipment testing confirms terminal continuity, insulation resistance, and mechanical integrity before dispatch. In-stock availability supports urgent project timelines, MRO replenishment, and spare parts programs for operating plants running CENTUM VP or CS 3000 DCS platforms.

The NFTB5S-00/S2 achieves its full value when deployed as part of a coherent, multi-layer Yokogawa automation architecture. At the field control level, the PFCS and LFCS2 field control stations execute real-time process control logic, with I/O data acquired through analog input modules such as the AAI141-S00 (16-channel 4–20 mA input) and the AAI543-S00 (8-channel analog I/O). These modules connect to field instruments via the NFTB5S-00/S2 terminal block, which provides the physical wiring interface within the marshalling cabinet.

Digital signals — including motor run/stop status, valve open/close feedback, and interlock contacts — are terminated through the same NFTB Series infrastructure before reaching ADV151-P00 digital input modules or ADO551-P00 digital output modules. Power to the I/O subsystem is supplied by PW481 redundant power supply modules, ensuring uninterrupted operation even during single power supply failure. The ANB10D dual-redundant node unit houses these I/O cards and communicates upstream via the Vnet/IP network to the BCV1 communication module.

At the HMI layer, operators interact with the process through Yokogawa's HIS workstations running CENTUM VP's graphic display environment, where real-time values from field instruments — passed through the NFTB5S-00/S2 termination layer — are visualized as trend displays, alarm summaries, and control faceplates. For plants requiring advanced process data historian integration, the Exaquantum plant information management system aggregates long-term process data from the DCS, enabling performance analysis and regulatory reporting.

In safety-instrumented system (SIS) applications, the NFTB Series terminal blocks may be deployed in parallel with ProSafe-RS safety controller I/O termination panels, maintaining physical separation between safety and basic process control system (BPCS) wiring in accordance with IEC 61511 requirements. This layered wiring discipline, anchored by the NFTB5S-00/S2 at the termination layer, is fundamental to achieving the required Safety Integrity Level (SIL) for critical process loops.

Power Generation: In combined-cycle and coal-fired power plants, the NFTB5S-00/S2 terminates signals from boiler pressure transmitters, turbine speed sensors, and generator excitation feedback circuits within the DCS marshalling room. High channel density and reliable termination are essential for managing the hundreds of I/O points typical in power plant DCS architectures.

Petrochemical Refining: Refinery DCS systems managing distillation columns, heat exchangers, and reactor temperature control rely on accurate signal termination at the marshalling cabinet. The NFTB5S-00/S2 supports the high-accuracy analog signal chains required for tight process control in hazardous area applications, with field instrument cables entering the safe area through appropriate cable glands and barriers before terminating at the NFTB block.

Oil and Gas: Offshore and onshore production facilities operating CENTUM VP DCS platforms use NFTB Series terminal blocks for wellhead instrumentation, separator level control, and pipeline flow measurement termination. The module's robust mechanical design withstands the vibration and humidity conditions common in offshore control room environments.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use Yokogawa DCS systems for pump station control, chemical dosing, and effluent quality monitoring. The NFTB5S-00/S2 provides reliable termination for flow, pH, turbidity, and dissolved oxygen transmitter signals across distributed pump stations and treatment process areas.

Mining and Metallurgy: Mineral processing plants and smelters operating in high-dust, high-vibration environments require terminal blocks with robust mechanical retention and high insulation resistance. The NFTB5S-00/S2's Japan-manufactured construction meets the durability requirements of these demanding industrial environments, supporting conveyor control, crusher monitoring, and furnace temperature management applications.

Q1: Is the NFTB5S-00/S2 compatible with both CENTUM VP and CS 3000 DCS platforms? Yes. The NFTB5S-00/S2 is designed within Yokogawa's NFTB Series, which is compatible with both the CENTUM VP and CS 3000 DCS platforms. It interfaces with the standard I/O module connector and marshalling cabinet rail systems used across both generations of Yokogawa's DCS architecture. Engineers migrating from CS 3000 to CENTUM VP can retain existing NFTB Series terminal block infrastructure, reducing rewiring costs during platform upgrades.

Q2: Can the NFTB5S-00/S2 be used in redundant I/O wiring configurations? Yes. In redundant I/O architectures, dual-path field wiring can be routed through matched NFTB Series terminal blocks to separate I/O modules within a redundant node unit such as the ANB10D. This configuration supports seamless I/O switchover without field rewiring, maintaining process continuity during I/O module replacement or failure. NANKMOS recommends procuring matched pairs of NFTB5S-00/S2 units for redundant loop applications to ensure consistent termination characteristics across both signal paths.

Q3: What warranty and supply assurance does NANKMOS provide for the NFTB5S-00/S2? All NFTB5S-00/S2 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure from the date of shipment. Each unit undergoes pre-shipment inspection including terminal continuity testing, insulation resistance verification, and mechanical integrity checks. In-stock inventory is maintained to support urgent MRO requirements, planned maintenance shutdowns, and spare parts programs for operating CENTUM VP and CS 3000 DCS installations. For volume procurement or project-specific supply scheduling, contact NANKMOS directly.
