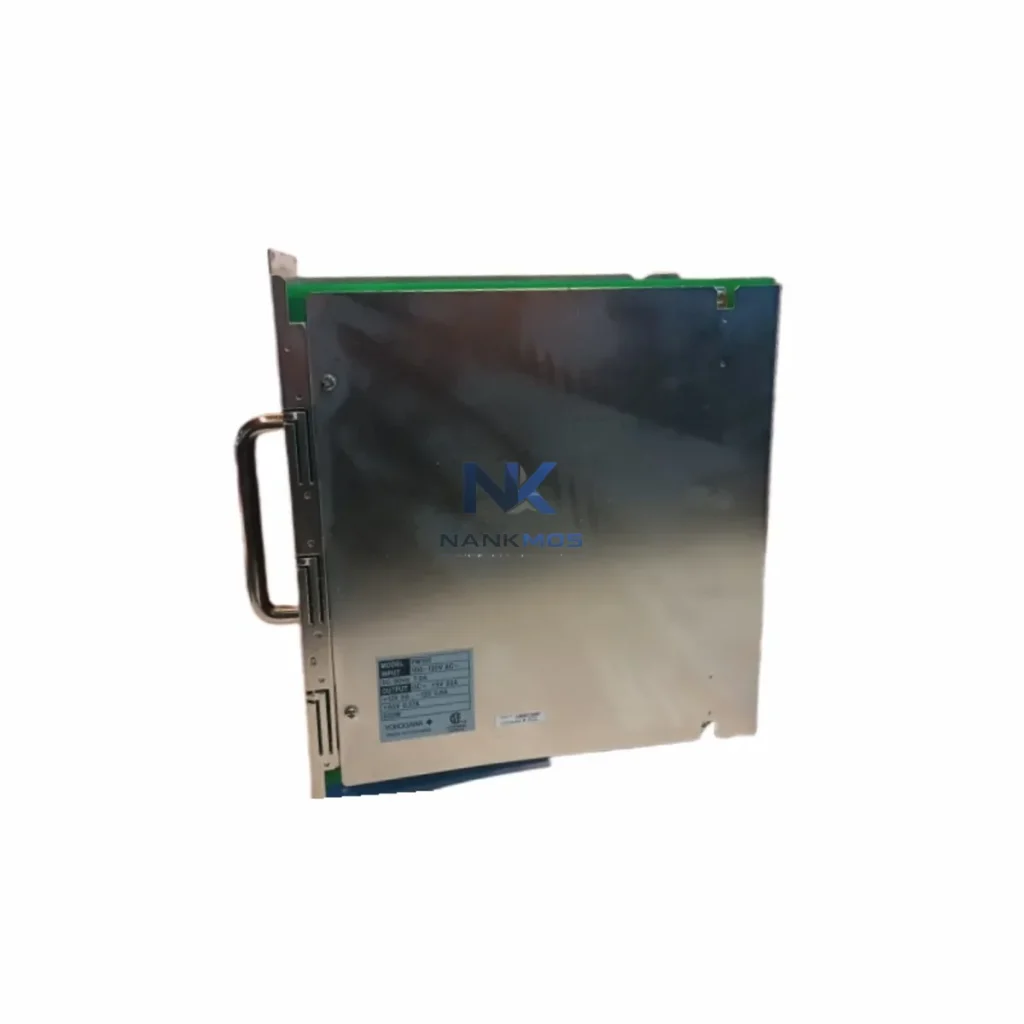

Yokogawa PW101 S3 DC Power Supply Module

Product Details

PW101 S3 Product Description

The Yokogawa PW101 S3 is a system-ready DC power supply module engineered for mission-critical industrial environments where power stability directly determines data integrity across the entire automation network. Designed for seamless integration within the Centum VP distributed control system (DCS) architecture, the PW101 S3 delivers regulated, redundant DC power to field control stations, I/O modules, and communication buses — forming the backbone of a reliable smart factory data chain.

In modern industrial facilities — spanning petrochemical plants, semiconductor fabs, LNG terminals, and continuous process manufacturing — every node in the automation network depends on stable, uninterrupted power. The PW101 S3 addresses this requirement by providing dual-redundant power paths that eliminate single points of failure, ensuring that field devices, remote I/O racks, and gateway modules remain continuously energized and communicating. When power fluctuations occur, the module's automatic switchover logic maintains live data flow between PLCs, SCADA servers, and HMI workstations without triggering process interruptions or alarm cascades.

The PW101 S3 sits at the foundation of a layered industrial data architecture. At the field level, sensors, transmitters, and actuators — including Yokogawa EJA-series differential pressure transmitters and YTA temperature transmitters — rely on stable bus power to maintain continuous HART or FOUNDATION Fieldbus H1 communication. The PW101 S3 supplies this bus power through the Centum VP field control station (FCS), ensuring that analog and digital signals from field instruments are accurately digitized and forwarded upstream without dropout.

Within the control layer, the Centum VP FCS processes real-time data from field devices and executes control logic. The FCS communicates with remote I/O modules — such as the AAI141 analog input module and ADV151 digital I/O module — over the internal backplane bus, which the PW101 S3 powers directly. Any power instability at this layer would corrupt I/O scan cycles and introduce latency into the control loop, degrading PID performance and triggering nuisance alarms at the SCADA level.

At the network layer, the Centum VP system communicates over Vnet/IP, Yokogawa's proprietary high-speed Ethernet control network. Industrial Ethernet switches — including managed switches supporting IEEE 802.3 and PROFINET-compatible topologies — carry real-time process data between FCS nodes, engineering workstations, and the CENTUM VP HIS (Human Interface Station). The PW101 S3's redundant architecture ensures that even during a power module swap, Vnet/IP communication remains uninterrupted, preserving live trend data and alarm histories on the HIS.

For facilities integrating third-party devices — such as Siemens SIMATIC S7 PLCs, Allen-Bradley ControlLogix controllers, or Mitsubishi MELSEC Q-series systems — the Centum VP platform uses protocol gateway modules to bridge Modbus TCP/IP or PROFIBUS DP data into the Vnet/IP backbone. The PW101 S3 powers these gateway modules within the FCS rack, making it an indirect enabler of cross-protocol data aggregation. SCADA platforms such as Yokogawa FAST/TOOLS or third-party systems like Wonderware InTouch and Ignition by Inductive Automation receive consolidated process data through OPC-DA or OPC-UA interfaces, enabling plant-wide visualization and KPI dashboards.

Edge computing nodes — including Yokogawa's OpreX Field Device Advisor or third-party edge gateways running IIoT middleware — tap into the Vnet/IP data stream to perform local analytics, predictive maintenance calculations, and anomaly detection before forwarding summarized data to cloud platforms or MES systems. The reliability of this entire edge-to-cloud data pipeline depends on the uninterrupted power delivery that the PW101 S3 provides at the FCS level.

Many industrial sites operate with aging DCS infrastructure where power supply modules are the most overlooked source of data quality degradation. A failing or undersized power module introduces micro-interruptions that manifest as sporadic I/O errors, false alarms, and unexplained communication timeouts — symptoms that are often misdiagnosed as network or software issues. The PW101 S3 eliminates this root cause by providing stable, redundant DC power with automatic failover, ensuring that every I/O scan, every HART poll, and every Fieldbus segment transaction completes without error.

For sites struggling with data silos, the PW101 S3 supports the Centum VP's open integration architecture, which allows FOUNDATION Fieldbus device data — including valve diagnostics, transmitter health status, and loop integrity metrics — to be surfaced directly in the SCADA historian without manual data entry. This closes the gap between field device intelligence and plant-level decision-making systems.

Remote monitoring and diagnostics are further enhanced by the PW101 S3's compatibility with Yokogawa's Plant Resource Manager (PRM), which tracks power module health, redundancy status, and fault history. Maintenance teams can remotely verify power module status from the engineering workstation, reducing the need for physical field inspections and enabling condition-based maintenance scheduling. Combined with the Centum VP's built-in alarm management framework, the system can automatically escalate power anomalies to on-call engineers via SCADA notification or email alert, minimizing mean time to repair (MTTR).

For production line transparency, the PW101 S3 supports phased system expansion — additional FCS nodes, remote I/O racks, and communication modules can be added to the Centum VP architecture without redesigning the power distribution scheme, provided the total load remains within the module's rated output. This scalability makes the PW101 S3 a long-term investment for facilities planning incremental smart factory upgrades.

All units supplied by NANKMOS undergo pre-shipment functional testing, including output voltage verification, redundancy switchover testing, and backplane connector inspection. In-stock inventory ensures short lead times for urgent replacement orders. Every PW101 S3 is covered by a 12-Month Warranty from the date of shipment.

Q1: Does the PW101 S3 support hot-swap replacement without interrupting the Centum VP FCS operation?A: Yes. The PW101 S3 is designed for redundant operation within the Centum VP architecture. When a second PW101 S3 is installed in the redundant slot, the active module can be replaced online without interrupting FCS control execution, I/O scanning, or Vnet/IP communication. This is critical for continuous process industries where planned shutdowns are costly.

Q2: Which communication protocols does the PW101 S3 indirectly support through the Centum VP FCS?A: The PW101 S3 powers the FCS backplane, which supports FOUNDATION Fieldbus H1, HART (via multiplexer or FCS HART I/O modules), Modbus RTU/TCP (via gateway modules), and Vnet/IP for inter-node communication. Protocol compatibility depends on the I/O and communication modules installed in the same FCS rack.

Q3: How does the PW101 S3 contribute to remote diagnostics and predictive maintenance?A: The module's redundancy status and fault conditions are monitored by the Centum VP system and surfaced in Yokogawa's Plant Resource Manager (PRM). Maintenance engineers can remotely check power module health from any HIS or engineering workstation on the Vnet/IP network, enabling proactive replacement before a failure impacts production.

Q4: What is the warranty coverage and how does NANKMOS handle replacement for defective units?A: Every PW101 S3 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Units that exhibit manufacturing defects or functional failures within the warranty period are eligible for replacement or repair. Contact [email protected] or +86 18359268345 to initiate a warranty claim. Pre-shipment testing documentation is available upon request.
