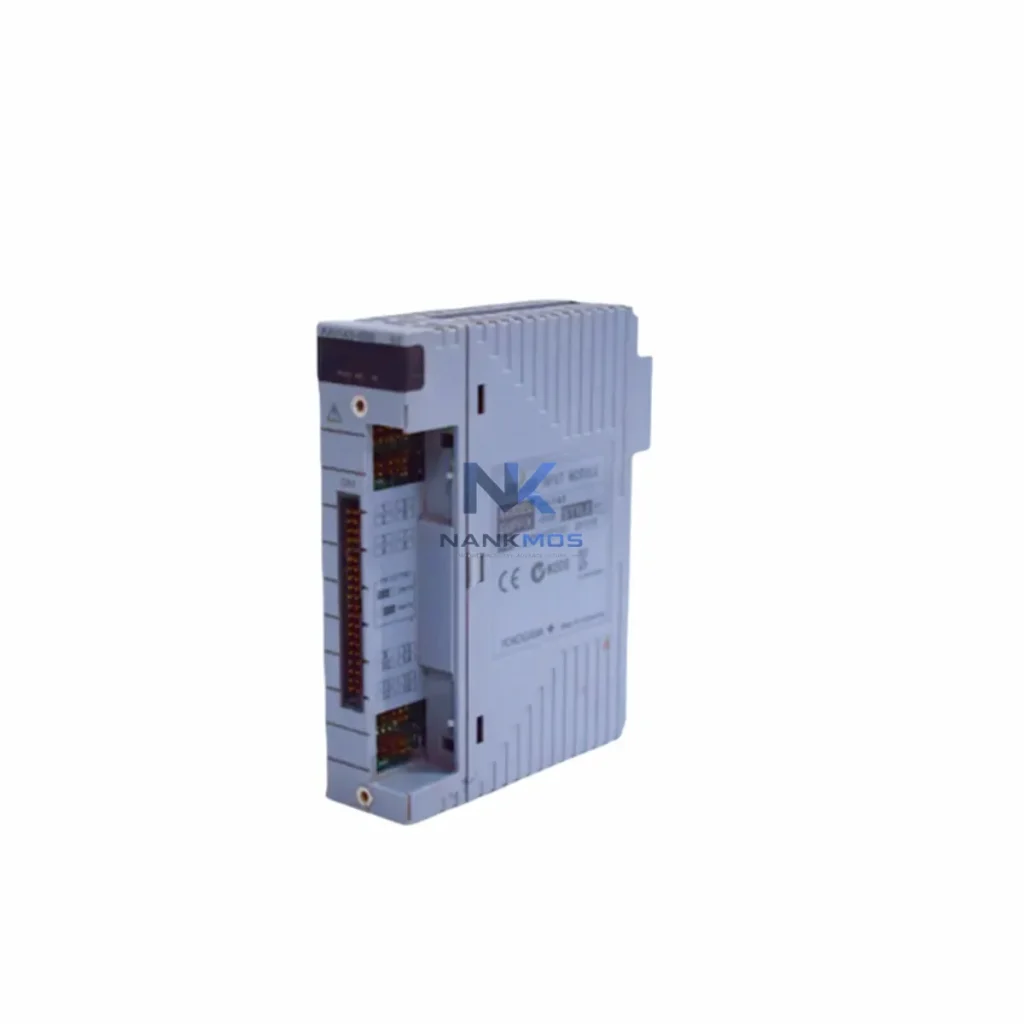

Yokogawa S9562FA Communication Module

Product Details

S9562FA Product Description

The Yokogawa S9562FA is a high-performance Ethernet Connector Unit engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed to serve as the backbone of industrial data communication, the S9562FA bridges field-level devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and upper-level enterprise networks through a unified, protocol-rich Ethernet interface. In smart factory environments where real-time data integrity and network stability are non-negotiable, the S9562FA delivers the connectivity architecture that modern automation sites demand.

Built on Yokogawa's proven STARDOM architecture, the S9562FA supports Modbus TCP, OPC-UA, and EtherNet/IP — three of the most widely deployed industrial communication protocols — enabling seamless interoperability across heterogeneous automation ecosystems. Whether integrating with Siemens SIMATIC S7 PLCs, Mitsubishi MELSEC controllers, Rockwell Automation ControlLogix systems, or third-party SCADA platforms, the S9562FA ensures that data flows without interruption from the sensor layer to the supervisory layer.

In a fully connected smart factory, the S9562FA acts as the central communication node within the STARDOM FCN autonomous controller rack. Signal acquisition begins at the field level, where sensors, transmitters, and actuators feed process data into the FCN's local I/O modules — such as the Yokogawa F3AD08-6N analog input module or the F3XD32-3F digital input module. These field signals are aggregated within the FCN controller and then transmitted upstream via the S9562FA's Ethernet port using Modbus TCP or OPC-UA, depending on the target system's protocol requirements.

For sites running Yokogawa FAST/TOOLS SCADA or Exaquantum historian, the S9562FA's OPC-UA interface provides a direct, secure data pathway — eliminating the need for intermediate protocol converters or OPC-DA bridges. Data from pressure transmitters, flow meters, and temperature sensors arrives at the SCADA server in real time, enabling operators to monitor process variables, set alarm thresholds, and generate trend reports without latency-induced blind spots.

In multi-vendor environments, the S9562FA's EtherNet/IP support allows the STARDOM FCN to communicate natively with Allen-Bradley ControlLogix PLCs and Rockwell FactoryTalk View HMI stations. This is particularly valuable in hybrid automation architectures where legacy DCS islands must be integrated into a unified plant-wide Ethernet backbone. The S9562FA connects these islands without requiring costly gateway hardware, reducing both capital expenditure and network complexity.

For remote I/O expansion, the STARDOM FCN platform supports distributed I/O nodes connected via the FCN's internal bus, with the S9562FA handling all upstream Ethernet communication. Remote diagnostic data — including module health status, communication error counts, and network latency metrics — is continuously streamed to the SCADA layer, where it can be visualised on Yokogawa Exaopc OPC server dashboards or third-party HMI panels such as Weintek cMT or Proface GP4000 series terminals.

Edge computing scenarios benefit equally from the S9562FA's connectivity profile. When paired with an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 series — the S9562FA enables the STARDOM FCN to push process data to cloud-based analytics platforms or MES systems, supporting IIoT initiatives without disrupting existing control logic. Variable-frequency drives (VFDs) from Yaskawa or Fuji Electric, connected via Modbus TCP through managed industrial Ethernet switches such as the Hirschmann RS20 or Moxa EDS-408A, can also be monitored and parameterised remotely through the S9562FA's communication stack.

Protocol Fragmentation: Many automation sites operate a mix of legacy serial protocols (RS-485, Modbus RTU) alongside modern Ethernet-based systems. The S9562FA, combined with the STARDOM FCN's built-in protocol handling, consolidates these communication streams into a single Ethernet output — eliminating the protocol fragmentation that creates data silos and complicates maintenance.

Data Islands and Visibility Gaps: Without a unified network interface, process data from field devices often remains trapped within local controllers, invisible to plant-wide SCADA or MES systems. The S9562FA's OPC-UA server capability exposes all FCN data objects as standardised OPC nodes, making every process variable, alarm state, and diagnostic parameter accessible to any OPC-UA client on the network — from Ignition SCADA to Wonderware System Platform.

Remote Monitoring and Diagnostics: Unplanned downtime caused by undetected communication faults is a persistent challenge in distributed automation sites. The S9562FA supports continuous network health monitoring, with the STARDOM FCN logging communication error events and transmitting diagnostic alerts to the SCADA layer in real time. Maintenance teams can identify and resolve network issues remotely, reducing site visit frequency and mean time to repair (MTTR).

Production Line Transparency and Alarm Tracking: The S9562FA enables end-to-end production line transparency by ensuring that every alarm event generated at the field level — whether a sensor fault, a drive trip, or a communication timeout — is propagated to the SCADA alarm management system without delay. This supports ISA-18.2-compliant alarm rationalisation and provides a complete audit trail for regulatory compliance and root-cause analysis.

System Scalability: As production capacity grows, the STARDOM FCN platform scales horizontally by adding FCN nodes to the Ethernet network. Each additional FCN communicates through its own S9562FA unit, maintaining a flat, manageable network topology. This modular expansion model protects the initial infrastructure investment while accommodating future automation requirements.

Q1: What is the communication latency of the S9562FA when transmitting data via Modbus TCP to a SCADA system? The S9562FA operates on a standard 100BASE-TX Ethernet interface, with Modbus TCP cycle times typically in the range of 10–100 ms depending on network load and polling configuration. For time-critical applications, OPC-UA subscriptions can be configured with update rates as low as 100 ms, ensuring near-real-time data delivery to SCADA clients without overloading the network.

Q2: Is the S9562FA compatible with third-party SCADA platforms beyond Yokogawa FAST/TOOLS? Yes. The S9562FA's OPC-UA and Modbus TCP interfaces are open-standard protocols supported by all major SCADA platforms, including Ignition by Inductive Automation, Wonderware (AVEVA System Platform), Siemens WinCC, and GE iFIX. EtherNet/IP compatibility further extends integration options to Rockwell FactoryTalk and other CIP-based systems.

Q3: How does the S9562FA support remote diagnostics and network stability monitoring? The STARDOM FCN controller continuously monitors the S9562FA's communication status, logging error events such as TCP connection timeouts, packet loss, and protocol exceptions. These diagnostic events are accessible via the OPC-UA server interface and can be forwarded to SCADA alarm management systems or remote maintenance portals, enabling proactive fault detection without requiring physical access to the controller cabinet.

Q4: What warranty and pre-shipment testing does the S9562FA include? Every S9562FA unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional communication testing to verify Ethernet port integrity, protocol handshake performance, and module identification within the STARDOM FCN rack. Units are shipped in original or equivalent protective packaging to ensure safe transit. In-stock units are available for immediate dispatch with full documentation support.
