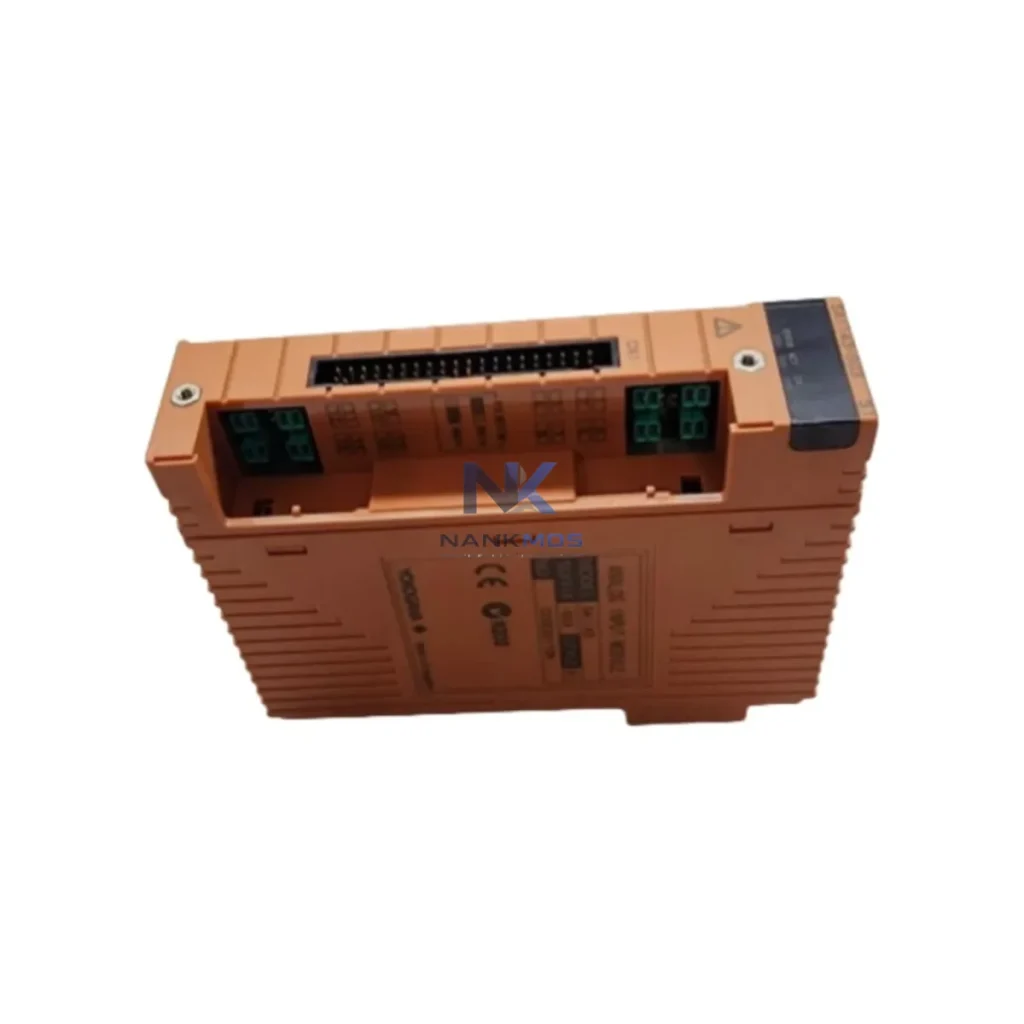

Yokogawa SAI143-H03 S2 Signal Conditioning Module

Product Details

SAI143-H03 S2 Product Description

The Yokogawa SAI143-H03-S2 is a high-performance HART-compatible signal conditioning and analog input module engineered for seamless integration within the STARDOM FCN/FCJ distributed control architecture. Designed to bridge field-level instrumentation with upper-layer control and monitoring systems, this module plays a critical role in the industrial data chain — from raw signal acquisition at the sensor level through protocol conversion, network transmission, real-time SCADA visualization, and remote diagnostics. In smart factory environments where data continuity and communication reliability are non-negotiable, the SAI143-H03-S2 delivers the connectivity backbone that keeps automation systems synchronized and responsive.

At the field level, the SAI143-H03-S2 accepts 4–20 mA analog signals from transmitters, flow meters, pressure sensors, and temperature probes, while simultaneously supporting HART protocol communication over the same two-wire loop. This dual-channel capability allows process variables and device diagnostics to travel together — eliminating the need for separate wiring infrastructure and reducing installation complexity across distributed I/O panels. When paired with Yokogawa's STARDOM FCN autonomous controller, the module enables deterministic scan cycles and high-integrity data acquisition that feeds directly into the FCN's onboard logic engine.

Within the STARDOM architecture, the SAI143-H03-S2 connects to the FCN controller backplane, where acquired field data is processed and forwarded upstream via Ethernet-based industrial protocols including Modbus/TCP and OPC-UA. This makes the module a natural fit for integration with SCADA platforms such as Yokogawa's FAST/TOOLS or third-party systems like Wonderware, Ignition, and iFIX. Engineering teams can configure tag mapping, alarm thresholds, and data logging parameters directly through the STARDOM Resource Configurator, ensuring that every signal path from the SAI143-H03-S2 is traceable, documented, and audit-ready.

For facilities operating mixed-vendor environments, the SAI143-H03-S2 supports interoperability with Yokogawa's F3SP series safety modules and the CENTUM VP distributed control system via gateway bridging. When deployed alongside the Yokogawa AMC80 communication module or the STARDOM FCJ compact controller, the SAI143-H03-S2 extends the reach of the data network to remote skids, satellite panels, and unmanned substations — all without sacrificing scan rate or signal fidelity. Edge gateway devices such as the Yokogawa OpreX Field Device Advisor can further aggregate HART diagnostic data from multiple SAI143-H03-S2 modules and push structured datasets to cloud-based asset management platforms.

In process industries including oil and gas, petrochemicals, power generation, and water treatment, the SAI143-H03-S2 is frequently deployed in conjunction with Yokogawa EJA-series differential pressure transmitters, YTA temperature transmitters, and ADMAG AXF magnetic flowmeters. These field devices communicate HART secondary variables — including sensor diagnostics, loop integrity status, and device configuration data — through the SAI143-H03-S2 to the FCN controller, where the data is timestamped and forwarded to the historian. This end-to-end data chain supports predictive maintenance workflows, enabling maintenance teams to detect loop degradation, sensor drift, or valve stiction before process upsets occur.

Remote diagnostics capability is a defining strength of the SAI143-H03-S2 deployment model. Because HART diagnostic frames are decoded at the module level and passed to the FCN controller as structured process data, remote engineers can interrogate field device health from the SCADA workstation without dispatching technicians to the field. Alarm management systems can be configured to trigger notifications when HART device status bits indicate calibration drift, communication failure, or hardware fault — reducing mean time to repair and supporting continuous production targets. This capability is especially valuable in offshore platforms, remote pipeline stations, and hazardous area installations where physical access is restricted.

Every Yokogawa SAI143-H03-S2 unit supplied by NANKMOS is pre-shipment tested against Yokogawa factory specifications, verifying analog input accuracy, HART communication integrity, and backplane interface continuity before dispatch. Units are held in ready stock and supported by a 12-month warranty covering manufacturing defects and communication performance. NANKMOS maintains traceability records for each unit, including firmware version, test date, and configuration baseline — ensuring that replacement modules can be deployed with minimal commissioning time.

A typical smart factory deployment of the SAI143-H03-S2 begins at the field instrument layer, where Yokogawa EJA110E differential pressure transmitters and YTA320 temperature transmitters output 4–20 mA signals with embedded HART frames. These signals enter the SAI143-H03-S2 module mounted on the STARDOM FCN controller backplane. The FCN controller — operating on a deterministic real-time OS — scans the module at configurable intervals, extracting both the primary analog process variable and the HART secondary variables (device status, loop current, sensor temperature) in a single acquisition cycle.

The FCN controller aggregates data from multiple SAI143-H03-S2 modules across the I/O rack and forwards structured datasets upstream via its Ethernet port using Modbus/TCP or OPC-UA. Industrial managed switches — such as those in the Yokogawa ProSafe-RS network infrastructure or equivalent IEC 61850-compliant switches — route this traffic across the plant LAN to the SCADA server. At the SCADA layer, FAST/TOOLS or an OPC-UA client subscribes to FCN data tags, rendering real-time trend displays, alarm dashboards, and historical logs for operator workstations and engineering review stations.

For facilities requiring remote access, the FCN controller's data stream can be tunneled through a Yokogawa OpreX-compatible edge gateway or a secure industrial VPN concentrator to a cloud-based asset management platform. Remote engineers can then access live HART diagnostic data — including device health scores, calibration status, and loop integrity metrics — from any authorized workstation without requiring VPN-level access to the plant control network. This architecture supports the IEC 62443 cybersecurity framework by segmenting field data access from control network access.

When the SAI143-H03-S2 is deployed alongside Yokogawa ADMAG AXF magnetic flowmeters, F3SP safety I/O modules, and AMC80 communication modules in a multi-drop HART segment, the data richness of the network increases substantially. Each HART device contributes diagnostic frames that the SAI143-H03-S2 decodes and passes to the FCN controller, building a comprehensive device health registry that feeds predictive maintenance algorithms. This connected data flow — from field sensor through protocol conversion, network transmission, SCADA visualization, and remote diagnostics — represents the complete smart factory data chain that the SAI143-H03-S2 is designed to anchor.

Many industrial facilities operate with fragmented automation architectures where field instruments communicate via legacy 4–20 mA loops without any digital diagnostic capability. The SAI143-H03-S2 resolves this data gap by enabling HART communication over existing analog wiring, transforming dumb signal loops into intelligent data channels without rewiring. This protocol upgrade path is particularly valuable in brownfield retrofits where replacing field cabling is cost-prohibitive.

Data island problems — where field device health information exists only at the instrument level and never reaches the control room — are eliminated when the SAI143-H03-S2 is integrated into the STARDOM FCN architecture. HART secondary variables that were previously inaccessible to the SCADA system are now surfaced as standard OPC-UA tags, visible to operators, maintenance engineers, and asset management systems simultaneously. This transparency supports production line visibility initiatives and enables alarm rationalization based on actual device health data rather than process variable exceedances alone.

For remote monitoring applications — offshore platforms, pipeline compressor stations, remote pump houses — the SAI143-H03-S2 combined with the FCN controller's Modbus/TCP output provides a reliable data path to central control rooms over standard industrial Ethernet infrastructure. Alarm tracking is enhanced because HART device fault codes are mapped to SCADA alarm tags, allowing maintenance teams to distinguish between process alarms and instrument faults without dispatching field technicians. System expansion is straightforward: additional SAI143-H03-S2 modules can be added to the FCN backplane as new field instruments are commissioned, scaling the data network without architectural changes.

Q1: What communication protocols does the SAI143-H03-S2 support, and how does it integrate with SCADA systems? The SAI143-H03-S2 supports HART protocol at the field level and integrates with SCADA systems via the STARDOM FCN controller's Modbus/TCP and OPC-UA outputs. This allows HART device data — including process variables and diagnostic information — to be published as standard SCADA tags accessible to platforms such as FAST/TOOLS, Ignition, Wonderware, and any OPC-UA-compliant HMI or historian.

Q2: How does the SAI143-H03-S2 support remote diagnostics and predictive maintenance? HART secondary variables decoded by the SAI143-H03-S2 — including device status bits, loop current, and sensor diagnostics — are forwarded to the FCN controller and published to the SCADA layer as structured data tags. Maintenance teams can monitor field device health remotely from the SCADA workstation, configure alarm thresholds for device fault conditions, and trigger maintenance work orders based on HART diagnostic data without requiring physical access to the field instrument.

Q3: Is the SAI143-H03-S2 compatible with third-party PLCs and control systems outside the STARDOM platform? The SAI143-H03-S2 is designed as a backplane-mounted module for the STARDOM FCN/FCJ controller family. For integration with third-party PLCs or DCS platforms, HART data can be accessed via the FCN controller's Modbus/TCP or OPC-UA server, which acts as a protocol gateway between the HART field network and the upstream control system. This gateway architecture supports interoperability with Siemens, Rockwell, Honeywell, and ABB control platforms.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SAI143-H03-S2? Every SAI143-H03-S2 supplied by NANKMOS is pre-shipment tested for analog input accuracy, HART communication integrity, and backplane interface continuity. Units are covered by a 12-month warranty against manufacturing defects and communication performance failures. NANKMOS maintains full traceability records including firmware version, test date, and configuration baseline for each unit dispatched.
