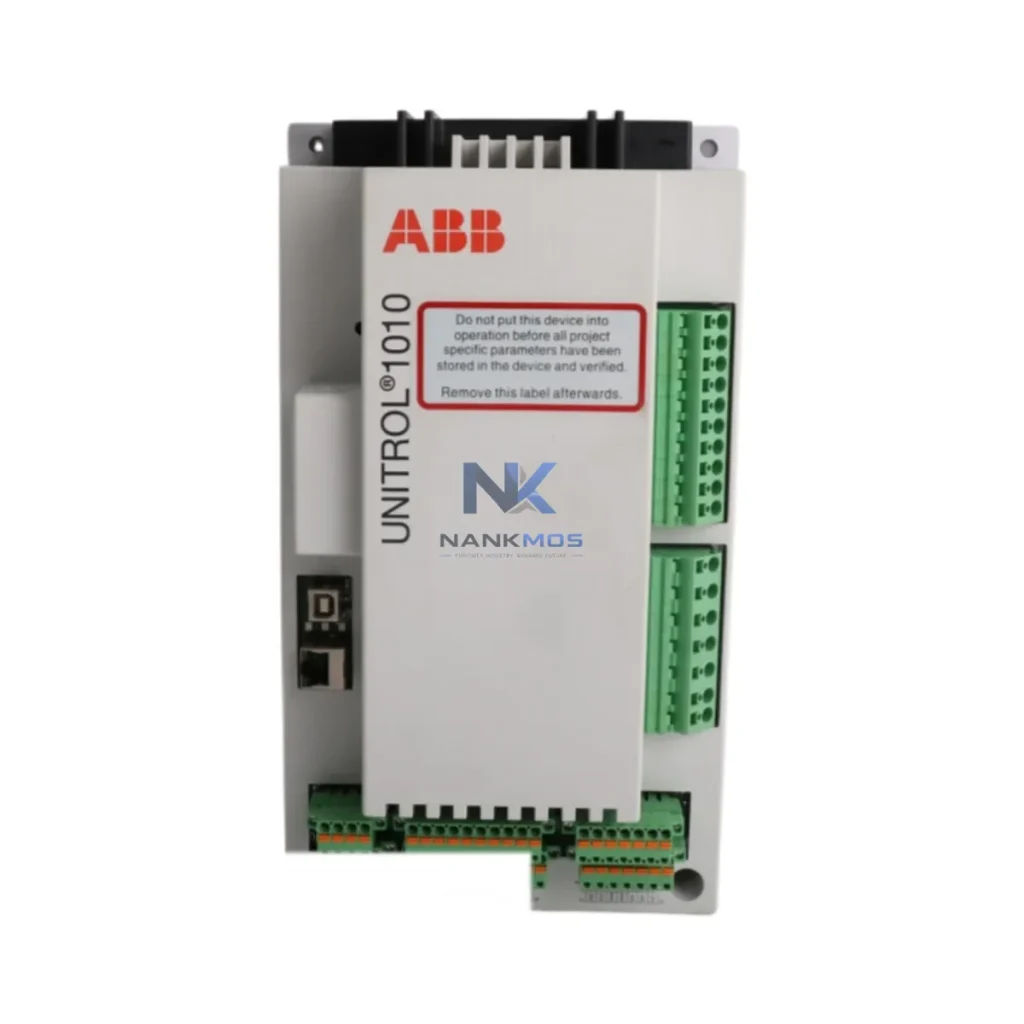

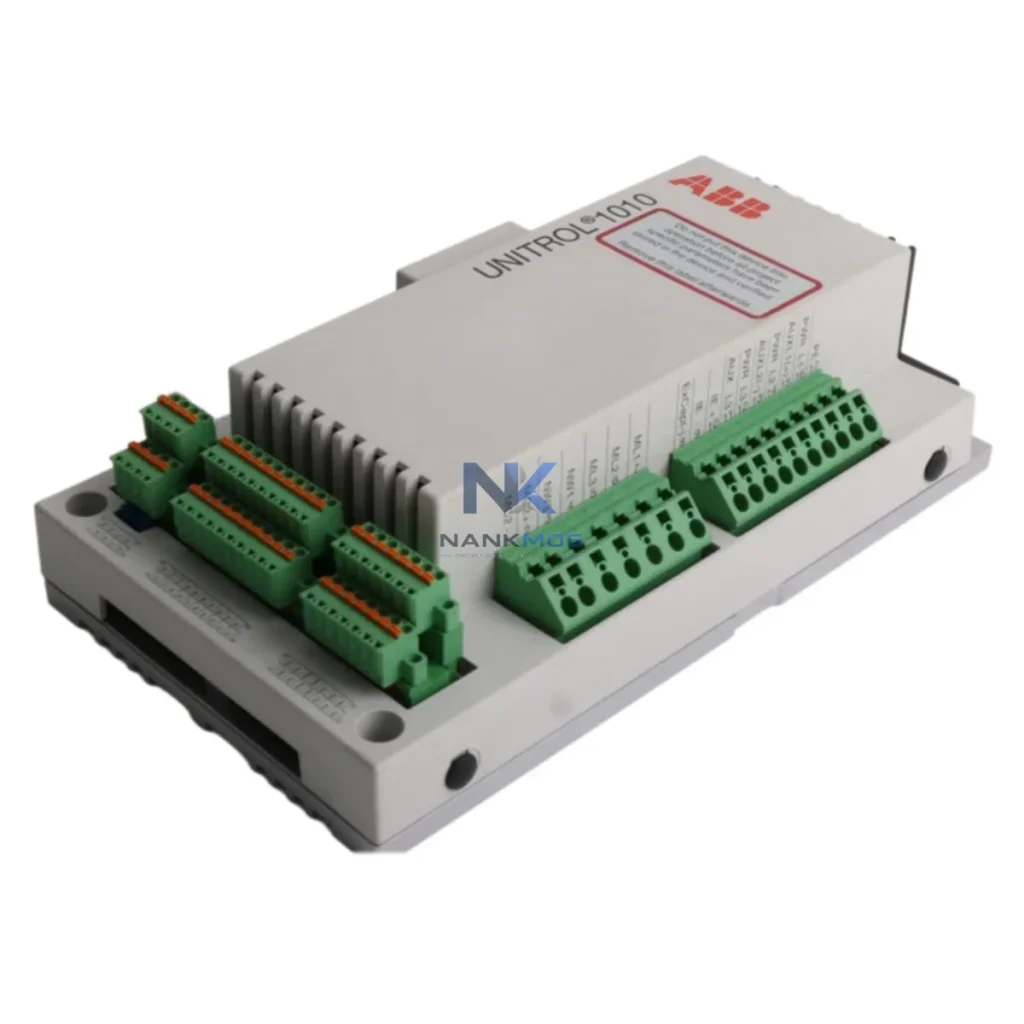

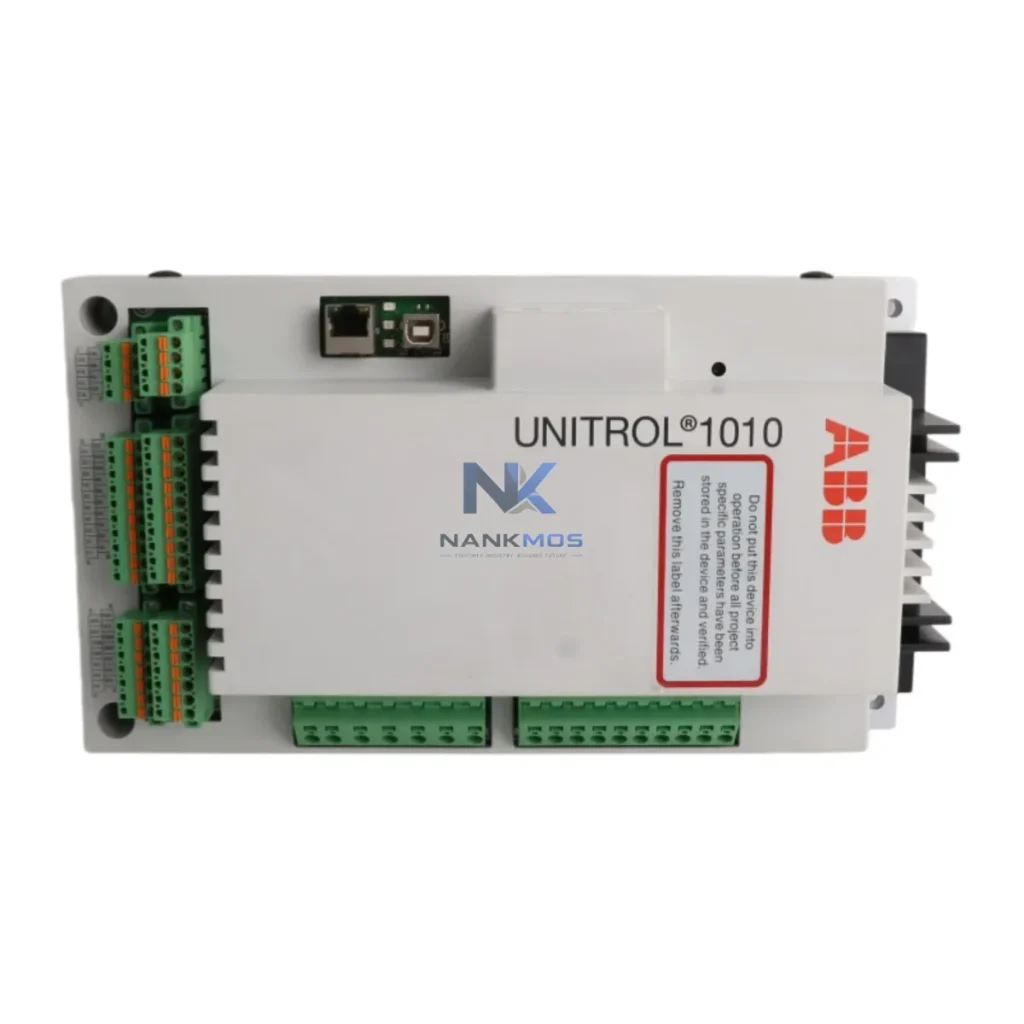

ABB 3BHE035301R0410 UNS0121 A-Z,V1 Voltage Regulator

Product Details

3BHE035301R0410 UNS0121 A-Z,V1 Product Description

The ABB 3BHE035301R0410 UNS0121A-Z V1 is not a standalone component — it is a precision-engineered node within ABB's UNITROL excitation control architecture, designed to deliver seamless Contextual Integration across every layer of a modern power generation or industrial automation system.

At the control layer, this AVR module interfaces directly with the UNITROL 1000 or UNITROL 6000 excitation controller platform, working in concert with the UNS0110A-Z excitation controller board and the UNS0122A-Z firing pulse unit to form a closed-loop voltage regulation chain. The module receives setpoint commands from the upper-level DCS — typically an ABB Symphony Plus AC800M controller — and translates them into precise field current adjustments, ensuring generator terminal voltage remains within tightly defined tolerances even under dynamic load conditions.

At the I/O and signal layer, the UNS0121A-Z V1 processes analog feedback signals from generator current transformers (CTs) and potential transformers (PTs), providing real-time reactive power (Q) and power factor (PF) monitoring. This signal chain is reinforced by ABB AI810 analog input modules and AO810 analog output modules within the Symphony Plus I/O rack, ensuring high-fidelity signal transmission with minimal noise interference across the control cabinet.

At the communication layer, the module supports PROFIBUS-DP connectivity, enabling direct integration with ABB CI854A PROFIBUS DP master modules and facilitating real-time data exchange with SCADA systems, historian servers, and remote operator workstations. For installations requiring redundant communication paths, the architecture can be extended with ABB CI871 PROFINET IO interface modules, providing deterministic Ethernet-based control with sub-millisecond cycle times.

At the power supply layer, the excitation system is supported by dedicated ABB SD831 and SD832 power supply modules, which deliver regulated 24 VDC auxiliary power to the UNITROL rack. Redundant power feed configurations — using dual SD832 units with diode ORing — ensure that a single power supply failure does not interrupt excitation control, a critical requirement in continuous-process industries such as petrochemical refining and steel production.

At the HMI and operator interface layer, the 3BHE035301R0410 integrates with ABB CP600 operator panels and ABB Ability System 800xA visualization platforms, providing operators with real-time excitation status, alarm management, and trend analysis. The Contextual Integration between the AVR module and the HMI layer enables one-click access to excitation diagnostics, reducing mean time to repair (MTTR) during fault conditions.

At the protection and redundancy layer, the UNS0121A-Z V1 supports dual-channel redundant AVR configurations, where a standby UNS0121A-Z unit remains in hot-standby mode, ready for bumpless transfer within milliseconds of a primary channel fault. This redundancy architecture is essential for power utility applications where generator trip events carry significant financial and grid-stability consequences. The module also interfaces with ABB REG670 generator protection relays, ensuring coordinated protection between the excitation system and the generator's differential, overcurrent, and loss-of-field protection functions.

At the maintenance and diagnostics layer, the module's built-in self-diagnostics continuously monitor internal board health, field current feedback integrity, and communication link status. Maintenance engineers can access detailed fault logs via the ABB UNITROL Service Tool software, enabling predictive maintenance scheduling without requiring system shutdown. Combined with the 12-Month Warranty coverage provided by NANKMOS, this diagnostic capability significantly reduces lifecycle maintenance costs for long-term plant operators.

The ABB 3BHE035301R0410 UNS0121A-Z V1 serves as a critical excitation control component across a wide range of heavy industrial and utility-scale applications:

Power Generation & Utilities: In thermal, hydro, and gas turbine power plants, this AVR module maintains generator terminal voltage stability during load swings, grid disturbances, and synchronization events. Its reactive power regulation capability supports grid voltage support functions, contributing to system-wide power quality and frequency stability.

Petrochemical & Refining: Large synchronous motors and generators in refinery compressor trains and pump drives rely on precise excitation control to maintain power factor correction and minimize reactive power import from the grid. The UNS0121A-Z V1's high-resolution analog processing ensures stable operation even in electrically noisy refinery environments.

Steel & Metallurgy: Rolling mill drives and arc furnace power systems impose severe dynamic load variations on plant generators. The fast response time of the UNITROL excitation architecture — enabled by the 3BHE035301R0410 module — ensures that generator voltage recovers within milliseconds of a load step, preventing process interruptions and protecting sensitive downstream equipment.

Marine & Offshore: Shipboard power management systems require compact, vibration-resistant excitation controllers capable of operating in humid, salt-laden environments. The UNS0121A-Z V1's robust construction and wide operating temperature range make it suitable for marine generator control panels on LNG carriers, offshore platforms, and naval vessels.

Water Treatment & Municipal Infrastructure: Pumping stations and water treatment facilities with on-site generation benefit from the module's power factor optimization capability, reducing utility demand charges and improving overall energy efficiency of the facility's electrical infrastructure.

Mining & Mineral Processing: High-power synchronous drives in grinding mills, hoists, and conveyor systems require excitation systems capable of handling frequent start-stop cycles and regenerative braking events. The UNITROL platform's dynamic response, anchored by the 3BHE035301R0410 AVR module, ensures reliable excitation control throughout the full drive cycle.

Q1: Is the ABB 3BHE035301R0410 UNS0121A-Z V1 compatible with both UNITROL 1000 and UNITROL 6000 excitation platforms? The UNS0121A-Z V1 is designed for the UNITROL modular excitation architecture and is compatible with UNITROL 1000 and UNITROL 6000 system configurations. For specific firmware version compatibility and rack slot assignments, consult the ABB UNITROL system documentation or contact NANKMOS technical support. All units supplied by NANKMOS undergo pre-shipment functional testing to verify board-level compatibility before dispatch.

Q2: Can this AVR module be integrated into a redundant dual-channel excitation architecture, and what is required for bumpless transfer? Yes. The 3BHE035301R0410 supports hot-standby redundant configurations when paired with a second UNS0121A-Z V1 unit and the appropriate UNITROL redundancy switching module. Bumpless transfer requires synchronized setpoint tracking between the active and standby channels, which is managed automatically by the UNITROL controller firmware. NANKMOS can supply matched pairs of UNS0121A-Z V1 modules with verified firmware versions to ensure seamless redundancy commissioning.

Q3: What warranty and after-sales support does NANKMOS provide for this module, and how quickly can replacement units be shipped? All ABB 3BHE035301R0410 UNS0121A-Z V1 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. In-stock units are available for same-day or next-business-day dispatch to global destinations. For urgent plant maintenance requirements, NANKMOS offers expedited shipping with full export documentation. Contact [email protected] or call +86 18359268345 for real-time stock confirmation and lead time quotation.
