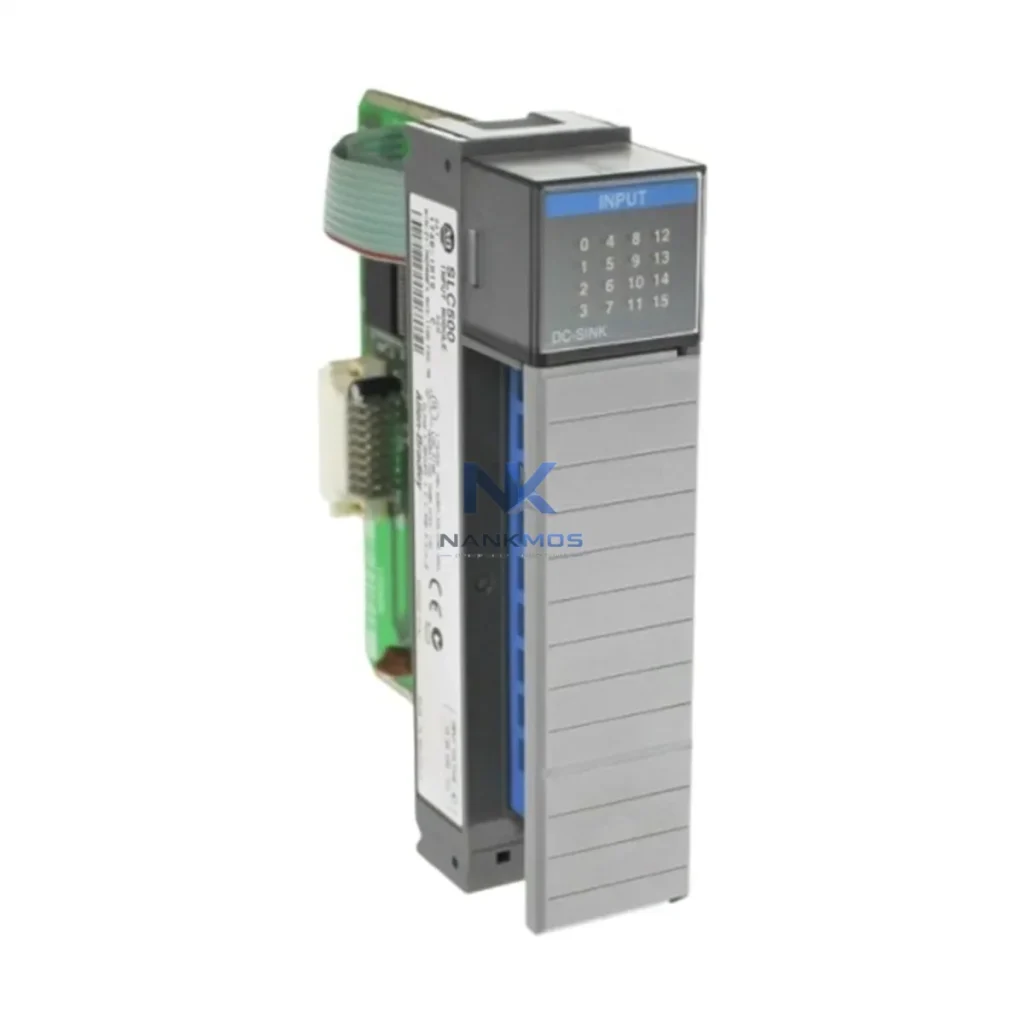

Allen-Bradley 1746-IN16 PLC Digital Input Module

Product Details

1746-IN16 Product Description

The Allen-Bradley 1746-IN16 is a 16-point 24VDC digital input module engineered for seamless integration within the SLC 500 modular control platform. Designed by Rockwell Automation, this module occupies a single slot in the 1746 I/O chassis and delivers reliable, noise-immune signal acquisition across demanding industrial environments. Its role within the SLC 500 control architecture extends far beyond simple field signal collection — the 1746-IN16 serves as a critical node in the layered control hierarchy, enabling the SLC 5/03, SLC 5/04, and SLC 5/05 processors to receive discrete status signals from field devices with deterministic scan-cycle performance.

In a fully deployed SLC 500 system, the 1746-IN16 operates in close coordination with the 1746-P4 or 1746-P7 power supply modules, which provide regulated 24VDC backplane power to sustain stable input signal thresholds across all 16 channels simultaneously. The module's optical isolation architecture ensures that transient voltage spikes and ground loop interference from field wiring do not propagate into the processor backplane, preserving data integrity across the entire I/O scan cycle. This isolation characteristic is particularly valuable in high-noise environments such as motor control centers, variable frequency drive panels, and high-current switching applications.

Within the I/O layer, the 1746-IN16 is frequently deployed alongside the 1746-OB16 or 1746-OW16 output modules to form balanced discrete I/O assemblies within a shared 1746-A7 or 1746-A13 chassis. This co-location strategy minimizes wiring runs between the control cabinet and field junction boxes, reduces signal propagation delays, and simplifies the physical layout of the control panel. The modular chassis architecture allows engineers to configure mixed I/O assemblies — combining digital inputs, digital outputs, analog inputs, and specialty modules — within a single backplane, reducing overall panel footprint and simplifying cable management.

At the communication layer, the SLC 5/04 and SLC 5/05 processors paired with the 1746-IN16 support DH+ and Ethernet/IP network connectivity respectively, enabling the input status data captured by this module to be transmitted upstream to supervisory SCADA systems, MES platforms, or Rockwell FactoryTalk View SE HMI stations. This network transparency allows operators to monitor discrete field conditions in real time without requiring dedicated point-to-point wiring between the field device and the HMI panel. In distributed architectures, the 1747-SDN DeviceNet Scanner or 1747-SCNR Remote I/O Scanner modules can extend the reach of the SLC 500 system to remote I/O racks, where additional 1746-IN16 modules can be installed to collect signals from geographically dispersed field devices.

The 1746-IN16 also plays a supporting role in redundancy and fault-tolerance design. In critical process applications, engineers often configure dual-input strategies where two 1746-IN16 modules receive signals from redundant field sensors, with the SLC processor logic performing cross-comparison to detect sensor failures or wiring faults before they escalate into process upsets. This approach is common in safety-instrumented system (SIS) pre-validation layers, where the SLC 500 platform serves as the primary logic solver for non-SIL-rated interlocks. The module's LED status indicators on the front face provide immediate visual confirmation of each channel's ON/OFF state, accelerating fault diagnosis during commissioning and maintenance activities without requiring a laptop or programming terminal.

The 1746-IN16 achieves its full operational value when deployed as part of a cohesive SLC 500 automation platform. A typical system architecture begins with the 1746-P4 power supply, which delivers 10A of 5VDC backplane power and 2A of 24VDC user power to sustain the I/O modules and field sensor loads simultaneously. The SLC 5/04 processor (1747-L541) serves as the central logic engine, executing ladder logic programs that process the discrete input states captured by the 1746-IN16 and generating corresponding output commands to the 1746-OB16 24VDC sourcing output module, which drives solenoid valves, motor starters, and indicator lamps in the field.

For analog process variable monitoring alongside discrete status inputs, the 1746-NI8 8-channel analog input module is commonly installed in the same chassis, allowing the SLC processor to correlate discrete event triggers from the 1746-IN16 with analog process measurements such as pressure, temperature, or flow rate. This multi-signal correlation capability is essential in batch process control, where a discrete start signal from a pushbutton (captured by the 1746-IN16) must be validated against an analog level measurement before the processor authorizes a pump start command.

Network connectivity is extended through the 1747-SCNR Remote I/O Scanner, which allows the SLC 5/04 processor to communicate with remote I/O racks containing additional 1746-IN16 modules installed at field junction points up to 3,000 meters from the main control panel. For Ethernet-based architectures, the 1761-NET-ENI Ethernet Interface bridges the SLC 500 DF1 serial port to an Ethernet/IP network, enabling integration with PanelView 600 or PanelView Plus 700 HMI terminals for operator visualization of the discrete input states. The 1747-SDN DeviceNet Scanner further extends the system's field device connectivity, allowing smart sensors and actuators with DeviceNet interfaces to coexist on the same control network as the 1746-IN16 hardwired inputs.

Terminal block wiring is managed through 1492-CABLE wiring systems or pre-wired 1492-IFM interface modules, which provide a structured, labeled wiring interface between the 1746-IN16 module connector and the field terminal strips, significantly reducing wiring errors during panel assembly and simplifying future maintenance activities.

The 1746-IN16 is deployed across a broad spectrum of industrial sectors where reliable discrete signal acquisition is fundamental to process safety and operational continuity. In manufacturing and assembly automation, the module captures position feedback from proximity sensors, limit switches, and photoelectric detectors on conveyor systems, robotic work cells, and automated assembly fixtures. The deterministic scan-cycle performance of the SLC 500 platform ensures that part-present signals, tooling confirmation inputs, and safety gate status are processed within predictable time windows, maintaining production throughput targets.

In power generation and electrical distribution applications, the 1746-IN16 monitors circuit breaker status, transformer tap positions, and protection relay trip signals within substation automation panels. Its optical isolation and wide input voltage tolerance make it suitable for the electrically noisy environments typical of medium-voltage switchgear rooms. In water and wastewater treatment facilities, the module collects discrete status signals from pump run/fail contacts, valve open/closed limit switches, and level float switches, providing the SLC 500 processor with the field state information required to execute sequencing logic for lift stations, filtration systems, and chemical dosing processes.

The oil and gas sector utilizes the 1746-IN16 in wellhead control panels and pipeline monitoring stations, where the module's robust operating temperature range and vibration tolerance support reliable operation in remote, unmanned installations. In mining and minerals processing, the module is integrated into crusher control systems, conveyor interlocking circuits, and dust suppression control panels, where the high density of discrete field devices demands a compact, high-channel-count input module. Packaging and material handling applications leverage the 1746-IN16 for product detection, jam detection, and machine state monitoring across high-speed production lines where rapid input response is critical to maintaining line efficiency.

Q1: Is the 1746-IN16 compatible with all SLC 500 chassis and processor combinations?The 1746-IN16 is compatible with all standard 1746-series chassis (1746-A4, A7, A10, A13) and all SLC 500 processor families including the SLC 5/01 through SLC 5/05. It occupies a single I/O slot and is addressed automatically by the SLC processor during the I/O configuration scan. No special configuration jumpers or DIP switch settings are required for basic operation — the module is recognized and mapped by RSLogix 500 software during the hardware configuration step. For systems using the SLC 5/05 Ethernet processor, the 1746-IN16 input data is accessible via Ethernet/IP explicit messaging from SCADA or MES systems without additional gateway hardware.

Q2: How does the 1746-IN16 support long-term maintenance and spare parts availability?The 1746-IN16 has been a core component of the SLC 500 platform since its introduction and remains available as a new and refurbished spare part through authorized Rockwell Automation distributors and specialist industrial automation suppliers. Its standardized form factor and backplane connector ensure drop-in replacement compatibility without requiring processor program modifications or I/O address remapping, provided the replacement module is installed in the same chassis slot. All units supplied by NANKMOS are covered by a 12-Month Warranty and undergo functional testing prior to shipment, including input channel verification, backplane communication validation, and LED indicator confirmation, ensuring that replacement modules are field-ready upon arrival.

Q3: Can the 1746-IN16 be used in architectures requiring input signal redundancy or cross-checking?Yes. In applications requiring input redundancy, two 1746-IN16 modules can be installed in the same or adjacent chassis slots, with each module receiving signals from independent field sensor circuits monitoring the same process condition. The SLC processor ladder logic can then implement cross-comparison rungs that generate fault alarms when the two input channels disagree beyond a defined time window, providing early detection of sensor failures, wiring faults, or field device malfunctions before they cause process upsets or safety events. This dual-input strategy is commonly applied in critical interlock circuits for emergency shutdown systems, fire and gas detection panels, and high-value equipment protection schemes where single-point input failures are not acceptable.
