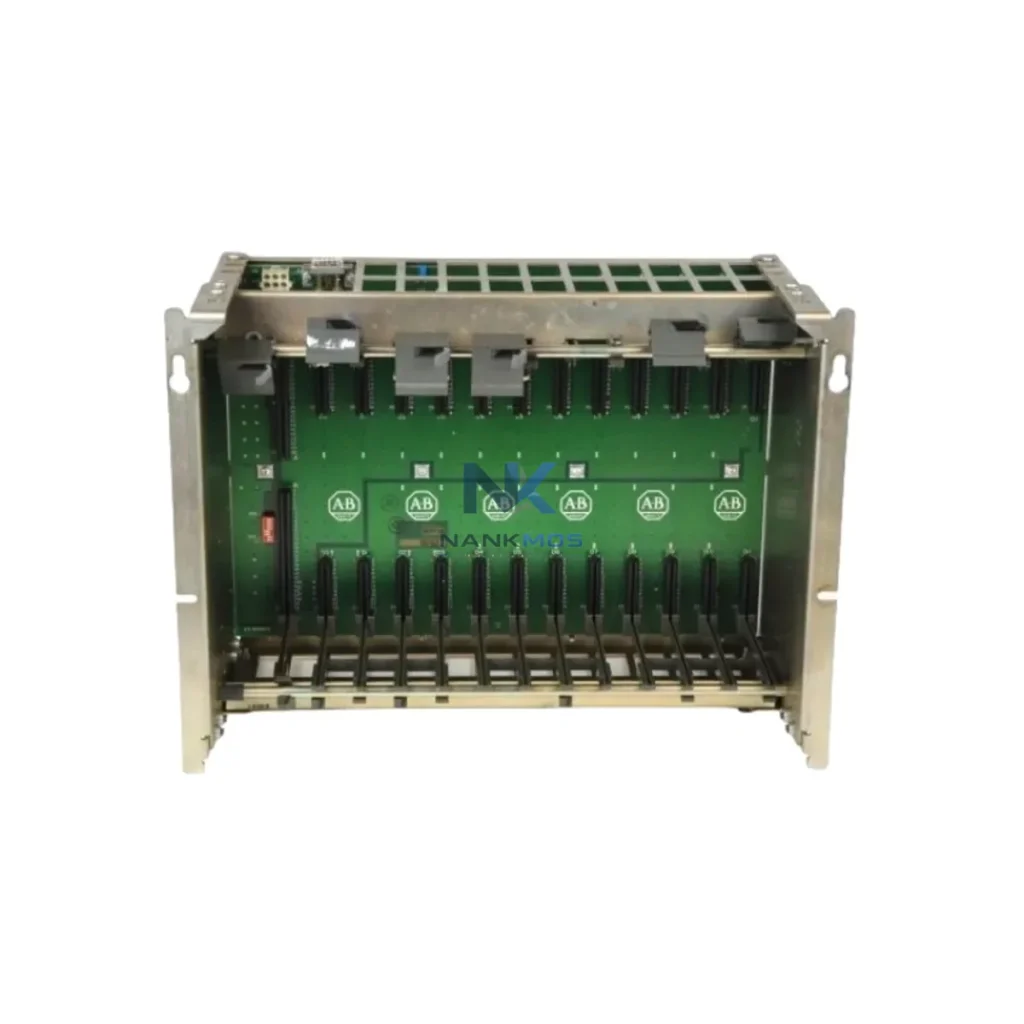

Allen-Bradley 1771-A3B/B PLC I/O Chassis

Product Details

1771-A3B/B Product Description

The Allen-Bradley 1771-A3B/B is a 12-slot PLC-5 I/O chassis engineered for demanding industrial environments where energy efficiency, load stability, and production continuity are non-negotiable. As a core structural component of the PLC-5 control platform, the 1771-A3B/B provides the physical and electrical backbone that connects I/O modules, communication adapters, and processor units into a unified, power-aware automation architecture. Whether deployed in continuous process control, discrete manufacturing, or hybrid production lines, this chassis supports the kind of deterministic, low-overhead operation that modern energy management systems demand.

In a well-designed energy-conscious control architecture, the 1771-A3B/B chassis serves as the integration hub for a broad range of automation components. The chassis accepts Allen-Bradley 1771-OBD digital output modules and 1771-IBD digital input modules, enabling precise on/off control of actuators and motors with minimal signal latency — a key factor in reducing unnecessary motor run time and associated energy waste.

When paired with a Allen-Bradley 1785-L40B PLC-5/40 processor, the chassis supports ladder logic routines that implement demand-based load shedding — automatically de-energizing non-critical circuits during low-production windows. This processor-chassis combination integrates seamlessly with PowerFlex 700 variable frequency drives (VFDs) via the 1771-SDN DeviceNet Scanner module, enabling closed-loop motor speed regulation that directly reduces kWh consumption on conveyor, pump, and fan applications.

For power quality monitoring, the 1771-A3B/B chassis can host a 1771-NIS ControlNet Interface module, linking the PLC-5 platform to upstream PowerMonitor 5000 energy meters. This allows the SCADA system — typically running on RSView32 or FactoryTalk View SE — to log real-time power factor, harmonic distortion, and peak demand data at the machine level, enabling targeted energy audits without production interruption.

On the I/O side, 1771-IFE analog input modules installed in the chassis collect 4–20 mA signals from temperature transmitters, pressure sensors, and flow meters distributed across the production line. This sensor data feeds PID control loops in the PLC-5 processor, allowing the system to modulate heating elements, compressors, and hydraulic units in response to actual process demand rather than fixed setpoints — a proven strategy for reducing thermal overshoot and unnecessary energy expenditure.

Communication is handled through the 1771-KGM Gateway module or a 1784-PCMK card, bridging the PLC-5 backplane to DH+ or Ethernet/IP networks. This connectivity allows the 1771-A3B/B-based control node to exchange production rate, alarm, and energy data with plant-level MES and ERP systems, supporting enterprise-wide energy reporting and ISO 50001 compliance workflows.

The 1771-A3B/B chassis contributes to factory energy optimization at multiple levels. At the machine level, its 12-slot capacity allows engineers to consolidate I/O from multiple sub-systems — eliminating redundant remote I/O drops and the associated cable runs, termination losses, and distributed power supplies that inflate the facility's electrical baseline.

At the process level, the chassis enables the PLC-5 processor to execute energy-aware sequencing: staggering motor starts to prevent inrush current spikes, implementing soft-start interlocks via the PowerFlex 40 drive, and scheduling high-load operations during off-peak tariff windows based on real-time clock data from the processor. These strategies directly reduce demand charges on the facility's utility bill without requiring capital investment in new equipment.

At the maintenance level, the chassis's modular slot architecture supports hot-swap I/O replacement during scheduled maintenance windows, minimizing unplanned downtime that forces inefficient emergency restarts of thermal processes. Combined with predictive maintenance data collected via vibration sensors and current signature analysis through the 1771-IFE analog modules, maintenance teams can schedule interventions before failures occur — keeping production rhythm stable and energy consumption predictable.

Every 1771-A3B/B unit supplied by NANKMOS undergoes pre-shipment functional testing under simulated backplane load conditions. Backplane continuity, slot keying integrity, and power rail voltage are verified before dispatch. All units are covered by a 12-month warranty and are held in managed inventory for rapid fulfillment to minimize production downtime for our customers.

Q1: How does the 1771-A3B/B contribute to measurable energy savings on a production line?The chassis enables the PLC-5 processor to implement demand-based load control, VFD integration via DeviceNet, and real-time power monitoring through compatible energy meter modules. By consolidating I/O and enabling closed-loop motor control, facilities typically reduce motor energy consumption by 15–30% compared to fixed-speed, unmonitored systems.

Q2: Is the 1771-A3B/B compatible with modern communication protocols and SCADA systems?Yes. Via ControlNet, DH+, and DeviceNet interface modules installed in the chassis slots, the 1771-A3B/B integrates with FactoryTalk View SE, RSView32, and third-party SCADA platforms. Ethernet/IP connectivity is available through gateway modules, enabling data exchange with MES, ERP, and cloud-based energy management systems.

Q3: Can this chassis be used as a direct replacement for a failed unit without reprogramming the PLC-5?In most cases, yes. The 1771-A3B/B is a passive chassis — it does not store program data. Replacing a failed chassis requires transferring the existing I/O modules and processor to the new chassis. Program memory resides in the 1785-series processor, so no reprogramming is required provided the processor and modules are intact.

Q4: What does the 12-month warranty cover, and how quickly can replacement units be shipped?The 12-month warranty covers defects in materials and workmanship under normal operating conditions. NANKMOS maintains managed inventory of the 1771-A3B/B to support rapid dispatch. Most orders ship within 1–3 business days. Pre-shipment testing documentation is available upon request.
