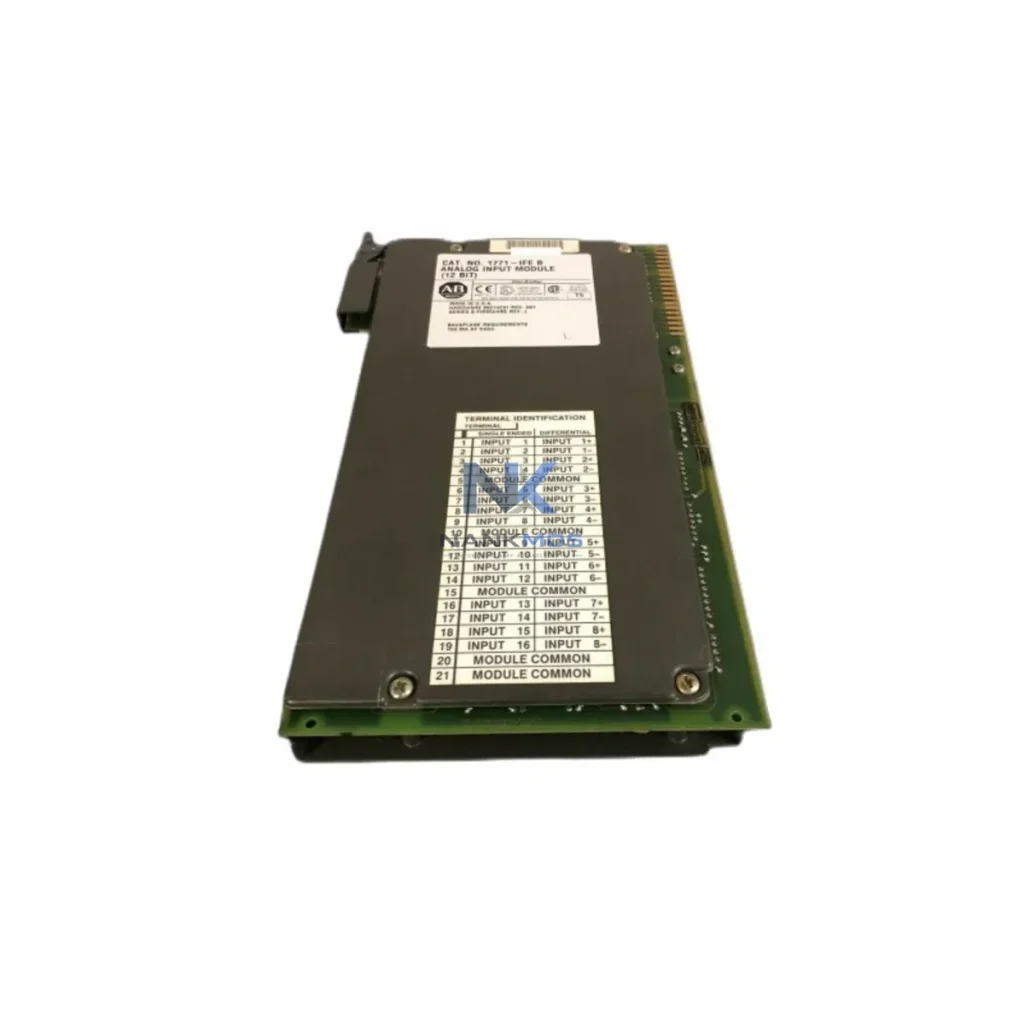

Allen-Bradley 1771-IFE/B Analog Input Module

Product Details

1771-IFE/B Product Description

The Allen-Bradley 1771-IFE/B is a high-density analog input module engineered for seamless integration within the Allen-Bradley PLC-5 control platform and the 1771 I/O chassis ecosystem. Designed to deliver reliable, high-resolution signal acquisition from field instrumentation, this module serves as a critical interface between the physical process environment and the PLC-5 CPU's control logic. Whether deployed in continuous process control, discrete manufacturing, or hybrid automation architectures, the 1771-IFE/B provides the signal fidelity and system compatibility required for demanding industrial applications.

As a system-matched analog input module, the 1771-IFE/B is factory-tested, verified for electrical performance, and supplied with a 12-Month Warranty — ensuring engineering teams can deploy with confidence and maintain long-term operational continuity across their installed base.

The 1771-IFE/B does not operate in isolation — its value is fully realized when considered within the broader PLC-5 automation architecture. At the control layer, the Allen-Bradley PLC-5/40 or PLC-5/60 CPU processes the digitized analog data delivered by the 1771-IFE/B, executing PID loops, setpoint comparisons, and alarm management routines that govern process behavior. The CPU's scan cycle directly determines how frequently analog input data is refreshed, making module-to-CPU latency a key architectural consideration for fast-response applications.

Within the same 1771 I/O chassis, the 1771-OFE analog output module complements the 1771-IFE/B by closing the control loop — converting CPU-generated setpoints back into 4–20 mA or voltage signals for valve positioners, variable frequency drives, and other final control elements. Together, these two modules form the analog I/O backbone of a complete PLC-5 process control loop.

For digital I/O integration within the same chassis, the 1771-IBD 24 VDC discrete input module and 1771-OBD discrete output module extend the system's ability to handle on/off signals from limit switches, proximity sensors, solenoid valves, and motor starters — enabling a unified mixed-signal architecture within a single 1771 chassis frame.

At the communication layer, the 1785-KA5 DH+ communication adapter or the 1771-KGM gateway module enables the PLC-5 platform to exchange data with supervisory SCADA systems, historian servers, and HMI terminals over Data Highway Plus or remote I/O networks. This communication infrastructure ensures that analog process values captured by the 1771-IFE/B are available in real time at the operator interface and data logging layers.

Power integrity is maintained through the 1771-P4S or 1771-P7 chassis power supply, which delivers regulated backplane power to all installed I/O modules including the 1771-IFE/B. Stable backplane voltage is essential for maintaining analog measurement accuracy and preventing noise-induced signal drift across the input channels.

For operator visualization, the Allen-Bradley PanelView 550 or PanelView 900 HMI terminal connects to the PLC-5 via DH+ or Remote I/O, presenting real-time analog trends, alarm states, and process variables derived from the 1771-IFE/B's input data. This HMI integration closes the human-machine loop and supports operator-driven setpoint adjustments without requiring direct PLC programming access.

In redundancy-critical applications, pairing the 1771-IFE/B with a 1785-CHBM hot-backup module or a redundant PLC-5 chassis configuration ensures that analog input data remains available even during a primary CPU fault event — a requirement in power generation, chemical processing, and water treatment facilities where process continuity is non-negotiable.

The 1771-IFE/B is deployed across a wide spectrum of industrial sectors where precise analog signal acquisition is fundamental to process control integrity:

Oil, Gas & Petrochemical: In refinery distillation columns and pipeline pressure management systems, the 1771-IFE/B captures 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors. The PLC-5 CPU processes these inputs to maintain safe operating envelopes, trigger emergency shutdowns, and log process data for regulatory compliance reporting.

Power Generation & Utilities: Turbine control systems and boiler management platforms rely on high-resolution analog inputs to monitor steam pressure, fuel flow, and exhaust temperature. The 1771-IFE/B's 12-bit resolution and channel isolation ensure that small signal variations — indicative of developing equipment faults — are captured accurately without cross-channel interference.

Water & Wastewater Treatment: Municipal water treatment facilities use the 1771-IFE/B to monitor pH, dissolved oxygen, turbidity, and flow rate signals from field analyzers. The PLC-5 platform's ability to execute multi-loop PID control based on these analog inputs enables precise chemical dosing and pump speed regulation across treatment stages.

Metals, Mining & Mineral Processing: In ore processing plants and smelting operations, the 1771-IFE/B interfaces with load cells, thermocouple transmitters, and vibration sensors to monitor crusher loads, furnace temperatures, and conveyor belt tensions. Real-time analog data enables predictive maintenance scheduling and prevents catastrophic equipment failures.

Automotive & Discrete Manufacturing: Assembly line control systems use the 1771-IFE/B to monitor torque feedback from servo drives, force signals from press tooling, and position feedback from linear transducers. Integration with the PLC-5 CPU's high-speed scan capability ensures that analog feedback loops respond within the cycle time requirements of high-throughput production lines.

Marine & Offshore: Shipboard automation systems and offshore platform control panels deploy the 1771-IFE/B in vibration-resistant, temperature-controlled enclosures to monitor engine parameters, ballast tank levels, and cargo temperature. The module's robust electrical isolation protects signal integrity in environments with high electromagnetic interference from propulsion systems and power distribution equipment.

Q1: Is the 1771-IFE/B compatible with all PLC-5 CPU variants, and are there any chassis slot restrictions? The 1771-IFE/B is compatible with all members of the Allen-Bradley PLC-5 family, including the PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80, when installed in a 1771-series I/O chassis (1771-A1B through 1771-A4B). The module occupies a single I/O slot and is addressed via the chassis rack/group addressing scheme configured in the PLC-5 I/O configuration table. No dedicated slot restrictions apply, but engineering teams should verify chassis power supply capacity when populating high-density analog I/O configurations, as analog modules typically draw more backplane current than discrete I/O modules.

Q2: How does the 1771-IFE/B support long-term maintenance and spare parts availability in legacy PLC-5 installations? The PLC-5 platform, while a mature architecture, remains extensively deployed across process industries with long equipment lifecycle requirements. Maintaining a verified spare inventory of 1771-IFE/B modules is a standard practice for facilities operating PLC-5-based control systems, as field replacement of a failed analog input module can be completed without CPU reprogramming — provided the replacement module is configured identically to the original. Each unit supplied by NANKMOS is individually tested for electrical performance, verified against factory specifications, and covered by a 12-Month Warranty, ensuring that spare modules are deployment-ready when needed. For facilities planning a migration to the ControlLogix or CompactLogix platform, the 1771-IFE/B can continue to serve as a bridge I/O module via the 1756-DHRIO or 1756-RIO adapter, extending the useful life of existing field wiring and instrumentation investments.

Q3: What installation and commissioning steps are required to integrate the 1771-IFE/B into an existing PLC-5 system? Commissioning the 1771-IFE/B involves three primary steps: physical installation into the 1771 chassis with correct rack and group addressing via the module's address selection switches; I/O configuration in the PLC-5 programming software (RSLogix 5 or legacy 6200 series) to define the module's input image table mapping and scaling parameters; and field wiring of analog signal sources to the module's terminal block, observing correct shielding and grounding practices to minimize common-mode noise. Channel-level configuration — including input range selection (voltage or current) and differential versus single-ended mode — is performed via the module's hardware jumpers prior to installation. Following initial power-up, analog input values should be verified against known reference signals using a calibrated process calibrator before the system is placed in automatic control mode.
