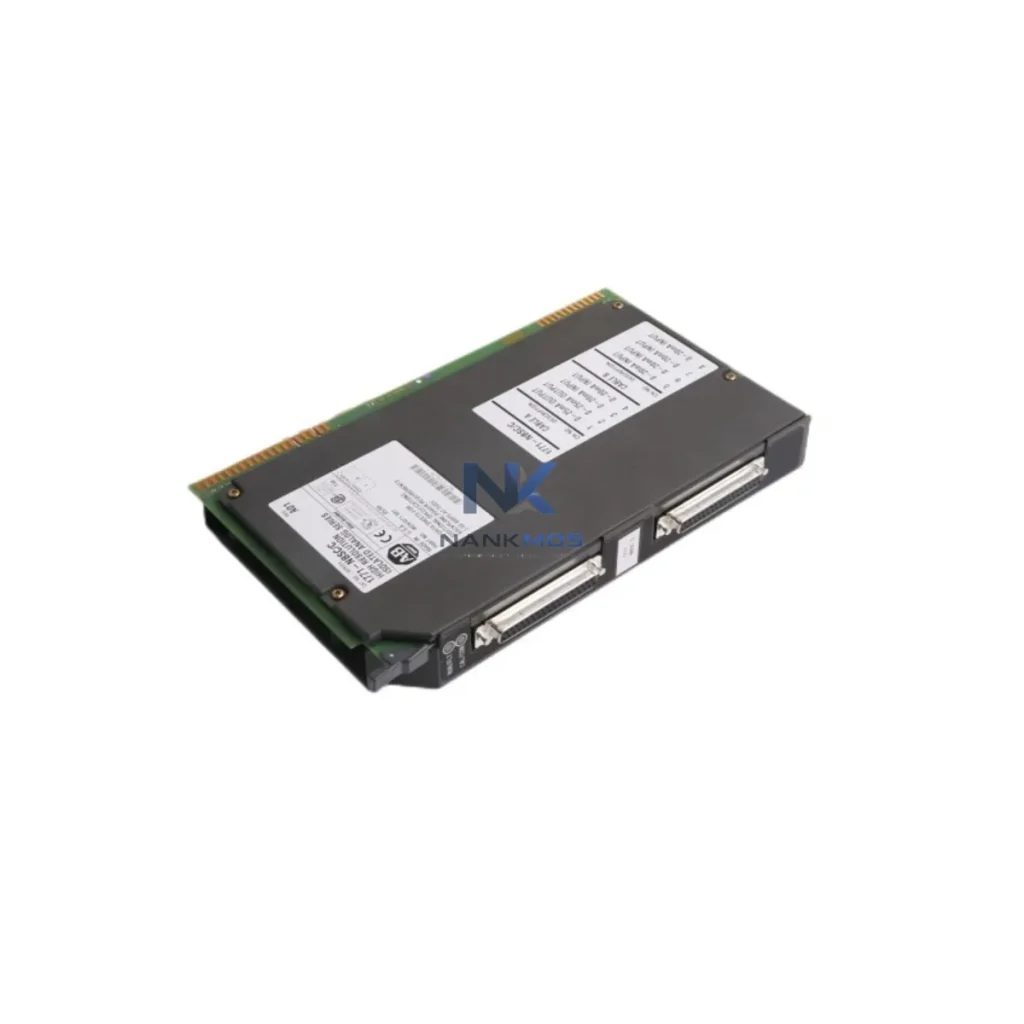

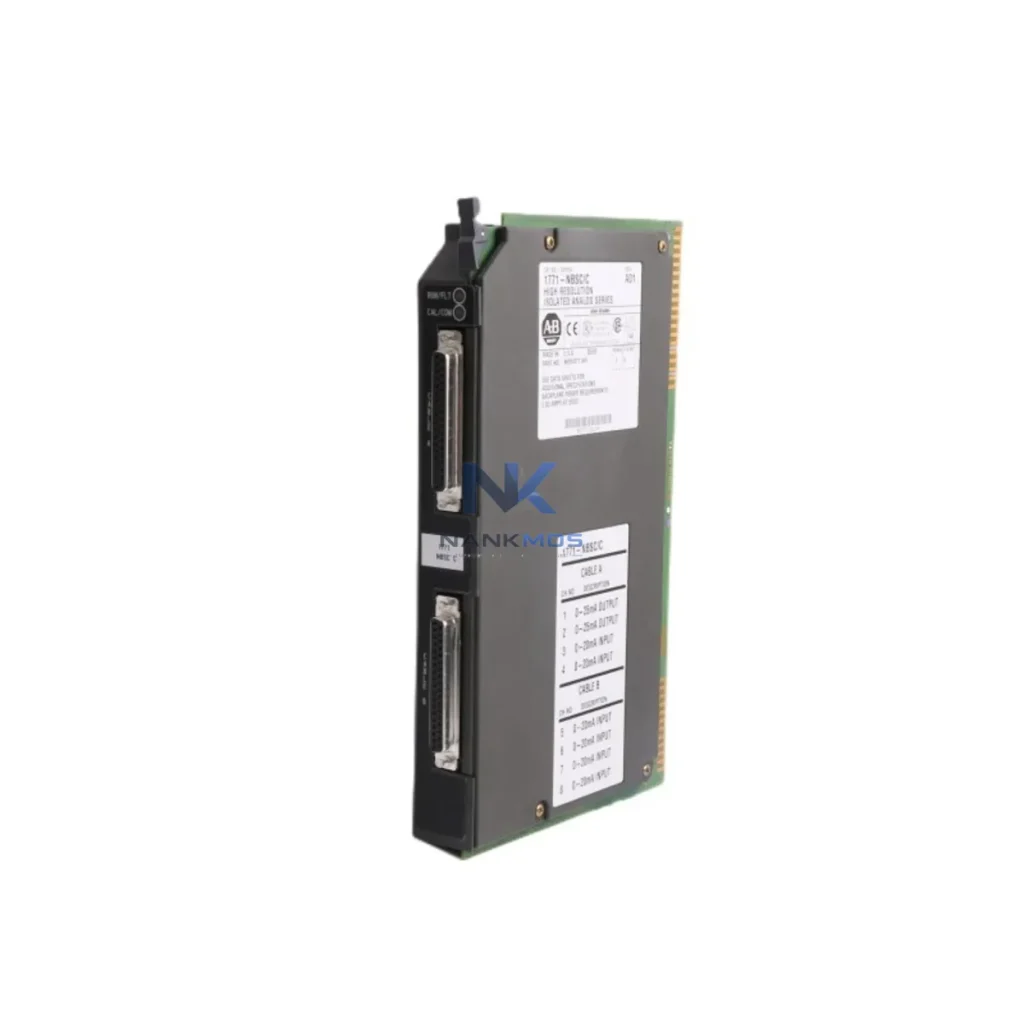

Allen-Bradley 1771-NBSC PLC Analog Output Module

Product Details

1771-NBSC Product Description

The Allen-Bradley 1771-NBSC is a precision analog output module engineered for seamless integration within the Allen-Bradley 1771 I/O platform — one of the most widely deployed modular PLC architectures in industrial automation history. Designed to operate as a native component of the PLC-5 control system, the 1771-NBSC delivers stable, high-resolution analog signal output across demanding production environments including discrete manufacturing, process control, power generation, petrochemical processing, and water treatment infrastructure.

In a fully realized automation architecture, analog output modules occupy a critical position at the boundary between the digital control layer and the physical process layer. The 1771-NBSC translates controller-generated setpoints into precise electrical signals — typically 4–20 mA current loops or 0–10 V voltage outputs — that drive field devices such as control valves, variable frequency drives, positioners, and proportional actuators. Its role is not merely signal conversion; it is the enforcement point for process accuracy, loop stability, and closed-loop control fidelity across the entire system.

Unlike generic third-party analog output cards, the 1771-NBSC is engineered to the exact electrical and mechanical specifications of the 1771 backplane. This ensures deterministic scan-cycle behavior, consistent I/O addressing, and full compatibility with PLC-5 ladder logic and structured text programming environments. Engineers deploying the 1771-NBSC benefit from reduced commissioning time, predictable signal behavior, and long-term maintainability — all critical factors in facilities where unplanned downtime carries significant operational cost.

The 1771-NBSC achieves its full operational value when deployed as part of a coherent, layered automation architecture rather than as a standalone replacement component. Within a PLC-5-based control system, the module interfaces directly with the 1785-L40B or 1785-L80B PLC-5 CPU via the 1771 backplane, receiving output data words from the controller's output image table on every scan cycle. The chassis itself — typically a 1771-A4B four-slot or 1771-A3B three-slot I/O chassis — provides the structural and electrical backbone that governs slot addressing, power distribution, and module seating integrity.

On the power layer, the 1771-P4S or 1771-P7 power supply provides regulated DC power to the backplane, ensuring that analog output modules like the 1771-NBSC receive clean, stable voltage free from the noise artifacts that can corrupt low-level analog signals. In installations where signal integrity is paramount — such as precision flow control or pressure regulation loops — pairing the 1771-NBSC with a 1771-NB analog input module on the same chassis enables closed-loop feedback verification within a single rack, minimizing inter-chassis latency and simplifying loop tuning.

For systems requiring communication beyond the local backplane, the 1771-KGM or 1785-KA5 communication adapter extends the PLC-5 platform onto Data Highway Plus (DH+) or Remote I/O networks, enabling the 1771-NBSC's output data to be coordinated across distributed control nodes. In larger architectures, this allows a single PLC-5 CPU to manage analog output modules installed in remote 1771 I/O chassis located at field junction boxes or remote equipment skids — a common configuration in petrochemical and water treatment facilities where process equipment is geographically dispersed.

At the HMI layer, PanelView 550 or PanelView 900 operator terminals connected via DH+ provide real-time visualization of analog output setpoints and process variable feedback, enabling operators to monitor loop performance and adjust output values without direct PLC programming access. This separation of operator interaction from controller logic is a fundamental principle of safe, maintainable process control design.

In applications requiring signal isolation — particularly in environments with significant ground potential differences or high-voltage interference — signal isolators or loop-powered isolators installed between the 1771-NBSC output terminals and field wiring protect both the module and the connected field devices from electrical damage. Terminal modules such as the 1492-IFM series interface modules provide a structured, labeled wiring interface that simplifies field connections and supports rapid module replacement without rewiring.

For facilities managing mixed analog and digital I/O requirements, the 1771-NBSC coexists on the same 1771 chassis with 1771-OBD digital output modules and 1771-IBD digital input modules, allowing engineers to consolidate control of both discrete and analog field devices within a single rack — reducing cabinet footprint, simplifying cable management, and lowering overall system cost.

Discrete Manufacturing: In automotive assembly and machining lines, the 1771-NBSC drives proportional hydraulic valves and servo amplifiers, providing precise speed and force control for press, clamp, and feed axis operations. Its deterministic output behavior supports tight cycle-time requirements and consistent part quality across high-volume production runs.

Power Generation & Utilities: In turbine control and boiler management systems, analog output modules govern fuel valve positioning, steam pressure regulation, and cooling water flow. The 1771-NBSC's compatibility with the PLC-5 platform — widely installed in legacy power plant control rooms — makes it a preferred replacement module for facilities extending the operational life of existing control infrastructure.

Petrochemical & Refining: Process control loops in distillation columns, heat exchangers, and reactor vessels rely on stable, accurate analog output signals to maintain product quality and process safety. The 1771-NBSC supports 4–20 mA output loops compatible with HART-enabled field instruments, enabling integration with asset management systems for valve diagnostics and predictive maintenance.

Water & Wastewater Treatment: Pump speed control via VFD analog reference signals, chemical dosing pump regulation, and aeration blower control are typical applications. The 1771-NBSC's robust design tolerates the humid, chemically aggressive environments common in water treatment facilities, and its 12-Month Warranty provides procurement confidence for municipal infrastructure projects.

Mining & Metals: Conveyor speed regulation, crusher feed rate control, and flotation cell level management require reliable analog output performance under high-vibration, high-dust conditions. The 1771 platform's proven field durability and the availability of replacement modules like the 1771-NBSC support long-term operational continuity in remote mining installations.

Q1: Is the 1771-NBSC compatible with all 1771 I/O chassis configurations, and does it require any special backplane keying? The 1771-NBSC is designed for use within the standard 1771 I/O chassis family, including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis. Backplane keying should be verified against the module's keying band configuration prior to installation to prevent incorrect slot insertion. The module must be addressed correctly within the PLC-5 I/O configuration to ensure proper data table mapping. Consult the 1771-NBSC installation manual and your PLC-5 I/O configuration documentation for slot addressing and keying requirements specific to your chassis revision.

Q2: How does the 1771-NBSC support long-term maintainability in aging PLC-5 installations, and what is the warranty coverage? The 1771-NBSC supplied by NANKMOS is tested prior to shipment and covered by a 12-Month Warranty, providing assurance for facilities managing legacy PLC-5 systems where original manufacturer support may be limited. Each module undergoes functional verification to confirm output signal accuracy and backplane communication integrity before dispatch. For facilities with critical uptime requirements, maintaining a spare 1771-NBSC in inventory is recommended — NANKMOS maintains stock availability to support rapid replacement needs with short lead times.

Q3: Can the 1771-NBSC be integrated into a modernized architecture alongside newer Rockwell Automation platforms? Yes. In hybrid migration architectures where a facility is transitioning from PLC-5 to ControlLogix or CompactLogix platforms, the 1771 I/O chassis can be retained and connected to newer controllers via the 1756-DHRIO or 1756-RIO bridge modules, allowing the 1771-NBSC to continue serving its analog output function while the control layer is upgraded. This phased migration approach preserves existing field wiring investments and reduces the scope of any single upgrade project, lowering both cost and operational risk during the transition period.
