Allen-Bradley 1794-IB16D PLC I/O Module

Product Details

1794-IB16D Product Description

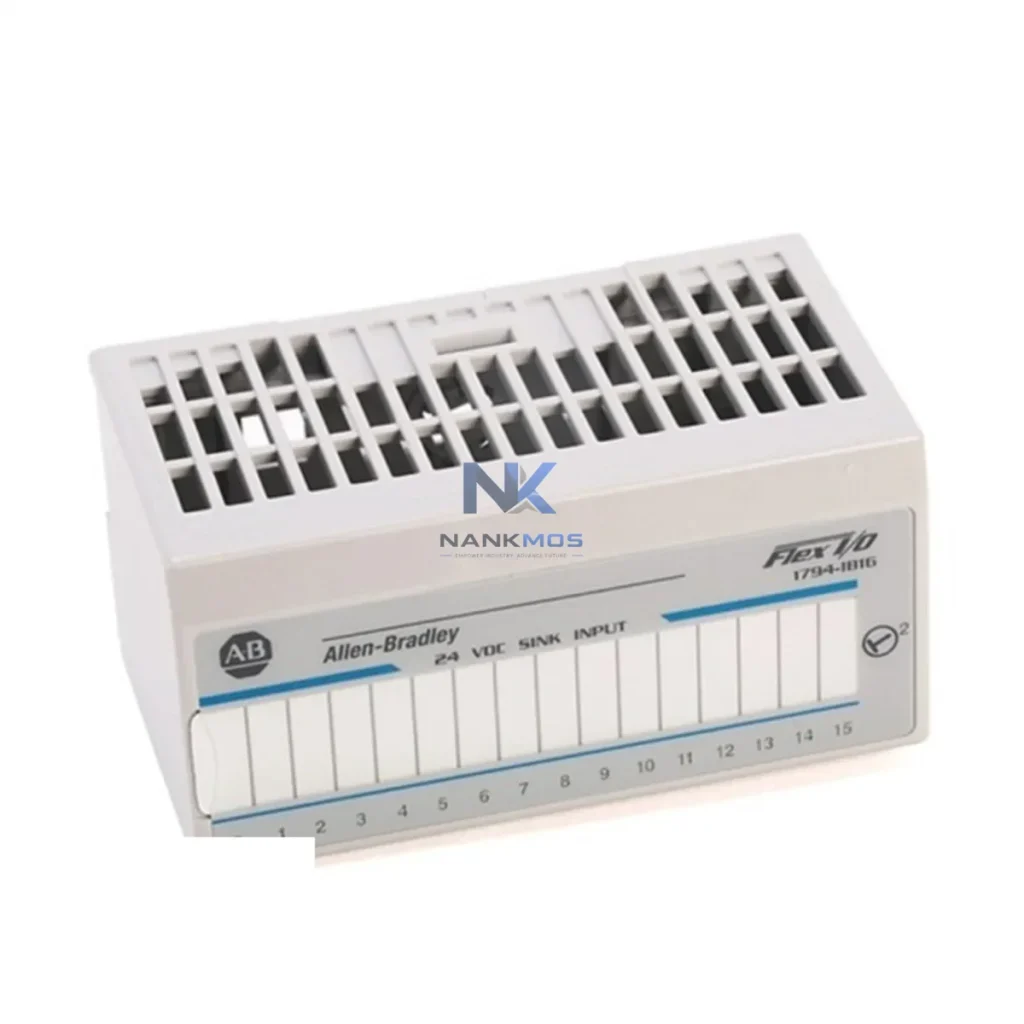

The Allen-Bradley 1794-IB16D is a 16-point 24VDC digital input module engineered for the FLEX I/O distributed I/O platform by Rockwell Automation. Designed to deliver deterministic signal acquisition across multi-tier control architectures, this module integrates seamlessly into ControlLogix, CompactLogix, and SoftLogix controller environments via the 1794-ADN DeviceNet Adapter or 1794-AENT EtherNet/IP Adapter. Its compact DIN-rail form factor and field-side diagnostic capability make it a preferred choice for engineers deploying modular, scalable automation systems in demanding industrial environments.

The 1794-IB16D achieves its full architectural value when deployed as part of a coordinated FLEX I/O node within a broader Rockwell Automation control platform. At the controller layer, a 1756-L85E ControlLogix CPU or 1769-L33ER CompactLogix Controller manages program execution and tag-based I/O mapping, with the 1794-IB16D's 16 input points appearing as structured data in the controller's I/O tree. The module mounts onto a 1794-TB32 Terminal Base Unit, which provides the mechanical and electrical backplane connection within the FLEX I/O rack.

Network connectivity is established through the 1794-AENT EtherNet/IP Adapter, enabling high-speed, deterministic communication over standard Ethernet infrastructure. For legacy or multi-protocol environments, the 1794-ADN DeviceNet Adapter or 1794-ACN15 ControlNet Adapter provides equivalent integration. Power distribution to the I/O node is managed by the 1794-PS13 Power Supply, ensuring stable 24VDC field-side voltage across all connected modules.

In mixed I/O configurations, the 1794-IB16D coexists on the same backplane with analog modules such as the 1794-IE8 8-Channel Analog Input Module and output modules such as the 1794-OB16 16-Point Digital Output Module, enabling a single FLEX I/O node to handle both discrete and analog signal types. For applications requiring operator interaction, a 2711P-T10C21D8S PanelView Plus 7 HMI provides real-time visualization of input states and system diagnostics. In safety-critical zones, the 1794-IB16D can be deployed alongside 1791DS GuardLink Safety I/O modules to maintain functional separation between standard and safety signal paths within the same control cabinet.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 1794-IB16D captures pushbutton, limit switch, and proximity sensor signals across conveyor systems, robotic work cells, and assembly stations. Its point-level diagnostics reduce mean time to repair by enabling maintenance teams to isolate field wiring faults without interrupting adjacent production zones.

Power Generation & Electrical Utilities: Substation automation and generator control panels rely on the 1794-IB16D to monitor breaker status, relay feedback, and protection relay trip signals. The module's wide input voltage tolerance (10–30VDC) accommodates the voltage fluctuations common in utility environments, while its CE and UL certifications satisfy grid-side compliance requirements.

Petrochemical & Refinery Process Control: In hazardous-area control rooms, the 1794-IB16D is deployed behind intrinsic safety barriers to monitor valve position feedback, level switch states, and emergency shutdown (ESD) system inputs. Its integration with ControlLogix redundancy configurations ensures that critical process signals remain available even during controller failover events.

Water & Wastewater Treatment: Municipal water treatment facilities use the 1794-IB16D to monitor pump run/fault status, flow switch states, and tank level alarms across distributed lift stations. The module's EtherNet/IP connectivity allows remote I/O nodes to be managed from a central SCADA system without dedicated fieldbus cabling infrastructure.

Mining & Metals Processing: Conveyor belt monitoring, crusher interlock systems, and ore processing equipment rely on the 1794-IB16D for robust digital input acquisition in high-vibration, high-dust environments. The module's DIN-rail mounting and compact footprint allow dense I/O configurations within space-constrained control enclosures on mobile mining equipment.

Q1: Which FLEX I/O adapters are compatible with the 1794-IB16D, and how does adapter selection affect system architecture? The 1794-IB16D is compatible with all standard FLEX I/O adapters, including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-ACN15 (ControlNet), and 1794-APB (PROFIBUS-DP). Adapter selection determines the network protocol used to communicate with the host controller. For new installations, the 1794-AENT is recommended for its high-speed data exchange, standard Ethernet infrastructure compatibility, and support for Rockwell's Integrated Architecture topology. Each adapter supports up to 8 FLEX I/O modules per node, and the 1794-IB16D occupies one module slot regardless of adapter type.

Q2: Can the 1794-IB16D be used in a redundant ControlLogix system, and what configuration steps are required? Yes. In a 1756 ControlLogix redundancy configuration using a 1756-RM2 Redundancy Module, the 1794-IB16D participates as a standard remote I/O node connected via EtherNet/IP. The redundant controller pair automatically synchronizes I/O data, and the 1794-IB16D's input states are mirrored to the secondary controller during normal operation. No special module configuration is required beyond standard I/O tree setup in Studio 5000 Logix Designer. Crossload time and switchover behavior are governed by the 1756-RM2 configuration parameters, not by the I/O module itself.

Q3: What is the warranty coverage for the 1794-IB16D, and what does NANKMOS's supply and testing process include? Every 1794-IB16D supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including backplane communication continuity, input point response validation, and visual inspection for physical damage. Units are sourced from verified supply channels and stored in ESD-safe environments. Expedited shipping is available for urgent project requirements. For technical pre-sales support, compatibility verification, or volume procurement inquiries, contact [email protected] or call +86 18359268345.
