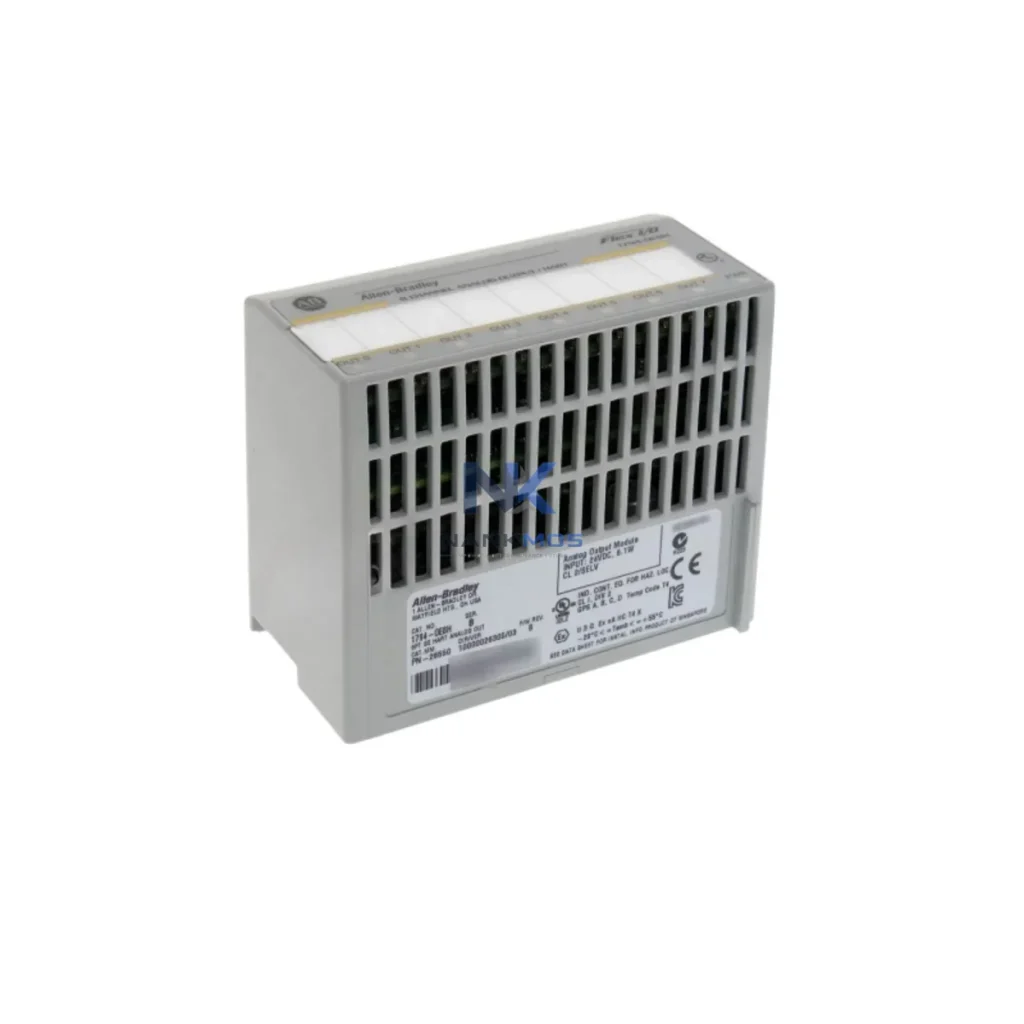

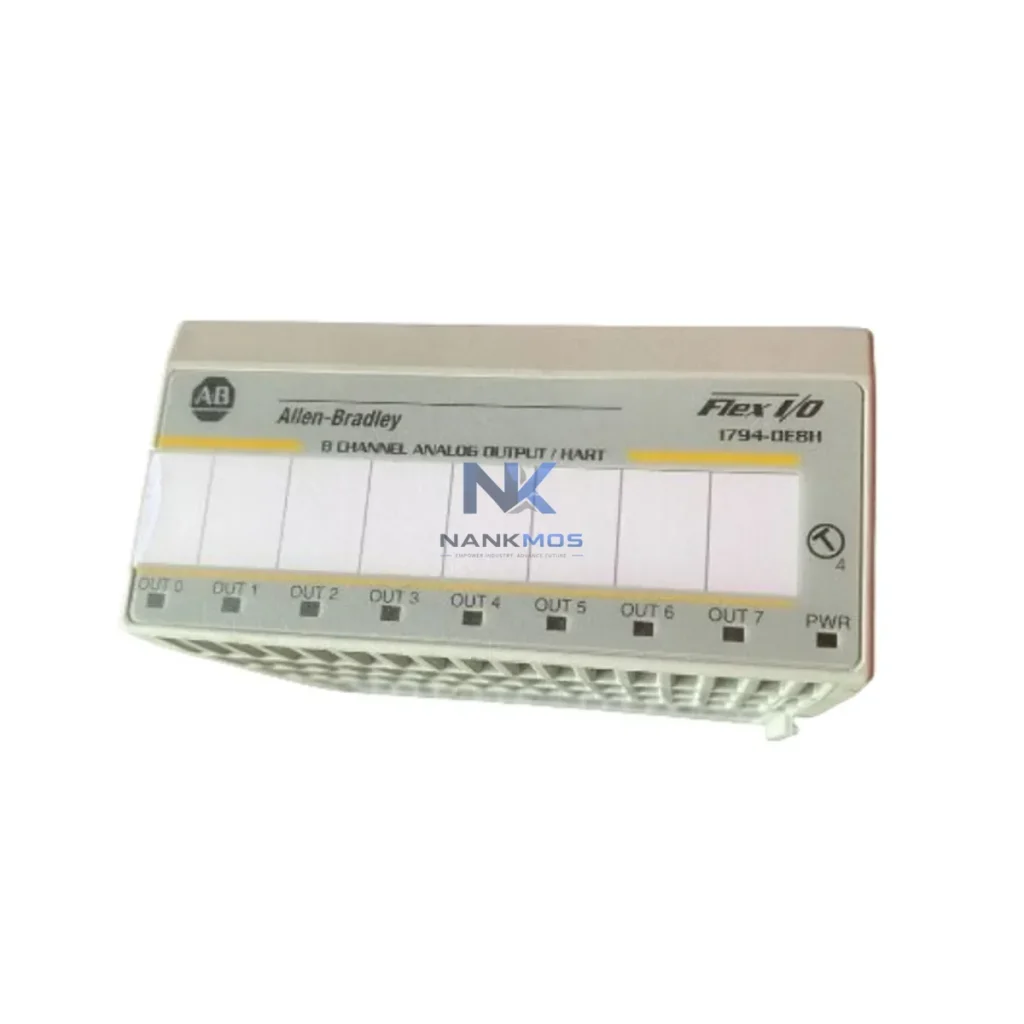

Allen-Bradley 1794-OE8H/B Analog Output Module

Product Details

1794-OE8H/B Product Description

The Allen-Bradley 1794-OE8H/B is an 8-channel HART-enabled analog output module engineered for the FLEX I/O platform, delivering precision signal control and field device communication within distributed automation architectures. Designed to operate within Rockwell Automation's integrated control ecosystem, this module bridges the control layer and the field execution layer, enabling engineers to deploy intelligent, diagnostics-capable output loops across process-intensive environments. Its HART communication capability allows simultaneous transmission of 4–20 mA analog signals and digital HART data over the same two-wire loop, supporting advanced device management, remote calibration, and real-time diagnostics without interrupting the primary control signal.

In modern industrial automation, the value of a single module is inseparable from its role within the broader system architecture. The 1794-OE8H/B is not simply an output device — it is a precision interface node that connects the deterministic logic of a programmable controller to the physical world of actuators, control valves, variable frequency drives, and positioners. Its integration into a FLEX I/O backplane enables modular expansion, simplified wiring, and consistent signal management across multi-loop process control systems.

The 1794-OE8H/B achieves its full operational value when deployed as part of a cohesive, layered automation platform. At the control layer, it interfaces with Rockwell Automation controllers such as the 1756-L73 ControlLogix CPU or the 1769-L33ER CompactLogix processor, which execute the control logic and manage tag-based output references mapped directly to each HART channel. These controllers communicate with the FLEX I/O adapter — typically the 1794-AENT EtherNet/IP adapter — which bridges the backplane to the plant-level EtherNet/IP network, enabling real-time data exchange and remote diagnostics from the control room.

At the I/O layer, the 1794-OE8H/B is mounted on a 1794-TB3 terminal base, which provides the physical wiring interface for field device connections. Adjacent modules on the same backplane may include the 1794-IE8H analog input module with HART for closed-loop feedback, the 1794-IB16 digital input module for discrete status signals, and the 1794-OB16 digital output module for solenoid valve or relay actuation. This co-location of I/O types on a single FLEX I/O backplane reduces panel footprint and simplifies cable routing in compact control cabinets.

At the communication layer, HART pass-through capability via the 1794-AENT adapter allows the FactoryTalk AssetCentre or third-party HART asset management tools to communicate with field instruments — such as smart control valves, HART-enabled positioners, and intelligent transmitters — without requiring dedicated HART multiplexers. This architecture supports simultaneous primary variable (PV) control and secondary variable monitoring, enabling condition-based maintenance and predictive diagnostics across all eight output channels.

For redundancy-critical applications, the FLEX I/O platform supports adapter-level redundancy using paired 1794-ACNR15 ControlNet redundant adapters, ensuring continuous output signal delivery even during adapter failover events. This is particularly relevant in power generation, chemical processing, and water treatment facilities where output signal interruption can trigger process upsets or safety system activations.

At the HMI layer, operator visualization is typically provided by PanelView Plus 7 terminals connected via EtherNet/IP, displaying real-time output values, HART device status, and loop diagnostic information. Integration with Studio 5000 Logix Designer enables full tag mapping, channel configuration, and HART command execution from a unified engineering environment, reducing commissioning time and ensuring configuration consistency across multi-loop systems.

Process Manufacturing: In chemical and petrochemical plants, the 1794-OE8H/B drives control valve positioners and flow control loops with HART-enabled feedback, supporting closed-loop regulatory control for reactors, distillation columns, and heat exchangers. Its 16-bit resolution ensures precise setpoint delivery, while HART diagnostics enable valve signature analysis and predictive maintenance scheduling without process interruption.

Power Generation and Utilities: In thermal power stations and combined-cycle plants, analog output modules control turbine governor valves, boiler feedwater control valves, and combustion air dampers. The HART capability of the 1794-OE8H/B allows plant engineers to perform remote loop checks and device calibration during scheduled outages, reducing maintenance downtime and improving overall plant availability.

Water and Wastewater Treatment: Municipal water treatment facilities deploy FLEX I/O analog output modules to control chemical dosing pumps, aeration blowers, and filtration system actuators. The modular architecture of the 1794-OE8H/B allows incremental system expansion as treatment capacity grows, with each additional module integrating seamlessly into the existing backplane and EtherNet/IP network without requiring controller reconfiguration.

Mining and Mineral Processing: In ore processing and mineral extraction facilities, the 1794-OE8H/B controls variable speed drives on conveyor systems, flotation cell agitators, and slurry pump speed references. Its robust operating temperature range and DIN rail mounting make it suitable for installation in field control panels located near process equipment, reducing signal cable lengths and improving noise immunity.

Packaging and Discrete Manufacturing: On high-speed packaging lines and assembly systems, analog output modules provide precise speed references to servo drives and variable frequency drives, enabling synchronized multi-axis motion profiles. Integration with ControlLogix motion controllers via the FLEX I/O backplane ensures deterministic output timing aligned with machine cycle requirements.

Q1: Which FLEX I/O adapters support HART pass-through for the 1794-OE8H/B? The 1794-OE8H/B supports HART pass-through communication via the 1794-AENT EtherNet/IP adapter and the 1794-ACN15 ControlNet adapter. HART pass-through allows the host controller or an asset management application to issue HART commands to field devices connected to each output channel, enabling remote device configuration, diagnostics, and secondary variable monitoring. Ensure the adapter firmware is updated to the version specified in Rockwell Automation's compatibility matrix for full HART command support. The 1794-ACNR15 redundant ControlNet adapter also supports HART pass-through in redundant adapter configurations.

Q2: Can the 1794-OE8H/B be used in a ControlLogix redundancy system, and what are the architecture requirements? Yes. The 1794-OE8H/B can be integrated into ControlLogix redundancy architectures when paired with a ControlNet-based FLEX I/O adapter such as the 1794-ACNR15. In this configuration, the redundant controller pair communicates with the FLEX I/O backplane over a redundant ControlNet network, ensuring continuous output signal delivery during controller switchover events. EtherNet/IP-based adapters (1794-AENT) do not natively support controller redundancy in the same manner; ControlNet is the recommended network for redundant I/O in ControlLogix systems. Consult Rockwell Automation's System Design for Control System Networks reference manual for detailed redundancy topology guidance.

Q3: What is the warranty coverage and stock availability for the 1794-OE8H/B? All 1794-OE8H/B units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify channel output accuracy, HART communication integrity, and backplane interface operation before dispatch. We maintain verified inventory of the 1794-OE8H/B and related FLEX I/O components to support urgent project requirements and MRO replenishment orders. For volume procurement, lead time confirmation, or technical compatibility inquiries, contact our engineering support team directly.
