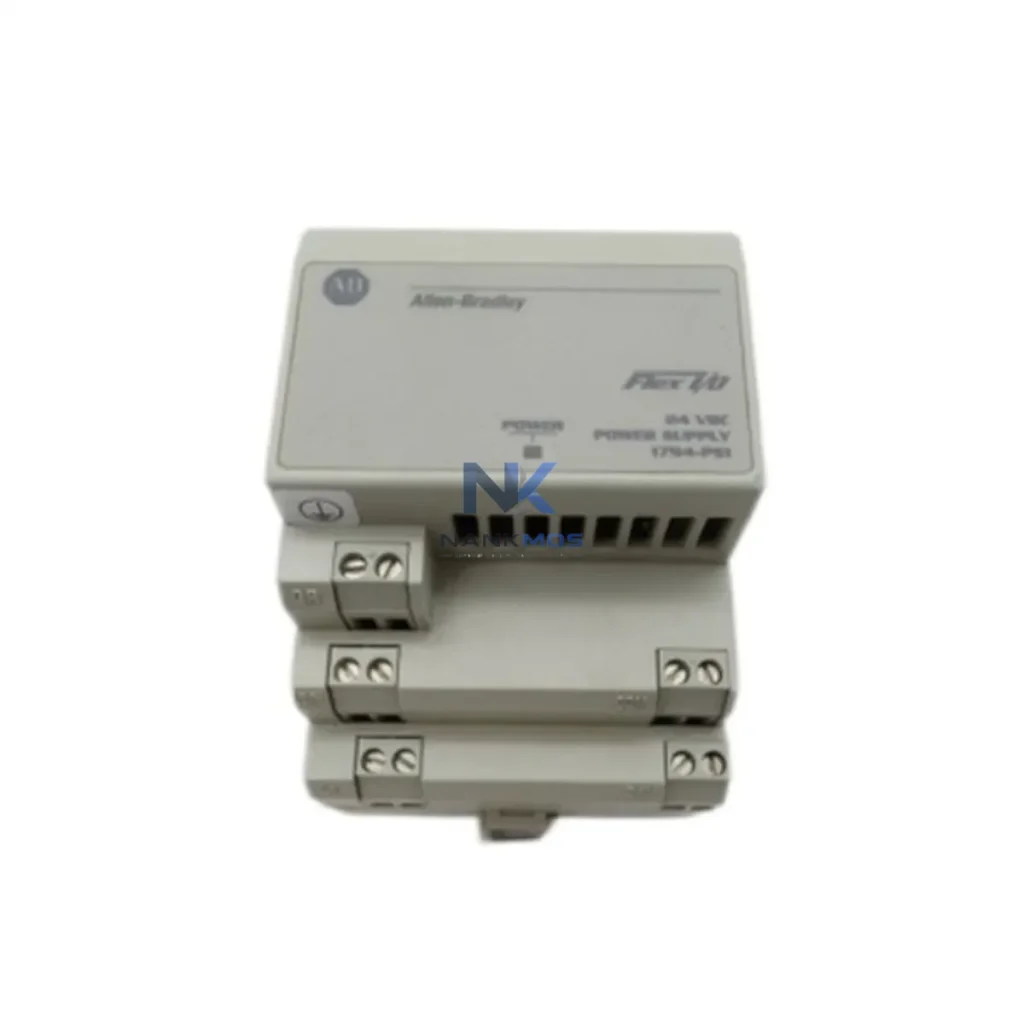

Allen-Bradley 1794-PS1 Power Supply Module

Product Details

1794-PS1 Product Description

The Allen-Bradley 1794-PS1 is a dedicated power supply module engineered for the Rockwell Automation FLEX I/O platform, delivering stable, regulated power to distributed I/O assemblies across multi-rack and multi-segment control architectures. Designed for seamless integration within Allen-Bradley's 1794 Series ecosystem, the 1794-PS1 ensures consistent voltage delivery to I/O adapter modules, digital and analog I/O modules, and specialty function modules mounted on the same terminal base assembly. Its compact DIN-rail-compatible form factor and tool-free terminal base connection make it a preferred choice for panel builders and system integrators working on modular, scalable automation platforms in manufacturing, energy, and process industries.

In modern distributed control architectures, power integrity at the I/O layer is a foundational requirement. The 1794-PS1 addresses this by providing isolated, regulated power that decouples field-side noise from the control bus, protecting signal fidelity across analog input modules such as the 1794-IE8 and 1794-IE4XOE2, as well as digital I/O modules like the 1794-IB16 and 1794-OB16. This isolation capability is particularly critical in high-density panel environments where variable-frequency drives, contactors, and solenoid valves introduce significant electrical noise into the cabinet infrastructure.

System architects deploying FLEX I/O in redundant or safety-rated configurations rely on the 1794-PS1 to maintain power availability to remote I/O drops even during partial bus faults. When paired with the 1794-AENT or 1794-AENTR EtherNet/IP adapter modules, the 1794-PS1 supports high-availability architectures where communication continuity and I/O power independence are both required. The module's compatibility with the full 1794 terminal base family — including the 1794-TB3, 1794-TB3S, and 1794-TB32 — allows engineers to standardize power distribution across heterogeneous I/O assemblies without redesigning the physical layout.

From a system hierarchy perspective, the 1794-PS1 operates at the I/O power layer, sitting between the cabinet power distribution rail and the field device interface. This positioning makes it a critical link in the signal chain from the ControlLogix or CompactLogix controller — such as the 1756-L85E or 1769-L36ERM — through the communication adapter, down to the terminal base and field wiring. Any instability at this layer propagates upward as I/O faults, module dropouts, or spurious diagnostic alarms in the controller's I/O tree, making the quality and reliability of the power supply module a direct determinant of overall system uptime.

For engineers managing large-scale installations with multiple FLEX I/O drops across a DeviceNet or EtherNet/IP network, the 1794-PS1 simplifies spare parts management by providing a single, standardized power module compatible across the entire 1794 product family. This reduces the number of unique part numbers required in the maintenance inventory and shortens mean time to repair (MTTR) during unplanned outages. Facilities operating under IEC 62443 cybersecurity frameworks or ISO 55000 asset management standards benefit from this standardization, as it supports predictable lifecycle planning and reduces the risk of obsolescence-driven downtime.

The 1794-PS1 is also well-suited for retrofit and modernization projects where legacy Remote I/O or DH+ networks are being migrated to EtherNet/IP-based architectures. In these scenarios, the module can be deployed alongside new 1794-AENT adapters and existing field wiring, minimizing the scope of physical rework while delivering the power infrastructure required for the updated communication stack. This compatibility with both legacy and current-generation FLEX I/O components makes the 1794-PS1 a low-risk, high-value component in phased modernization programs.

All units supplied by NANKMOS undergo pre-shipment functional verification, including output voltage measurement, load regulation testing, and visual inspection for connector integrity and label legibility. Each 1794-PS1 is covered by a 12-Month Warranty from the date of shipment, with direct technical support available for installation, configuration, and compatibility questions. NANKMOS maintains ready stock of the 1794-PS1 to support urgent replacement requirements, with same-day dispatch available for in-stock orders placed before the daily cutoff.

The 1794-PS1 is most effective when deployed as part of a fully coordinated FLEX I/O assembly. A typical distributed I/O drop in a ControlLogix-based system begins with the 1794-AENT EtherNet/IP adapter, which handles all communication between the controller and the I/O modules on the terminal base. The 1794-PS1 is inserted into the assembly to provide dedicated backplane power, ensuring that the adapter and all downstream modules — including the 1794-IB16 16-point digital input module, the 1794-OB16 16-point digital output module, and the 1794-IE8 8-channel analog input module — receive stable, regulated power independent of the field wiring supply.

In redundant communication architectures, the 1794-AENTR dual-port EtherNet/IP adapter is paired with the 1794-PS1 to maintain I/O availability during single-path network failures. This configuration is common in continuous process industries such as oil and gas, chemical processing, and power generation, where unplanned I/O loss can trigger emergency shutdowns or safety system activations. The 1794-PS1's role in these architectures is to ensure that the power layer does not become a single point of failure in an otherwise redundant system design.

For applications requiring analog signal conditioning, the 1794-PS1 is frequently deployed alongside the 1794-IE4XOE2 combination analog I/O module, which provides four analog inputs and two analog outputs on a single terminal base slot. The clean, regulated power delivered by the 1794-PS1 is essential for maintaining the signal accuracy of this module, particularly in applications where 4–20 mA current loop signals are used for flow, pressure, or temperature measurement. Signal drift caused by power supply noise is a common root cause of analog measurement errors in industrial control systems, and the 1794-PS1 directly mitigates this risk.

At the controller level, the 1756-L85E ControlLogix CPU or the 1769-L36ERM CompactLogix controller manages the I/O tree that includes the FLEX I/O drops powered by the 1794-PS1. The controller's I/O configuration in Studio 5000 Logix Designer maps each module's slot address to a specific tag in the controller's data table, enabling real-time diagnostics and fault detection at the module level. When the 1794-PS1 is properly installed and powered, the adapter module reports a healthy status to the controller, and all downstream I/O modules appear as active in the I/O tree. A power supply fault, by contrast, causes the adapter to report a connection timeout, triggering a major fault in the controller if the I/O connection is configured as required.

In cabinet design, the 1794-PS1 is typically powered from a 24V DC bus supplied by a Rockwell Automation 1606-XLP or equivalent DIN-rail power supply, which in turn is fed from the cabinet's 120V AC or 230V AC distribution. This layered power architecture — from AC mains through the DC bus to the I/O backplane — is a standard design pattern in Allen-Bradley panel builds and is documented in Rockwell's System Design for Control of Electrical Noise (Reference Manual GMC-RM001). Proper grounding of the 24V DC common at a single point in the cabinet is essential for minimizing ground loop currents that can affect analog signal accuracy.

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 1794-PS1 powers FLEX I/O drops that interface with pneumatic valve manifolds, proximity sensors, and conveyor drive enable signals. The module's compact footprint allows high-density I/O assemblies to be mounted in junction boxes close to the machine, reducing field wiring runs and improving signal integrity. Distributed I/O architectures using the 1794-PS1 are common in body-in-white welding lines, engine assembly cells, and paint shop conveyor systems.

Power Generation & Energy: In power plant auxiliary control systems, the 1794-PS1 supports FLEX I/O assemblies that monitor pump status, valve position, and temperature inputs across the balance-of-plant. The module's compatibility with EtherNet/IP adapters allows these remote I/O drops to be integrated into a plant-wide DCS or SCADA system using standard Ethernet infrastructure. Redundant adapter configurations using the 1794-AENTR ensure that I/O availability is maintained during planned network maintenance or unplanned cable faults.

Water & Wastewater Treatment: Municipal water treatment facilities use FLEX I/O assemblies powered by the 1794-PS1 to interface with flow meters, level transmitters, chemical dosing pumps, and UV disinfection systems. The module's support for analog I/O modules such as the 1794-IE8 enables precise measurement of process variables critical to regulatory compliance. Remote I/O drops powered by the 1794-PS1 are typically located in field junction boxes near the process equipment, with EtherNet/IP communication back to a central control room running FactoryTalk View SE or a third-party SCADA platform.

Mining & Minerals Processing: In conveyor drive control and crusher automation applications, the 1794-PS1 supports FLEX I/O assemblies that interface with belt scale transmitters, speed sensors, and motor protection relay status contacts. The harsh electrical environment of mining facilities — characterized by high-power motor starts, ground faults, and electromagnetic interference from variable-frequency drives — makes the 1794-PS1's power isolation capability particularly valuable for protecting analog signal accuracy and preventing spurious digital input activations.

Q1: Can the 1794-PS1 be used with all FLEX I/O adapter types, including DeviceNet and ControlNet adapters?Yes. The 1794-PS1 is compatible with all 1794 Series adapter modules, including the 1794-ADN DeviceNet adapter, the 1794-ACN15 ControlNet adapter, and the 1794-AENT and 1794-AENTR EtherNet/IP adapters. The power supply module connects to the terminal base assembly independently of the adapter type, providing backplane power to all I/O modules in the assembly regardless of the communication protocol in use. This cross-protocol compatibility makes the 1794-PS1 a universal power solution for FLEX I/O assemblies across all supported network types.

Q2: How many I/O modules can the 1794-PS1 power in a single FLEX I/O assembly?The 1794-PS1 is designed to power a single FLEX I/O terminal base assembly, which can accommodate up to eight I/O modules depending on the terminal base configuration. For larger assemblies or assemblies with high-current I/O modules, additional power supply modules may be required. Rockwell Automation's FLEX I/O system design guidelines provide current consumption data for each I/O module type, which should be used to calculate the total power budget for each assembly and determine whether a single 1794-PS1 is sufficient or whether additional power injection is required.

Q3: What is the warranty coverage and support process for the 1794-PS1 supplied by NANKMOS?All 1794-PS1 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NANKMOS provides direct technical support to diagnose the issue and, where confirmed as a warranty defect, arranges replacement shipment with priority handling. NANKMOS maintains ready stock of the 1794-PS1 to minimize replacement lead times and support urgent maintenance requirements. For warranty claims or technical inquiries, contact [email protected] or call +86 18359268345.
