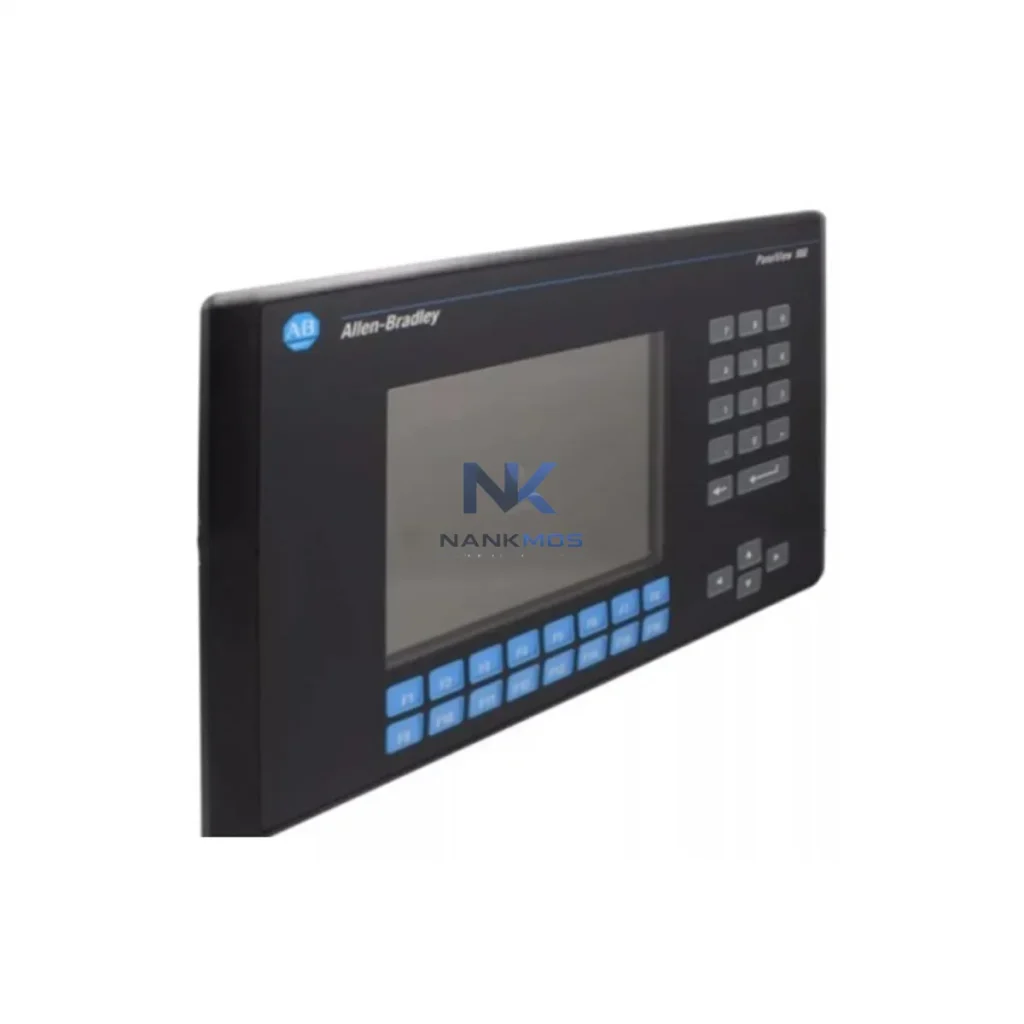

Allen-Bradley 2711-K9C1 HMI Terminal

Product Details

2711-K9C1 Product Description

The Allen-Bradley 2711-K9C1 is a PanelView operator terminal engineered for seamless integration within layered industrial control architectures. Designed to serve as the primary human-machine interface in SLC 500, MicroLogix, and PLC-5 control platforms, the 2711-K9C1 delivers reliable operator visualization, command input, and real-time process feedback across demanding production environments. Its role extends beyond simple display functionality — it functions as a critical node in the control layer, bridging operator intent with PLC execution logic and enabling coherent system-wide supervision from a single, field-hardened interface.

In a complete automation architecture, the 2711-K9C1 occupies the HMI layer, receiving data from the control layer via DH+ or DH-485 communication networks. This communication backbone connects the terminal directly to Allen-Bradley SLC 5/03, SLC 5/04, and SLC 5/05 processors, as well as MicroLogix 1100 and MicroLogix 1500 controllers, ensuring that operator commands are transmitted with deterministic latency and that process variable updates are reflected on-screen in real time. The terminal's native DH-485 port allows daisy-chain network topologies, reducing wiring complexity in multi-node panel installations and supporting up to 32 nodes on a single segment.

From a system architecture perspective, the 2711-K9C1 complements the I/O layer by providing operators with direct visibility into discrete and analog signal states managed by 1746 SLC I/O modules and 1762 MicroLogix expansion I/O. When paired with 1747-SDN DeviceNet Scanner modules or 1747-KE DH-485 to RS-232 interface modules, the terminal can participate in broader network diagnostics, allowing maintenance personnel to identify faults at the field device level without requiring a laptop or programming software. This diagnostic transparency significantly reduces mean time to repair in high-availability production lines.

Power layer integration is equally important to system reliability. The 2711-K9C1 operates on 24 VDC, making it directly compatible with Allen-Bradley 1606-XLP and 1606-XLS series power supplies, which provide regulated, noise-filtered DC power suitable for panel-mounted HMI terminals. In redundant power architectures, dual-feed configurations using 1606-XLP redundancy modules ensure that HMI availability is maintained even during primary supply failures, a critical requirement in continuous process industries such as petrochemical refining, water treatment, and pharmaceutical manufacturing.

The execution layer benefits from the 2711-K9C1's ability to trigger discrete output commands and setpoint adjustments directly from the operator interface, reducing the latency between operator decision and actuator response. In conveyor systems, packaging lines, and material handling applications, this tight coupling between HMI command and PLC output execution — mediated through SLC 500 output modules such as the 1746-OB16 and 1746-OW16 — ensures that production throughput targets are met without sacrificing safety interlock integrity.

For protection layer coordination, the 2711-K9C1 supports alarm display and acknowledgment workflows that integrate with PLC-resident alarm bit arrays. Operators can acknowledge, silence, and log alarms directly from the terminal, with alarm history stored in non-volatile memory for post-incident analysis. This capability is particularly valuable in motor control center (MCC) applications where Allen-Bradley SMC-3 soft starters and 1336 PLUS II drives generate fault codes that must be captured and reviewed by maintenance teams without interrupting production.

Maintenance layer efficiency is enhanced by the terminal's straightforward application transfer process. PanelView application files developed in PanelBuilder 32 software can be transferred via the built-in serial port or memory card slot, enabling rapid application updates during scheduled maintenance windows. This modularity supports a standardized spare-parts strategy: a single 2711-K9C1 unit can serve as a hot-swap replacement across multiple panel installations running identical or compatible application files, reducing spare inventory carrying costs while maintaining system uptime commitments.

In multi-zone manufacturing facilities, the 2711-K9C1 is frequently deployed alongside Allen-Bradley 1747-L553 SLC 5/05 processors with Ethernet connectivity, enabling remote monitoring of HMI-displayed process data through FactoryTalk View SE supervisory software. This architecture creates a coherent data flow from field sensor through I/O module, PLC processor, HMI terminal, and SCADA server — a fully traceable signal path that supports both real-time operational decisions and long-term process optimization initiatives.

Every 2711-K9C1 unit supplied by NANKMOS undergoes pre-shipment functional verification, including communication port testing, display integrity checks, and keypad response validation. Units are dispatched with full 12-Month Warranty coverage, ensuring that any hardware defects identified during the warranty period are addressed without additional cost to the end user. Stock is maintained in ready-to-ship condition to support urgent replacement requirements in facilities where HMI downtime directly impacts production output.

The 2711-K9C1 achieves its full operational value when deployed as part of a cohesive Allen-Bradley automation platform. In a typical SLC 500 control cabinet, the terminal communicates with an Allen-Bradley 1747-L553 SLC 5/05 processor over DH-485, while the processor manages I/O through 1746-IB16 discrete input modules and 1746-OB16 discrete output modules mounted on a 1746-A13 SLC 500 chassis. Analog process variables from temperature transmitters and pressure transducers are conditioned through 1746-NI4 analog input modules, with the resulting engineering-unit values displayed on the 2711-K9C1 operator screen in real time.

Communication layer expansion is supported through the 1747-SDN DeviceNet Scanner, which connects field devices such as photoelectric sensors, variable-frequency drives, and smart valve positioners to the SLC 500 backplane. The Allen-Bradley 1336 PLUS II AC drive is a common companion device in these architectures, with its DeviceNet node providing speed reference, fault status, and energy consumption data that operators can monitor and adjust directly from the 2711-K9C1 interface. For facilities requiring Ethernet connectivity at the supervisory level, the 1747-L553 Ethernet port bridges the DH-485 HMI network to the plant-wide FactoryTalk infrastructure without requiring additional gateway hardware.

Power distribution within the control cabinet relies on Allen-Bradley 1606-XLP60E power supplies, which deliver stable 24 VDC to both the SLC 500 I/O chassis and the 2711-K9C1 terminal. Terminal block wiring is organized through Allen-Bradley 1492-W3 wiring duct and 1492-J3 terminal blocks, ensuring that field wiring is clearly labeled, easily accessible for maintenance, and compliant with IEC 60204-1 panel wiring standards. This integrated approach — from HMI through controller, I/O, power supply, and field wiring — creates a maintainable, documentable, and scalable control architecture suitable for long-term industrial deployment.

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 2711-K9C1 provides operators with cycle time displays, fault annunciation, and production count tracking. Its NEMA 4 front-panel rating ensures reliable operation in wash-down zones where coolant mist and cleaning agents are present.

Power Generation & Utilities: In diesel generator control panels and substation auxiliary systems, the terminal displays generator status, bus voltage, and protection relay states sourced from SLC 500 I/O modules monitoring CT and PT secondary circuits. The 24 VDC operating requirement aligns with standard UPS-backed panel power systems used in utility installations.

Water & Wastewater Treatment: Pump station control panels in municipal water systems use the 2711-K9C1 to display wet well levels, pump run status, and flow totalization data. The terminal's alarm acknowledgment capability supports regulatory compliance requirements for unattended remote pump stations.

Petrochemical & Process Industries: In tank farm and pipeline control applications, the 2711-K9C1 interfaces with SLC 500 systems managing level, pressure, and temperature loops. Its non-volatile memory retains the last known process state during power interruptions, supporting safe restart procedures after unplanned outages.

Packaging & Material Handling: Conveyor control panels in food and beverage packaging facilities use the terminal to display line speed, reject counts, and jam fault locations. Integration with Allen-Bradley SMC-3 soft starters via DeviceNet allows operators to initiate controlled motor starts and stops directly from the HMI without accessing the MCC.

Q1: Is the 2711-K9C1 compatible with both SLC 500 and MicroLogix controllers on the same DH-485 network?Yes. The DH-485 network supports mixed-node configurations, allowing the 2711-K9C1 to communicate with SLC 5/01 through SLC 5/05 processors and MicroLogix 1000, 1100, and 1500 controllers simultaneously. Each node requires a unique address (1–31), and the network supports up to 32 nodes at baud rates up to 19.2 kbps. PanelBuilder 32 application files must be configured with the correct node address and controller type to ensure proper tag mapping.

Q2: What is the recommended approach for replacing a 2711-K9C1 in a live production environment?The recommended procedure is to transfer the existing PanelBuilder 32 application file from the original terminal to a PC via the RS-232 serial port before removal. The replacement unit is pre-loaded with the application file and configured with the same DH-485 node address. With the panel de-energized, the original terminal is removed and the replacement installed in the same cutout. Upon re-energization, the replacement terminal initializes communication with the controller within seconds, minimizing production downtime. NANKMOS maintains ready-to-ship stock of 2711-K9C1 units to support urgent replacement scenarios.

Q3: What does the 12-Month Warranty cover, and how is a warranty claim initiated?The 12-Month Warranty covers hardware defects in materials and workmanship identified under normal operating conditions within 12 months of the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact NANKMOS at [email protected] with the unit serial number, purchase order reference, and a description of the observed fault. NANKMOS will arrange return shipping and provide a replacement or repaired unit within the agreed service lead time.
