Bachmann DIO16-C Digital I/O Module

Product Details

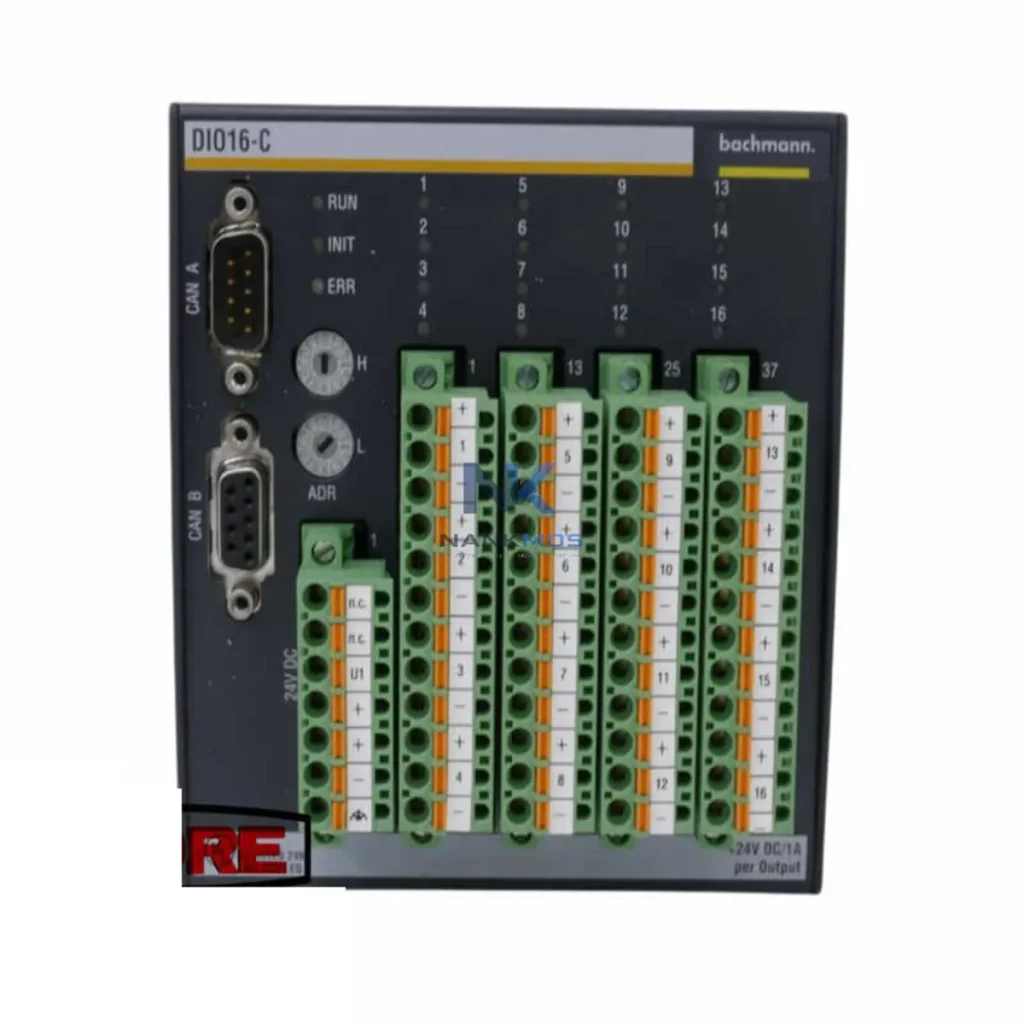

DIO16-C Product Description

The Bachmann DIO16/C is a 16-channel digital I/O module engineered for high-density signal acquisition and real-time data transmission across industrial automation networks. Designed as a core node in the Bachmann Electronic Series architecture, the DIO16/C bridges field-level devices — sensors, actuators, limit switches, and solenoid valves — with PLC controllers, SCADA platforms, and HMI systems through deterministic, low-latency communication. In smart factory deployments where production transparency and remote diagnostics are non-negotiable, the DIO16/C delivers the connectivity backbone that keeps data flowing from the machine floor to the control room.

At the heart of the DIO16/C's value proposition is its multi-protocol communication capability. Supporting CANopen, Modbus RTU/TCP, and PROFIBUS DP, the module integrates seamlessly into heterogeneous automation environments without requiring protocol converters or additional gateway hardware. Whether the upstream controller is a Bachmann MX213 PLC CPU, a third-party Siemens or Rockwell PLC, or a distributed control system, the DIO16/C adapts to the network topology already in place — reducing integration time and eliminating data silos that commonly fragment production visibility.

In a fully connected smart factory, the DIO16/C operates as a critical signal aggregation point within a layered automation architecture. At the field level, discrete sensors — proximity switches, photoelectric sensors, and emergency stop circuits — feed their binary states directly into the DIO16/C's 16 input channels. The module's onboard logic processes these signals within the Bachmann Electronic Series backplane, where the Bachmann MX213 or MX220 PLC CPU executes the control program and generates output commands back through the DIO16/C to drive actuators, conveyor relays, and pneumatic valves.

The real-time data captured by the DIO16/C is simultaneously available on the CANopen network, where it can be consumed by a Bachmann CAN gateway module or a dedicated edge computing node. From there, the data is forwarded over Industrial Ethernet — via a managed industrial switch such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — to the plant-level SCADA server. Operators monitoring a Wonderware InTouch or Ignition SCADA HMI can observe live I/O states, track alarm conditions, and drill into historical trends without leaving the control room.

For facilities running PROFIBUS DP segments alongside newer Ethernet-based networks, the DIO16/C's PROFIBUS slave capability allows it to coexist with legacy Siemens ET 200S remote I/O stations and Bachmann PROFIBUS master modules on the same DP segment. This hybrid topology is common in brownfield upgrades where replacing existing PROFIBUS infrastructure is cost-prohibitive. The DIO16/C bridges the old and new, ensuring that signal data from legacy field devices reaches modern cloud-connected SCADA and MES platforms without protocol translation bottlenecks.

Variable-speed drives and servo controllers — such as those in the Bachmann drive integration ecosystem or third-party Danfoss VLT and Siemens SINAMICS series — often rely on digital I/O handshaking for run/stop commands, fault acknowledgment, and speed reference selection. The DIO16/C provides the discrete I/O interface that coordinates these drive control signals within the PLC program, ensuring synchronized motion and safe state transitions during production changeovers. Paired with a Bachmann analog I/O module such as the AIO288 for process variable feedback, the DIO16/C completes the mixed-signal I/O layer that most drive-intensive applications require.

At the edge, the DIO16/C's data can be routed through an IIoT gateway — such as a Moxa MGate or a Bachmann-compatible OPC UA server — to cloud analytics platforms for predictive maintenance modeling. By correlating the DIO16/C's digital state history with vibration data from smart sensors and energy consumption readings from power meters, maintenance engineers can identify wear patterns in actuators and switches before they cause unplanned downtime. This closed-loop diagnostic capability is the foundation of Industry 4.0 transparency in discrete manufacturing.

Protocol Fragmentation: Many automation sites operate a mix of CANopen, PROFIBUS, and Modbus devices that cannot communicate natively. The DIO16/C's multi-protocol support eliminates the need for standalone protocol converters, reducing wiring complexity and potential failure points. A single DIO16/C node can serve as the I/O interface for both a CANopen PLC network and a PROFIBUS DP segment simultaneously, unifying signal data under one addressable module.

Data Islands and Production Blind Spots: When field-level I/O data is trapped in isolated PLCs without network connectivity, production managers lose visibility into machine states, cycle counts, and fault histories. The DIO16/C's network-native architecture ensures that every digital signal it handles is immediately available to SCADA, MES, and cloud analytics systems — eliminating the data islands that prevent real-time production monitoring and OEE calculation.

Remote Monitoring and Alarm Tracking: In geographically distributed facilities or unmanned substations, the ability to remotely monitor I/O states and receive alarm notifications is critical. The DIO16/C's integration with Modbus TCP enables remote SCADA polling over standard Ethernet infrastructure, allowing engineers to monitor equipment status, acknowledge alarms, and log fault events from any networked workstation or mobile device without on-site intervention.

System Scalability: As production lines expand, adding I/O capacity should not require rewiring or replacing existing controllers. The Bachmann Electronic Series modular architecture allows additional DIO16/C modules to be inserted into the backplane alongside existing Bachmann analog, counter, and communication modules, scaling I/O capacity incrementally without disrupting the running control program or network configuration.

Q1: What communication protocols does the Bachmann DIO16/C support, and how does this affect integration with existing PLC networks? The DIO16/C supports CANopen, Modbus RTU, Modbus TCP, and PROFIBUS DP. This multi-protocol capability means it can be integrated into Bachmann Electronic Series PLC systems natively via the backplane bus, while also participating as a CANopen node or PROFIBUS DP slave on external fieldbus networks. For Modbus TCP environments, the module's data is accessible over standard Industrial Ethernet without additional gateway hardware, minimizing integration complexity and reducing commissioning time.

Q2: How does the DIO16/C support remote diagnostics and predictive maintenance in smart factory deployments? The DIO16/C's real-time I/O state data is continuously available to SCADA and HMI systems via its supported protocols. By logging digital state transitions — including fault signals, cycle counts, and alarm activations — maintenance teams can build historical datasets that feed predictive maintenance algorithms. When paired with an OPC UA server or IIoT edge gateway, the DIO16/C's data can be streamed to cloud analytics platforms for anomaly detection and remaining useful life estimation without requiring physical access to the control cabinet.

Q3: Is the Bachmann DIO16/C compatible with third-party SCADA platforms such as Ignition, Wonderware, or Siemens WinCC? Yes. The DIO16/C's Modbus TCP support provides a standard, vendor-neutral data access path that is natively supported by all major SCADA platforms including Ignition by Inductive Automation, Wonderware InTouch, Siemens WinCC, and GE iFIX. No proprietary drivers or middleware are required — the SCADA system polls the DIO16/C's Modbus registers directly over Ethernet, making cross-platform integration straightforward and maintainable.

Q4: What warranty and quality assurance does NANKMOS provide for the Bachmann DIO16/C? Every Bachmann DIO16/C supplied by NANKMOS carries a 12-month warranty covering hardware defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing to verify channel integrity, protocol communication, and backplane compatibility. In-stock units are available for immediate dispatch to support urgent project timelines, and our global supply network ensures consistent availability for both single-unit and volume orders.
