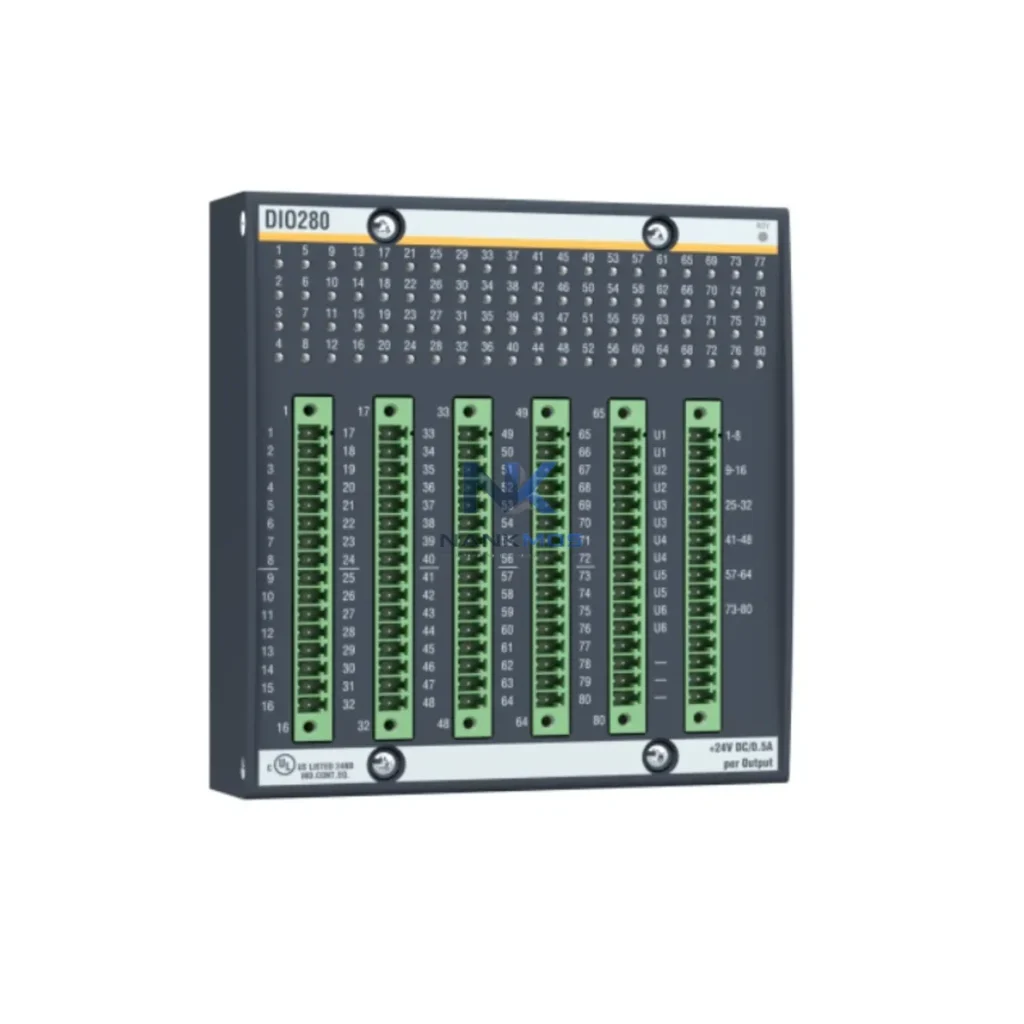

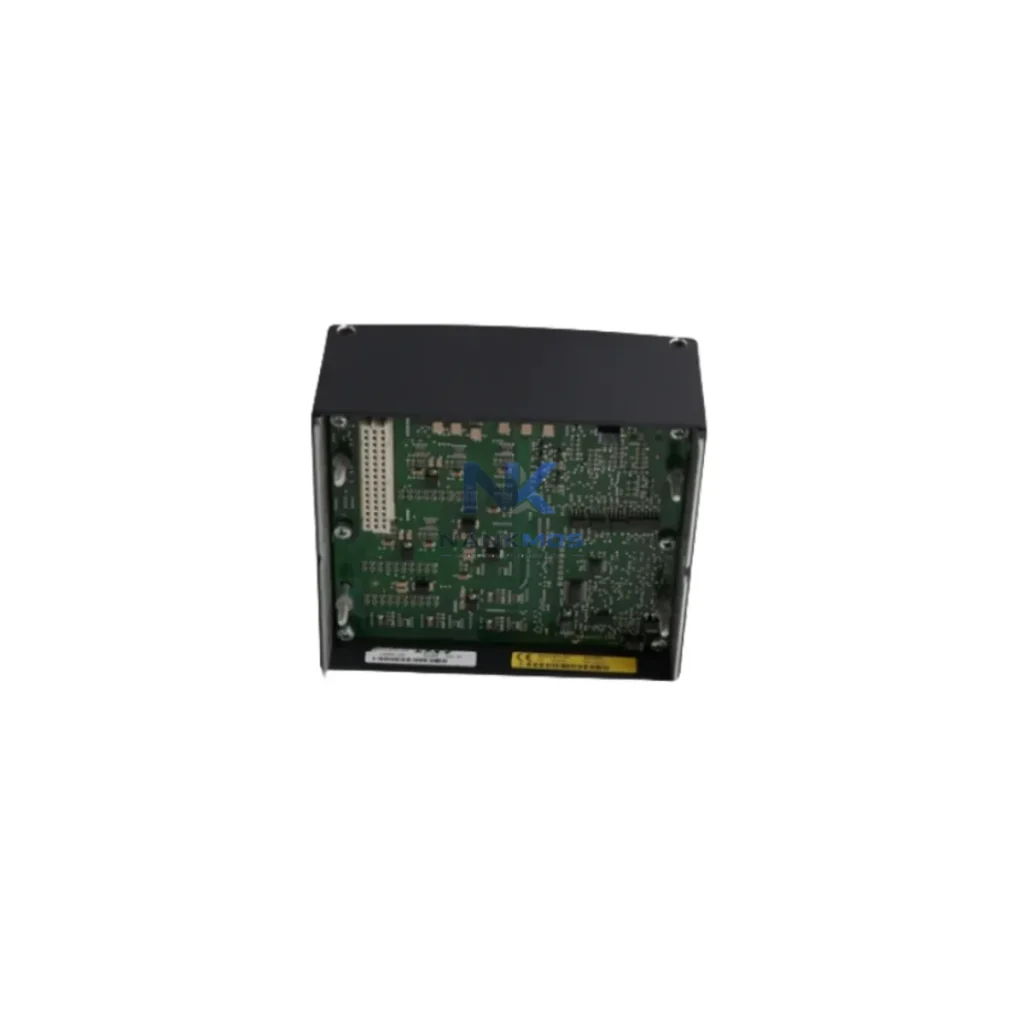

Bachmann DIO280 Digital I/O Module

Product Details

DIO280 Product Description

The Bachmann DIO280 is a high-density digital I/O module engineered for the Bachmann M1 automation platform, purpose-built to support energy-aware production environments. With 28 configurable digital channels, the DIO280 delivers precise signal acquisition and output control across motor starters, contactors, valve actuators, and field-level sensors — enabling production lines to operate with tighter energy discipline and reduced idle-state losses. Designed and manufactured in Austria to Bachmann's industrial-grade standards, the DIO280 is backed by a 12-month warranty and ships from pre-tested, verified stock.

In modern industrial facilities, uncontrolled digital I/O expansion is a leading cause of unnecessary energy draw. The DIO280 addresses this by integrating directly into the Bachmann M1 rack architecture, sharing a unified backplane bus with the CPU module — eliminating the power overhead of standalone remote I/O nodes and reducing wiring complexity. Each channel is individually configurable, allowing engineers to map only the signals required for a given production cell, suppressing phantom loads from unused or always-on outputs.

The DIO280 is fully compatible with Bachmann's SolutionCenter engineering environment, enabling structured programming under IEC 61131-3 standards. This allows control logic to be tightly coupled with energy management routines — for example, automatically de-energizing output groups during scheduled downtime windows or machine idle states, directly reducing thermal load on switchgear and panel components.

The DIO280 operates as a core signal-layer component within a Bachmann M1 rack alongside the Bachmann MPC240 or MPC265 CPU modules, which execute the energy management and sequencing logic. In a typical production cell, the DIO280 handles discrete feedback from motor contactors, proximity sensors, and end-of-travel switches — feeding real-time machine state data to the CPU for load-aware decision-making.

For drive-level energy control, the DIO280 integrates with Bachmann AIO288 analog I/O modules to provide mixed-signal coverage across variable-speed drive (VSD) systems. When paired with a Bachmann MBM200 or compatible PROFIBUS/PROFINET communication module, the DIO280's digital status signals can be forwarded upstream to SCADA systems or energy management platforms, enabling facility-wide load monitoring and demand-response scheduling.

In motor control applications, the DIO280 provides the discrete interlock and permissive signals required by soft starters and frequency inverters — including systems from the same Bachmann M1 ecosystem or third-party drives connected via gateway modules. Output channels can be configured to control contactor coils, brake relays, and cooling fan circuits, ensuring that ancillary loads are energized only when the primary drive is active. This alone can reduce parasitic energy consumption in multi-motor panels by a measurable margin during partial-load production shifts.

The DIO280 also supports integration with Bachmann DAC961 or similar analog output modules for setpoint signaling to proportional valve controllers and servo amplifiers. In servo-driven assembly lines, coordinating the DIO280's digital interlocks with servo drive enable signals ensures that axes are powered only during active motion segments — a key strategy for reducing regenerative braking losses and unnecessary holding torque energy.

For HMI integration, the DIO280's channel states are natively visible through Bachmann's visualization layer, allowing operators to monitor field device status, identify stuck outputs, and respond to fault conditions before they escalate into unplanned downtime. Combined with Bachmann MSI088 or equivalent safety I/O modules, the DIO280 can participate in safety-rated shutdown sequences that de-energize entire production zones in a controlled, energy-efficient manner.

Production line energy waste most commonly originates at the field device level — motors running at full speed during low-demand periods, outputs held energized during machine idle states, and sensors powered continuously regardless of production schedule. The Bachmann DIO280 provides the control infrastructure to address each of these failure modes directly.

By mapping digital outputs to time-scheduled or event-triggered control routines within the Bachmann M1 CPU, engineers can implement load-shedding sequences that systematically de-energize non-critical field devices during shift breaks, recipe changeovers, or planned maintenance windows. This reduces both active power draw and thermal accumulation inside control panels — extending the service life of contactors, relays, and terminal blocks.

The DIO280's input channels support high-speed signal capture for production cycle counting and machine state detection. This data feeds directly into OEE (Overall Equipment Effectiveness) calculations within the PLC program, enabling the control system to identify low-utilization periods and automatically transition equipment into energy-saving standby modes. Over a full production week, this approach consistently reduces energy consumption in automated cells without impacting throughput targets.

For predictive maintenance integration, the DIO280's discrete input channels can monitor motor contactor wear indicators, filter differential pressure switches, and cooling system flow sensors. When these signals trend toward fault thresholds, the M1 CPU can schedule maintenance interventions during planned downtime rather than allowing reactive failures — which typically result in extended machine stops, emergency energy surges during restart sequences, and accelerated component wear.

All DIO280 units supplied by NANKMOS are sourced from authorized distribution channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. Stock is maintained for rapid dispatch, supporting both planned project builds and urgent replacement requirements in live production environments.

Q1: How does the Bachmann DIO280 contribute to energy savings on a production line?The DIO280 enables the Bachmann M1 CPU to implement output suppression routines during idle states, reducing unnecessary energization of contactors, solenoids, and auxiliary loads. Combined with cycle-accurate input monitoring, it supports load-shedding strategies that measurably reduce panel energy draw during low-production periods.

Q2: Is the DIO280 compatible with third-party PLCs or only the Bachmann M1 platform?The DIO280 is designed specifically for the Bachmann M1 rack architecture and communicates via the M1 backplane bus. It is not directly compatible with third-party PLC racks. For mixed-platform environments, Bachmann communication gateway modules can bridge M1 I/O data to external control systems via PROFIBUS, PROFINET, or Modbus TCP.

Q3: What is the replacement and testing process when ordering a DIO280 from NANKMOS?Each DIO280 unit undergoes pre-shipment functional testing before dispatch. Upon receipt, the module can be inserted into an existing M1 rack with no hardware reconfiguration required — channel assignments are retained in the CPU project file. NANKMOS maintains ready stock for same-week dispatch, minimizing production line downtime during replacement events.

Q4: What warranty coverage applies to the Bachmann DIO280?All DIO280 modules supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. NANKMOS provides direct warranty support, including advance replacement coordination for critical production applications.
