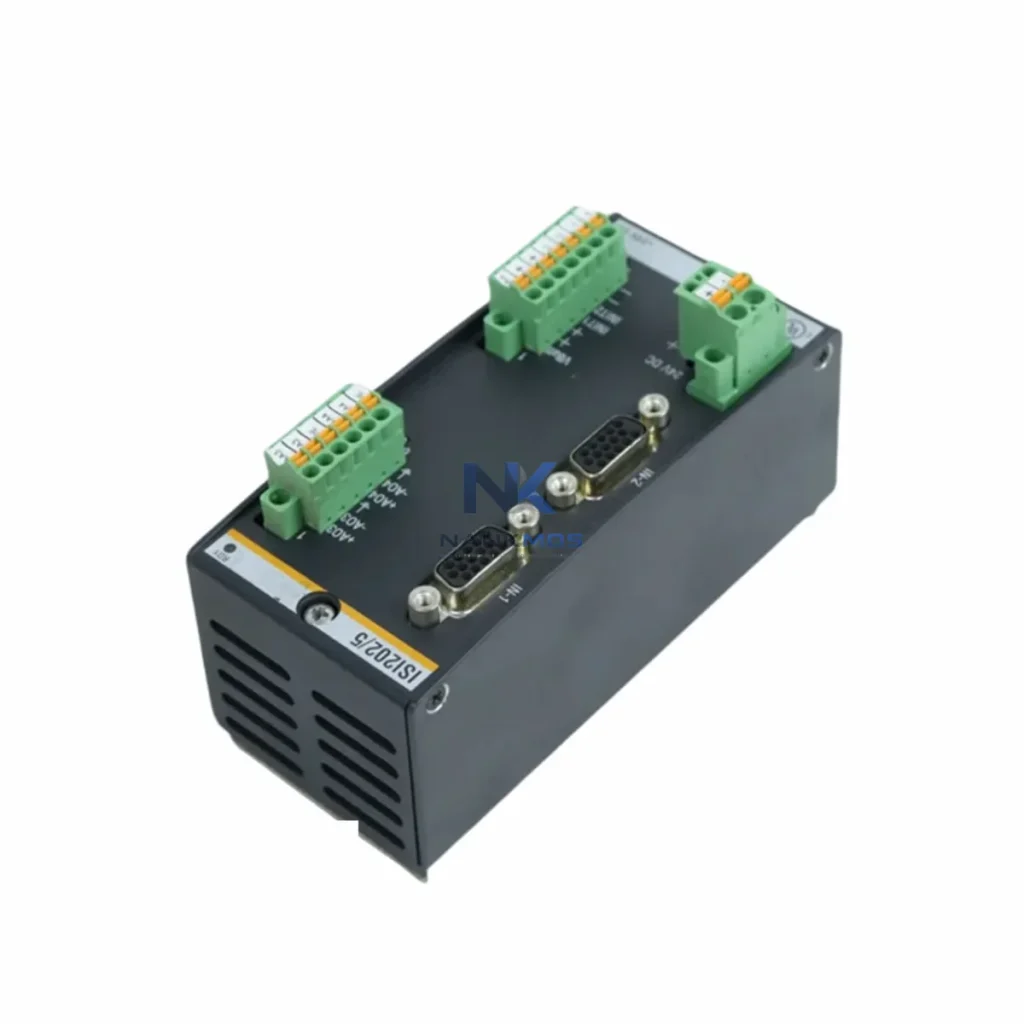

Bachmann ISI202 Encoder Interface Module

Product Details

ISI202 Product Description

The Bachmann ISI202 is a high-performance encoder interface module engineered for the ISI Series control platform, purpose-built to serve as a critical data link between field-level motion devices and upper-level automation systems. In modern smart factory environments, where every millisecond of signal latency and every byte of process data carries operational weight, the ISI202 delivers the connectivity precision that industrial engineers demand. From rotary encoders on servo axes to linear position sensors on conveyor systems, this module captures real-time positional data and transmits it seamlessly across the plant network — enabling closed-loop control, predictive diagnostics, and full production transparency.

The ISI202 sits at the intersection of physical motion and digital intelligence. In a typical smart factory deployment, the data flow begins at the encoder — whether an incremental TTL encoder on a packaging line or an absolute SSI encoder on a robotic arm — and the ISI202 captures that positional signal with high-resolution accuracy. This raw encoder data is then conditioned and transmitted via the Bachmann M1 system backplane to the Bachmann MPC240 or MPC265 motion controller, where it feeds directly into the real-time control loop.

From the controller level, process values are forwarded upstream through the plant network. The Bachmann ISI202 integrates natively with the Bachmann MX213 communication module, which bridges the M1 platform to PROFIBUS-DP or CANopen field networks. This allows the encoder feedback data to be consumed by a Siemens S7-300 PLC or a Beckhoff CX series controller operating in a mixed-vendor automation environment. The data then flows to the SCADA layer — typically a Wonderware InTouch or Ignition SCADA platform — where operators monitor axis positions, cycle counts, and velocity profiles in real time.

For remote I/O expansion, the ISI202 works alongside Bachmann DI212 digital input modules and Bachmann DO216 digital output modules mounted on the same ISI Series rack, enabling synchronized multi-axis coordination without additional wiring overhead. HMI panels — such as a Weintek MT8000 series or a Siemens TP700 Comfort — connect to the controller via Ethernet/IP or PROFINET, pulling encoder-derived position data for operator visualization and manual override functions.

At the edge, an industrial gateway such as the Moxa MGate MB3480 or a Red Lion DA10D data acquisition unit can aggregate ISI202 output alongside data from variable frequency drives, pressure transmitters, and temperature sensors, forwarding consolidated datasets to cloud-based MES or ERP platforms. This end-to-end data chain — from encoder pulse to enterprise dashboard — is what makes the ISI202 a foundational component in IIoT-ready factory architectures.

Many industrial sites still operate with fragmented data architectures: encoders wired directly to legacy PLCs with no network visibility, motion data trapped in proprietary controller memory with no path to SCADA, and maintenance teams relying on manual inspection rather than real-time diagnostics. The Bachmann ISI202 directly addresses these pain points.

Protocol Fragmentation: In multi-vendor environments, encoder signals often cannot be shared across control platforms. The ISI202, operating within the Bachmann M1 ecosystem, standardizes encoder data into structured process variables that can be mapped to CANopen or PROFIBUS-DP objects — making the data accessible to any compliant controller or gateway on the network without custom middleware.

Data Silos and Production Blindspots: Without a networked encoder interface, positional data remains isolated at the drive or controller level. The ISI202 breaks down these silos by feeding encoder values into the shared M1 data bus, where they become available to all modules on the rack — including communication modules, analog output cards, and safety controllers — enabling coordinated multi-axis responses and plant-wide production transparency.

Remote Monitoring and Alarm Tracking: The ISI202 supports status signal outputs that can be mapped to alarm registers in the SCADA system. When an encoder fault, signal loss, or position deviation is detected, the module triggers a structured alarm event that propagates through the network to the HMI and operator notification system — enabling rapid remote diagnosis without dispatching field technicians.

System Scalability: As production lines expand, additional ISI202 modules can be added to the ISI Series rack without reconfiguring the existing network topology. The modular backplane architecture supports hot-swap capability in select configurations, minimizing downtime during system upgrades and ensuring that new encoder channels are immediately available to the control system upon installation.

All units are pre-tested prior to shipment, with full functional verification of encoder input channels, communication bus integrity, and I/O signal mapping. Each ISI202 is covered by a 12-Month Warranty and backed by in-stock availability for fast global dispatch.

Q1: What communication protocols does the Bachmann ISI202 support, and is it compatible with third-party PLCs? The ISI202 operates natively on the Bachmann M1 ISI Series backplane and supports CANopen and PROFIBUS-DP through paired Bachmann communication modules such as the MX213. While the module itself is designed for the Bachmann M1 platform, its encoder data can be exposed to third-party PLCs and SCADA systems via these standard fieldbus protocols, ensuring broad interoperability in mixed-vendor environments.

Q2: How does the ISI202 handle communication latency in high-speed motion control applications? The ISI202 is designed for deterministic real-time performance within the Bachmann M1 control cycle. Encoder data is sampled and updated synchronously with the controller scan cycle — typically in the sub-millisecond range — ensuring that position feedback reaches the motion controller with minimal jitter. This makes it suitable for high-speed servo axis control, flying shear applications, and synchronized multi-axis coordination.

Q3: Can the ISI202 be integrated into an existing SCADA or remote monitoring system without replacing the current PLC infrastructure? Yes. The ISI202 integrates into the Bachmann M1 rack alongside existing I/O and communication modules. If the current SCADA system supports PROFIBUS-DP or CANopen, encoder data from the ISI202 can be mapped to the SCADA tag database without modifying the existing PLC program. For OPC-UA or Ethernet-based SCADA platforms, a Bachmann MX213 or compatible gateway module provides the necessary protocol bridge.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Units in stock are typically dispatched within 1–3 business days following order confirmation. Pre-shipment testing includes encoder channel verification, bus communication integrity checks, and I/O signal mapping validation to ensure every ISI202 arrives ready for immediate installation.
