Bachmann BS209 Backplane

Product Details

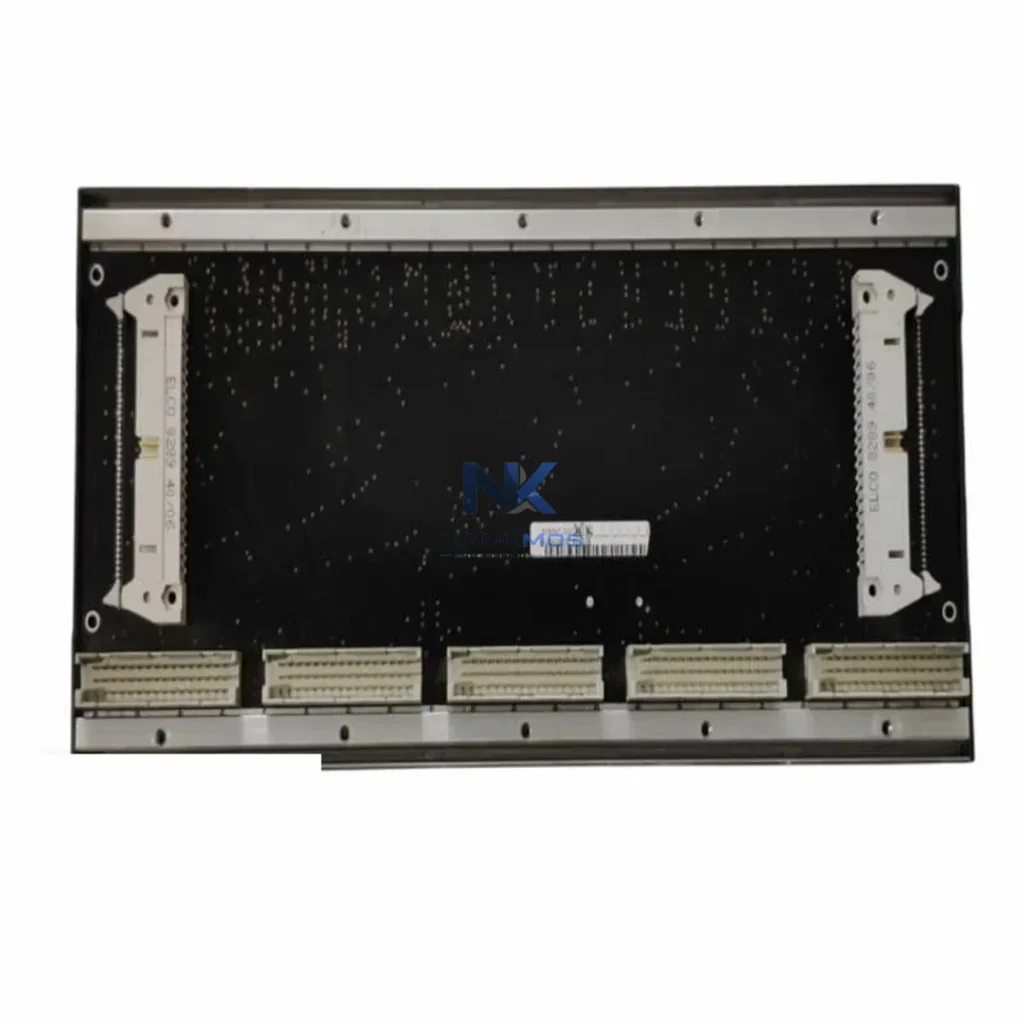

BS209 Product Description

The Bachmann BS209 is a high-density, energy-optimized backplane module engineered for the B-Series automation platform. Designed to serve as the structural and electrical backbone of modular control cabinets, the BS209 enables precise slot-based power distribution across CPU modules, I/O expansion cards, communication gateways, and field interface boards. In smart production environments where energy efficiency and uptime are non-negotiable, the BS209 delivers the architectural foundation that allows every connected module to operate at its rated efficiency — eliminating parasitic draw, reducing thermal load, and supporting predictive maintenance strategies across the production line.

Built to German engineering standards and verified through pre-shipment functional testing, the BS209 is stocked and available for immediate dispatch. Every unit ships with a 12-Month Warranty, backed by NANKMOS technical support and supply continuity assurance.

In a fully integrated B-Series control architecture, the BS209 backplane acts as the central energy distribution node. When paired with a Bachmann MPC240 or MPC265 CPU module, the backplane enables deterministic cycle execution while maintaining a stable, low-noise power bus — critical for high-resolution analog I/O cards that are sensitive to voltage ripple. The BS209 supports direct integration with Bachmann DIO232 digital I/O modules and AIO288 analog input modules, allowing field-level sensor data — including current transducers, temperature probes, and pressure transmitters — to feed directly into the energy management loop without signal conditioning losses.

For drive-intensive production lines, the BS209 facilitates seamless communication between the B-Series CPU and external variable frequency drives (VFDs) via Profibus DP or CANopen gateway modules such as the Bachmann CM202 or CM203. This allows the PLC to dynamically adjust motor speed setpoints based on real-time load demand, reducing energy consumption during low-throughput production windows. When integrated with a Bachmann MBM201 power monitoring module, the BS209 architecture enables per-slot energy metering — giving plant engineers granular visibility into which subsystem is drawing excess current and when.

The backplane also supports HMI connectivity through Ethernet-based modules, enabling operators to visualize energy KPIs — including kWh per production cycle, peak demand windows, and idle-state consumption — directly on panel PCs or SCADA dashboards. Combined with Bachmann's SolutionCenter engineering environment, the BS209-based rack can be configured to trigger load-shedding routines automatically when total system draw approaches threshold limits, protecting both the electrical infrastructure and the connected servo drives and motion controllers.

The BS209 contributes to factory-wide energy optimization through three primary mechanisms: structured power distribution, thermal load reduction, and cycle-synchronized control.

Structured Power Distribution: By consolidating all module power feeds through a single, impedance-matched backplane bus, the BS209 eliminates the wiring inefficiencies and voltage drop losses common in distributed terminal-block architectures. Each slot delivers clean, regulated power to its resident module — whether a CPU, a fieldbus gateway, or a high-density I/O card — ensuring that no module draws more than its rated current. This directly reduces the aggregate load on the 24 VDC or 5 VDC supply rails, lowering the demand on industrial power supply units and extending their operational lifespan.

Thermal Load Reduction: Excess heat is one of the most significant contributors to unplanned downtime in industrial control panels. The BS209's bus topology minimizes resistive losses across the power distribution path, reducing the heat generated within the enclosure. This allows plant operators to reduce cooling system duty cycles — lowering HVAC energy consumption in the control room — and extends the MTBF of temperature-sensitive components such as capacitor banks, communication modules, and analog signal processors.

Cycle-Synchronized Control: When the BS209 is deployed in a production line managed by a Bachmann B-Series PLC, the controller can synchronize energy-intensive operations — such as motor starts, conveyor acceleration ramps, and pneumatic actuator cycles — to avoid simultaneous peak demand events. This peak-shaving strategy reduces the facility's maximum demand charge and smooths the load profile seen by upstream power distribution equipment. Over a full production shift, this translates to measurable reductions in energy cost per unit produced.

The BS209 also supports predictive maintenance workflows. By monitoring the health signals of connected modules — including communication error rates, watchdog timeouts, and supply voltage deviations — the B-Series CPU can flag degrading components before they cause unplanned stops. This keeps production line OEE (Overall Equipment Effectiveness) high and ensures that energy invested in heating, cooling, and running the line is not wasted on idle recovery time after a fault.

Q1: What energy efficiency benefits does the Bachmann BS209 provide in a production line context? The BS209 reduces energy waste by providing a low-loss, bus-based power distribution architecture that eliminates redundant wiring paths and minimizes resistive voltage drop across module slots. When combined with a Bachmann power monitoring module and a B-Series CPU running load-management logic, the system can actively reduce peak demand, lower idle-state consumption, and synchronize energy-intensive actuator events to flatten the facility's load curve.

Q2: Is the BS209 compatible with third-party PLCs, VFDs, or SCADA systems? The BS209 is a native B-Series backplane and is designed for use within Bachmann's modular rack ecosystem. It interfaces with third-party systems — including Siemens, ABB, and Rockwell VFDs and SCADA platforms — through Bachmann communication gateway modules (e.g., Profibus DP, CANopen, Modbus TCP, or EtherNet/IP gateways) installed in adjacent backplane slots. Direct third-party module insertion into the BS209 is not supported.

Q3: What is the recommended replacement or upgrade path for aging B-Series backplanes? For facilities running older Bachmann B-Series racks with first-generation backplanes, the BS209 is the recommended drop-in replacement. It maintains full backward compatibility with existing B-Series CPU and I/O modules while offering improved bus integrity and lower thermal output. No firmware changes are required on connected modules when replacing a like-for-like backplane in the same rack position.

Q4: What does the 12-Month Warranty cover, and how is stock availability managed? Every Bachmann BS209 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing before dispatch. NANKMOS maintains dedicated inventory of BS209 and related B-Series components to support rapid fulfillment for both single-unit replacement orders and bulk project procurement. For lead time confirmation or volume pricing, contact [email protected] or call +86 18359268345.
