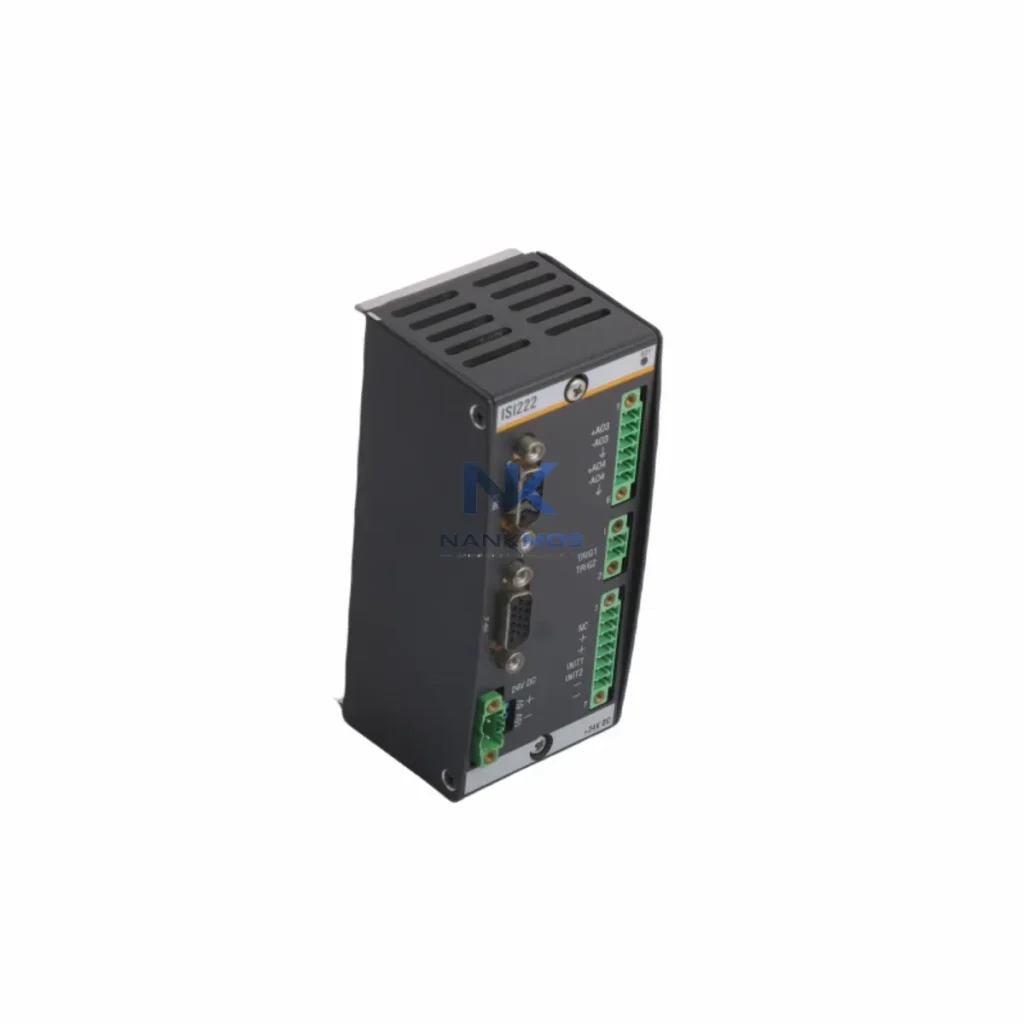

Bachmann ISI222 Positioning Module

Product Details

ISI222 Product Description

The Bachmann ISI222 is a high-performance positioning module engineered for seamless integration within the Bachmann M1 automation platform, specifically designed to operate as a native component of the ISI200 motion control series. As a system-matched module, the ISI222 delivers deterministic servo and stepper motor positioning with full synchronization to the M1 real-time kernel, enabling precise multi-axis coordination across demanding industrial environments including packaging lines, press automation, semiconductor handling, and process-critical motion applications.

Unlike standalone motion controllers, the ISI222 is architected to function as a layered element within a complete control hierarchy. Its integration with the Bachmann M1 CPU modules — such as the MC206 or MC212 — ensures that positioning tasks are executed within the same deterministic scan cycle as the main PLC logic, eliminating latency between motion commands and process feedback. This tight coupling between the control layer and the motion layer is fundamental to achieving sub-millisecond synchronization in high-throughput production environments.

Within the ISI200 system architecture, the ISI222 communicates over the Bachmann M1 backplane bus, sharing a unified rack with I/O modules such as the DI212 digital input module, the DO212 digital output module, and the AIO288 analog I/O module. This co-rack deployment eliminates inter-device communication overhead and allows the positioning module to respond directly to real-time sensor feedback — including encoder signals, limit switches, and analog position references — without routing data through external fieldbus layers. The result is a tightly integrated motion-I/O architecture that reduces wiring complexity and improves diagnostic transparency.

For applications requiring fieldbus connectivity, the ISI222 operates alongside Bachmann communication gateway modules such as the MX213 PROFIBUS master or the ETH201 Ethernet module, enabling the M1 platform to exchange positioning setpoints and status data with supervisory SCADA systems, DCS platforms, or remote HMI panels. This communication layer supports both cyclic process data exchange and acyclic parameter access, making the ISI222 suitable for integration into distributed control architectures where motion data must be visible at the plant-wide level.

Power supply integrity is a critical factor in positioning module performance. The ISI222 is designed to operate within the Bachmann M1 rack power distribution framework, typically supplied by the PS201 or PS205 power supply modules. These rack-mounted supplies provide regulated 24 VDC backplane power with built-in redundancy options, ensuring that the ISI222 maintains continuous operation even during partial power events. The clean, regulated power environment directly contributes to encoder signal fidelity and positioning repeatability.

From an HMI and visualization perspective, the ISI222 positioning data — including actual position, velocity, following error, and drive status — is fully accessible through Bachmann's SolutionCenter engineering environment and can be mapped to operator panels or web-based HMI solutions connected via the ETH201 or compatible Ethernet interfaces. This visibility supports real-time process monitoring, trend logging, and alarm management without requiring additional middleware or OPC server configurations.

The ISI222 supports both incremental and absolute encoder interfaces, accommodating a wide range of servo drive and stepper drive configurations. When paired with compatible servo drives from Bachmann-validated drive partners, the module enables electronic gearing, cam profiling, and synchronized multi-axis motion sequences — capabilities essential for coordinated motion in robotics, printing, and web tension control applications. The module's parameter set is fully accessible via the M1 engineering toolchain, allowing axis configuration, homing routines, and motion profile tuning to be performed within a single integrated development environment.

For redundancy-critical applications, the ISI222 can be deployed within M1 rack configurations that support hot-standby CPU redundancy, ensuring that positioning tasks continue without interruption in the event of a primary controller failure. This architecture is particularly relevant in power generation, oil and gas, and continuous process industries where unplanned motion stops carry significant operational and safety consequences.

Long-term maintainability is a core design principle of the ISI222. The module's firmware is field-upgradeable through the M1 engineering environment, and its diagnostic registers provide detailed fault classification — including encoder loss, following error overflow, drive fault, and communication timeout — enabling maintenance teams to identify and resolve issues rapidly without specialized test equipment. Combined with NANKMOS's inventory availability and pre-shipment functional testing, the ISI222 supports planned maintenance cycles and emergency replacement scenarios with equal reliability.

The ISI222 achieves its full performance potential when deployed as part of a complete Bachmann M1 automation platform. In a typical control cabinet configuration, the module occupies a backplane slot alongside the MC206 or MC212 CPU module, which executes the real-time PLC program and issues motion commands to the ISI222 within the same deterministic scan cycle. Digital I/O modules such as the DI212 and DO212 provide the discrete signal interface for limit switches, home sensors, and drive enable outputs, while the AIO288 analog I/O module handles analog position references and velocity feedback signals where required.

Communication to plant-level systems is managed through the ETH201 Ethernet module or the MX213 PROFIBUS master, enabling the ISI222's positioning data to be integrated into SCADA, DCS, or MES platforms without additional protocol converters. For applications requiring operator interaction at the machine level, Bachmann-compatible HMI panels connected via Ethernet provide real-time axis status visualization and manual jog control. Rack power is supplied by the PS201 or PS205 power supply modules, which deliver regulated 24 VDC backplane power with sufficient current capacity for multi-module rack configurations.

In multi-axis applications, multiple ISI222 modules can be installed in the same M1 rack, with the MC212 CPU coordinating synchronized motion across all axes through the shared backplane bus. This architecture eliminates the need for external motion controllers or dedicated motion networks, reducing system complexity and improving overall diagnostic transparency. Terminal modules and signal isolators at the cabinet I/O interface ensure clean signal conditioning between field devices and the M1 rack, maintaining positioning accuracy in electrically noisy industrial environments.

The Bachmann ISI222 is deployed across a broad range of industrial sectors where precise, system-integrated motion control is a process requirement. In packaging and converting lines, the ISI222 enables synchronized multi-axis motion for film feeding, cutting, and sealing operations, where positioning accuracy directly affects product quality and line throughput. In press and stamping automation, the module's deterministic motion execution ensures that die positioning and feed length control remain consistent across high-cycle-rate production runs.

In the power generation and energy sector, the ISI222 is used for valve actuator positioning and turbine control applications where motion reliability and redundancy are safety-critical requirements. The M1 platform's hot-standby CPU redundancy capability, combined with the ISI222's fault diagnostic registers, supports the high-availability architectures mandated by power plant control standards. In oil and gas processing, the module's sealed rack environment and wide operating temperature range make it suitable for control room and field panel installations in upstream and midstream facilities.

For semiconductor and electronics manufacturing, the ISI222's sub-millisecond positioning response and encoder feedback accuracy support the tight tolerances required in pick-and-place, wafer handling, and precision dispensing applications. In water and wastewater treatment, the module controls pump positioning, valve actuation, and dosing system drives within M1-based process control architectures, where long-term reliability and low maintenance overhead are primary selection criteria. Across all these applications, the ISI222's native M1 integration, combined with NANKMOS's verified inventory and 12-Month Warranty coverage, ensures that engineering teams can specify, deploy, and maintain the module with confidence throughout the full project lifecycle.

Q1: Is the Bachmann ISI222 compatible with all M1 CPU modules, and are there any rack slot restrictions? The ISI222 is designed for use within the Bachmann M1 rack system and is compatible with M1 CPU modules including the MC206, MC212, and MC220. The module occupies a standard M1 backplane slot and communicates via the internal M1 bus without requiring dedicated slot positions. However, the total number of ISI222 modules per rack is subject to the CPU's axis license configuration and the rack's power budget. It is recommended to verify axis count licensing with the MC-series CPU firmware version in use and to confirm power supply capacity (PS201 or PS205) before finalizing the rack layout. NANKMOS technical support can assist with rack configuration validation prior to order.

Q2: Can the ISI222 be integrated into an existing M1 system without replacing the CPU or reprogramming the entire application? Yes. The ISI222 is designed for modular expansion within existing M1 architectures. Adding an ISI222 to an operational M1 rack requires only the addition of the corresponding axis function block within the SolutionCenter engineering environment and the assignment of the module's rack address. Existing PLC logic, I/O configurations, and communication settings remain unaffected. This non-disruptive integration path makes the ISI222 well-suited for capacity expansion projects where minimizing production downtime is a priority. NANKMOS supplies ISI222 modules with pre-shipment functional verification to ensure immediate commissioning readiness upon delivery.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance and spare parts supply? All Bachmann ISI222 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment and covers module replacement or repair at no additional cost. For long-term maintenance planning, NANKMOS maintains stock of ISI222 modules and compatible M1 series components to support both scheduled preventive maintenance and unplanned emergency replacement requirements. Customers operating in industries with extended equipment lifecycles — including power generation, oil and gas, and heavy manufacturing — are encouraged to discuss multi-unit inventory agreements with NANKMOS to ensure continuous spare parts availability throughout the system's operational life.
