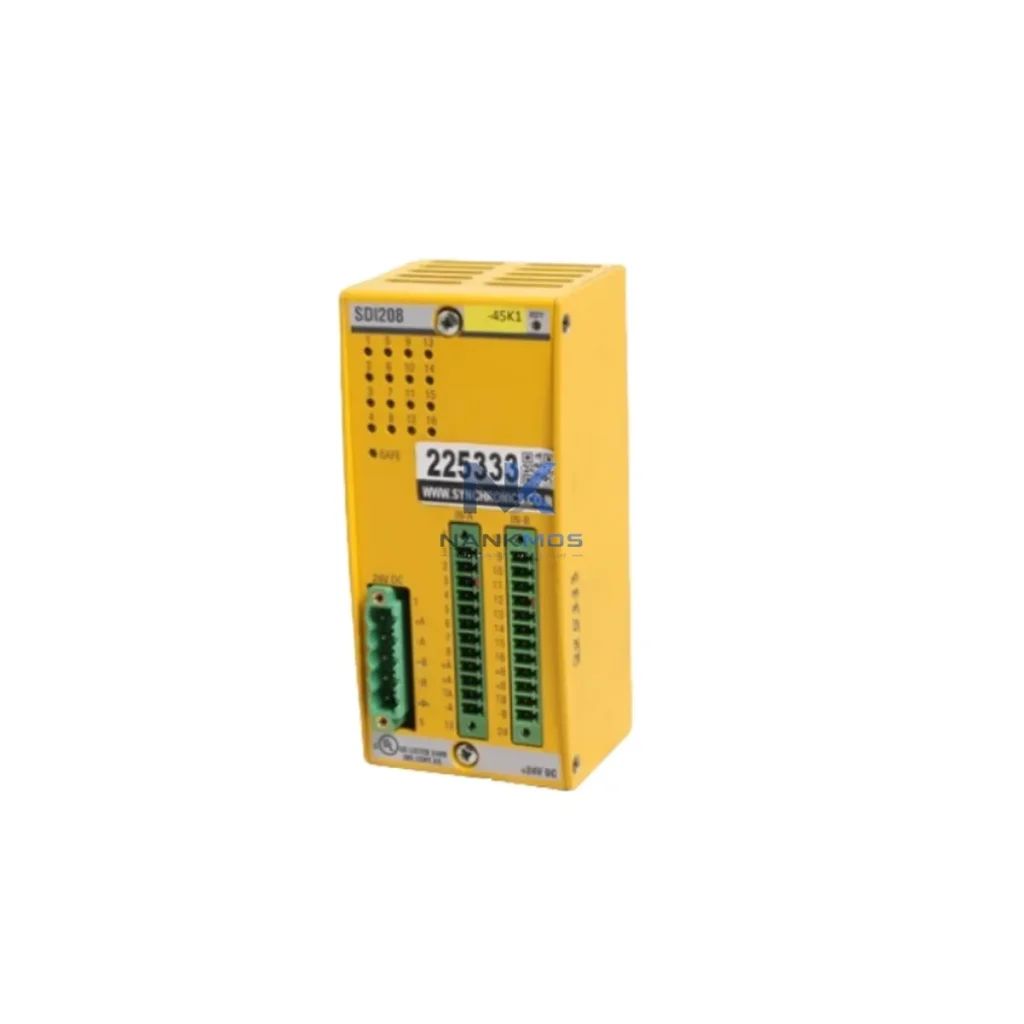

Bachmann SDI208 Safety Digital Input Module

Product Details

SDI208 Product Description

The Bachmann SDI208 is a SIL3-rated Safety Digital Input Module engineered for the Bachmann M1 Series modular PLC platform. Designed to operate at the intersection of functional safety and industrial connectivity, the SDI208 delivers eight channels of safety-grade digital input acquisition — capturing field-level signals from emergency stops, safety light curtains, door interlocks, and pressure switches — and transmitting them with deterministic latency into the M1 controller's safety execution environment. In smart factory architectures where data integrity and response time are non-negotiable, the SDI208 serves as the foundational sensing node that anchors the entire safety data chain.

Certified to IEC 61508 SIL3 and compliant with EN 954-1 Category 4 requirements, the SDI208 integrates natively into Bachmann's M1 automation platform, enabling seamless co-operation with the Bachmann MPC240 and MPC265 safety CPUs. Its backplane communication architecture ensures that safety input states are transferred to the controller with cycle-synchronous precision, supporting both standard and safety-rated task scheduling within the M1 runtime environment.

In a fully connected smart factory, the Bachmann SDI208 occupies a critical position at the field device layer — the point where physical safety signals are digitized and injected into the automation data stream. Consider a wind energy or industrial press application: safety sensors such as overspeed detectors, vibration monitors, and hydraulic pressure switches wire directly into the SDI208's eight input channels. The module performs dual-channel input evaluation and cross-comparison internally, ensuring that only validated, SIL3-compliant signal states are forwarded to the Bachmann MPC240 Safety CPU via the M1 backplane.

From the MPC240, safety-evaluated data flows upward through the M1 rack to communication gateway modules such as the Bachmann MBT (Modbus TCP) or Bachmann PROFINET IO Controller modules, which bridge the M1 safety domain to the plant-level Ethernet network. This enables SCADA systems — including Bachmann's own SolutionCenter SCADA platform or third-party systems via OPC-UA — to receive real-time safety state data without compromising the integrity of the safety loop. Operators at HMI stations can monitor SDI208 channel states, acknowledge alarms, and track safety event histories with millisecond-resolution timestamps.

For distributed architectures, the SDI208 works alongside Bachmann SDO208 Safety Digital Output Modules and Bachmann SAI84 Safety Analog Input Modules within the same M1 rack, forming a cohesive safety I/O cluster. Remote I/O expansion is supported through Bachmann's fieldbus coupler modules, allowing safety signals from geographically dispersed field stations — such as remote pump skids or offshore substations — to be aggregated into a central M1 controller. Industrial Ethernet switches with managed VLAN segmentation ensure that safety traffic is isolated from standard process data, maintaining deterministic communication latency across the network.

At the edge, Bachmann M1 edge gateway configurations can forward anonymized safety event data to cloud-based analytics platforms, enabling predictive maintenance models to correlate safety input activation patterns with equipment wear indicators. This data pipeline — from the SDI208 field input, through the M1 safety CPU, across the plant Ethernet backbone, into SCADA, and up to edge analytics — represents the complete industrial data chain that modern smart factories depend on for operational transparency and regulatory compliance.

Many industrial sites face a persistent challenge: safety systems operate in isolation from process control and monitoring networks, creating data silos that obscure the true operational state of the plant. The Bachmann SDI208, integrated within the M1 platform, directly addresses this fragmentation.

Protocol unification: The M1 platform's multi-protocol gateway capability allows SDI208 safety input states to be exposed via Modbus TCP, PROFINET, or OPC-UA simultaneously, eliminating the need for separate protocol converters and reducing network complexity.

Data island elimination: By connecting safety I/O data to the same Ethernet backbone as process instrumentation — including flow meters, temperature transmitters, and variable frequency drives — the SDI208 enables unified data visualization across safety and process domains in a single SCADA dashboard.

Remote monitoring and diagnostics: Maintenance engineers can remotely query SDI208 channel diagnostics — including input wire-break detection, short-circuit alarms, and discrepancy errors between dual-channel inputs — without requiring physical access to the control cabinet. This capability is critical for offshore, remote, or hazardous-area installations.

Production line transparency: Safety event logs generated by the SDI208 — timestamped to the millisecond — feed directly into MES and historian systems, providing auditable records of every safety interlock activation. This supports root-cause analysis, regulatory reporting, and continuous improvement initiatives.

Alarm management and system expansion: The M1 platform's modular architecture allows additional SDI208 modules to be added to the rack without system downtime, supporting phased plant expansions. Alarm routing from SDI208 channels can be configured to trigger automated responses in connected PLCs, VFDs, or safety relays, closing the loop between detection and protective action.

Q1: What communication protocols does the Bachmann SDI208 support for SCADA integration? The SDI208 communicates natively over the M1 backplane bus to the Bachmann safety CPU. For SCADA integration, the M1 platform supports OPC-UA, Modbus TCP, PROFINET IO, and EtherNet/IP via dedicated communication modules, allowing SDI208 safety input states to be published to any compatible SCADA or HMI system without additional protocol converters.

Q2: How does the SDI208 ensure network stability and data integrity in safety-critical applications? The SDI208 uses dual-channel input evaluation with internal cross-comparison and diagnostic coverage exceeding 99%, meeting SIL3 requirements under IEC 61508. The M1 backplane communication is deterministic and cycle-synchronous, ensuring that safety input states are transferred to the CPU within a defined, bounded latency — typically sub-millisecond — regardless of network load on the plant Ethernet layer.

Q3: Can the SDI208 be used in remote or distributed I/O configurations for large-scale plants? Yes. The Bachmann M1 platform supports distributed rack configurations connected via industrial Ethernet, enabling SDI208 modules to be deployed at remote field stations while maintaining centralized safety logic execution in the master M1 CPU. This architecture is well-suited for large-scale applications such as wind farms, offshore platforms, and multi-zone process plants.

Q4: What pre-shipment testing and warranty coverage is provided for the SDI208? Every Bachmann SDI208 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify channel integrity, diagnostic response, and backplane communication. All units are covered by a 12-month warranty from the date of shipment. Stock is available for immediate dispatch. For volume orders or urgent requirements, contact our team directly.
