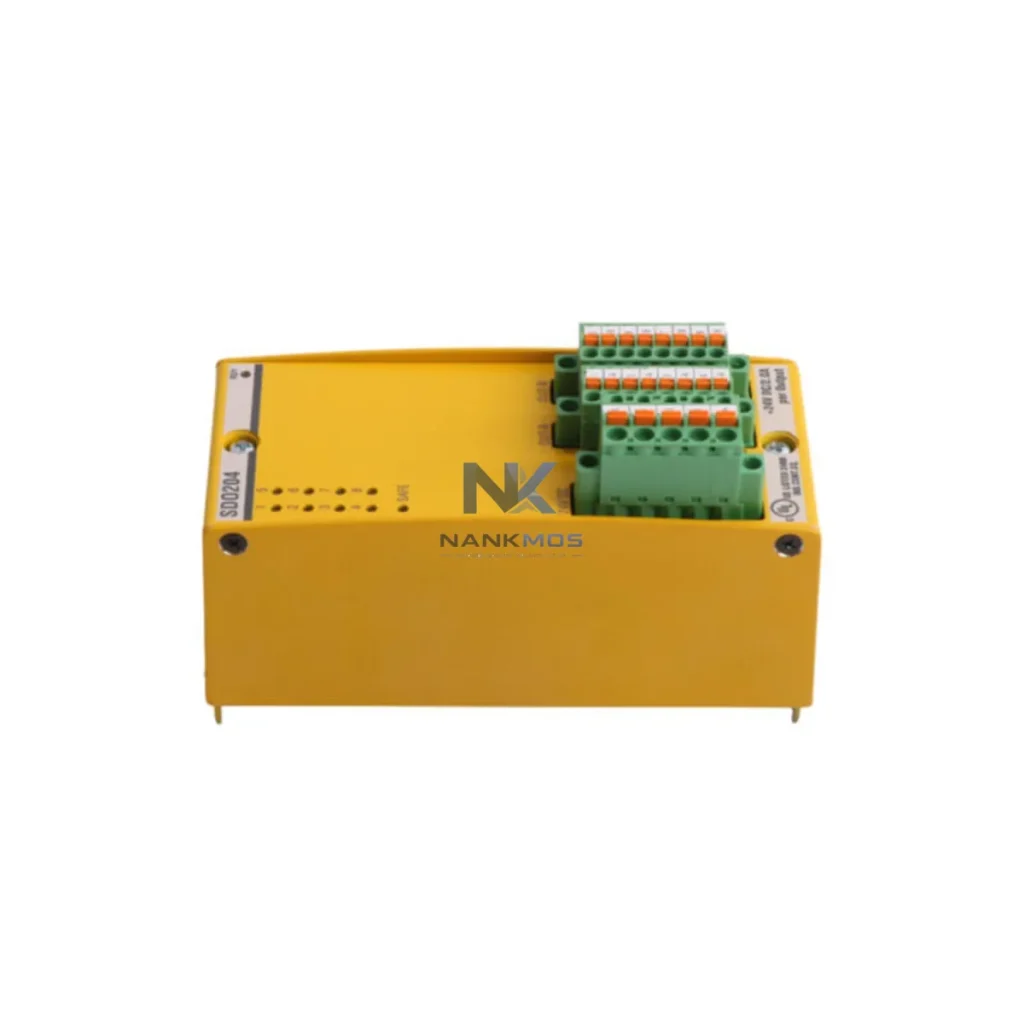

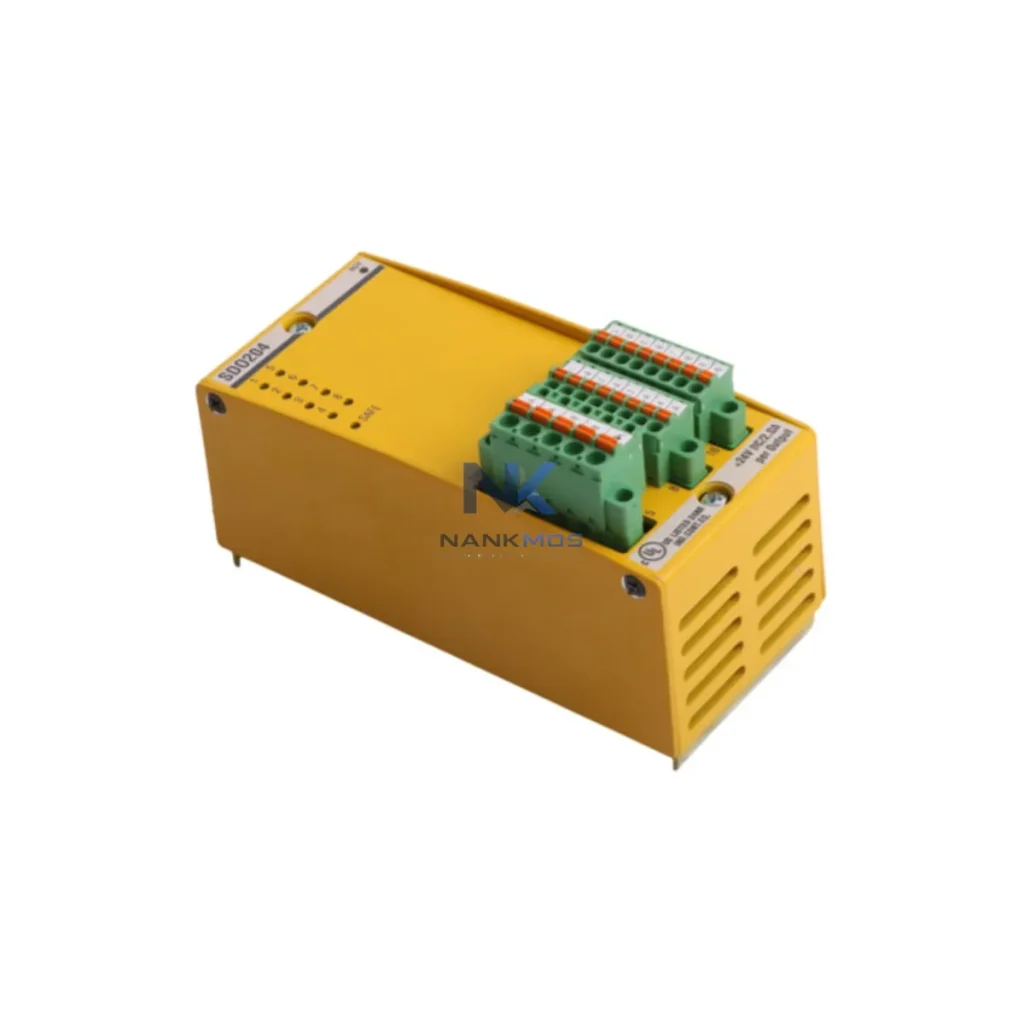

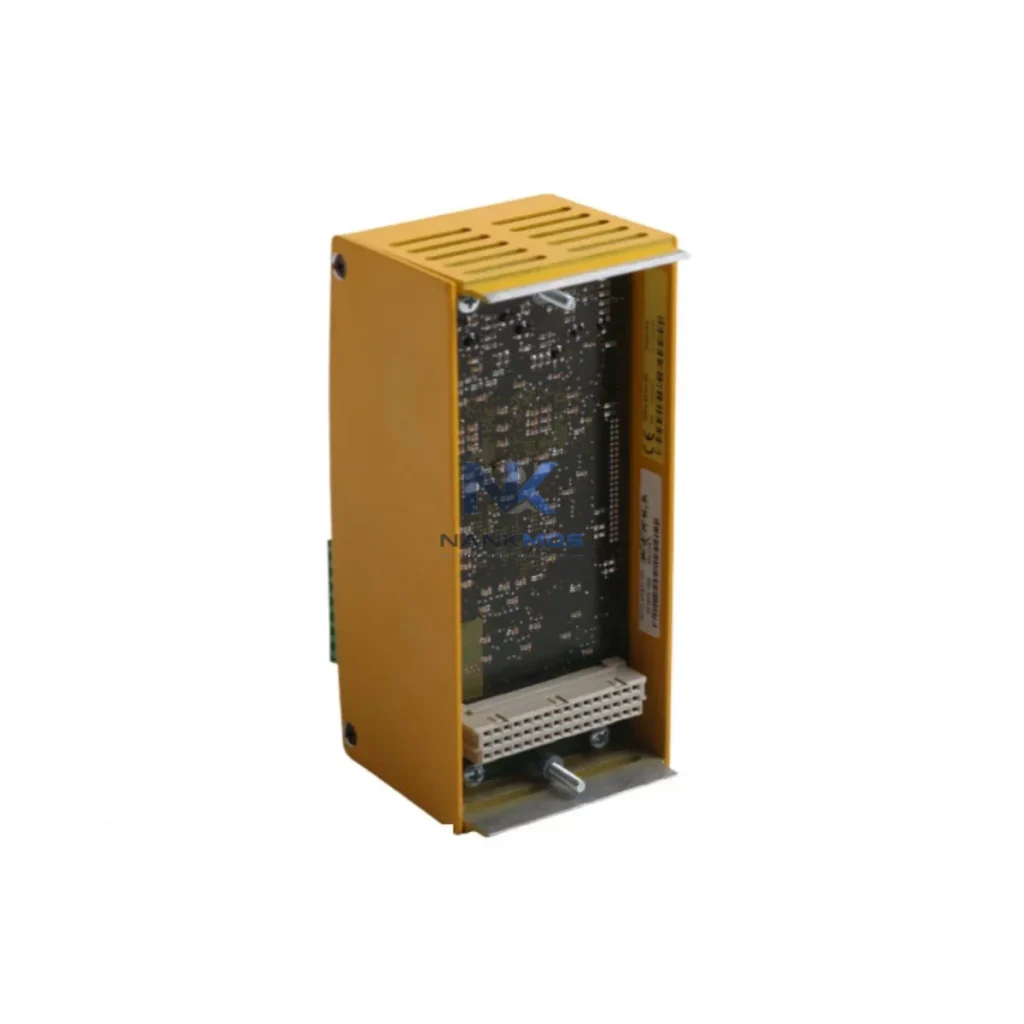

Bachmann SDO204 SD0204 Digital Output Module

Product Details

SDO204 SD0204 Product Description

The Bachmann SDO204 is a 4-channel digital output module engineered for the Bachmann M1 Series automation platform, delivering deterministic signal control across Ethernet/IP and Modbus TCP networks. In modern smart factory environments, where every millisecond of latency and every byte of process data matters, the SDO204 serves as a critical node in the industrial data chain — bridging PLC command logic to field-level actuators, solenoid valves, relay drivers, and safety interlocks with precision and reliability.

Designed for demanding process industries including energy & utilities, chemical processing, oil & gas, and discrete manufacturing, the SDO204 integrates seamlessly into multi-tier automation architectures. Its role extends beyond simple signal switching: it participates in the real-time data flow that connects field devices to SCADA systems, HMI dashboards, and MES platforms, enabling full production transparency and remote diagnostics from a centralized control room or cloud-connected edge gateway.

In a fully connected smart factory, the SDO204 operates at the intersection of command execution and real-time feedback. The data flow begins at the sensor layer — where devices such as the Bachmann SDI204 (4-channel digital input module) and SAI204 (analog input module) collect process signals from pressure transmitters, flow meters, and proximity switches. These signals are ingested by the Bachmann MPC240 or MPC265 CPU module, which runs the control logic and issues output commands via the M1 backplane bus to the SDO204.

The SDO204 then drives field actuators — motor starters, pneumatic valves, warning beacons, and conveyor interlocks — while simultaneously reporting output state data back through the Ethernet/IP or Modbus TCP network to the SCADA layer. Platforms such as Ignition SCADA or Siemens WinCC receive this real-time status data, enabling operators to monitor actuator states, detect faults, and trigger alarm sequences without physical intervention on the plant floor.

For remote sites or distributed production lines, an industrial edge gateway — such as those compatible with the Bachmann M1 communication architecture — aggregates data from multiple SDO204 modules and upstream I/O nodes, forwarding structured datasets to cloud-based MES or ERP systems via OPC-UA or MQTT tunneling. This edge-to-cloud data path supports predictive maintenance workflows, where output cycle counts and switching anomalies are logged and analyzed for early fault detection.

Within the same M1 rack, the SDO204 coexists with modules such as the Bachmann SAO204 (analog output module) for continuous process control, the CNT204 (counter module) for high-speed pulse counting, and communication gateway modules that bridge legacy PROFIBUS DP or HART field devices into the Ethernet backbone. This modular co-deployment allows engineers to build scalable, mixed-signal automation nodes without introducing additional hardware layers or protocol converters.

At the HMI level, touchscreen panels connected via Ethernet display live output states from the SDO204, allowing line operators to acknowledge alarms, force outputs during commissioning, and verify interlock status in real time. The combination of deterministic Ethernet/IP communication and the M1 platform's real-time operating system ensures that output switching commands are executed within defined cycle times, meeting the timing requirements of safety-critical and high-throughput production environments.

Many industrial sites operate with fragmented automation architectures — legacy PLCs running proprietary protocols alongside newer Ethernet-based systems, creating data silos that prevent unified monitoring and remote diagnostics. The Bachmann SDO204, deployed within the M1 Series framework, directly addresses these integration challenges.

Protocol Fragmentation: Sites running mixed Modbus RTU and Ethernet/IP environments can leverage the M1 platform's protocol bridging capability, with the SDO204 serving as the output execution node while upstream gateway modules handle protocol translation. This eliminates the need for standalone protocol converters and reduces network complexity.

Data Islands and Production Opacity: Without networked output modules, actuator states are invisible to SCADA and MES systems. The SDO204's Ethernet/IP integration ensures that every output state change is logged, timestamped, and available for trend analysis — transforming previously opaque field operations into transparent, data-driven production processes.

Remote Monitoring and Alarm Tracking: Maintenance teams at remote or unmanned substations can monitor SDO204 output states via SCADA dashboards without dispatching field personnel. Alarm conditions — such as output overcurrent or communication loss — are surfaced immediately through the network, enabling rapid remote diagnosis and reducing mean time to repair (MTTR).

System Scalability: As production lines expand, additional SDO204 modules can be added to existing M1 racks without reconfiguring the network topology. The modular M1 architecture supports hot-swap capability on select configurations, minimizing downtime during system expansion.

Q1: What communication protocols does the Bachmann SDO204 support, and is it compatible with third-party SCADA systems? The SDO204 supports Ethernet/IP and Modbus TCP, both of which are widely adopted industrial Ethernet protocols. It is compatible with major SCADA platforms including Ignition, Wonderware System Platform, Siemens WinCC, and GE iFIX, provided the SCADA system includes the appropriate Ethernet/IP or Modbus TCP driver.

Q2: How does the SDO204 perform in terms of network latency and real-time output switching? Operating within the Bachmann M1 real-time platform, the SDO204 benefits from deterministic cycle times governed by the M1 CPU module. Ethernet/IP communication latency is typically sub-millisecond within a properly segmented industrial LAN, making the SDO204 suitable for time-sensitive control applications including conveyor sequencing, valve actuation, and safety interlock management.

Q3: Can the SDO204 be diagnosed remotely, and what fault information is accessible over the network? Yes. The M1 platform exposes module-level diagnostics — including output state, channel fault flags, and communication health — via the Ethernet/IP or Modbus TCP interface. Remote engineering teams can access this data through SCADA or dedicated diagnostic tools without requiring physical access to the control cabinet, significantly reducing diagnostic travel time for distributed or offshore installations.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the Bachmann SDO204? Every Bachmann SDO204 unit supplied by NANKMOS undergoes pre-shipment functional testing, including communication verification on Ethernet/IP and Modbus TCP, output channel continuity checks, and visual inspection. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch with full traceability documentation.
