Emerson 12P4629X042 DCS CHARM I/O Module

Product Details

12P4629X042 Product Description

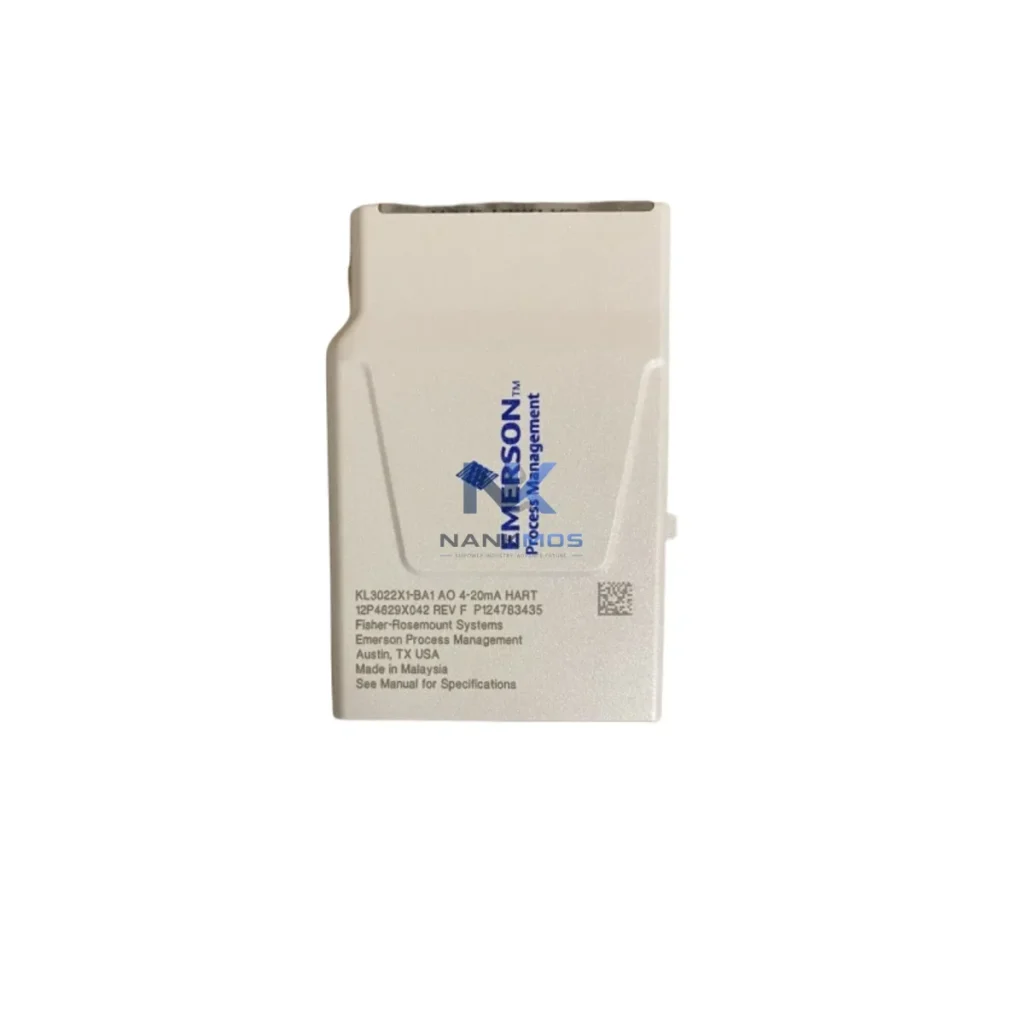

The Emerson 12P4629X042 is a CHARM (Characterization Module) Analog Output module engineered for seamless deployment within the DeltaV S-Series distributed control system architecture. Designed to deliver precision 4-20mA HART signal output, this module occupies a critical role in the signal execution layer of process automation systems — translating controller commands into calibrated analog signals that drive field-mounted actuators, control valves, variable frequency drives, and positioners across demanding industrial environments.

Within the DeltaV S-Series CHARM I/O architecture, the 12P4629X042 plugs directly into a CIOC (CHARM I/O Card) carrier, enabling field-level characterization without the need for traditional marshalling cabinets. This CHARM-based topology fundamentally changes how engineers approach cabinet design, signal routing, and system scalability — reducing wiring complexity, accelerating commissioning timelines, and enabling online module replacement without process interruption. The 12P4629X042 supports HART communication over the 4-20mA loop, allowing simultaneous process variable transmission and device diagnostics from field instruments such as control valves and smart positioners.

In-stock, pre-tested, and backed by a 12-Month Warranty, the 12P4629X042 is available for immediate dispatch to support both greenfield automation projects and brownfield system expansions.

The 12P4629X042 CHARM Analog Output module achieves its full engineering value when deployed as part of a cohesive DeltaV S-Series automation platform. At the control layer, the DeltaV M-Series or S-Series Controller (such as the MD Plus or SD Plus) executes the control strategy and issues output commands to the 12P4629X042 via the CIOC backplane. The CIOC card itself — for example the Emerson CIOC CHARM I/O Card — serves as the physical carrier for multiple CHARM modules, consolidating field wiring terminations and enabling the characteristic cabinet-free marshalling approach of the S-Series architecture.

On the input side, analog input CHARMs such as the Emerson 12P4630X012 AI CHARM (4-20mA HART input) work in tandem with the 12P4629X042 to form complete closed-loop control pairs — receiving process variable feedback from transmitters while the AO CHARM drives the final control element. For discrete control integration, DI and DO CHARM modules within the same CIOC carrier handle on/off signals from limit switches, solenoid valves, and motor starters, ensuring a unified I/O architecture across signal types.

At the communication layer, the DeltaV CHARM Electronic Marshalling infrastructure connects to the DeltaV DCS network via standard Ethernet, with the DeltaV Workstation or Application Station providing engineering configuration, loop tuning, and HART device management through AMS Device Manager. For systems requiring redundancy, the DeltaV SIS (Safety Instrumented System) platform can be integrated alongside the S-Series process control network, with the 12P4629X042 supporting the process control output layer while SIS logic solvers manage safety-critical shutdown functions.

Power distribution to the CIOC carriers is managed through DeltaV Power Supplies and Bus Conditioners, ensuring stable 24VDC delivery to CHARM modules and field loops. In cabinet designs where space and thermal management are priorities, Emerson DeltaV Cabinet Assemblies provide pre-engineered enclosures optimized for CHARM I/O density. For HART-enabled field devices connected to the 12P4629X042 — such as Fisher FIELDVUE DVC6200 digital valve controllers or Rosemount 3051 pressure transmitters — the HART pass-through capability enables full AMS asset management without additional multiplexers, reducing infrastructure cost and simplifying long-term maintenance workflows.

Oil & Gas and Petrochemical Processing: In refinery distillation columns, catalytic cracking units, and gas compression trains, the 12P4629X042 drives control valve positioners that regulate flow, pressure, and temperature loops. The HART communication layer enables remote valve diagnostics and partial stroke testing without removing the valve from service, supporting both operational continuity and safety compliance in SIL-rated applications.

Power Generation and Utilities: In combined-cycle power plants and cogeneration facilities, analog output CHARMs control steam turbine bypass valves, boiler feedwater control valves, and combustion air dampers. The 12P4629X042's high-resolution 16-bit output ensures precise positioning of modulating control elements, directly impacting thermal efficiency and emissions compliance.

Chemical and Specialty Manufacturing: Batch reactor temperature control, pH dosing systems, and distillation reflux ratio control all rely on accurate 4-20mA output signals. The 12P4629X042 integrates natively with DeltaV batch management modules, enabling recipe-driven output sequencing and full audit trail logging for GMP-regulated environments.

Water and Wastewater Treatment: Pump speed control via VFD analog reference signals, chemical dosing pump control, and filter backwash valve sequencing are common applications. The CHARM architecture's hot-swap capability is particularly valuable in water utility environments where continuous operation is mandated and maintenance windows are limited.

Mining and Minerals Processing: Flotation cell level control, thickener underflow density control, and conveyor speed regulation in ore processing plants benefit from the 12P4629X042's robust signal integrity and HART diagnostics. In remote mining installations, the ability to perform device health checks over the HART loop reduces the need for on-site instrumentation technicians.

Packaging and Discrete Manufacturing: In high-speed filling lines, labeling machines, and palletizing systems integrated with DeltaV process control, the 12P4629X042 provides analog speed references to servo drives and proportional valve controllers, bridging process and discrete automation within a single DeltaV architecture.

Q1: Is the 12P4629X042 compatible with both legacy DeltaV M-Series and current S-Series CIOC carriers? The 12P4629X042 is designed for the DeltaV S-Series CHARM I/O architecture and is physically and electrically compatible with S-Series CIOC carriers. It is not directly interchangeable with legacy M-Series I/O cards, which use a different form factor and backplane interface. For M-Series systems, Emerson offers separate analog output I/O cards. If you are migrating from M-Series to S-Series, the CHARM architecture supports phased migration strategies where new CIOC carriers can be introduced alongside existing M-Series I/O without a full system cutover.

Q2: Can the 12P4629X042 support HART 7 devices, and how is HART communication managed within DeltaV? Yes, the 12P4629X042 supports HART communication compatible with both HART 5 and HART 7 field devices. Within the DeltaV environment, HART pass-through is handled natively by the CIOC infrastructure, routing HART messages to AMS Device Manager for device configuration, calibration, and predictive diagnostics. No external HART multiplexers are required, simplifying the communication architecture and reducing potential points of failure. HART burst mode is supported for high-frequency process variable updates from smart field devices.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 12P4629X042 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify output accuracy, HART communication integrity, and hot-swap compatibility. In-stock units are available for same-day or next-business-day dispatch. For project-volume requirements or scheduled delivery programs, contact NANKMOS at [email protected] or +86 18359268345 to discuss inventory reservation and logistics coordination.
