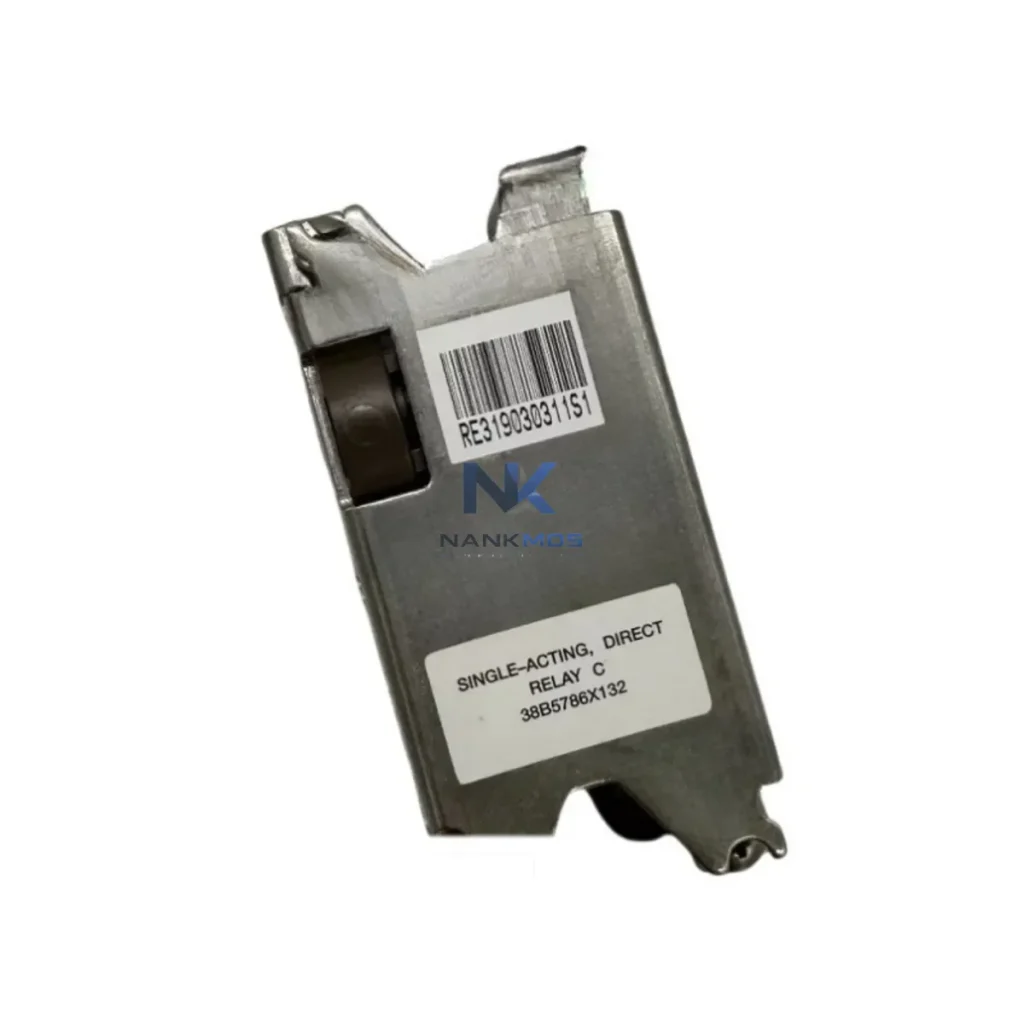

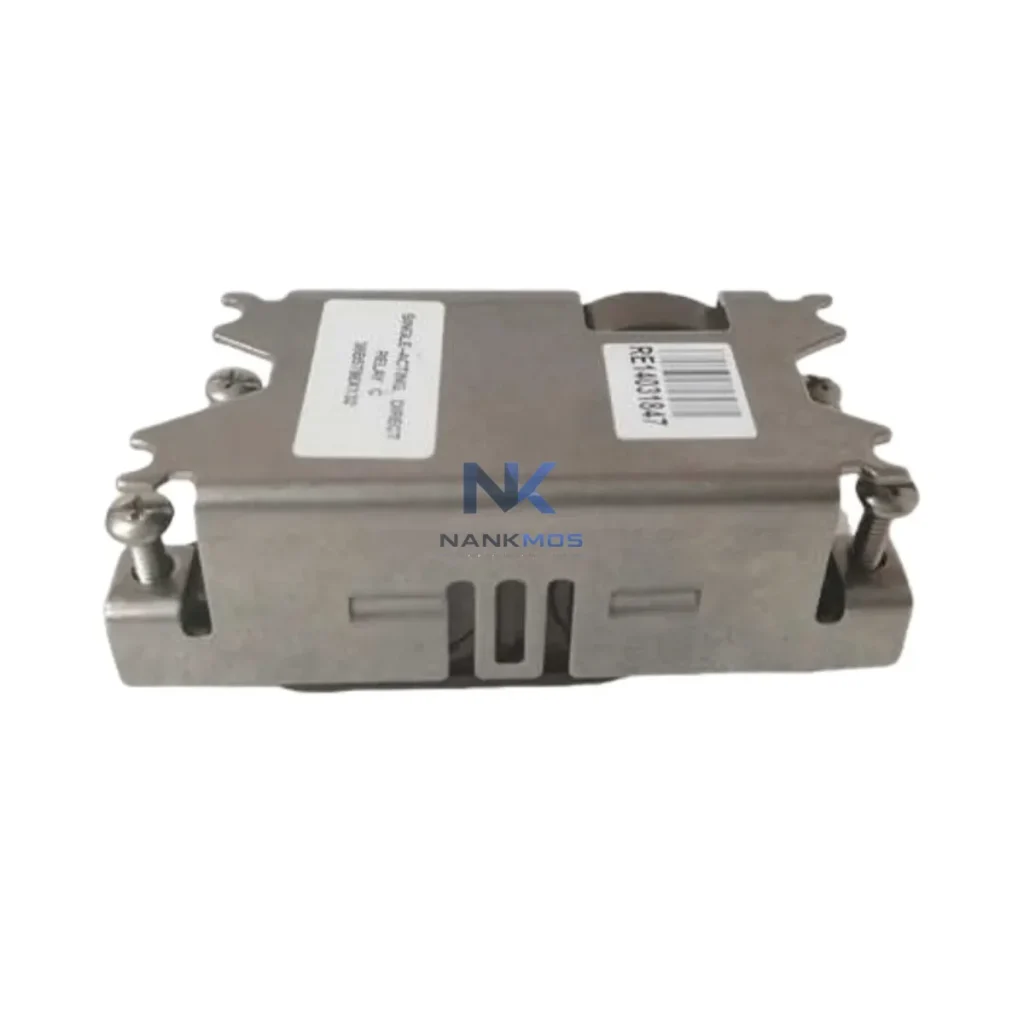

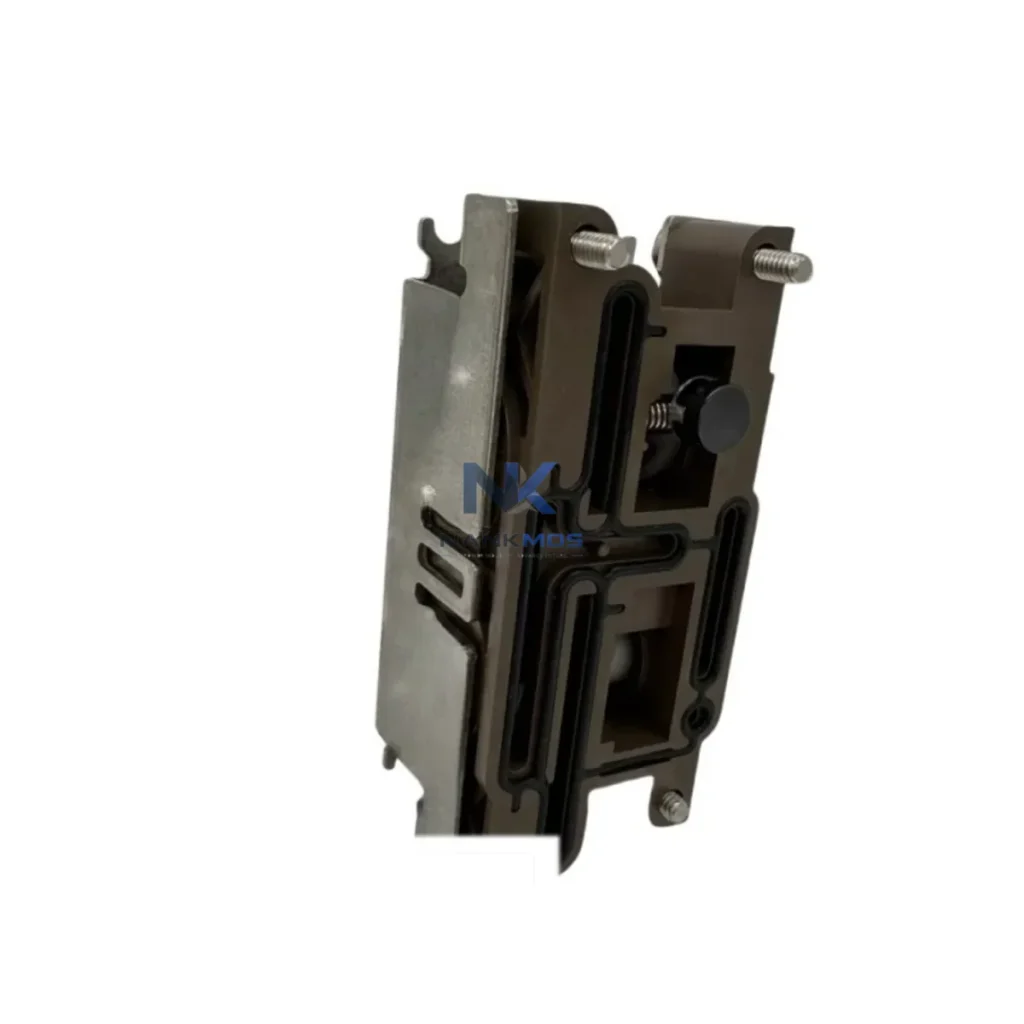

Emerson 38B5786X132 Pneumatic Relay

Product Details

38B5786X132 Product Description

The Emerson 38B5786X132 is a precision-engineered pneumatic relay designed to serve as a critical signal amplification and transmission component within Fisher valve control architectures and broader distributed control system (DCS) environments. As industrial automation platforms evolve toward tighter system integration, modular scalability, and redundant signal pathways, the 38B5786X132 occupies a foundational role in ensuring pneumatic signal fidelity between the control layer and the final control element — the control valve. Its deployment is not limited to a single valve station; rather, it functions as a system-level enabler that supports consistent pressure amplification, reduced signal lag, and reliable valve response across multi-loop process control installations.

In a fully integrated automation architecture, the 38B5786X132 interfaces directly with Fisher positioners such as the DVC6200 digital valve controller and the 3582 pneumatic positioner series, receiving a 3–15 psi or 6–30 psi input signal and delivering amplified output to the valve actuator. This relay-to-positioner relationship is central to maintaining loop stability in high-demand applications where actuator response time and signal repeatability are non-negotiable. The relay's internal design minimizes hysteresis and dead band, ensuring that the control signal from the DCS — whether transmitted via HART, FOUNDATION Fieldbus, or conventional 4–20 mA analog — is translated into precise mechanical valve movement without distortion or delay.

From a system architecture perspective, the 38B5786X132 supports layered control design. At the control layer, it receives processed output from Emerson DeltaV DCS controllers or equivalent PLC platforms. At the I/O layer, it works in conjunction with analog output modules that condition and transmit the control signal. At the communication layer, it is compatible with HART-enabled field device networks, allowing diagnostic data to be passed upstream to asset management systems such as Emerson AMS Device Manager. At the execution layer, it drives Fisher actuator assemblies — including the 667 diaphragm actuator and the 1052 spring-and-diaphragm actuator — with the pneumatic force required for precise throttling or on/off valve operation.

The relay also contributes to redundancy design in critical process loops. In split-range control configurations, two 38B5786X132 relays can be deployed in parallel — one for each valve in the split-range pair — ensuring that a single relay failure does not compromise the entire control loop. This architecture is particularly valuable in pressure control, temperature control, and flow balancing applications in petrochemical, power generation, and water treatment facilities. When paired with a Fisher 377 trip valve or a solenoid valve assembly for emergency shutdown (ESD) integration, the relay becomes part of a safety-instrumented function that meets SIL requirements under IEC 61511.

Installation and commissioning of the 38B5786X132 follow standard Fisher field device procedures. The relay mounts directly to the valve actuator yoke or to a remote mounting bracket, with 1/4-inch NPT pneumatic connections for supply and output. Supply pressure should be regulated to the specified range using a Fisher 67CFR or 67FR filter regulator to protect the relay's internal components from moisture, particulates, and pressure surges. During loop calibration, the relay's output is verified against the positioner's input signal using a precision pressure gauge or a HART communicator connected to the DVC6200, ensuring that the full signal range produces the correct valve travel from 0% to 100%.

Long-term maintenance of the 38B5786X132 is straightforward. The relay's diaphragm and seat assembly are field-replaceable using standard Fisher repair kits, and periodic inspection intervals can be aligned with the plant's overall valve maintenance schedule. In predictive maintenance programs supported by Emerson AMS or PlanTWeb digital ecosystem tools, relay performance data — including supply pressure stability and output response — can be trended over time to identify early signs of wear before they affect loop performance. This diagnostic capability reduces unplanned downtime and supports the plant's overall reliability and availability targets.

NANKMOS maintains verified inventory of the Emerson 38B5786X132 and supports global procurement for MRO, capital project, and emergency replacement requirements. Each unit undergoes pre-shipment functional testing to confirm pneumatic integrity, signal response, and dimensional compliance with Fisher specifications. All units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance, and are supported by NANKMOS's technical team for application engineering, system compatibility verification, and post-installation support.

The 38B5786X132 achieves its full value when deployed as part of a cohesive automation platform rather than as a standalone component. In a typical Fisher-based control loop, the signal chain begins at the Emerson DeltaV DCS controller, which generates a 4–20 mA or digital output signal. This signal is conditioned by an analog output module and transmitted to the Fisher DVC6200 digital valve controller, which interprets the control signal and commands the 38B5786X132 relay to amplify and deliver the corresponding pneumatic pressure to the valve actuator.

Supply air to the relay is regulated and filtered by a Fisher 67CFR filter regulator, which removes moisture and particulates that could damage the relay's internal diaphragm and seat. The actuator — typically a Fisher 667 diaphragm actuator or a Fisher 1052 spring-and-diaphragm actuator — receives the amplified pneumatic signal and converts it into mechanical valve stem movement. For emergency shutdown applications, a Fisher 377 trip valve or a solenoid valve assembly is integrated into the pneumatic circuit to provide fail-safe valve positioning on loss of signal or power.

At the field device network level, the DVC6200 communicates diagnostic data upstream via HART protocol to an Emerson AMS Device Manager workstation, enabling real-time monitoring of valve signature, relay output, and actuator travel. In Fieldbus installations, the Fisher 3582 pneumatic positioner may be used as an alternative to the DVC6200, with the 38B5786X132 relay providing the same pneumatic amplification function. For installations requiring signal isolation between the DCS output and the field device, a signal isolator or loop-powered transmitter is inserted between the analog output module and the positioner input.

In control cabinet design, the 38B5786X132 is often specified alongside Fisher 249 sensor assemblies for level control loops, where the relay amplifies the pneumatic output of a level controller to drive a globe or rotary valve. In multi-valve installations, a Fisher manifold assembly or pneumatic distribution block consolidates supply air routing, reducing installation complexity and improving system maintainability. The relay's compact form factor and standard NPT connections make it compatible with a wide range of Fisher and third-party valve accessories, supporting modular system expansion without requiring architectural redesign.

Oil & Gas and Petrochemical: In refinery and upstream processing facilities, the 38B5786X132 is deployed in pressure control, flow control, and temperature control loops where valve response speed and signal accuracy are critical to process safety and product quality. Its compatibility with Fisher ESD valve assemblies and SIL-rated positioners makes it suitable for safety-instrumented systems (SIS) in accordance with IEC 61511 and IEC 61508.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the relay supports steam control, feedwater control, and combustion air control loops. Its ability to handle high supply pressures and deliver stable pneumatic output under variable load conditions makes it a preferred choice for boiler control and turbine bypass valve applications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 38B5786X132 in flow control and pressure regulation loops for filtration, chemical dosing, and distribution systems. Its low maintenance requirements and long service life reduce operational costs in facilities with limited maintenance resources.

Pulp, Paper, and Chemical Processing: In continuous process industries, the relay supports multi-loop control architectures where dozens of control valves must operate in coordinated fashion to maintain product consistency. Its compatibility with Fisher positioners and DeltaV DCS platforms simplifies system integration and reduces commissioning time.

Mining and Metallurgy: In mineral processing and smelting operations, the relay is used in slurry flow control, gas pressure control, and cooling water regulation loops. Its robust construction and field-replaceable internals support reliable operation in harsh industrial environments with high dust, vibration, and temperature variation.

Q1: Is the Emerson 38B5786X132 compatible with both Fisher DVC6200 digital valve controllers and Fisher 3582 pneumatic positioners? Yes. The 38B5786X132 is designed to interface with the full range of Fisher positioners that accept a pneumatic input signal and require amplified output to drive a valve actuator. It is compatible with the DVC6200 in HART and analog configurations, as well as the 3582 series in conventional pneumatic control loops. NANKMOS's technical team can verify compatibility for your specific positioner model and actuator combination prior to shipment.

Q2: Can the 38B5786X132 be used in redundant or split-range control architectures? Yes. The relay is well-suited for split-range control configurations where two valves are controlled from a single controller output, with each relay handling one half of the signal range. In redundant architectures, dual relays can be installed in parallel to provide failover capability. NANKMOS supplies matched pairs of 38B5786X132 relays for redundant installations upon request, with pre-shipment testing to confirm matched performance characteristics.

Q3: What warranty and post-sale support does NANKMOS provide for the Emerson 38B5786X132? All Emerson 38B5786X132 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional performance failures. Each unit is functionally tested prior to shipment to confirm pneumatic integrity and signal response. NANKMOS provides application engineering support for system compatibility verification, installation guidance, and troubleshooting. For urgent replacement requirements, expedited shipping is available to minimize process downtime. Contact us at [email protected] or +86 18359268345 for availability and lead time confirmation.
