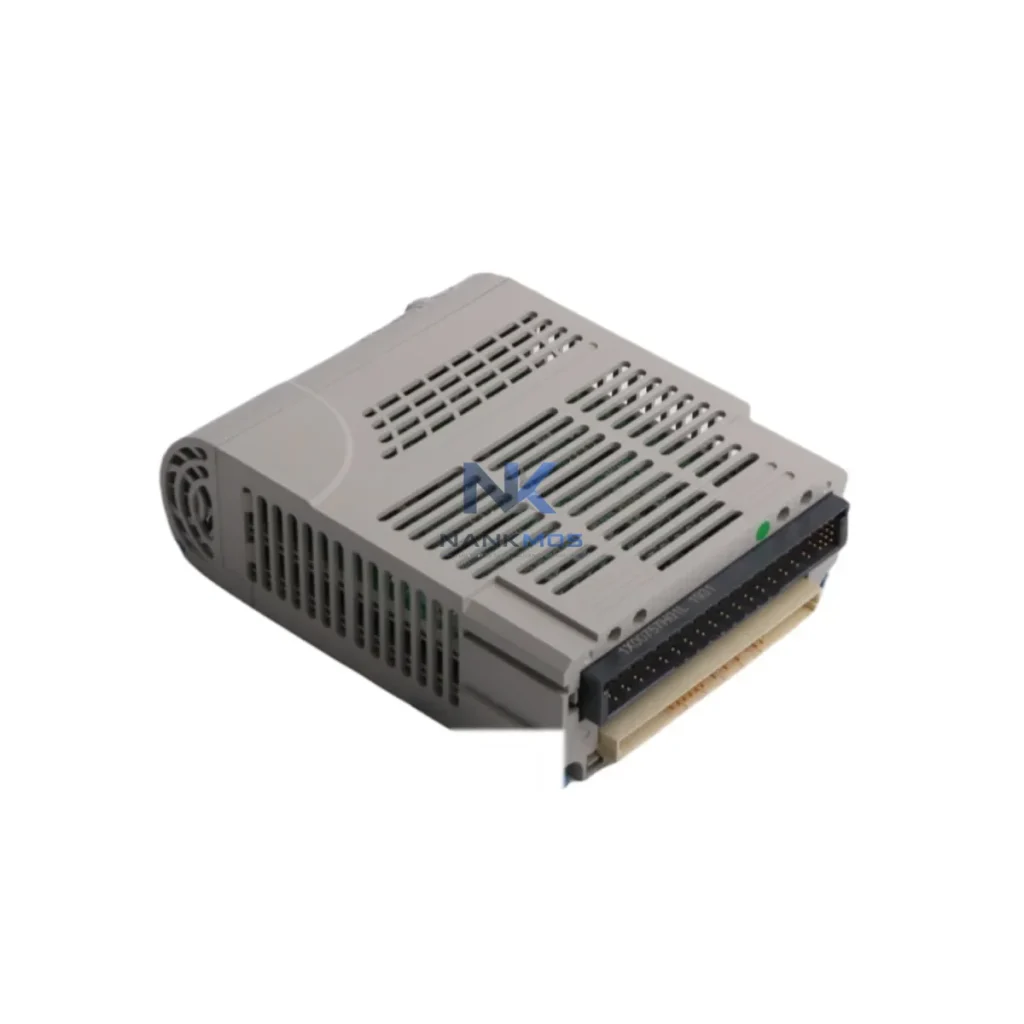

Emerson 5X00501G01 Digital Input Module

Product Details

5X00501G01 Product Description

The Emerson 5X00501G01 is a high-reliability Digital Input Module engineered for the Ovation Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level discrete signals — from limit switches, proximity sensors, relay contacts, and digital transmitters — directly into the Ovation controller network, enabling real-time process visibility, alarm management, and SCADA/HMI integration across power generation, petrochemical, and water treatment facilities.

In a modern smart factory architecture, the 5X00501G01 functions as the first link in the digital data pipeline. Field devices such as pressure switches, flow sensors, and motor status contacts feed binary state signals into this module. The Ovation controller — typically an Emerson Ovation OCR400 or OCR1100 controller node — reads these inputs at high scan rates, ensuring that process events are captured with millisecond-level precision. This data is then propagated upstream through the Ovation network to the Ovation Operator Station (OWS), where operators monitor live plant status via HMI displays and trend screens.

The 5X00501G01 integrates seamlessly within the Emerson Ovation 3500 I/O chassis and backplane infrastructure. When paired with the Ovation Network Interface Module (NIM) and Ovation Remote I/O controllers, the module supports distributed I/O architectures that extend digital input coverage across large plant footprints without signal degradation. Communication between the I/O chassis and the Ovation DCS network is handled via the proprietary Ovation high-speed control network, which supports deterministic data delivery essential for safety-critical applications.

For facilities requiring integration with third-party SCADA platforms — such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation — the Ovation DCS provides OPC-DA and OPC-UA server interfaces that expose 5X00501G01 input data as live process tags. This enables seamless data flow from the field device layer through the Ovation controller to enterprise-level MES and historian systems, supporting full plant data transparency and production reporting.

Remote diagnostics are a key operational advantage of the 5X00501G01 within the Ovation ecosystem. The Ovation DCS continuously monitors module health, channel status, and communication integrity. Fault conditions — such as open-circuit inputs, module communication loss, or power supply anomalies — are immediately flagged in the Ovation alarm management system and forwarded to the OWS and any connected Emerson AMS Device Manager instance. This allows maintenance teams to identify and resolve field wiring issues or module faults without requiring physical inspection of the I/O cabinet, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

In combined-cycle power plants and cogeneration facilities, the 5X00501G01 is commonly deployed alongside Emerson Ovation analog input modules (such as the 5X00119G01 AI module) and digital output modules (such as the 5X00507G01 DO module) within the same I/O chassis. This mixed I/O configuration allows a single Ovation controller node to manage both discrete and analog process variables — turbine trip signals, valve position feedback, generator breaker status — within a unified control loop. The result is a compact, high-density I/O solution that reduces panel space requirements and simplifies cable management.

For water and wastewater treatment applications, the 5X00501G01 supports pump run/stop status monitoring, level switch inputs, and chemical dosing system feedback — all critical data points for regulatory compliance reporting and remote SCADA supervision. When integrated with Emerson's Ovation Remote Workstation (RWS) or web-based monitoring tools, operators can access live digital input status from any networked location, supporting 24/7 remote plant supervision without on-site staffing requirements.

The module is pre-shipment tested and validated against Emerson factory acceptance test (FAT) standards before dispatch. Each unit is supplied with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Stock is maintained for immediate dispatch, supporting urgent replacement and MRO procurement requirements.

The 5X00501G01 sits at the foundation of the Ovation DCS data flow architecture. Field devices — including proximity sensors, limit switches, motor control center (MCC) status contacts, and digital transmitters — connect directly to the module's 32 input channels. The Ovation OCR1100 controller node scans these inputs at high frequency and passes the digital state data onto the Ovation control network.

Within the I/O chassis, the 5X00501G01 operates alongside the Emerson 5X00119G01 Analog Input Module for temperature and pressure signal acquisition, and the Emerson 5X00507G01 Digital Output Module for actuator and relay control. This co-location within the Ovation 3500 I/O chassis ensures synchronized data capture across both discrete and continuous process variables.

The Ovation Network Interface Module (NIM) aggregates I/O data from multiple chassis and transmits it to the Ovation DCS server over the high-speed control network. From the DCS server, process data — including all 5X00501G01 digital input states — is published to the Ovation Operator Workstation (OWS) for real-time HMI display, and to the Ovation Data Historian for long-term trend storage and compliance reporting.

For cross-platform integration, the Ovation OPC-UA server exposes 5X00501G01 input tags to third-party systems including Ignition SCADA gateways, Wonderware System Platform historians, and enterprise MES platforms. Edge gateway devices — such as the Moxa MGate MB3000 Modbus Gateway — can further bridge Ovation data to Modbus TCP networks, enabling legacy PLC systems and remote I/O panels to participate in the same data ecosystem.

At the field level, the 5X00501G01 commonly receives inputs from Pepperl+Fuchs proximity sensors, Honeywell limit switches, and ABB motor protection relay auxiliary contacts — all standard components in power plant and petrochemical I/O marshalling panels. This broad field device compatibility ensures the module can be deployed in both greenfield smart factory projects and brownfield DCS upgrade programs without requiring field wiring changes.

Protocol Fragmentation: Many industrial sites operate a mix of legacy Modbus RTU PLCs, proprietary DCS networks, and modern OPC-UA-capable systems. The 5X00501G01, integrated within the Ovation DCS and connected via OPC-UA or Modbus TCP gateways, provides a unified data bridge that eliminates protocol silos and ensures all digital input states are accessible from a single SCADA namespace.

Data Islands and Blind Spots: Remote pump stations, substation switchgear rooms, and distributed field panels often lack real-time connectivity to the central control room. By deploying 5X00501G01 modules within Ovation Remote I/O controllers at these locations, operators gain live digital input visibility across the entire plant — eliminating data islands and enabling proactive fault detection before equipment failures escalate.

Alarm Management and Traceability: Unstructured alarm floods are a persistent challenge in complex automation environments. The 5X00501G01's channel-level diagnostic capability, combined with the Ovation alarm management system, enables precise alarm source identification — down to the individual input channel and field device. This supports ISA-18.2-compliant alarm rationalization and provides a full audit trail for incident investigation and regulatory reporting.

System Scalability: As production capacity expands, additional 5X00501G01 modules can be added to existing Ovation I/O chassis without controller reconfiguration, supporting incremental system growth. The Ovation DCS architecture supports hot-swap module replacement, minimizing maintenance windows and ensuring continuous data availability during hardware upgrades.

Q1: What communication protocols does the Emerson 5X00501G01 support for SCADA integration?The 5X00501G01 communicates natively over the Ovation high-speed control network. For SCADA integration, the Ovation DCS server provides OPC-DA and OPC-UA interfaces, enabling connectivity to Ignition, Wonderware, GE iFIX, and other OPC-compliant SCADA platforms. Modbus TCP access is available via third-party gateway devices.

Q2: Can the 5X00501G01 be used for remote diagnostics and predictive maintenance?Yes. The module supports channel-level fault detection and integrates with Emerson AMS Device Manager for remote health monitoring. Fault conditions are reported in real time to the Ovation OWS and can be forwarded to enterprise asset management systems via OPC-UA or historian interfaces, supporting condition-based maintenance strategies.

Q3: Is the 5X00501G01 compatible with existing Ovation DCS installations without hardware changes?Yes. The 5X00501G01 is designed for direct installation into the Emerson Ovation 3500 I/O chassis and is compatible with OCR400 and OCR1100 controller nodes. No additional hardware modifications are required for standard Ovation DCS installations. Configuration is performed via the Ovation Developer Studio engineering tool.

Q4: What warranty and pre-shipment testing does the 5X00501G01 include?Each 5X00501G01 unit is pre-shipment tested against Emerson factory acceptance test (FAT) criteria and supplied with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Units are in stock and available for immediate dispatch to support urgent MRO and project procurement requirements.
