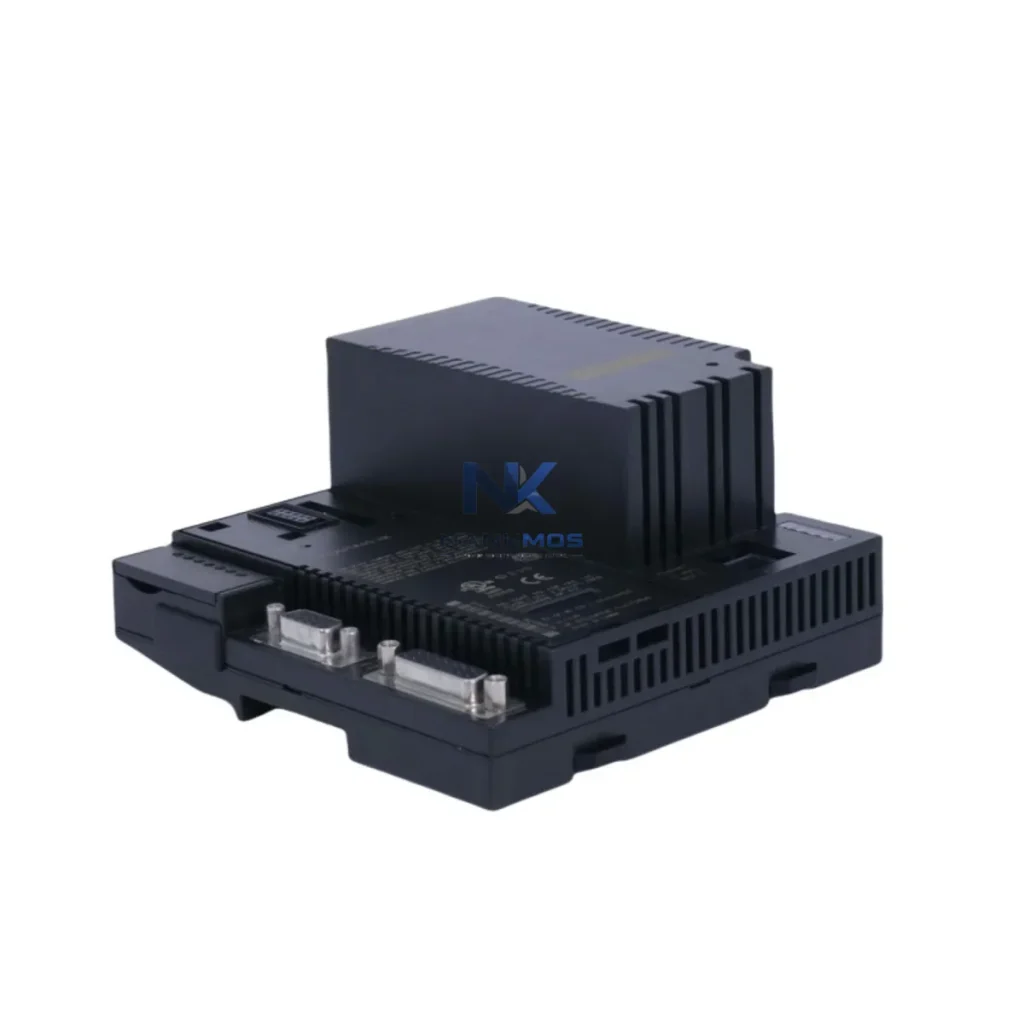

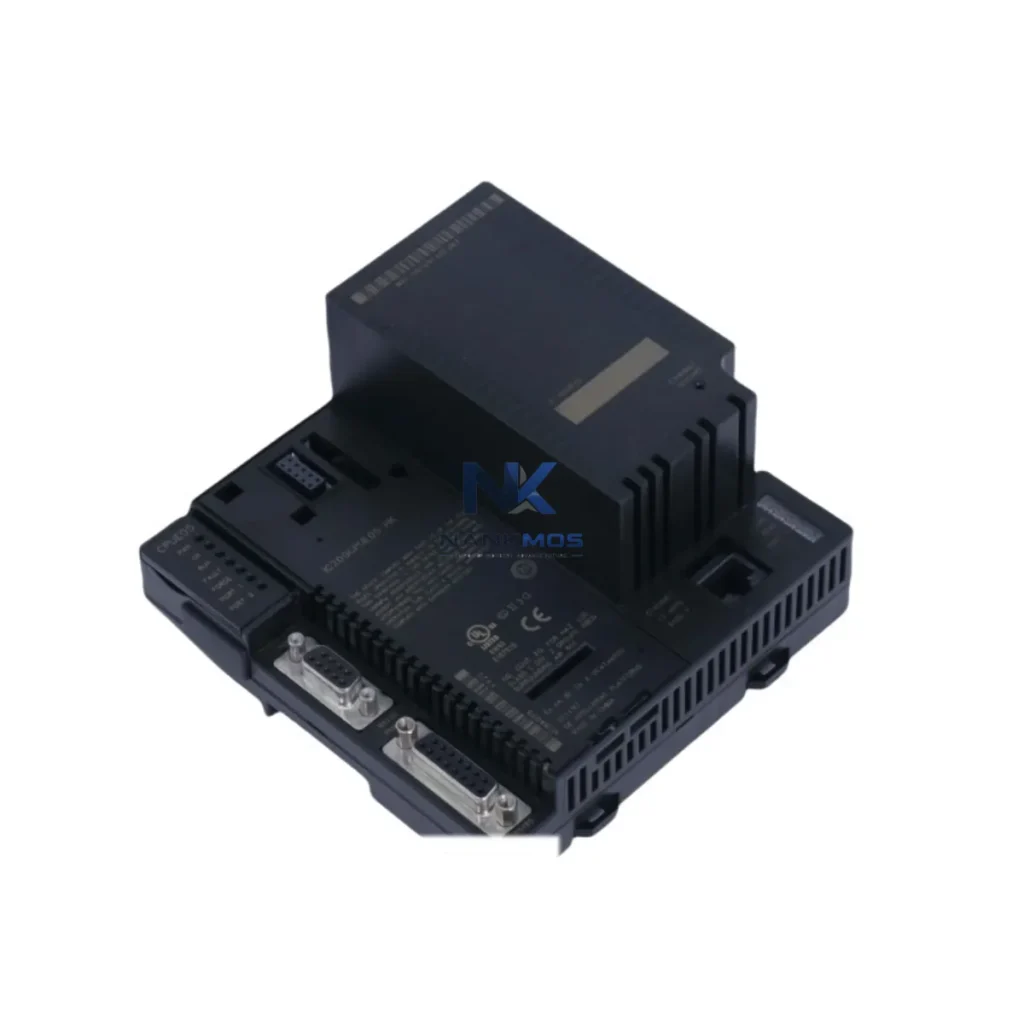

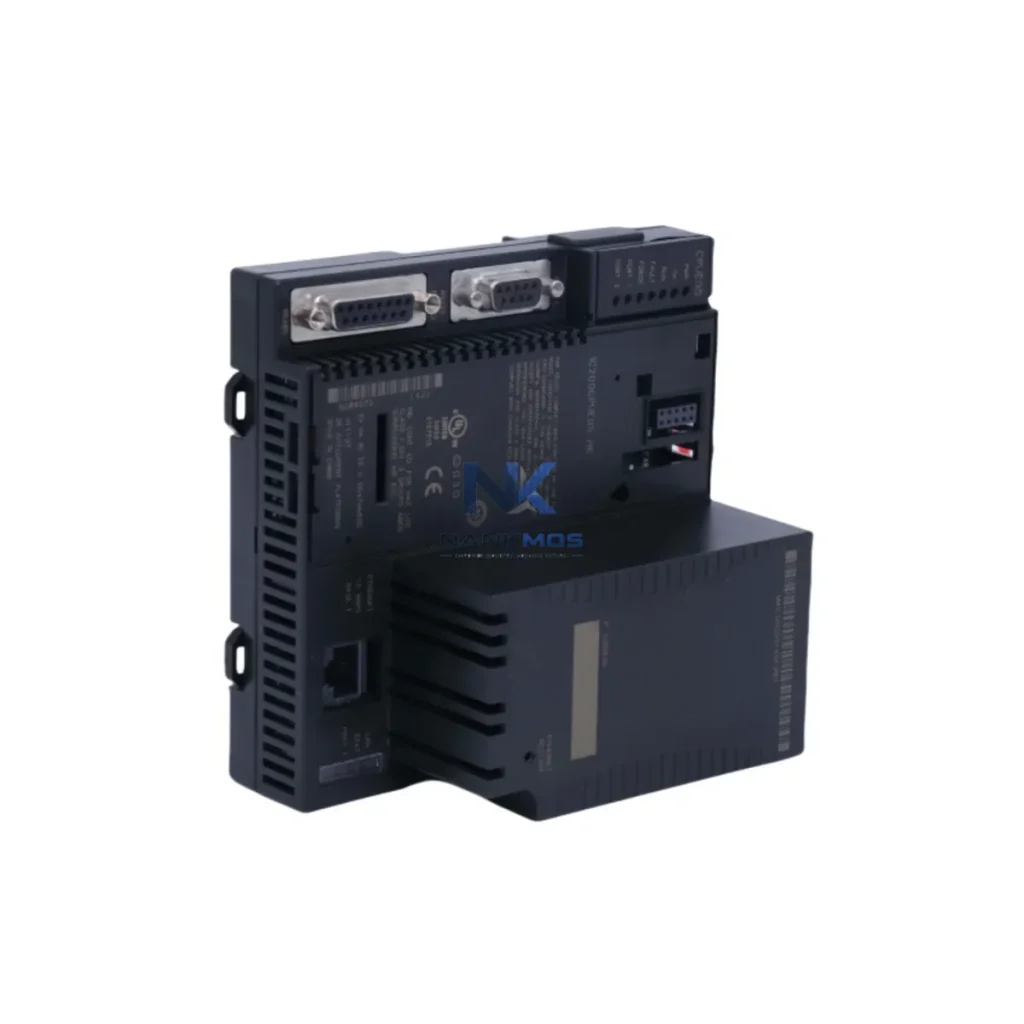

Emerson IC200CPUE05-MX PLC CPU Module

Product Details

IC200CPUE05-MX Product Description

The Emerson IC200CPUE05-MX is a high-performance VersaMax Micro CPU module engineered for seamless integration within distributed and centralized industrial control architectures. Designed to serve as the processing core of a VersaMax automation platform, this CPU module delivers deterministic scan-cycle execution, built-in Ethernet connectivity, and robust support for modular I/O expansion — making it a reliable foundation for control system deployments across manufacturing, power generation, petrochemical processing, water treatment, mining, and marine propulsion environments.

In modern industrial automation, the CPU is not merely a standalone processor — it is the architectural anchor that coordinates signal acquisition, logic execution, communication routing, and system diagnostics across every layer of the control hierarchy. The IC200CPUE05-MX fulfills this role with precision, supporting both local and remote I/O configurations while maintaining consistent scan performance under variable load conditions. Its integrated Ethernet port enables direct participation in plant-wide SCADA networks, historian systems, and supervisory HMI platforms without requiring additional communication modules in most standard configurations.

Every IC200CPUE05-MX unit supplied by NANKMOS is sourced from verified supply channels, pre-shipment tested against factory baseline parameters, and backed by a 12-Month Warranty — ensuring operational confidence from commissioning through long-term service life.

The IC200CPUE05-MX operates as the central processing node within a layered VersaMax automation platform. Its architectural value is fully realized when deployed alongside complementary modules that address power distribution, I/O acquisition, communication bridging, and operator interface requirements.

At the power layer, the IC200PWR002 and IC200PWR101 power supply modules provide regulated DC bus voltage to the CPU carrier and I/O expansion racks, ensuring stable operation under fluctuating plant power conditions. Redundant power configurations can be implemented using dual-feed arrangements to eliminate single points of failure in critical process environments.

At the I/O layer, the IC200CPUE05-MX supports a broad range of discrete and analog expansion modules. The IC200MDL640 16-point 24VDC digital input module and IC200MDL740 16-point digital output module are commonly paired with this CPU for high-density discrete control applications. For analog signal acquisition, the IC200ALG260 4-channel analog input module provides 4–20 mA and 0–10V signal conditioning directly on the VersaMax backplane, eliminating the need for external signal isolators in standard loop configurations.

At the communication layer, the IC200ETM001 Ethernet TCP/IP communications module extends network reach for installations requiring multiple Ethernet nodes or VLAN segmentation. For legacy serial device integration, the IC200CMM020 communications coprocessor enables Modbus RTU master/slave configurations, bridging older field instruments and drives into the Ethernet-dominant control network managed by the IC200CPUE05-MX.

At the HMI layer, the IC200CPUE05-MX communicates natively with GE/Emerson QuickPanel+ operator terminals and third-party HMI platforms via SRTP or Modbus TCP, enabling real-time process visualization, alarm management, and recipe control without additional protocol converters. Integration with iFIX or CIMPLICITY SCADA platforms is supported through standard OPC-DA or direct SRTP driver connections.

At the protection and diagnostics layer, the CPU's built-in fault table and I/O status registers provide module-level diagnostics accessible through Proficy Machine Edition programming software, enabling rapid fault isolation during commissioning and predictive maintenance cycles. When deployed within a 3500 Series machinery protection environment or alongside vibration monitoring systems, the IC200CPUE05-MX can serve as the supervisory logic controller that processes trip relay outputs and integrates protection system status into the plant DCS or SCADA historian.

This multi-layer integration capability — spanning control, I/O, communication, HMI, and protection functions — positions the IC200CPUE05-MX as a scalable, long-service-life CPU suitable for both greenfield automation projects and brownfield system upgrades.

Power Generation: In gas turbine and steam turbine auxiliary control systems, the IC200CPUE05-MX manages balance-of-plant functions including cooling water pump sequencing, lube oil system control, and auxiliary breaker interlocking. Its Ethernet connectivity enables direct integration with plant DCS historians for continuous performance trending.

Petrochemical & Refining: The CPU supports compressor anti-surge control logic, heat exchanger bypass valve sequencing, and flare system management in refinery automation architectures. Paired with IC200ALG260 analog input modules, it acquires 4–20 mA signals from pressure transmitters and flow meters across the process unit.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the IC200CPUE05-MX for pump station automation, chemical dosing control, and SCADA telemetry integration. Its compact VersaMax Micro form factor suits distributed remote terminal unit (RTU) installations at lift stations and storage tank sites.

Mining & Minerals Processing: Conveyor drive sequencing, crusher interlock logic, and ore slurry pump control are typical applications in mining environments. The CPU's wide operating temperature range and DIN rail mounting support installation in field control panels subject to vibration and dust exposure.

Marine Propulsion & Offshore: Vessel automation systems use the IC200CPUE05-MX for engine room auxiliary control, ballast pump management, and fire and gas detection system integration. Its compact footprint and robust Ethernet communication suit space-constrained marine control cabinets.

Packaging & Discrete Manufacturing: High-speed packaging lines leverage the CPU's deterministic scan cycle for servo drive coordination, vision system triggering, and reject mechanism control. Integration with IC200MDL740 high-speed output modules supports pulse-width modulation and encoder feedback processing.

Q1: Is the IC200CPUE05-MX compatible with existing VersaMax and VersaMax Micro I/O expansion modules?Yes. The IC200CPUE05-MX is fully compatible with the VersaMax Micro I/O carrier system and supports expansion via standard VersaMax I/O modules including discrete, analog, and specialty function modules. System configuration and I/O mapping are managed through Proficy Machine Edition, which provides module compatibility validation during project build. For mixed-generation installations, verify firmware revision compatibility using the GE/Emerson hardware compatibility matrix prior to commissioning.

Q2: What communication protocols does the IC200CPUE05-MX support for SCADA and DCS integration?The IC200CPUE05-MX supports SRTP (Service Request Transport Protocol) as its native Ethernet protocol, along with Modbus TCP for third-party SCADA and DCS integration. EtherNet/IP adapter mode is supported for integration with Rockwell Automation ControlLogix or CompactLogix systems acting as EtherNet/IP scanners. Serial communication via the onboard RS-232 port supports SNP and Modbus RTU protocols for legacy device connectivity. For OPC-based historian integration, GE/Emerson SRTP OPC servers provide standard DA and UA interfaces.

Q3: What warranty and supply assurance does NANKMOS provide for the IC200CPUE05-MX?All IC200CPUE05-MX units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance against published specifications. Units are pre-shipment tested to verify CPU boot sequence, Ethernet port functionality, and I/O bus communication prior to dispatch. NANKMOS maintains in-stock inventory of IC200CPUE05-MX and associated VersaMax power supply and I/O modules to support urgent replacement and project procurement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
