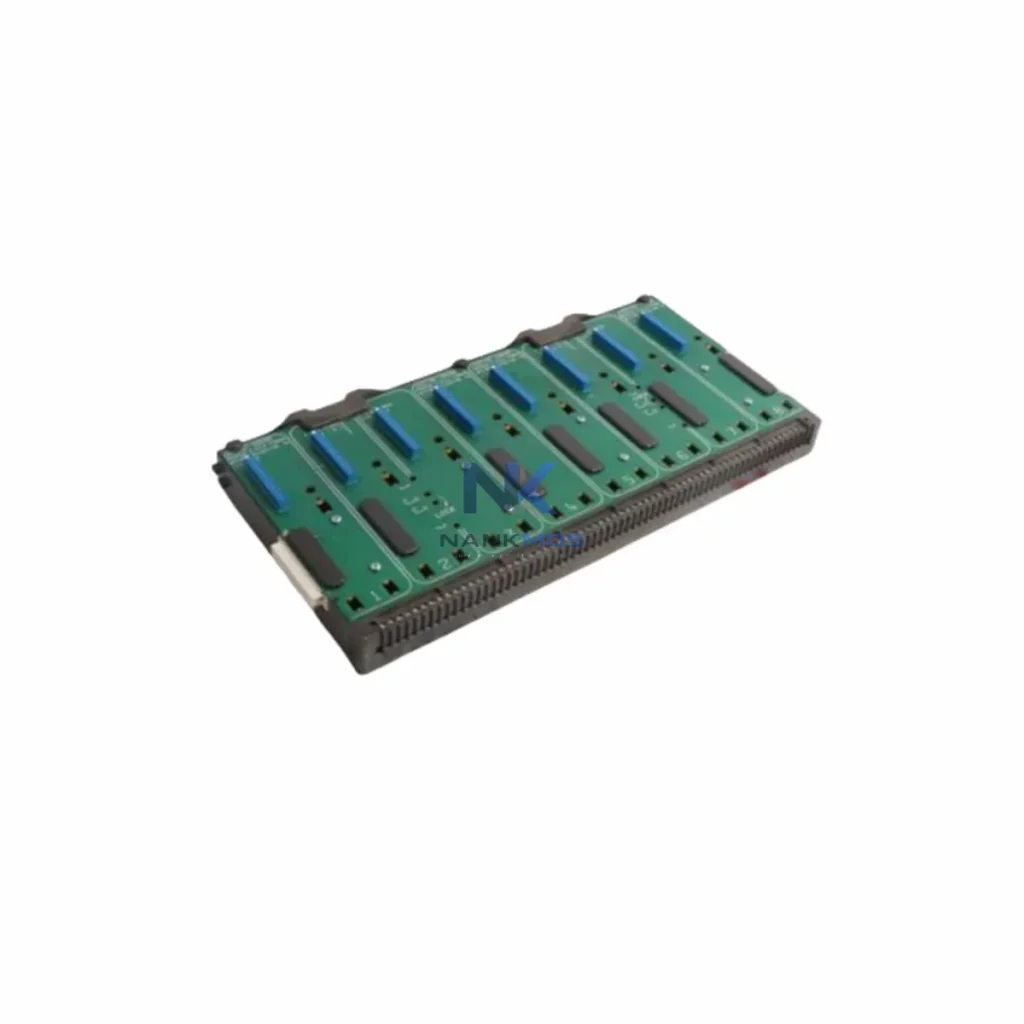

Emerson KC4011X1-BE1 12P6771X032 Fieldbus Network Interface

Product Details

KC4011X1-BE1 12P6771X032 Product Description

The Emerson KC4011X1-BE1 (alternate part number 12P6771X032) is a FOUNDATION Fieldbus (FF) communication terminal block engineered for Emerson DeltaV distributed control systems. Designed to serve as the critical data bridge between field instrumentation and the DeltaV controller backbone, this network interface module enables deterministic, high-integrity signal transmission across complex process automation environments. Whether deployed in oil & gas, chemical processing, power generation, or advanced manufacturing, the KC4011X1-BE1 delivers the connectivity precision that modern smart factories demand.

In a fully integrated smart factory architecture, data must flow seamlessly from the sensor layer through the control layer and up to supervisory systems — without latency, packet loss, or protocol mismatch. The KC4011X1-BE1 occupies a pivotal position in this chain: it terminates FOUNDATION Fieldbus H1 segment wiring, conditions the physical layer signal, and ensures reliable communication between field devices such as pressure transmitters, flow meters, and valve positioners and the DeltaV I/O subsystem. This deterministic data path is the foundation of real-time process visibility and closed-loop control.

Understanding the KC4011X1-BE1's role requires mapping the complete data flow of a DeltaV-based smart factory. At the field level, instruments such as Emerson Rosemount 3051 pressure transmitters and Fisher DVC6200 digital valve controllers communicate natively over the FOUNDATION Fieldbus H1 segment. The KC4011X1-BE1 terminal block provides the physical-layer termination and power conditioning for this segment, ensuring that up to 16 field devices per segment maintain stable, noise-immune communication.

From the terminal block, the FF H1 segment connects to the Emerson DeltaV CIOC (Characterization I/O Card) or the DeltaV FNIC (Fieldbus Network Interface Card), which handles protocol scheduling and cyclic data exchange. The DeltaV controller — whether an MD, MD Plus, or S-series controller — then processes the real-time process values and executes control strategies. This tightly integrated architecture eliminates the need for traditional 4–20 mA wiring and marshalling panels, dramatically reducing cabinet footprint and wiring complexity.

At the supervisory layer, the DeltaV DCS communicates with Emerson DeltaV Operate HMI workstations and historian servers via Ethernet/IP, providing operators with real-time process graphics, trend displays, and alarm management. For enterprise-level integration, OPC-DA and OPC-UA servers bridge DeltaV data to third-party SCADA platforms, MES systems, and cloud-based analytics engines. The KC4011X1-BE1's role in maintaining a clean, stable FF H1 physical layer is therefore foundational to the integrity of data all the way up to the enterprise dashboard.

In multi-loop control architectures, the KC4011X1-BE1 works alongside Emerson DeltaV Remote I/O (EIOC) modules deployed in remote junction boxes, extending the DeltaV network to field locations hundreds of metres from the main control room. Industrial Ethernet switches — such as those in the Emerson Cisco IE series or third-party managed switches with PROFINET/EtherNet/IP support — form the backbone network connecting remote I/O nodes, controller cabinets, and HMI servers. For sites requiring wireless connectivity, Emerson WirelessHART gateways (e.g., the 1420 Wireless Gateway) can be integrated alongside the wired FF H1 segments, providing a hybrid wired/wireless field network.

Edge computing nodes — such as the Emerson Edge Gateway or third-party IIoT gateways running MQTT or OPC-UA — can subscribe to DeltaV process data and forward it to cloud platforms for predictive maintenance analytics, energy optimisation, and digital twin modelling. This end-to-end data chain, anchored at the field level by reliable components like the KC4011X1-BE1, is what transforms a conventional process plant into a truly connected, data-driven smart factory.

Protocol fragmentation is one of the most persistent challenges in brownfield automation upgrades. Sites that mix legacy 4–20 mA instruments with newer FOUNDATION Fieldbus or HART devices often suffer from data silos — islands of process information that cannot be easily aggregated into a unified SCADA view. The KC4011X1-BE1, as part of the DeltaV FF infrastructure, resolves this by providing a standardised, IEC 61158-compliant physical layer that supports multi-vendor FF devices from Emerson, Yokogawa, ABB, and Endress+Hauser on the same segment.

Remote monitoring gaps are addressed through the DeltaV system's built-in diagnostics. The KC4011X1-BE1 supports segment-level diagnostics accessible via DeltaV Diagnostics and the AMS Device Manager, enabling maintenance engineers to remotely identify wiring faults, device failures, and signal degradation without physical site visits. This capability is critical for unmanned remote installations in oil & gas pipelines, offshore platforms, and water treatment facilities.

Production line transparency is enhanced when every field device on the FF segment reports not just its primary process variable but also secondary variables, device health status, and calibration data — all transmitted digitally over the same two-wire FF cable. This eliminates the need for separate diagnostic wiring and enables condition-based maintenance strategies that reduce unplanned downtime.

Alarm management and traceability benefit directly from the deterministic nature of FOUNDATION Fieldbus communication. Unlike polling-based protocols, FF H1 uses a scheduled communication model managed by the Link Active Scheduler (LAS), ensuring that alarm events are timestamped at the field device level with millisecond accuracy. This precise event chronology is invaluable for post-incident root cause analysis and regulatory compliance reporting.

System scalability is built into the DeltaV architecture. As production capacity grows, additional FF H1 segments — each terminated with a KC4011X1-BE1 or equivalent terminal block — can be added to existing DeltaV I/O cards without controller replacement. This modular expansion path protects capital investment and allows phased smart factory upgrades aligned with operational budgets.

Q1: What is the maximum number of field devices supported per FF H1 segment using the KC4011X1-BE1? A FOUNDATION Fieldbus H1 segment supports up to 32 device addresses, with a practical limit of 16 field devices per segment when accounting for power budget and cable length constraints. The KC4011X1-BE1 provides the physical-layer termination required for stable segment operation at the full rated device count.

Q2: Is the KC4011X1-BE1 compatible with DeltaV S-series and M-series controllers? Yes. The KC4011X1-BE1 is designed for use within the Emerson DeltaV ecosystem and is compatible with both DeltaV M-series and S-series controller platforms when used with the appropriate FNIC or CIOC fieldbus interface cards. Always verify the specific DeltaV system version and I/O card compatibility with your DeltaV system documentation before installation.

Q3: How does the KC4011X1-BE1 support remote diagnostics and predictive maintenance? When integrated with Emerson AMS Device Manager and DeltaV Diagnostics, the FF H1 segment terminated by the KC4011X1-BE1 provides continuous device health monitoring, including signal level measurement, noise analysis, and device-reported diagnostics. Maintenance teams can access this data remotely via the DeltaV workstation network, enabling condition-based maintenance without interrupting process operations.

Q4: What warranty and pre-shipment testing does the KC4011X1-BE1 carry? Every KC4011X1-BE1 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes functional testing prior to shipment. Units are verified for physical integrity, connector condition, and part number authenticity. In-stock units are available for immediate dispatch, with lead time confirmation provided at the time of order.
