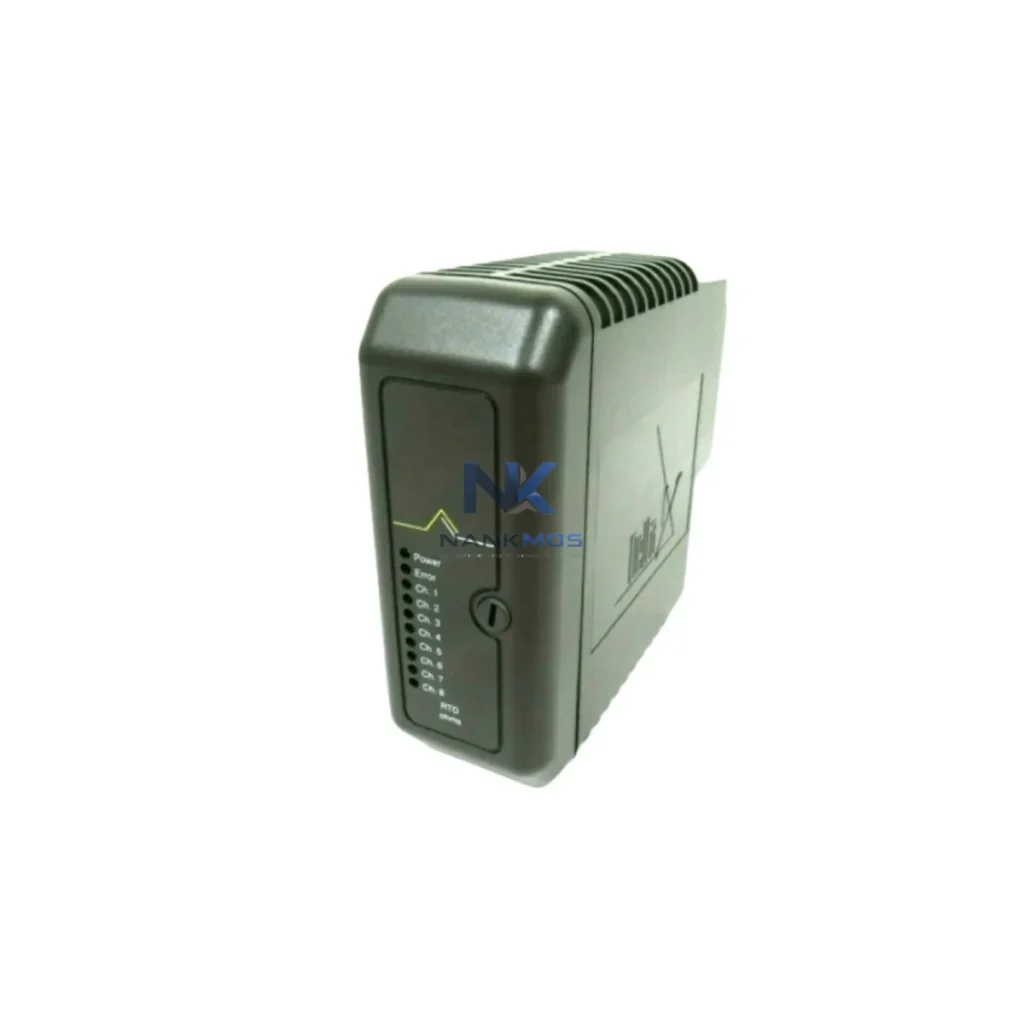

Emerson KJ3002X1-BF1 12P1732X072 RTD Input Module

Product Details

KJ3002X1-BF1 12P1732X072 Product Description

The Emerson KJ3002X1-BF1 12P1732X072 is a precision RTD (Resistance Temperature Detector) input module engineered for seamless integration within the Emerson DeltaV distributed control system platform. Designed to operate within the DeltaV S-series I/O subsystem, this module delivers high-accuracy temperature signal acquisition across demanding process environments including refining, petrochemical, power generation, water treatment, and advanced manufacturing. Its role within the control architecture extends beyond simple signal conversion — it functions as a critical node in the layered automation hierarchy, ensuring signal fidelity, system consistency, and long-term diagnostic reliability across the full control loop.

Within a complete DeltaV automation architecture, the KJ3002X1-BF1 12P1732X072 interfaces directly with the DeltaV controller subsystem, receiving conditioned RTD signals from field-mounted temperature sensors and transmitting calibrated process values to the control layer for closed-loop regulation. The module supports standard RTD types including PT100, PT200, PT500, PT1000, and Ni120, enabling broad compatibility across instrumentation configurations. Its 12-bit resolution and high channel isolation ensure that signal integrity is maintained even in electrically noisy industrial environments, reducing cross-channel interference and improving measurement repeatability across multi-loop control strategies.

From a system architecture perspective, the KJ3002X1-BF1 12P1732X072 is designed to complement the broader DeltaV I/O ecosystem. It mounts directly onto DeltaV I/O carrier assemblies and communicates via the internal DeltaV I/O bus, eliminating the need for external signal conditioning hardware and reducing panel wiring complexity. This tight integration with the DeltaV backplane architecture supports modular expansion, allowing engineering teams to scale temperature input capacity without redesigning the control cabinet layout or modifying the controller configuration. The module's plug-and-play compatibility with DeltaV Electronic Marshalling (CHARM) infrastructure further simplifies commissioning and reduces loop checkout time during plant startup and turnaround maintenance.

In redundant control architectures, the KJ3002X1-BF1 12P1732X072 supports deployment alongside redundant DeltaV controllers such as the MD Plus Controller and MD Controller, ensuring that temperature measurement continuity is maintained during controller switchover events. This redundancy capability is essential in safety-critical applications where process temperature excursions must be detected and responded to without interruption. The module's diagnostic capabilities — including open-circuit detection, out-of-range alerts, and channel-level fault reporting — feed directly into the DeltaV alarm management system, enabling operators to identify and resolve field instrumentation issues before they escalate into process upsets.

The KJ3002X1-BF1 12P1732X072 is fully compatible with the DeltaV Operate HMI environment, where temperature trends, alarm states, and module health indicators are displayed in real time. Integration with DeltaV Diagnostics and AMS Device Manager allows maintenance teams to perform remote module health checks, review historical fault logs, and plan predictive maintenance activities without requiring physical access to the control cabinet. This diagnostic transparency reduces unplanned downtime and supports the long-term maintenance efficiency goals of modern industrial operations.

For power layer compatibility, the module operates within the standard DeltaV I/O power budget supplied by the DeltaV Power Supply units, including the PS2 and PS6 series. Proper power distribution planning across the I/O carrier ensures stable module operation across the full ambient temperature range, supporting installations in both climate-controlled control rooms and field-mounted enclosures subject to wider thermal variation. The module's low power consumption profile contributes to overall cabinet thermal management, reducing cooling load and extending the operational lifespan of adjacent components.

In communication layer terms, the KJ3002X1-BF1 12P1732X072 participates in the DeltaV internal I/O network, with process values made available to the DeltaV controller via the standard DeltaV module database. These values can be further distributed across the plant network via OPC DA/UA servers, enabling integration with third-party SCADA systems, historian platforms such as OSIsoft PI, and enterprise MES layers. This multi-layer communication capability positions the module as a foundational data source within the plant's digital infrastructure, supporting both real-time control and long-term process analytics.

The KJ3002X1-BF1 12P1732X072 achieves its full operational value when deployed as part of a cohesive DeltaV automation platform. At the controller layer, it works in conjunction with DeltaV MD Plus Controllers and MD Controllers, which execute the control strategies that consume the RTD temperature values provided by this module. For applications requiring high-availability control, the module pairs with redundant controller pairs to ensure uninterrupted temperature monitoring during planned and unplanned controller maintenance events.

At the I/O layer, the KJ3002X1-BF1 12P1732X072 coexists with complementary DeltaV I/O modules including the KJ3001X1 Analog Input Module for 4–20 mA process signals, the KJ2201X1 Discrete Input Module for digital status inputs, and the KJ3221X1 Analog Output Module for control signal generation. This mixed I/O configuration allows a single DeltaV I/O carrier to serve multiple signal types within the same control loop, reducing cabinet footprint and simplifying cable management. For applications requiring intrinsic safety, the module integrates with DeltaV CHARM I/O cards and associated IS barriers, enabling direct connection to field instruments in hazardous area classifications.

At the communication layer, the DeltaV system's built-in support for FOUNDATION Fieldbus, HART, and Profibus protocols — managed through dedicated communication modules such as the DeltaV HART Multiplexer and Fieldbus H1 Card — allows the KJ3002X1-BF1 12P1732X072 to coexist with smart field devices that provide additional diagnostic and configuration data beyond the primary process variable. This multi-protocol environment supports a phased migration strategy, allowing legacy 4–20 mA instrumentation to be upgraded to digital fieldbus devices without replacing the control system infrastructure.

At the HMI layer, the DeltaV Operate workstation displays temperature trends, alarm states, and module diagnostics sourced from the KJ3002X1-BF1 12P1732X072 in real time. Integration with DeltaV Batch and DeltaV Advanced Control modules enables temperature data to drive batch recipe execution and model predictive control strategies, extending the module's influence from simple signal acquisition to active process optimization. For remote monitoring, the DeltaV Remote Client and DeltaV Mobile interfaces provide operators with access to temperature data and alarm states from outside the control room, supporting round-the-clock process oversight.

At the power layer, the DeltaV PS2 and PS6 Power Supply units provide regulated DC power to the I/O carrier, ensuring stable module operation across the full load range. For critical applications, redundant power supply configurations eliminate single points of failure at the power distribution level, complementing the redundancy provided at the controller and I/O levels. Proper power budget analysis during system design ensures that the KJ3002X1-BF1 12P1732X072 and its co-located I/O modules operate within the carrier's rated power envelope, preventing thermal derating and ensuring long-term reliability.

In petrochemical and refining applications, the KJ3002X1-BF1 12P1732X072 provides precise temperature measurement for reactor temperature control, distillation column profiling, and heat exchanger management. Its high channel isolation and open-circuit detection capabilities are particularly valuable in these environments, where sensor failures must be detected immediately to prevent process excursions and equipment damage. The module's compatibility with DeltaV Safety Instrumented System (SIS) architectures allows temperature data to be shared with safety logic solvers for high-integrity protection functions.

In power generation facilities, the module supports turbine inlet temperature monitoring, boiler drum temperature control, and generator cooling system management. Its integration with the DeltaV historian and OSIsoft PI data infrastructure enables long-term temperature trend analysis, supporting predictive maintenance programs that reduce forced outage rates and extend equipment service intervals. The module's diagnostic transparency allows maintenance teams to identify degrading RTD sensors before they cause measurement errors that could trigger unnecessary protective trips.

In water and wastewater treatment plants, the KJ3002X1-BF1 12P1732X072 monitors process temperatures across biological treatment reactors, chemical dosing systems, and sludge processing equipment. Its low power consumption and wide operating temperature range make it suitable for installation in field-mounted enclosures subject to seasonal temperature variation, reducing the need for enclosure heating and cooling systems. The module's plug-and-play compatibility with the DeltaV I/O carrier simplifies spare parts management, as a single module type can serve multiple temperature measurement points across the plant.

In mining and metallurgical operations, the module provides temperature monitoring for furnace control, cooling water systems, and conveyor drive thermal protection. Its robust electrical isolation protects the DeltaV control system from ground loops and electrical noise generated by high-power drive systems and arc furnace equipment. The module's channel-level fault reporting enables maintenance teams to identify and replace failed RTD sensors during planned maintenance windows, minimizing the impact of instrumentation failures on production continuity.

In pharmaceutical and food processing environments, the KJ3002X1-BF1 12P1732X072 supports temperature validation for sterilization processes, clean-in-place (CIP) systems, and environmental monitoring applications. Its compatibility with DeltaV Batch enables temperature data to be recorded as part of electronic batch records, supporting regulatory compliance with FDA 21 CFR Part 11 and EU GMP Annex 11 requirements. The module's 12-month warranty and pre-shipment testing provide the documentation traceability required for validation protocols in regulated manufacturing environments.

Q1: Is the KJ3002X1-BF1 12P1732X072 compatible with both legacy DeltaV S-series and newer DeltaV Electronic Marshalling (CHARM) architectures?A: The KJ3002X1-BF1 12P1732X072 is designed for the DeltaV S-series I/O subsystem and mounts on standard DeltaV I/O carriers. For installations transitioning to DeltaV Electronic Marshalling, the module can coexist within the same DeltaV system alongside CHARM I/O cards, allowing a phased migration approach. Engineering teams should verify carrier compatibility and I/O bus loading during system design to ensure optimal performance across mixed I/O architectures.

Q2: What redundancy options are available when deploying the KJ3002X1-BF1 12P1732X072 in high-availability control applications?A: The module supports deployment in DeltaV architectures with redundant MD Plus or MD Controllers, ensuring that temperature measurement data remains available to the control strategy during controller switchover events. For applications requiring I/O-level redundancy, engineering teams should evaluate DeltaV redundant I/O carrier configurations and consult Emerson system architecture guidelines to determine the appropriate redundancy topology for the specific application risk profile.

Q3: What warranty and supply chain support is available for the KJ3002X1-BF1 12P1732X072?A: The KJ3002X1-BF1 12P1732X072 is supplied with a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify channel accuracy, isolation integrity, and communication compatibility before dispatch. In-stock inventory is maintained to support rapid replacement requirements for planned maintenance, emergency spares, and system expansion projects. Global shipping is available to support international project sites and multi-site maintenance programs.
