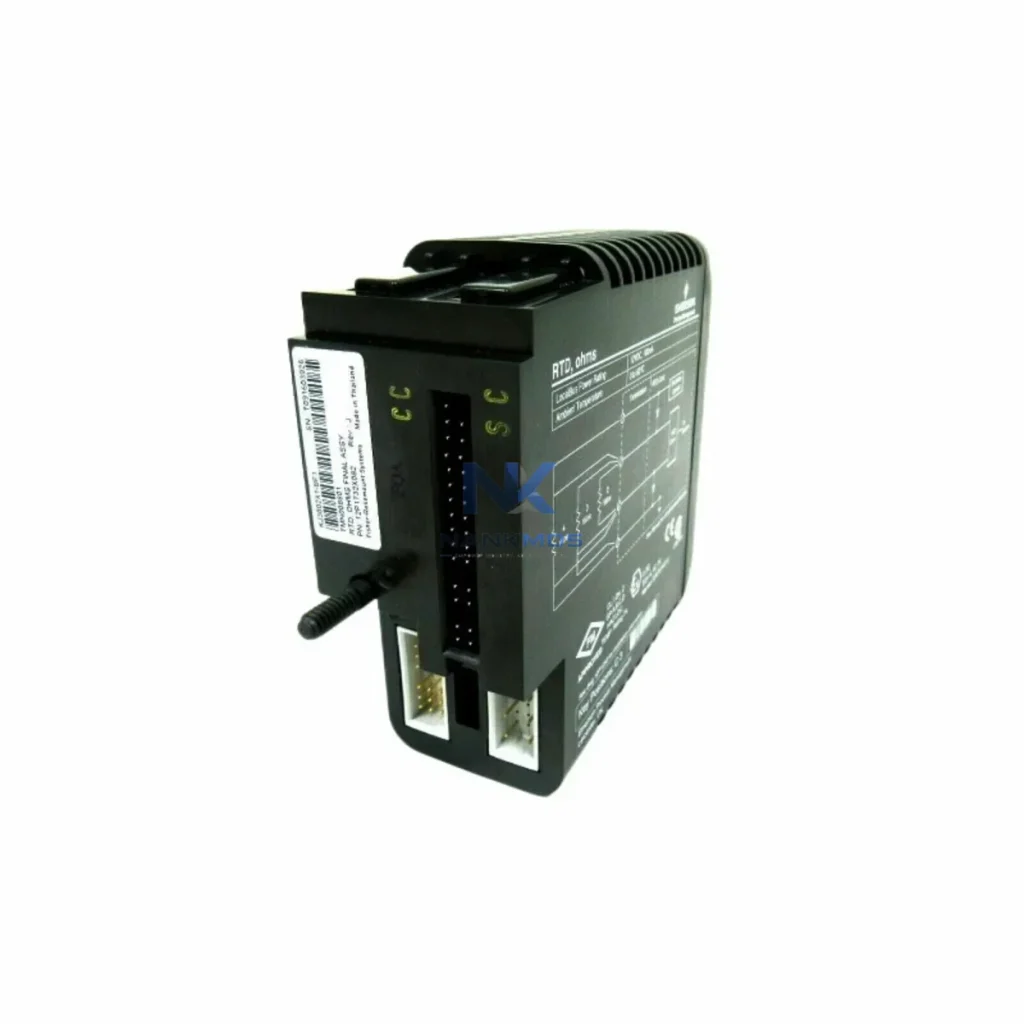

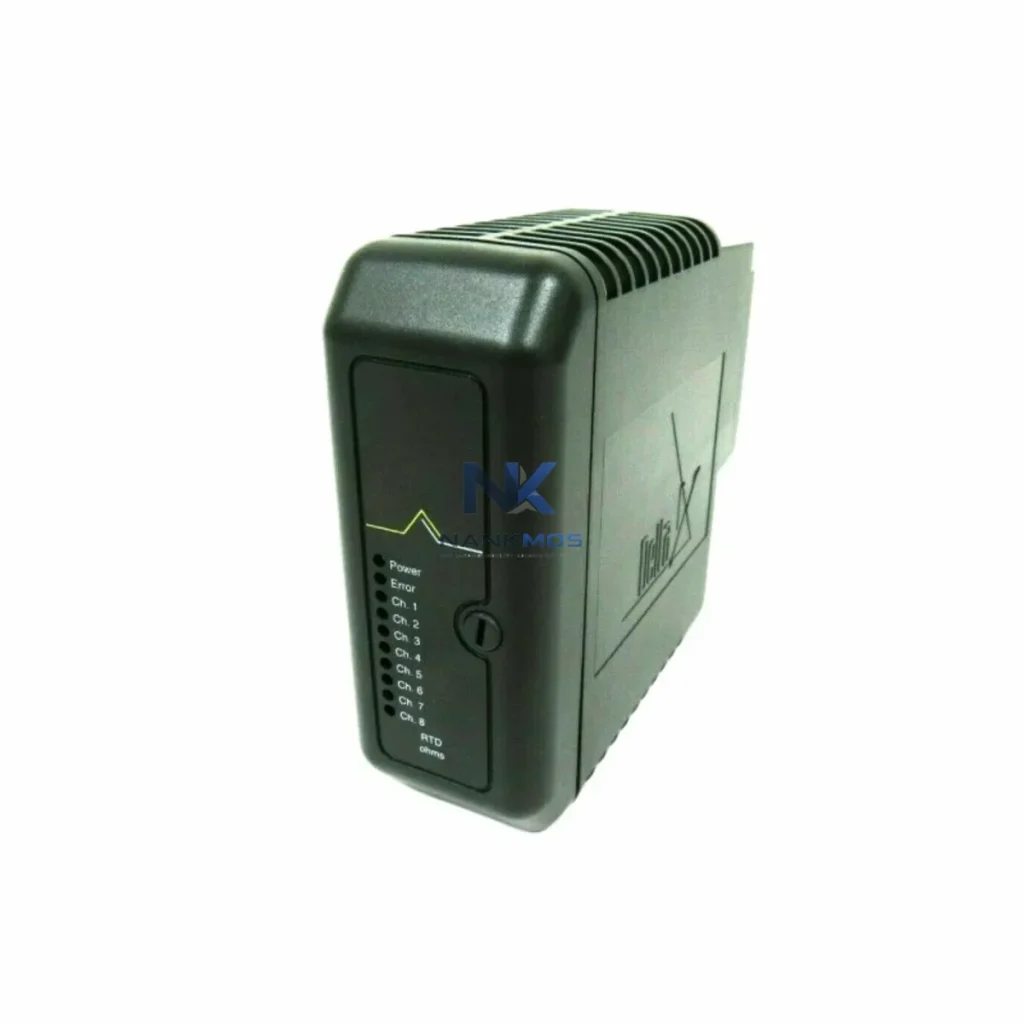

Emerson KJ3002X1-BF1 12P1732X082 RTD Input Module

Product Details

KJ3002X1-BF1 12P1732X082 Product Description

The Emerson KJ3002X1-BF1 12P1732X082 is a precision RTD (Resistance Temperature Detector) Input Module engineered for seamless integration within the Emerson DeltaV distributed control system architecture. Designed to deliver high-accuracy temperature measurement across demanding industrial environments, this module occupies a critical position in the I/O layer of a fully coordinated automation platform. Its role extends beyond simple signal acquisition — it serves as a foundational element in maintaining system-wide measurement integrity, enabling reliable closed-loop control, and supporting long-term operational stability across process-critical applications.

Within a complete DeltaV control architecture, the KJ3002X1-BF1 12P1732X082 interfaces directly with the DeltaV M-Series or S-Series I/O subsystem, receiving RTD signals from field-mounted temperature sensors and converting them into calibrated engineering values for consumption by the DeltaV controller. This signal path — from sensor to I/O module to controller to HMI — forms the backbone of temperature-based process control, and the KJ3002X1-BF1 12P1732X082 ensures that path remains accurate, stable, and diagnostically transparent at all times.

The module supports multiple RTD types including PT100, PT200, PT500, PT1000, Ni100, and Ni120, providing broad compatibility with existing field instrumentation. Its high-resolution analog-to-digital conversion minimizes measurement uncertainty, while built-in open-circuit and short-circuit detection capabilities allow the DeltaV system to immediately flag sensor faults without interrupting the broader control loop. This diagnostic transparency is essential in architectures where process uptime is non-negotiable.

From a system integration perspective, the KJ3002X1-BF1 12P1732X082 is designed to coexist with a wide range of DeltaV I/O modules on the same carrier or I/O subsystem. It operates alongside analog output modules such as the KJ3221X1-BA1 for valve positioning, digital input modules like the KJ1501X1-BA2 for discrete status monitoring, and communication interface modules including the KJ4001X1-BA1 FOUNDATION Fieldbus H1 card for field device integration. This modular coexistence allows engineers to construct mixed I/O assemblies that precisely match the signal requirements of each process unit without over-specifying hardware.

At the controller layer, the KJ3002X1-BF1 12P1732X082 feeds temperature data to DeltaV MD-Plus or MD controllers, which execute PID control strategies, cascade loops, and advanced regulatory schemes. The controller's ability to act on accurate, low-latency RTD data directly determines the quality of temperature regulation in reactors, heat exchangers, distillation columns, and similar process equipment. When paired with redundant controller configurations using the DeltaV MD-Plus redundancy kit, the system achieves bumpless failover without any loss of temperature measurement continuity.

Power integrity for the I/O subsystem is maintained through the DeltaV Power Supply modules, including the KJ4001X1-BA1 series, which deliver regulated DC power to the I/O carriers. Stable power delivery is a prerequisite for accurate RTD measurement, as voltage fluctuations can introduce offset errors in high-resolution analog inputs. The KJ3002X1-BF1 12P1732X082 is rated to operate within the standard DeltaV power envelope, ensuring compatibility with both standard and redundant power configurations.

For HMI and operator interface integration, temperature values acquired by the KJ3002X1-BF1 12P1732X082 are made available to DeltaV Operate workstations and DeltaV Live HMI environments in real time. Operators can monitor individual RTD channel values, view historical trends, and receive alarm notifications for out-of-range or failed sensor conditions — all within the unified DeltaV operator environment. This end-to-end visibility from field sensor to operator display is a defining characteristic of a well-architected DeltaV system.

In redundant architecture deployments, the KJ3002X1-BF1 12P1732X082 can be installed in redundant I/O configurations where dual I/O subsystems monitor the same field signals. This approach is common in safety-critical applications such as turbine control, boiler management, and reactor temperature monitoring, where a single point of failure in the measurement chain is unacceptable. The module's compatibility with DeltaV SIS (Safety Instrumented System) architectures further extends its applicability to SIL-rated process safety loops.

Installation and commissioning of the KJ3002X1-BF1 12P1732X082 follow standard DeltaV I/O procedures. The module slots into a standard DeltaV I/O carrier, with channel configuration performed through DeltaV Explorer. RTD type selection, engineering unit assignment, filtering parameters, and alarm limits are all configured in software, eliminating the need for hardware jumpers or DIP switches. This software-defined configuration approach accelerates commissioning timelines and simplifies future reconfiguration during plant modifications or expansions.

Long-term maintenance of the KJ3002X1-BF1 12P1732X082 is supported by DeltaV's online diagnostics framework. Module health status, channel-level fault codes, and communication integrity indicators are continuously monitored and reported to the DeltaV system. Maintenance teams can identify degraded modules before they cause process disruptions, schedule replacements during planned shutdowns, and verify restored functionality through the same diagnostic interface — all without requiring specialized test equipment. Every unit supplied by NANKMOS is covered by a 12-Month Warranty, backed by pre-shipment functional testing and documented quality inspection records.

The KJ3002X1-BF1 12P1732X082 achieves its full value when deployed as part of a coordinated DeltaV automation platform. At the controller layer, it works in concert with the DeltaV MD-Plus Controller and DeltaV MD Controller, which process the temperature data acquired by this module to execute regulatory and advanced control strategies. The controller's scan cycle directly determines how quickly temperature deviations are detected and corrected, making the low-latency signal path of the KJ3002X1-BF1 12P1732X082 a critical performance factor.

For analog output requirements — such as modulating control valves based on temperature feedback — the KJ3221X1-BA1 Analog Output Module provides the complementary output capability within the same I/O subsystem. Digital status signals from field devices are handled by the KJ1501X1-BA2 Digital Input Module, while discrete control outputs are managed by the KJ1502X1-BA1 Digital Output Module. Together, these modules form a complete mixed I/O assembly capable of handling the full signal spectrum of a process control loop.

Communication to field devices using FOUNDATION Fieldbus or HART protocols is facilitated by the KJ4001X1-BA1 FOUNDATION Fieldbus H1 Interface Card and HART Multiplexer modules, which extend the DeltaV system's reach to intelligent field instruments. For Profibus DP integration — common in motor control and drive applications — the DeltaV Profibus DP Interface Card provides the necessary protocol gateway. These communication modules ensure that the KJ3002X1-BF1 12P1732X082 operates within a fully connected, diagnostically rich field network.

Power distribution to the I/O subsystem is managed by DeltaV Power Supply modules mounted on the I/O carrier, with redundant power configurations available for high-availability applications. The DeltaV I/O Carrier itself provides the physical backplane that interconnects the KJ3002X1-BF1 12P1732X082 with adjacent I/O modules and the controller network. For operator interface, DeltaV Operate Workstations and DeltaV Live HMI present the temperature data acquired by this module in real-time process graphics, trend displays, and alarm management screens.

Oil Refining and Petrochemical Processing: In crude distillation units, catalytic crackers, and hydrotreaters, precise temperature measurement is fundamental to product quality and process safety. The KJ3002X1-BF1 12P1732X082 provides the high-accuracy RTD input capability required to monitor reactor bed temperatures, column tray temperatures, and heat exchanger outlet conditions, feeding this data to DeltaV controllers that maintain tight temperature profiles across complex reaction sequences.

Power Generation: In thermal power plants and combined-cycle facilities, turbine exhaust temperature monitoring, boiler drum temperature control, and steam header temperature management all rely on accurate RTD measurement. The KJ3002X1-BF1 12P1732X082 supports these applications within DeltaV-based turbine control and boiler management systems, providing the measurement foundation for both regulatory control and safety interlock functions.

Pharmaceutical and Biotech Manufacturing: Sterilization cycles, fermentation temperature control, and clean-in-place (CIP) processes in pharmaceutical facilities demand measurement accuracy and full audit traceability. The KJ3002X1-BF1 12P1732X082 delivers the precision RTD input capability required for these GMP-regulated processes, with DeltaV's electronic batch record and audit trail functions providing the documentation framework required by regulatory authorities.

Water and Wastewater Treatment: Temperature monitoring in biological treatment reactors, sludge digesters, and thermal disinfection systems benefits from the reliable RTD input capability of the KJ3002X1-BF1 12P1732X082. Its integration within DeltaV-based water treatment control systems enables centralized temperature monitoring across geographically distributed treatment stages.

Metallurgy and Metal Processing: Furnace temperature control, quench bath monitoring, and annealing cycle management in steel mills and aluminum smelters require robust, high-temperature RTD measurement. The KJ3002X1-BF1 12P1732X082 supports these demanding thermal measurement applications within DeltaV control architectures deployed in heavy industrial environments.

Q1: Is the KJ3002X1-BF1 12P1732X082 compatible with both legacy DeltaV M-Series and current S-Series I/O architectures? The KJ3002X1-BF1 12P1732X082 is designed for the DeltaV M-Series I/O platform. Compatibility with S-Series Electronic Marshalling (CHARM) architecture requires verification against the specific DeltaV system version and I/O carrier configuration in use. For mixed-generation DeltaV systems, consult the DeltaV hardware compatibility matrix or contact NANKMOS technical support to confirm the correct module selection for your architecture.

Q2: Can this module be used in a redundant I/O configuration, and what additional components are required? Yes, the KJ3002X1-BF1 12P1732X082 supports redundant I/O deployment within DeltaV architectures that utilize redundant I/O subsystems. Redundant I/O requires a compatible redundant I/O carrier, a second KJ3002X1-BF1 12P1732X082 module for the redundant slot, and DeltaV system configuration for redundant I/O operation. This configuration provides continuous temperature measurement even in the event of a single module failure, making it suitable for safety-critical and high-availability process applications.

Q3: What warranty and post-shipment support does NANKMOS provide for the KJ3002X1-BF1 12P1732X082? Every KJ3002X1-BF1 12P1732X082 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm channel integrity, communication response, and diagnostic reporting. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination to minimize system downtime. For inventory availability, lead time confirmation, and technical pre-sales consultation, contact NANKMOS at [email protected] or +86 18359268345.
