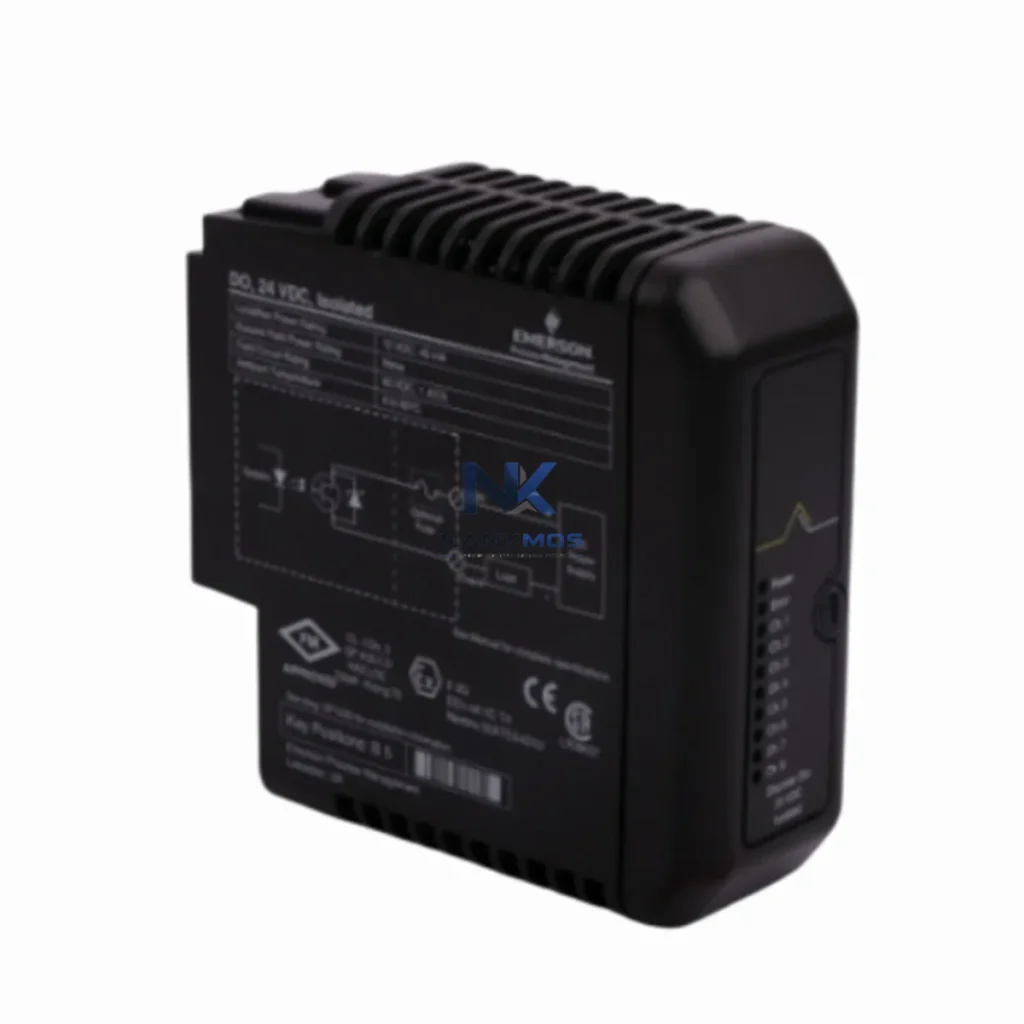

Emerson KJ3209X1-BA1 12P3905X012 VE4002S2T1B1

Product Details

KJ3209X1-BA1 12P3905X012 VE4002S2T1B1 Product Description

The Emerson KJ3209X1-BA1 (also referenced as 12P3905X012 / VE4002S2T1B1) is a precision-engineered DeltaV S-Series output module designed for seamless Contextual Integration within distributed control system (DCS) architectures. Purpose-built for process-critical environments, this module delivers deterministic signal output, modular scalability, and long-term operational reliability across the full DeltaV control platform. With a 12-Month Warranty and verified pre-shipment testing, the KJ3209X1-BA1 is a trusted component for system integrators, MRO procurement teams, and automation engineers managing complex industrial control infrastructure.

In modern DCS deployments, output modules are not standalone components — they are the terminal execution layer of a layered control hierarchy. The KJ3209X1-BA1 interfaces directly with the DeltaV controller subsystem, translating digital control commands into precise analog or discrete output signals that drive field actuators, control valves, variable frequency drives, and relay-based switching circuits. Its role within the control architecture spans the boundary between the control layer and the execution layer, making signal integrity, channel isolation, and module-level diagnostics essential performance criteria.

The KJ3209X1-BA1 achieves its full performance potential when deployed within a coherent DeltaV automation platform. System architects designing for redundancy, scalability, and long-term maintainability should consider the following layered component relationships:

Control Layer: The KJ3209X1-BA1 operates under the command of DeltaV MD or MQ series controllers — such as the KJ2003X1-BA1 DeltaV MD Controller — which execute control strategies and issue output commands via the DeltaV I/O bus. Controller redundancy configurations using paired MD controllers ensure that output module command continuity is maintained during controller failover events, protecting process stability at the execution layer.

Power Layer: Stable, conditioned DC power is supplied to the I/O subsystem through DeltaV power supplies such as the KJ1501X1-BG2 Power Supply Module. Redundant power configurations using dual power supply carriers eliminate single points of failure in the power distribution path, directly protecting the operational continuity of output modules like the KJ3209X1-BA1 during power transients or supply maintenance windows.

I/O Layer Coordination: Within the same I/O carrier assembly, the KJ3209X1-BA1 operates alongside complementary input modules such as the KJ3002X1-BA1 Analog Input Module and KJ3221X1-BA1 Discrete Input Module, forming a complete signal acquisition and command execution subsystem. This co-location on a shared carrier backplane minimizes wiring complexity and ensures synchronized scan cycle timing across input and output channels.

Communication Layer: HART pass-through capability within the DeltaV output module architecture enables field device diagnostics without interrupting live process output. Integration with DeltaV CHARM I/O modules (Characterization Modules) in hybrid architectures allows engineers to extend the output subsystem to remote marshalling cabinets, reducing home-run cabling costs while maintaining full DeltaV system visibility.

HMI and Supervisory Layer: Output module channel status, fault flags, and loop performance data are surfaced in real time through DeltaV Operate HMI workstations and the DeltaV Explorer configuration environment. Operators can monitor output saturation, wire-off conditions, and channel health without requiring physical panel access, significantly reducing diagnostic response time in large-scale process plants.

Execution Layer: Field actuators connected to the KJ3209X1-BA1 — including control valves, positioners, and motor starters — receive clean, isolated 4–20 mA command signals. When paired with Emerson Fisher FIELDVUE DVC6200 digital valve controllers, the output module enables full HART-based valve diagnostics, partial stroke testing, and predictive maintenance scheduling without additional field wiring infrastructure.

Protection and Redundancy Layer: In safety-instrumented system (SIS) adjacent architectures, the KJ3209X1-BA1 output subsystem is typically segregated from SIS output channels managed by dedicated DeltaV SIS Logic Solvers. This architectural separation ensures that BPCS (Basic Process Control System) output commands cannot interfere with SIS trip outputs, maintaining IEC 61511 functional safety compliance at the system boundary.

Maintenance Layer: Hot-swap capability within the DeltaV S-Series carrier design allows the KJ3209X1-BA1 to be replaced during live plant operation without requiring controller shutdown or process interruption. Paired with DeltaV Electronic Marshalling and CHARM-based I/O, maintenance engineers can reconfigure output channel assignments in software rather than rewiring terminal blocks, dramatically reducing turnaround time during plant modifications or module replacement cycles.

Oil & Gas and Petrochemical Processing: In upstream and downstream hydrocarbon processing facilities, the KJ3209X1-BA1 drives control valve positioners managing flow, pressure, and temperature loops in distillation columns, heat exchangers, and separator vessels. Its per-channel isolation prevents ground loop interference in environments with long cable runs between the control room and field junction boxes.

Power Generation and Utilities: Combined-cycle power plants and cogeneration facilities deploy DeltaV output modules to manage turbine bypass valves, boiler feedwater control valves, and cooling water flow regulators. The KJ3209X1-BA1's deterministic output response supports tight loop control requirements in steam generation and load-following applications.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use DeltaV output modules to control chemical dosing pumps, aeration blowers, and sludge transfer valves. The module's diagnostic capability enables remote fault detection across geographically distributed pump stations without requiring on-site technician dispatch.

Mining and Minerals Processing: Flotation cell control, conveyor speed regulation, and crusher feed rate management in mineral processing plants rely on reliable analog output modules to maintain throughput consistency. The KJ3209X1-BA1's robust operating temperature range and vibration tolerance support deployment in harsh mining control room environments.

Pharmaceutical and Life Sciences: FDA-regulated batch manufacturing facilities require validated DCS output modules with full audit trail capability. The KJ3209X1-BA1 integrates with DeltaV Batch and DeltaV Recipe Management to provide traceable output command histories for regulatory compliance documentation.

Pulp, Paper, and Packaging: High-speed packaging lines and paper machine control systems demand fast output scan rates and reliable signal delivery to servo drives and proportional valves. The KJ3209X1-BA1's integration within the DeltaV S-Series platform ensures synchronized output timing across multi-axis control loops.

Q1: Is the KJ3209X1-BA1 compatible with both legacy DeltaV S-Series and current DeltaV S-Series carriers?The KJ3209X1-BA1 is designed for the DeltaV S-Series I/O carrier platform. It is compatible with standard DeltaV S-Series carriers and integrates with DeltaV MD, MQ, and redundant controller configurations. For hybrid deployments combining S-Series and CHARM-based I/O, consult the DeltaV I/O architecture guide to confirm carrier compatibility and backplane slot assignments before installation.

Q2: Can the KJ3209X1-BA1 be replaced online without shutting down the DeltaV controller?Yes. The DeltaV S-Series platform supports hot-swap module replacement, allowing the KJ3209X1-BA1 to be removed and reinserted while the controller remains in service. Output channels will enter a configurable failsafe state during the swap interval. Engineers should verify the configured failsafe output value for each channel in DeltaV Explorer prior to performing live module replacement to ensure process safety during the transition.

Q3: What warranty and pre-shipment testing does the KJ3209X1-BA1 include?Every KJ3209X1-BA1 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Each module undergoes functional verification testing prior to dispatch, including channel output accuracy checks, isolation resistance verification, and backplane communication handshake confirmation. In-stock units are available for immediate shipment to support urgent MRO requirements and unplanned maintenance events. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
