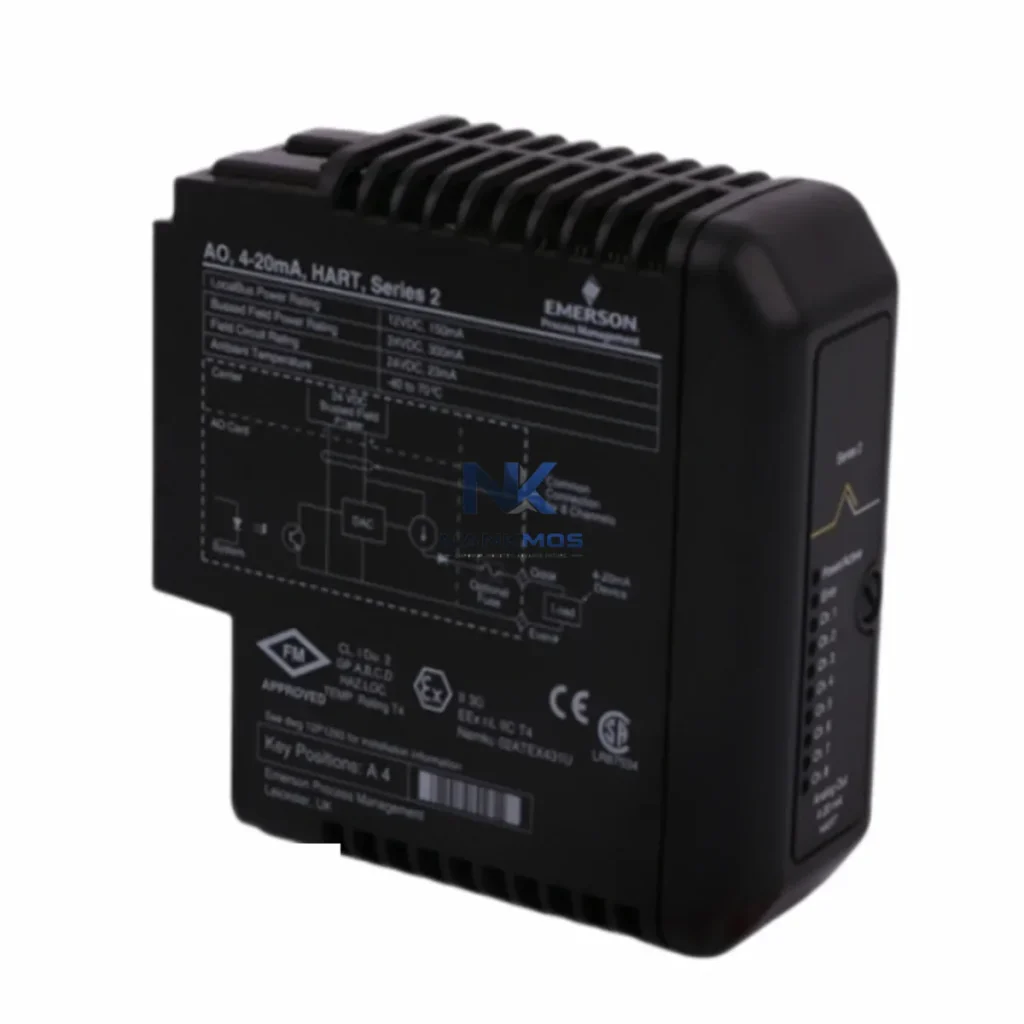

Emerson KJ3221X1-BA1 12P2531X082 Analog Output Module

Product Details

KJ3221X1-BA1 12P2531X082 Product Description

The Emerson KJ3221X1-BA1 (SKU: KJ3221X1-BA1 12P2531X082) is a HART-enabled analog output module engineered for the DeltaV S Series Distributed Control System. Designed to deliver precise 4–20 mA signal output across up to eight channels, this module plays a central role in energy-aware process automation — enabling production lines to reduce unnecessary power draw, stabilize actuator response, and maintain consistent throughput under variable load conditions.

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the KJ3221X1-BA1 provides the signal fidelity and diagnostic transparency needed to support intelligent energy management. Its HART communication capability allows field device diagnostics to be retrieved without interrupting the control loop, reducing unplanned downtime and supporting predictive maintenance strategies that keep equipment utilization rates high.

The KJ3221X1-BA1 operates as a precision output interface within the DeltaV S Series control architecture, translating controller commands into calibrated analog signals that drive field actuators, control valves, and variable-speed drives. In energy-optimized production environments, this precision directly reduces actuator over-travel and eliminates the excess power consumption associated with imprecise signal delivery.

When integrated with the Emerson DeltaV M-Series Controller or DeltaV MD-Plus Controller, the KJ3221X1-BA1 participates in closed-loop energy management strategies — adjusting output in real time based on process feedback from Emerson Rosemount 3051 pressure transmitters or Rosemount 8700 magnetic flowmeters. This feedback-driven approach ensures that pumps, compressors, and heat exchangers operate at their most efficient duty points rather than at fixed, energy-wasteful setpoints.

For motor-driven loads, the module pairs effectively with Emerson Control Techniques Unidrive M700 variable frequency drives, delivering smooth speed reference signals that eliminate current spikes during acceleration and reduce thermal stress on motor windings. The result is measurable reduction in peak demand charges and extended motor service life. Alongside the KJ3221X1-BA1, the Emerson KJ3001X1-BA1 DeltaV AI Module provides the analog input counterpart, enabling full closed-loop control with matched I/O performance characteristics.

HART transparency is a key energy management enabler. Through the DeltaV HART pass-through capability, operators can access real-time diagnostic data from connected field devices — including valve position feedback from Emerson Fisher FIELDVUE DVC6200 digital valve controllers — without taking the loop offline. This eliminates the energy waste and production loss associated with unnecessary manual inspections and unscheduled shutdowns.

For facilities implementing IEC 62443-compliant industrial cybersecurity or ISO 50001 energy management systems, the KJ3221X1-BA1's integration with the Emerson DeltaV Distributed Historian and DeltaV Operate HMI provides the data logging and visualization infrastructure needed to track energy KPIs, identify inefficient operating windows, and validate energy-saving initiatives over time.

Production line energy optimization requires more than efficient hardware — it demands precise, responsive control at every actuator interface. The KJ3221X1-BA1 addresses this by providing stable, low-noise analog output that allows control valves and drives to respond accurately to setpoint changes, reducing the hunting and oscillation that waste energy and accelerate mechanical wear.

In batch and continuous process applications, the module supports load-matched output strategies where actuator drive signals are proportional to actual process demand rather than fixed at conservative high-energy defaults. This approach, when implemented across multiple output channels simultaneously, can yield measurable reductions in compressed air consumption, pump energy draw, and heating/cooling load — all without sacrificing process stability or throughput.

The module's compatibility with the DeltaV Advanced Control suite enables integration with model predictive control (MPC) strategies that anticipate load changes and pre-position actuators for minimum energy transitions. Combined with Emerson AMS Device Manager for asset health monitoring, the KJ3221X1-BA1 supports a predictive maintenance posture that prevents the energy-inefficient operating conditions caused by degraded field devices — sticky valves, worn actuators, and drifting transmitters — before they impact production efficiency.

All units are tested prior to shipment and backed by a 12-month warranty, ensuring that your production line investment is protected from day one. In-stock availability supports rapid deployment for both greenfield installations and brownfield upgrades, minimizing the project lead time that delays energy savings realization.

Q1: How does the KJ3221X1-BA1 contribute to measurable energy savings on a production line? By delivering precise, load-matched 4–20 mA output signals, the module eliminates actuator over-drive — a common source of wasted energy in process plants. When paired with DeltaV advanced control strategies and variable frequency drives, it enables demand-responsive operation that reduces peak power consumption and lowers overall energy intensity per unit of production output.

Q2: Is the KJ3221X1-BA1 compatible with existing DeltaV S Series installations, and can it replace older AO modules? Yes. The KJ3221X1-BA1 is designed for the DeltaV S Series I/O subsystem and is backward-compatible with standard DeltaV carrier and controller configurations. It can replace legacy Emerson DeltaV analog output modules in the same card slot without requiring controller reconfiguration, making it a straightforward upgrade path for brownfield energy optimization projects.

Q3: What is the pre-shipment testing process, and what does the 12-month warranty cover? Every KJ3221X1-BA1 unit undergoes functional testing prior to shipment, verifying channel-by-channel output accuracy, HART communication integrity, and power supply performance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing assurance for both project commissioning and ongoing production reliability.

Q4: What is the typical lead time, and is stock available for urgent project requirements? The KJ3221X1-BA1 is maintained in ready-to-ship inventory to support urgent project timelines. Orders are processed promptly, with same-day or next-business-day dispatch available for in-stock units. Contact our team at [email protected] or +86 18359268345 to confirm current stock levels and arrange expedited delivery for time-critical installations.
