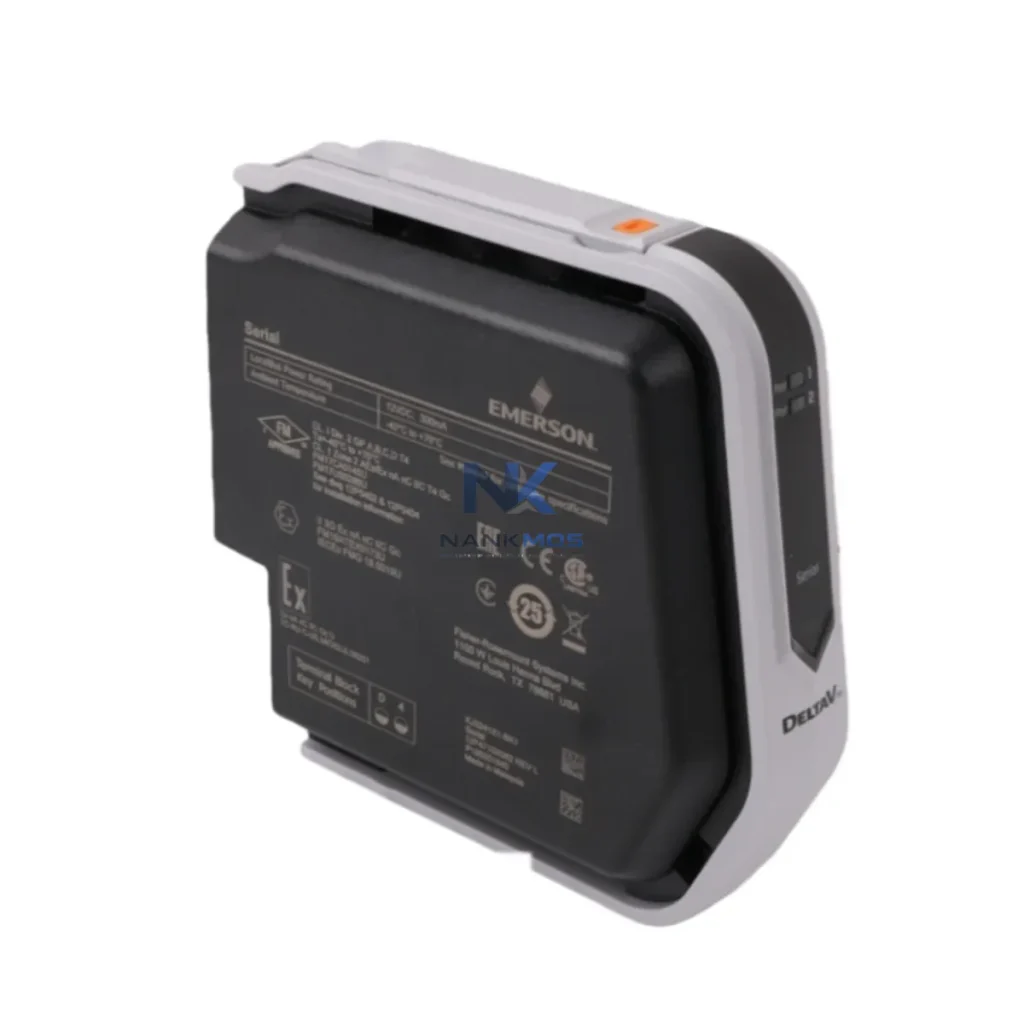

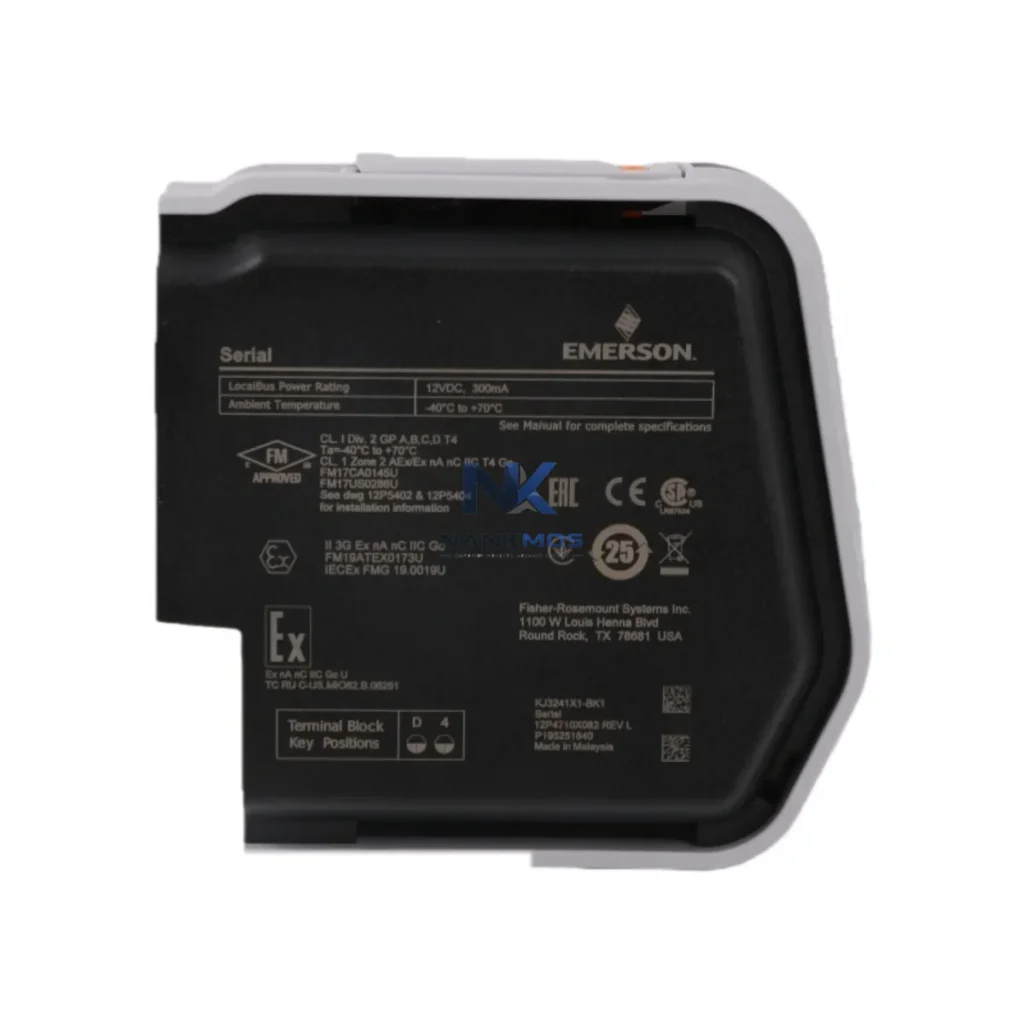

Emerson KJ3241X1-BK1 SE4006P2 DCS Controller Module

Product Details

KJ3241X1-BK1 SE4006P2 Product Description

The Emerson KJ3241X1-BK1 SE4006P2 is a high-performance DCS controller module from the DeltaV S-Series platform, engineered to serve as the central data processing and communication hub in modern smart factory environments. Designed for continuous process industries including oil & gas, chemical, pharmaceutical, and power generation, this controller delivers deterministic real-time control, multi-protocol network communication, and seamless integration across every layer of the industrial automation stack — from field instruments to enterprise-level SCADA and MES systems.

In today's connected plant, the ability to move data reliably from the field to the control room — and beyond — is not optional. The KJ3241X1-BK1 SE4006P2 addresses this need by acting as the intelligent backbone of the DeltaV control network, coordinating signal acquisition, protocol translation, loop execution, and upstream data delivery with sub-millisecond precision.

The KJ3241X1-BK1 SE4006P2 sits at the heart of a layered industrial data architecture. At the field level, it communicates directly with Emerson Rosemount 3051 pressure transmitters and Fisher FIELDVUE DVC6200 digital valve controllers via FOUNDATION Fieldbus H1 segments, enabling two-way digital communication that goes far beyond traditional 4–20 mA analog loops. This allows the controller to receive not just process values but also device diagnostics, calibration data, and alarm states — all in a single cable run.

For legacy field instruments still operating on HART protocol, the KJ3241X1-BK1 SE4006P2 integrates seamlessly with Emerson HART multiplexers and DeltaV CHARM I/O modules (CIOC), enabling simultaneous analog control and digital HART communication. This hybrid approach protects existing instrumentation investments while extending smart diagnostics capabilities across the entire field device population.

At the controller level, the KJ3241X1-BK1 SE4006P2 executes control strategies — PID loops, cascade control, feedforward, and advanced regulatory control — and passes real-time process data upstream to the DeltaV Operate HMI workstations. Operators gain live process visualization, trend displays, and alarm management through a unified interface, while the controller continuously logs time-stamped events for audit and compliance purposes.

For sites running Modbus TCP/RTU devices — such as third-party variable frequency drives (VFDs), motor control centers, or energy meters — the KJ3241X1-BK1 SE4006P2 acts as a protocol gateway, polling these devices on a configurable scan cycle and mapping their data into the DeltaV tag database. This eliminates data silos between the DCS and ancillary equipment, giving operators a single-pane view of the entire process.

Integration with OSIsoft PI System (now AVEVA PI) via OPC-UA enables long-term historian data storage, KPI dashboards, and cross-plant analytics. Process engineers can query months of trend data, identify performance degradation patterns, and schedule predictive maintenance — all driven by the real-time data stream originating from the KJ3241X1-BK1 SE4006P2. Paired with Emerson AMS Device Manager, the controller also supports remote device calibration, health monitoring, and work order generation without requiring physical access to the field.

In multi-controller DeltaV architectures, the KJ3241X1-BK1 SE4006P2 communicates peer-to-peer with other DeltaV MD-Plus or MD controllers over the redundant DeltaV control network, enabling coordinated control across multiple process units. This is particularly valuable in large continuous plants where a single process train may span dozens of control modules and hundreds of I/O points.

Edge connectivity is supported through integration with Emerson Edge Gateways or third-party IIoT gateways running OPC-UA clients, allowing process data to be forwarded to cloud analytics platforms or enterprise MES/ERP systems. This positions the KJ3241X1-BK1 SE4006P2 as a future-ready component in any digital transformation roadmap.

Many industrial sites operate with fragmented automation architectures — a mix of legacy PLCs, standalone SCADA servers, proprietary fieldbus segments, and modern DCS islands that do not communicate effectively with one another. The result is data silos, blind spots in process monitoring, delayed alarm response, and an inability to perform meaningful cross-system analytics.

The Emerson KJ3241X1-BK1 SE4006P2 directly addresses these challenges. Its multi-protocol support — spanning FOUNDATION Fieldbus, HART, Modbus, PROFIBUS DP, and OPC-UA — means it can interface with virtually any field device or control system in the plant, regardless of vendor or vintage. Protocol translation happens natively within the DeltaV platform, eliminating the need for external gateways or middleware in most configurations.

For sites struggling with remote monitoring, the controller's OPC-UA server capability allows authorized SCADA clients and remote HMI stations to subscribe to live process data over standard Ethernet infrastructure — including VPN-secured WAN connections. Maintenance teams can diagnose control loop performance, review alarm histories, and adjust setpoints from a central engineering workstation without traveling to the field.

Production transparency is enhanced through integration with DeltaV Batch and DeltaV Analytics, which consume real-time and historical data from the KJ3241X1-BK1 SE4006P2 to generate OEE reports, batch genealogy records, and SPC charts. Plant managers gain the visibility they need to identify bottlenecks, reduce unplanned downtime, and demonstrate regulatory compliance.

System expansion is straightforward: the DeltaV S-Series architecture supports hot-standby controller redundancy, online I/O addition, and non-disruptive firmware upgrades — all without process interruption. As production capacity grows or process requirements change, the KJ3241X1-BK1 SE4006P2 scales with the plant.

Q1: Does the Emerson KJ3241X1-BK1 SE4006P2 support redundant network configurations?Yes. The DeltaV S-Series platform supports fully redundant controller pairs and redundant control network paths. In the event of a primary controller failure, the standby KJ3241X1-BK1 SE4006P2 assumes control within milliseconds, ensuring continuous process operation with no data loss.

Q2: Which SCADA and HMI systems are compatible with this controller?The KJ3241X1-BK1 SE4006P2 integrates natively with DeltaV Operate HMI. Via OPC-UA and OPC-DA interfaces, it is also compatible with third-party SCADA platforms including Wonderware (AVEVA System Platform), Ignition by Inductive Automation, and Siemens WinCC. This ensures flexibility in mixed-vendor automation environments.

Q3: How is remote diagnostics performed on this controller?Remote diagnostics are performed through the DeltaV engineering workstation connected to the control network, or via OPC-UA clients over a secured network connection. Emerson AMS Device Manager can also be used to remotely interrogate HART and FOUNDATION Fieldbus devices connected to the controller, providing device health scores, calibration records, and predictive maintenance alerts.

Q4: What quality assurance and warranty coverage is provided?Every Emerson KJ3241X1-BK1 SE4006P2 unit supplied by NANKMOS undergoes pre-shipment functional testing, including power-on verification, communication port checks, and firmware version confirmation. All units are covered by a 12-month warranty against manufacturing defects and operational failures. Expedited shipping and technical support are available upon request.
