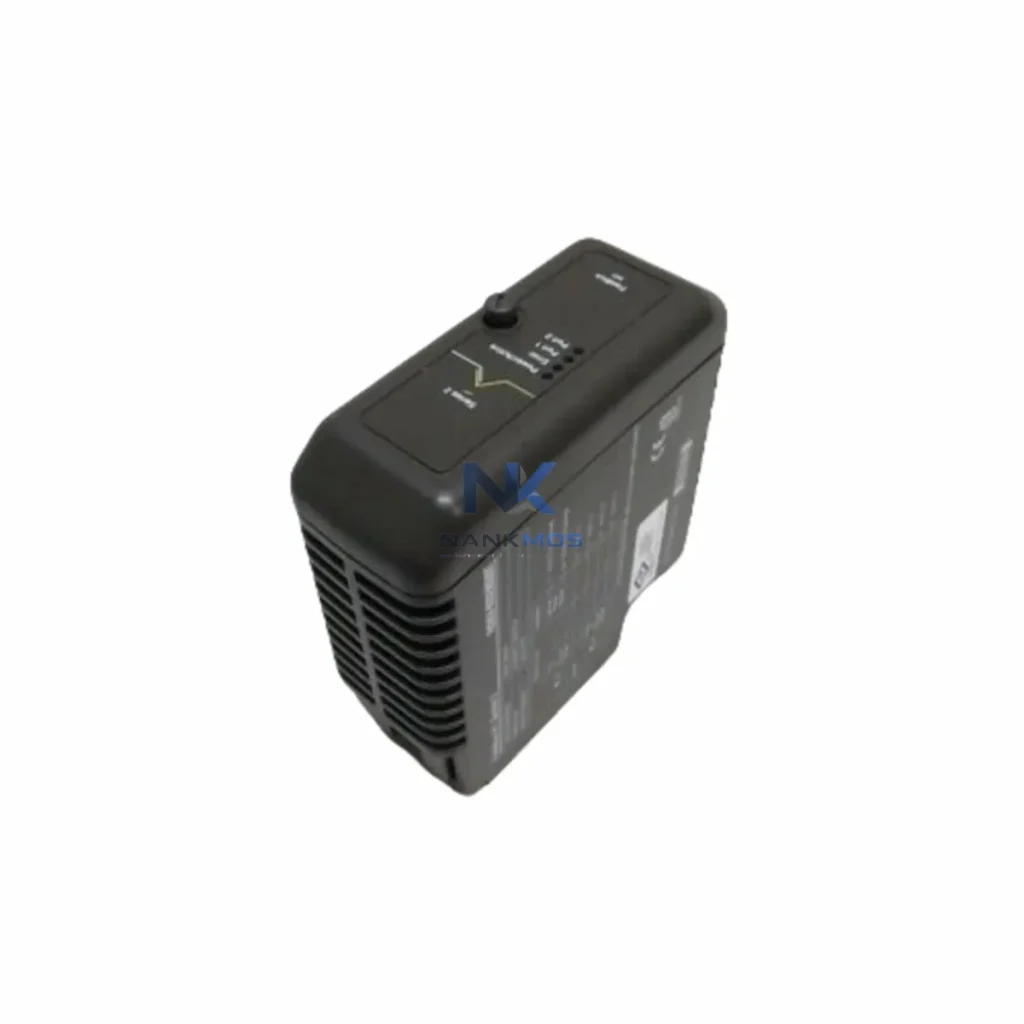

Emerson KJ3242X1-BA1 12P2471X042 VE4017P0

Product Details

KJ3242X1-BA1 12P2471X042 VE4017P0 Product Description

The Emerson KJ3242X1-BA1 (also referenced as 12P2471X042 / VE4017P0) is a precision analog output module engineered for seamless deployment within the Emerson DeltaV distributed control system (DCS) architecture. Designed to deliver deterministic 4–20 mA signal output across demanding process environments, this module occupies a critical role at the intersection of the control layer and the field execution layer — translating digital control commands from the DeltaV controller into calibrated analog signals that drive final control elements such as control valves, variable-speed drives, and positioners. Its system-matched design ensures full compatibility with DeltaV I/O subsystems, enabling engineers to maintain architectural consistency from the controller backplane through to the field device.

The KJ3242X1-BA1 is not a standalone component — it is an integral node within a fully coordinated DeltaV automation platform. In a typical DeltaV architecture, the control layer is anchored by DeltaV MD or MX controllers (such as the KJ2003X1-BA1 or MD Plus controller modules), which execute control strategies and communicate with I/O subsystems via the DeltaV I/O bus. The KJ3242X1-BA1 mounts onto a DeltaV I/O carrier (e.g., KJ3001X1-BA1 eight-slot carrier) and receives output commands from the controller, converting them into precise 4–20 mA field signals.

On the input side, analog input modules such as the KJ3221X1-BA1 (AI module) and discrete input modules like the KJ3011X1-BA1 feed process measurements back to the controller, completing the closed-loop control cycle. The KJ3242X1-BA1 works in concert with these input modules to maintain tight process variable control across the full signal chain. For HART-enabled field devices, the module supports HART pass-through communication, allowing asset management tools such as AMS Device Manager to communicate with smart transmitters and valve positioners without additional wiring infrastructure.

Power integrity across the I/O subsystem is maintained by DeltaV power supplies (e.g., KJ4001X1-BA1 redundant power supply modules), which deliver clean, regulated DC power to the carrier backplane. In redundant architectures, the KJ3242X1-BA1 can be paired with a redundant I/O module and a DeltaV redundant controller (KJ2003X1-BA1 paired set) to achieve full 1:1 redundancy at both the control and I/O layers — a configuration commonly specified in safety-critical applications in oil and gas, power generation, and chemical processing.

At the communication layer, DeltaV workstations connect to controllers via the DeltaV control network (100 Mbps Ethernet), while the operator interface layer is served by DeltaV Operate HMI workstations. For remote I/O applications or geographically distributed process units, DeltaV Remote I/O (ÉRIO) nodes extend the I/O subsystem over fiber or copper Ethernet, maintaining the same I/O module compatibility — meaning the KJ3242X1-BA1 can be deployed in both local and remote I/O configurations without architectural compromise.

In multi-loop control applications, the KJ3242X1-BA1 output channels are typically mapped to control valve positioners (e.g., Fisher FIELDVUE DVC6200 digital valve controllers), variable-frequency drives, or current-to-pneumatic (I/P) transducers. The module's HART capability enables loop diagnostics and valve signature testing directly from the DeltaV system, reducing the need for handheld communicators during commissioning and routine maintenance cycles.

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing, the KJ3242X1-BA1 drives control valves on separator trains, compressor anti-surge loops, and distillation column reflux systems. Its HART pass-through capability supports continuous valve health monitoring, reducing unplanned shutdowns in high-availability process units. Redundant I/O configurations are standard in SIL-rated loops where output integrity is a functional safety requirement.

Power Generation: In combined-cycle and coal-fired power plants, DeltaV AO modules control fuel gas control valves, steam bypass valves, and boiler feedwater control elements. The KJ3242X1-BA1's deterministic output response supports tight frequency regulation and load-following control strategies, where millisecond-level output latency directly impacts grid stability performance.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy DeltaV AO modules to modulate chemical dosing pumps, aeration blower VFDs, and effluent flow control valves. The module's diagnostic capability supports remote monitoring of field device health across geographically distributed pump stations and treatment cells, reducing the need for on-site inspection visits.

Mining and Minerals Processing: In flotation circuits, grinding mill control, and tailings management systems, the KJ3242X1-BA1 provides stable analog output to reagent dosing systems and slurry pump VFDs. Its robust operating temperature range and Class I, Div. 2 suitability make it appropriate for the electrically noisy, dust-laden environments typical of mineral processing facilities.

Pharmaceutical and Fine Chemicals: Batch process applications in pharmaceutical manufacturing require precise, repeatable analog output for reactor temperature control, pH adjustment, and pressure regulation. The KJ3242X1-BA1's integration with DeltaV Batch and DeltaV Analyze supports full electronic batch record generation and audit trail compliance under 21 CFR Part 11 and EU GMP Annex 11 frameworks.

Q1: Is the KJ3242X1-BA1 compatible with both DeltaV S-series and M-series controllers? The KJ3242X1-BA1 is designed for the DeltaV traditional I/O subsystem and is compatible with DeltaV M-series controllers (MD, MD Plus, MX, MQ) that use the standard DeltaV I/O bus. It is not natively compatible with DeltaV Electronic Marshalling (CHARM) I/O or DeltaV S-series (SIS) safety controllers without appropriate interface hardware. For mixed-architecture plants, consult the DeltaV I/O compatibility matrix to confirm carrier and controller pairing before procurement.

Q2: Can the KJ3242X1-BA1 be replaced online without shutting down the controller? In a redundant I/O configuration with a paired redundant AO module, the KJ3242X1-BA1 supports online replacement (hot-swap) without interrupting the active output channel. In non-redundant configurations, output channels will go to their configured fail-safe state during module removal. NANKMOS recommends pre-staging replacement modules and verifying firmware revision compatibility prior to any online replacement procedure to minimize process disruption.

Q3: What does the 12-Month Warranty cover, and what is the lead time for replacement units? NANKMOS provides a 12-Month Warranty on the KJ3242X1-BA1 covering manufacturing defects, functional failures under normal operating conditions, and pre-shipment functional testing verification. Each unit undergoes outgoing quality inspection and functional burn-in testing before dispatch. Replacement units are typically available from NANKMOS inventory with short lead times. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 for current stock status and delivery scheduling.
