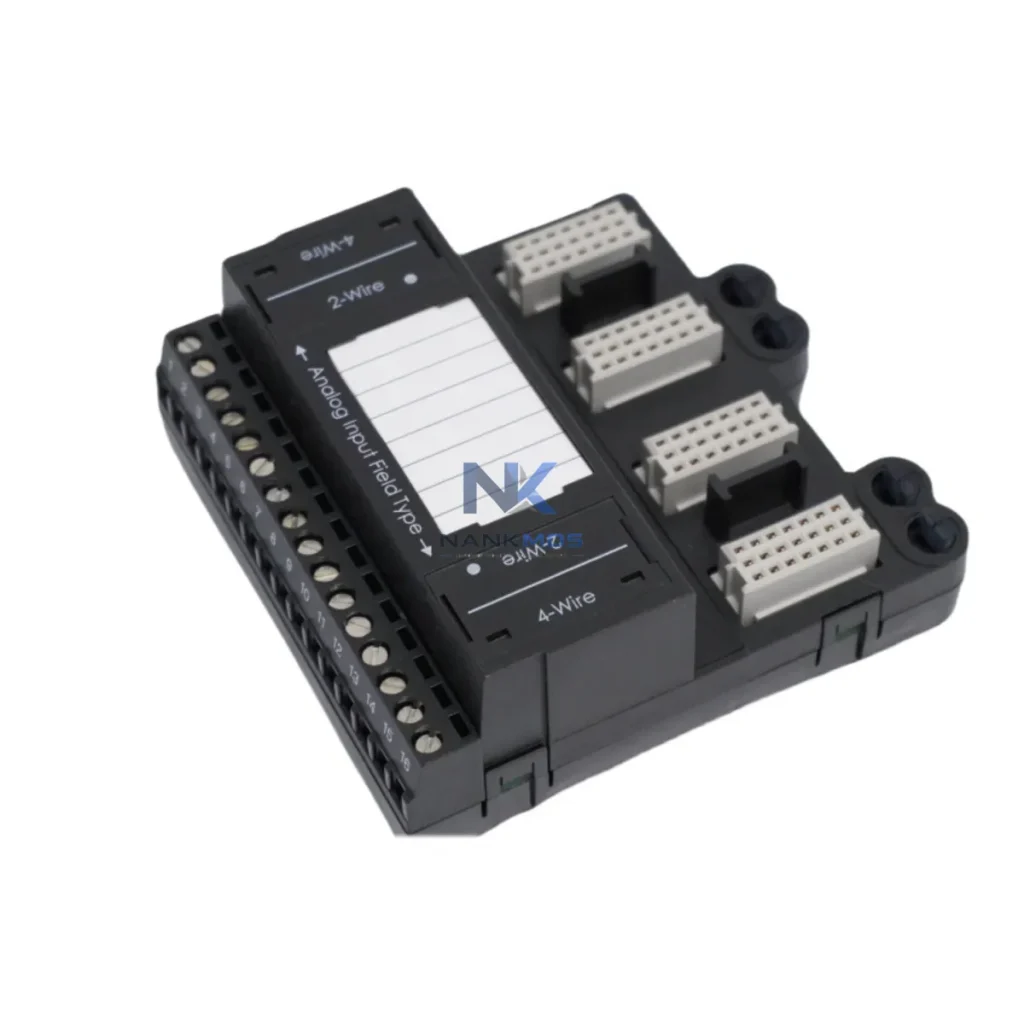

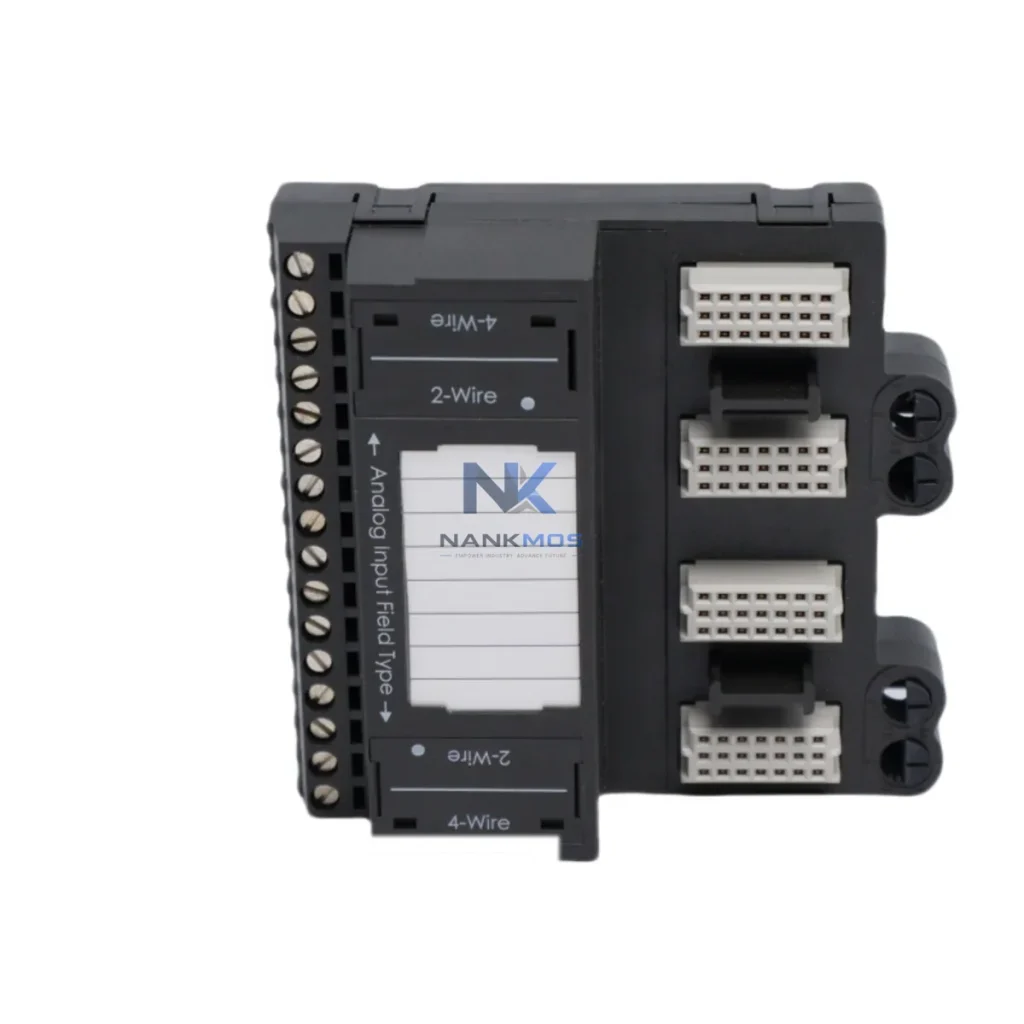

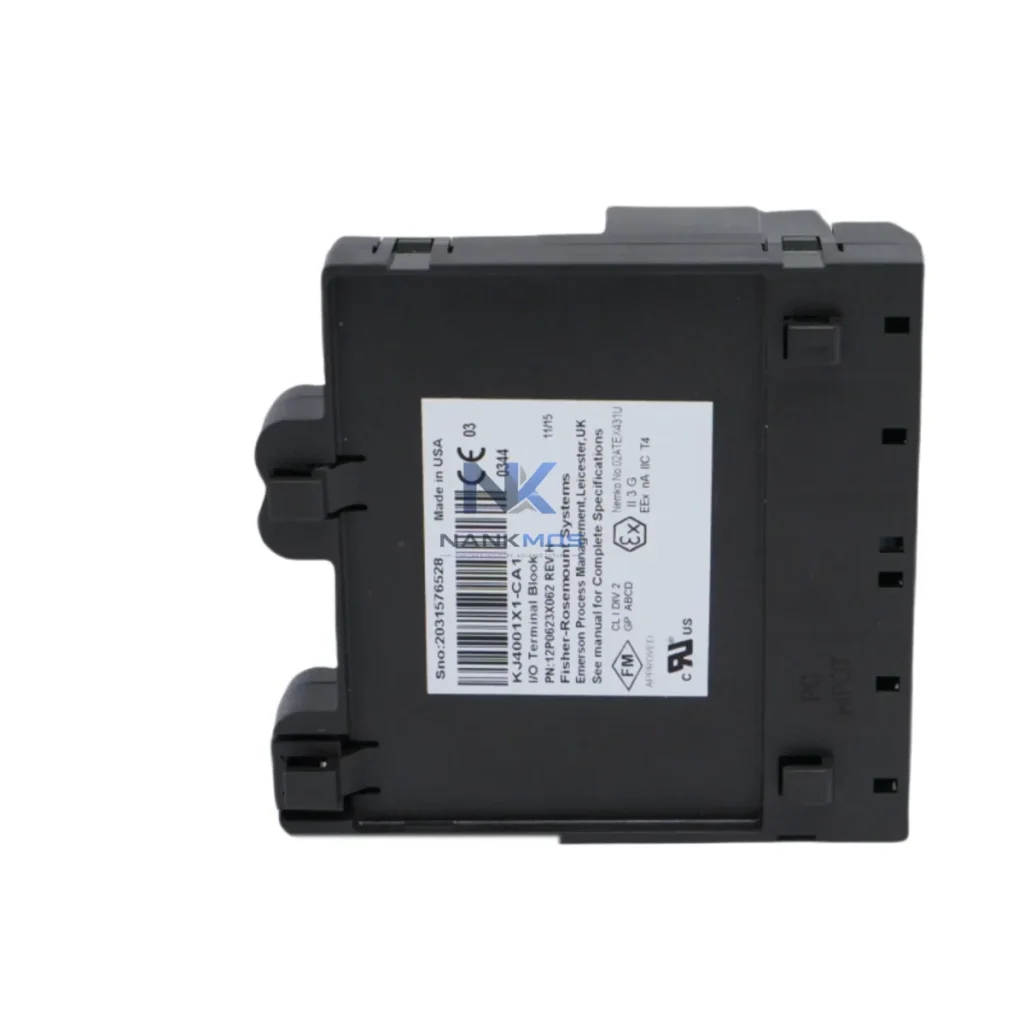

Emerson KJ4001X1-CA1 12P0623X093 I/O Terminal Block

Product Details

KJ4001X1-CA1 12P0623X093 Product Description

The Emerson KJ4001X1-CA1 12P0623X093 is a HART-enabled I/O Terminal Block engineered for seamless integration within Emerson DeltaV Distributed Control Systems (DCS). Designed to serve as a critical node in the industrial data chain, this terminal block bridges field-level instrumentation — including pressure transmitters, flow meters, temperature sensors, and valve positioners — with the DeltaV controller infrastructure, enabling real-time signal acquisition, protocol-compliant data transmission, and continuous process visibility across the automation network.

In modern smart factory environments, the integrity of the data link between field devices and supervisory systems is non-negotiable. The KJ4001X1-CA1 12P0623X093 fulfills this role by providing a robust, noise-resistant termination point that supports HART (Highway Addressable Remote Transducer) communication — a protocol widely adopted in process industries for its ability to carry both analog 4–20 mA signals and digital diagnostic data simultaneously over the same two-wire loop. This dual-channel capability allows plant engineers to retrieve device health status, calibration data, and process variables without interrupting live control loops, dramatically reducing unplanned downtime and enabling predictive maintenance strategies.

Within a DeltaV architecture, the KJ4001X1-CA1 12P0623X093 interfaces directly with DeltaV I/O subsystem cards such as the KJ3001X1-BA1 HART Analog Input card and the KJ3221X1-BA1 Analog Output card, forming a tightly integrated signal path from the field to the DeltaV controller. The terminal block's wiring density and labeling conventions align with DeltaV marshalling cabinet standards, simplifying installation, commissioning, and future maintenance activities. When paired with the DeltaV S-series or M-series controllers, the system supports deterministic scan rates and redundant I/O configurations, ensuring high availability for critical process loops in oil and gas, chemical, power generation, and water treatment facilities.

From a data flow perspective, the KJ4001X1-CA1 12P0623X093 sits at the foundation of the smart factory data pyramid. Field instruments connected to this terminal block transmit live process data upward through the DeltaV I/O network to the DeltaV Operate HMI workstations, where operators monitor trends, acknowledge alarms, and execute control actions. Simultaneously, the DeltaV Asset Management Solution (AMS) leverages HART pass-through capability to communicate with smart field devices for remote diagnostics, loop testing, and device configuration — all without physical access to the field junction box. This remote diagnostic capability is especially valuable in hazardous area installations where frequent physical access is costly and risky.

For facilities implementing OPC-UA or Modbus/TCP connectivity to higher-level SCADA platforms or Manufacturing Execution Systems (MES), the DeltaV system's built-in OPC server and third-party gateway modules — such as the Emerson Smart Wireless Gateway or industrial protocol converters — can aggregate data from multiple KJ4001X1-CA1 terminal block assemblies and publish structured datasets to enterprise historians like OSIsoft PI or AspenTech IP.21. This creates a seamless, end-to-end data pipeline from the physical sensor to the enterprise analytics layer, supporting KPI dashboards, energy consumption monitoring, and regulatory compliance reporting.

The KJ4001X1-CA1 12P0623X093 is also compatible with DeltaV SIS (Safety Instrumented System) architectures when used in conjunction with SIS I/O cards and logic solvers, supporting IEC 61511-compliant safety loop configurations. In these applications, the terminal block's reliable termination quality and traceable manufacturing standards are essential for achieving and maintaining SIL 2 or SIL 3 safety integrity levels. Pre-shipment functional testing is performed on every unit to verify wiring continuity, insulation resistance, and terminal torque compliance before dispatch.

A complete smart factory data chain built around the KJ4001X1-CA1 12P0623X093 begins at the field instrument layer. Rosemount 3051 pressure transmitters and Rosemount 648 wireless temperature transmitters connect to the terminal block via standard two-wire HART loops, delivering both analog process values and rich digital diagnostics to the DeltaV I/O subsystem. The KJ3001X1-BA1 HART Analog Input card reads these signals at configurable scan rates and passes structured data objects to the DeltaV M5Plus or S-series controller for real-time PID control execution.

On the output side, the KJ3221X1-BA1 Analog Output card drives control signals back through the terminal block to Fisher FIELDVUE DVC6200 digital valve controllers, enabling precise valve positioning with HART feedback confirmation. This closed-loop architecture ensures that every actuator command is verified at the device level, with deviation alarms surfaced immediately on DeltaV Operate HMI screens and forwarded to the plant's SCADA system via the DeltaV OPC-DA or OPC-UA server interface.

For facilities requiring wireless field device integration, the Emerson Smart Wireless Gateway 1420 aggregates data from WirelessHART-enabled instruments — such as the Rosemount 702 discrete wireless transmitter — and delivers it to the DeltaV network alongside wired HART data from the KJ4001X1-CA1 terminal block assemblies. This hybrid wired/wireless architecture maximizes coverage in large process plants without requiring extensive cable infrastructure.

At the network layer, managed industrial Ethernet switches with PROFINET or EtherNet/IP support interconnect DeltaV workstations, engineering stations, and remote I/O panels. Redundant fiber optic ring topologies protect against single-point network failures, ensuring that data from every KJ4001X1-CA1 terminal block assembly reaches the control room without interruption. Edge computing modules deployed at the marshalling cabinet level can perform local data aggregation and anomaly detection, reducing latency for time-critical alarm responses while offloading bandwidth from the plant-wide network backbone.

Many process plants operate with a fragmented instrumentation landscape — legacy 4–20 mA devices coexist with newer HART-capable instruments, and data from these field devices often fails to reach SCADA or MES systems in a structured, actionable format. The KJ4001X1-CA1 12P0623X093 directly addresses this challenge by providing a standardized, DeltaV-native termination point that preserves HART digital data alongside the analog signal, eliminating the data loss that occurs when HART-capable instruments are wired through conventional terminal blocks that strip the digital overlay.

Protocol fragmentation is another common barrier to plant-wide data transparency. When field devices speak HART but the enterprise historian expects OPC-UA or Modbus/TCP, a translation layer is required. The DeltaV system's built-in protocol handling — accessible through the KJ4001X1-CA1 terminal block's integration with DeltaV I/O cards — provides this translation natively, without requiring additional protocol converters or middleware. This reduces system complexity, lowers the risk of data corruption during protocol translation, and simplifies cybersecurity management by minimizing the number of network boundary points.

Remote monitoring and alarm management are significantly enhanced when the KJ4001X1-CA1 12P0623X093 is deployed as part of a fully integrated DeltaV architecture. HART device diagnostics — including sensor drift alerts, valve stiction warnings, and loop integrity failures — are surfaced automatically in DeltaV AMS Device Manager and can be routed to mobile operator interfaces or remote operations centers via secure VPN connections. This capability transforms reactive maintenance workflows into proactive, condition-based maintenance programs, reducing unplanned shutdowns and extending equipment service life.

For production lines requiring scalable expansion, the modular DeltaV I/O architecture supports the addition of new KJ4001X1-CA1 terminal block assemblies and corresponding I/O cards without requiring controller replacement or network reconfiguration. New measurement points can be commissioned online, with HART device recognition and tag assignment completed through DeltaV Explorer — minimizing production interruption during capacity expansions or process modifications.

Q1: Does the KJ4001X1-CA1 12P0623X093 support HART pass-through for remote device diagnostics?Yes. When wired to a DeltaV HART Analog Input card such as the KJ3001X1-BA1, the terminal block supports full HART pass-through communication. This allows DeltaV AMS Device Manager to communicate directly with connected smart field instruments for remote calibration, loop testing, and predictive diagnostics without interrupting the live 4–20 mA control signal.

Q2: Is this terminal block compatible with DeltaV SIS safety systems?Yes, when used with appropriate DeltaV SIS I/O cards and logic solvers, the KJ4001X1-CA1 12P0623X093 supports IEC 61511-compliant safety loop configurations. Suitability for specific SIL levels depends on the complete loop design and must be validated by a qualified functional safety engineer.

Q3: How does this unit integrate with SCADA and enterprise data systems?The DeltaV system provides native OPC-DA and OPC-UA server interfaces, enabling structured data from all connected KJ4001X1-CA1 terminal block assemblies to be published to SCADA platforms, enterprise historians (e.g., OSIsoft PI), and MES systems. For Modbus/TCP integration, third-party protocol gateway modules can be deployed at the DeltaV network boundary.

Q4: What quality assurance measures are applied before shipment?Every KJ4001X1-CA1 12P0623X093 unit undergoes pre-shipment functional testing covering wiring continuity verification, insulation resistance measurement, and terminal torque compliance checks. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch to global destinations.
