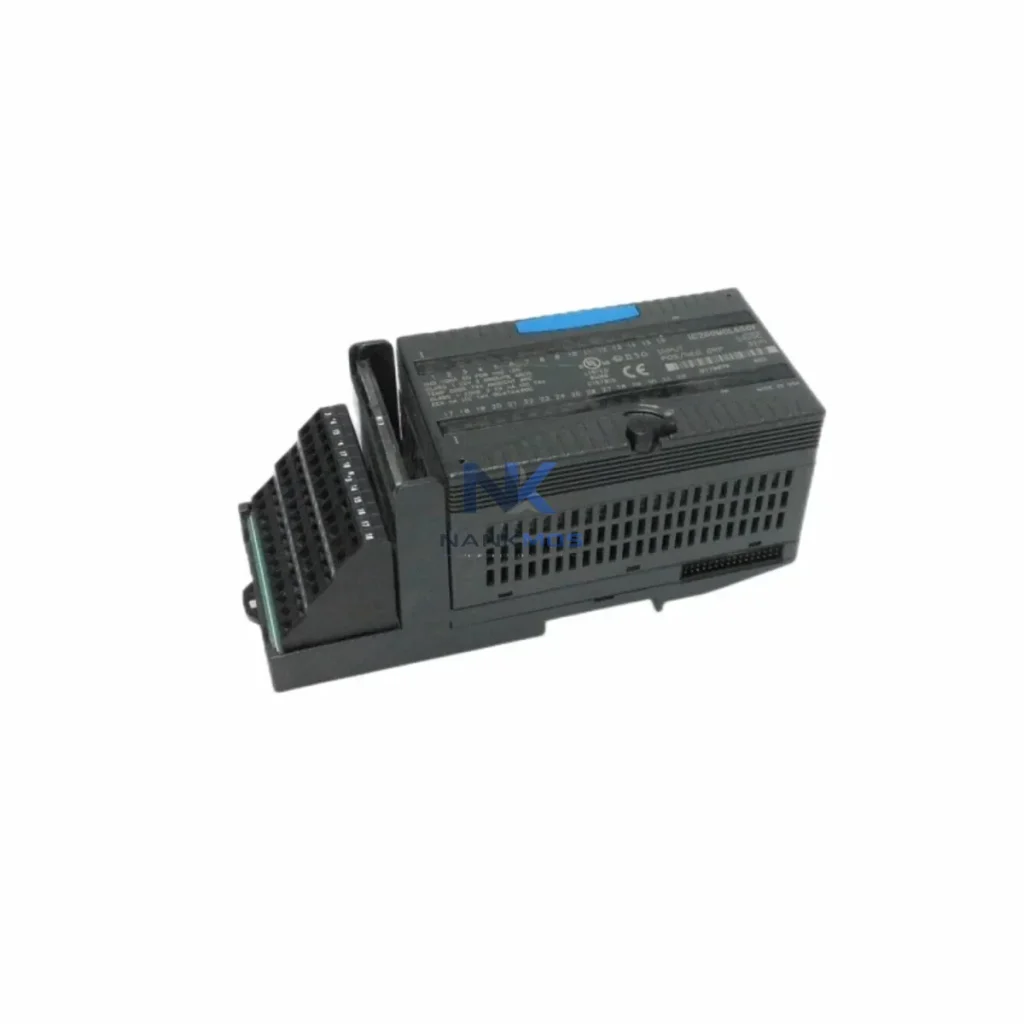

GE IC200MDL940 Discrete Output Module

Product Details

IC200MDL940 Product Description

The GE IC200MDL940 is a 16-point 12/24VDC discrete output module engineered for the GE VersaMax Micro platform — a compact, modular I/O architecture purpose-built for distributed control in smart manufacturing environments. Designed to operate as a precision actuator interface within multi-node automation networks, the IC200MDL940 bridges the gap between PLC control logic and field-level devices, enabling deterministic, low-latency output switching across conveyors, solenoids, motor starters, indicator panels, and safety interlocks.

In modern smart factory deployments, discrete output modules like the IC200MDL940 are not standalone components — they are active nodes in a layered data chain that spans from field-level sensors and actuators through PLC controllers, remote I/O racks, HMI terminals, SCADA servers, and edge computing gateways. The IC200MDL940 plugs directly into the VersaMax Micro backplane, where it communicates with the GE IC200UDR005 or IC200UDR010 CPU modules via the high-speed local bus, delivering sub-millisecond output response times that are critical for synchronized production sequences.

The IC200MDL940 operates at the actuator layer of a fully connected factory data architecture. Signal acquisition begins upstream with field sensors — pressure transducers, proximity switches, and photoelectric detectors — whose digital states are captured by companion input modules such as the GE IC200MDL640 (16-point 24VDC discrete input). These input states are processed by the GE IC200UDR010 CPU, which executes ladder logic or function block programs and writes output commands to the IC200MDL940 at scan-cycle speeds.

For distributed installations where the VersaMax rack is located remotely from the main PLC cabinet, the GE IC200PBI001 PROFIBUS Network Interface Unit connects the VersaMax backplane to a PROFIBUS-DP segment, allowing a master PLC — such as a GE PACSystems RX3i with a IC695PBM300 PROFIBUS master module — to poll and command the IC200MDL940 outputs across distances of up to 1,200 meters. This architecture is common in large-footprint facilities such as automotive assembly plants, chemical processing lines, and food and beverage packaging systems.

Where EtherNet/IP is the preferred plant network, the GE IC200BEM003 DeviceNet Network Interface Unit or an EtherNet/IP-capable NIU bridges the VersaMax backplane to the plant LAN, enabling the IC200MDL940 to appear as an EtherNet/IP adapter device. This allows SCADA platforms such as GE iFIX or Wonderware System Platform to read output status, log switching events, and trigger alarm conditions in real time. HMI terminals — including GE QuickPanel+ units — can display live output states and allow operators to perform manual overrides during maintenance windows.

At the edge layer, industrial gateways such as the Moxa MGate MB3480 or similar protocol converters can aggregate Modbus RTU data from legacy field devices and forward it to the same EtherNet/IP network segment, creating a unified data plane where the IC200MDL940 output states are correlated with upstream sensor readings, drive status from GE AF-600FP variable frequency drives, and energy metering data from smart power meters. This complete data chain — from discrete output switching through network transmission to SCADA visualization — forms the backbone of a transparent, auditable smart factory operation.

Protocol Fragmentation: Many brownfield sites run mixed networks — PROFIBUS segments alongside legacy DeviceNet drops and newer EtherNet/IP backbones. The IC200MDL940, when paired with the appropriate VersaMax NIU, can participate in any of these network segments without requiring a separate protocol converter at each I/O node, reducing wiring complexity and eliminating single-point translation bottlenecks.

Data Islands and Production Transparency: Discrete output states that are never reported back to SCADA create invisible blind spots in production monitoring. The IC200MDL940 network-connected architecture ensures that every output switching event — valve open/close, conveyor start/stop, alarm beacon activation — is timestamped and logged at the SCADA level, enabling full production traceability and OEE calculation.

Remote Monitoring and Diagnostics: Field technicians no longer need to walk the production floor to verify actuator states. With the IC200MDL940 integrated into an EtherNet/IP or PROFIBUS network, remote diagnostic tools can read module health, output load status, and fault flags from the control room or via VPN-connected maintenance laptops, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Alarm Tracking and Escalation: When an output fails to respond — due to a blown fuse, wiring fault, or overloaded actuator — the IC200MDL940 diagnostic bits propagate through the network to the SCADA alarm management system, triggering prioritized alerts with device-level granularity. This replaces generic I/O fault alarms with actionable, point-specific diagnostics.

System Scalability: The VersaMax Micro platform supports expansion racks, allowing additional IC200MDL940 modules to be added as production lines grow, without redesigning the network architecture. New output nodes join the existing PROFIBUS or EtherNet/IP segment as additional slave devices, maintaining a flat, scalable topology.

Q1: What is the communication latency of the IC200MDL940 in a PROFIBUS-DP network? In a standard PROFIBUS-DP configuration with the IC200PBI001 NIU, output update latency is typically one PROFIBUS bus cycle, ranging from 1 to 10ms depending on the number of slaves and baud rate (up to 12Mbps). For time-critical applications, configuring the PROFIBUS master for equidistant bus cycles ensures deterministic output timing.

Q2: Is the IC200MDL940 compatible with third-party PROFIBUS and EtherNet/IP masters? Yes. The VersaMax NIU modules use standard GSD/EDS files recognized by any compliant PROFIBUS or EtherNet/IP master, including Siemens S7, Rockwell ControlLogix, and Schneider Modicon platforms. This makes the IC200MDL940 suitable for multi-vendor automation environments.

Q3: How does the IC200MDL940 support remote diagnostics and predictive maintenance? The module reports output status and fault diagnostics through the VersaMax backplane to the NIU, which forwards this data to the network master. SCADA systems can poll these diagnostic registers at configurable intervals, enabling trend analysis of output switching frequency, load current anomalies, and fault event history — key inputs for predictive maintenance algorithms.

Q4: What warranty and pre-shipment testing does the IC200MDL940 include? Every IC200MDL940 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional pre-shipment testing to verify output switching, isolation integrity, and backplane communication. Units are shipped from in-stock inventory with full documentation, ensuring rapid deployment on active production sites.
