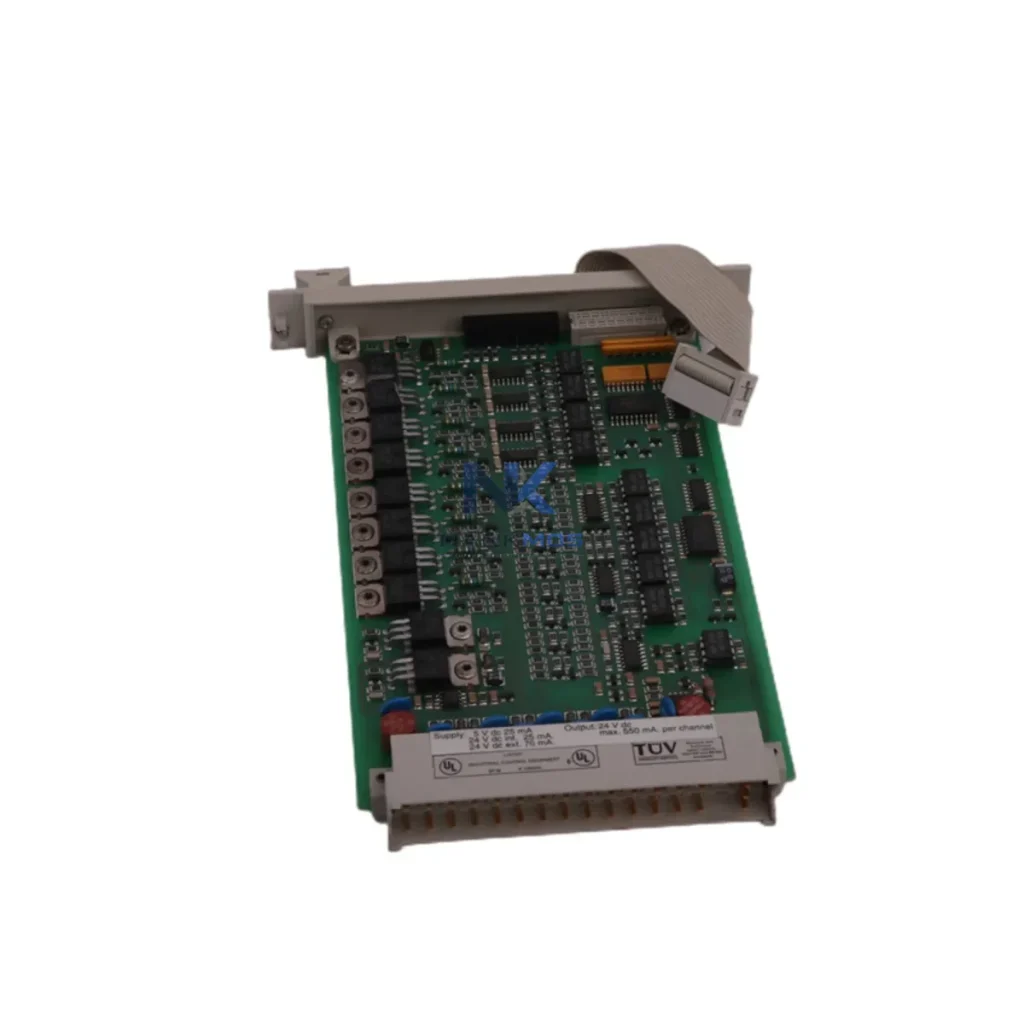

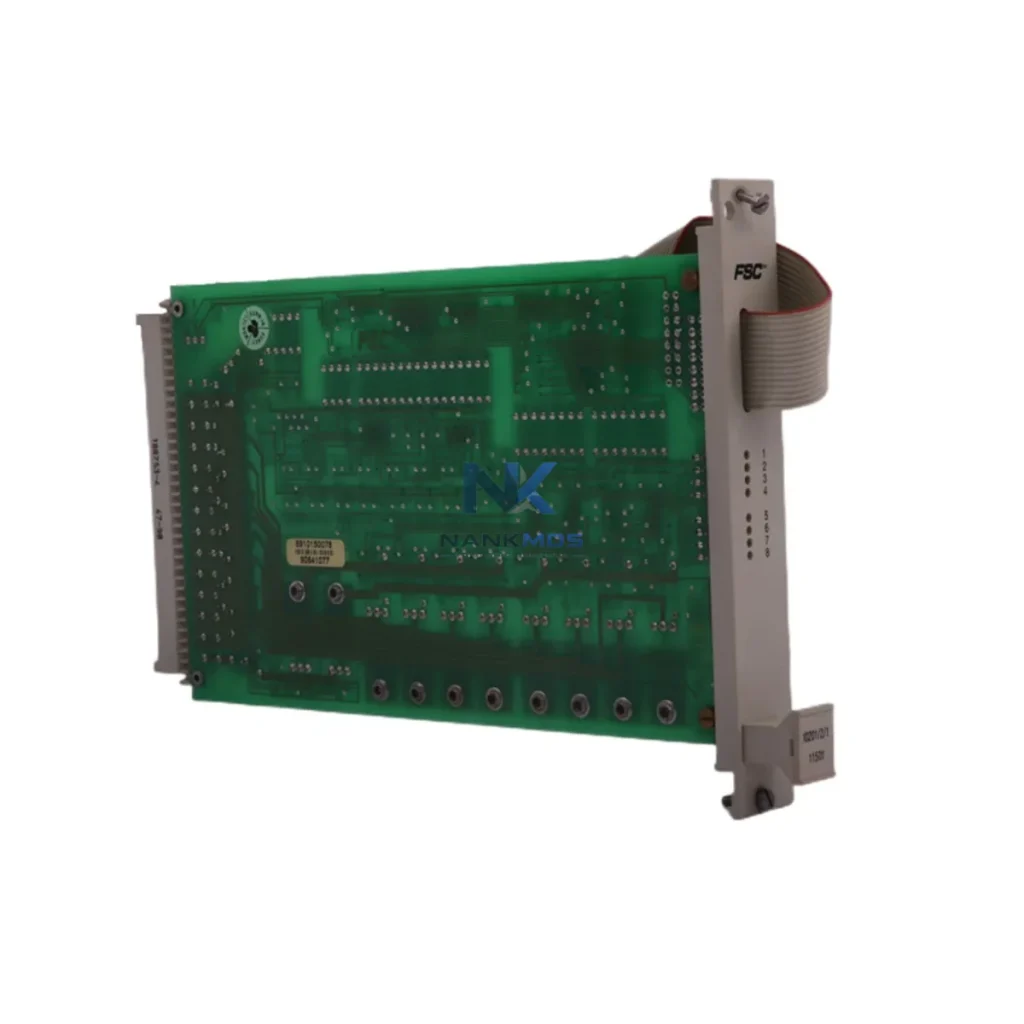

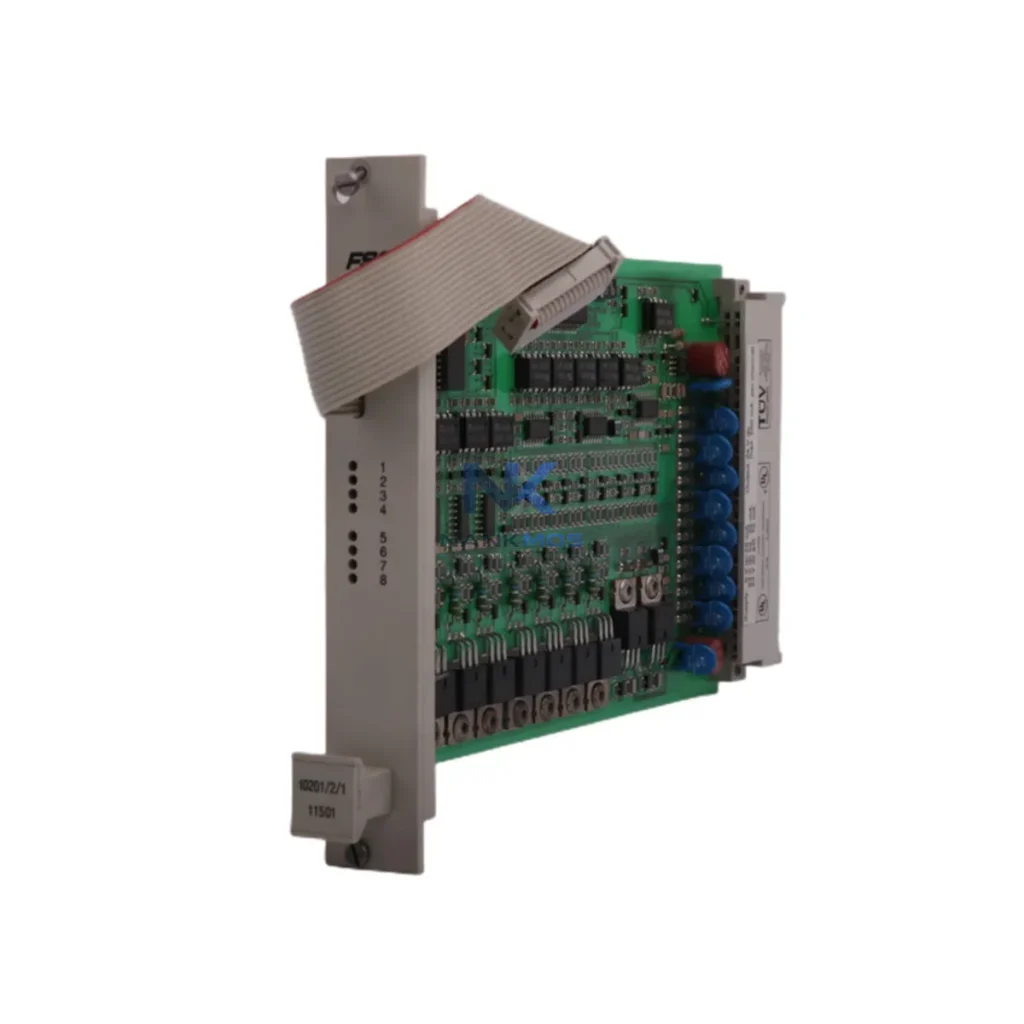

Honeywell 10201/2/1 FC-SDO-0824 Digital Output Module

Product Details

10201/2/1 FC-SDO-0824 Product Description

The Honeywell FC-SDO-0824 (SKU: 10201/2/1 FC-SDO-0824) is an 8-channel, 24 VDC digital output module engineered for the Honeywell FSC (Fail-Safe Controller) safety platform. Designed to operate at the intersection of functional safety and industrial energy efficiency, this module delivers deterministic output switching that directly reduces unnecessary actuator energization, minimizes heat dissipation across control cabinets, and supports tightly coordinated load management across safety-critical production lines. With SIL 2 certification and a robust field-proven architecture, the FC-SDO-0824 is a drop-in solution for facilities seeking to lower operational energy costs without compromising process integrity.

In modern safety-instrumented systems, every unnecessary output pulse translates into wasted energy and accelerated actuator wear. The Honeywell FC-SDO-0824 integrates directly with the FSC processor modules — such as the Honeywell FC-CPU-0702 central processing unit — to execute output commands only when process logic demands it, eliminating the idle-state energization that inflates energy bills in conventional relay-based architectures.

When paired with the Honeywell FC-SDI-1624 digital input module, the FC-SDO-0824 forms a closed-loop field I/O layer that continuously validates actuator feedback against commanded states. This real-time verification prevents prolonged valve or solenoid energization caused by undetected field faults — a common source of thermal load buildup in process control panels. The combination also supports the Honeywell FC-AI-0801 analog input module for cross-referencing process variable readings against output states, enabling energy-aware interlock logic that de-energizes outputs the moment process conditions are met.

For facilities running distributed control alongside safety systems, the FC-SDO-0824 operates in coordination with the Honeywell HC900 Hybrid Controller and its associated HC-TDIL-DC024 digital I/O modules, sharing a unified control philosophy that standardizes output management across both regulatory and safety layers. Communication between the FSC platform and plant-level SCADA systems — including Honeywell Experion PKS — is handled through dedicated Honeywell FC-PBUS-0100 process bus interface modules, ensuring that output state data is continuously visible to energy management dashboards without additional polling overhead.

In variable-speed drive applications, the FC-SDO-0824 provides the enable/disable interlock signals that gate Honeywell or third-party variable frequency drives (VFDs), preventing motors from running at full load during low-demand production windows. This coordinated start/stop logic — executed through the FSC's deterministic scan cycle — is a proven method for reducing peak demand charges and extending motor insulation life. Sensor inputs from Honeywell Analytics gas detection transmitters can trigger FC-SDO-0824 output channels to isolate hazardous zones, simultaneously cutting power to non-essential loads and reducing the facility's instantaneous energy draw during emergency response sequences.

Factory energy audits consistently identify two root causes of avoidable consumption: outputs left energized beyond their required duty cycle, and actuators driven at full power when partial actuation would suffice. The Honeywell FC-SDO-0824 addresses both through its integration with the FSC's configurable logic solver, which allows engineers to implement time-limited output pulses, duty-cycle-controlled solenoid drivers, and state-machine-based load sequencing — all within the same safety-certified execution environment.

On continuous process lines — such as those found in refinery feed preparation, chemical blending, or utility water treatment — the FC-SDO-0824 manages the on/off sequencing of pump starters, valve actuators, and agitator drives in a coordinated pattern that flattens the facility's load curve. By staggering output activation across the module's eight channels according to process priority, the FSC logic prevents simultaneous motor starts that would otherwise spike demand metering and trigger utility penalty charges. Over a 12-month operating cycle, this load-leveling strategy typically yields measurable reductions in both energy consumption and peak demand billing.

Predictive maintenance integration further amplifies these gains. When the FC-SDO-0824 output state data is logged through the Experion PKS historian, maintenance teams can correlate output cycle counts with actuator service intervals, scheduling preventive replacements during planned shutdowns rather than reacting to unplanned failures. This shift from reactive to predictive maintenance reduces both emergency energy consumption — associated with rapid restart sequences — and the production losses that accompany unscheduled downtime. Every unit shipped undergoes full functional output testing prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and premature component failure, ensuring that your energy optimization investment is protected from day one.

Q1: How does the FC-SDO-0824 contribute to measurable energy savings on a production line? The module eliminates spurious and prolonged output energization through deterministic FSC logic execution. By ensuring that solenoids, valve actuators, and motor starters are energized only for the precise duration required by process conditions, it reduces both active power draw and resistive heat generation inside control enclosures — lowering both process energy costs and HVAC loads for the control room.

Q2: Is the FC-SDO-0824 compatible with existing Honeywell FSC and HC900 installations? Yes. The FC-SDO-0824 is designed as a native FSC platform module and is backward-compatible with established FSC rack configurations. It can also exchange interlock signals with HC900 hybrid controllers via hardwired I/O or process bus interfaces, making it suitable for brownfield upgrades where both safety and regulatory control layers coexist.

Q3: What is the recommended replacement or upgrade path for aging digital output modules in FSC systems? For sites running earlier-generation FSC output modules, the FC-SDO-0824 provides a direct form-fit-function replacement with improved diagnostic coverage. No FSC rack modifications are required. It is advisable to verify firmware compatibility with the installed FC-CPU version and to conduct a pre-installation loop check against the existing field wiring schedule before commissioning.

Q4: What does the 12-month warranty cover, and how quickly can replacement units be shipped? The 12-month warranty covers all manufacturing defects and component failures under normal operating conditions from the date of shipment. Replacement units are held in stock and can be dispatched within standard lead times. Each unit is tested for full output functionality before shipment. For urgent requirements, expedited dispatch options are available — contact our team directly to confirm current stock levels and lead times.
