Honeywell 2MLR-DBSHS Safety I/O Module

Product Details

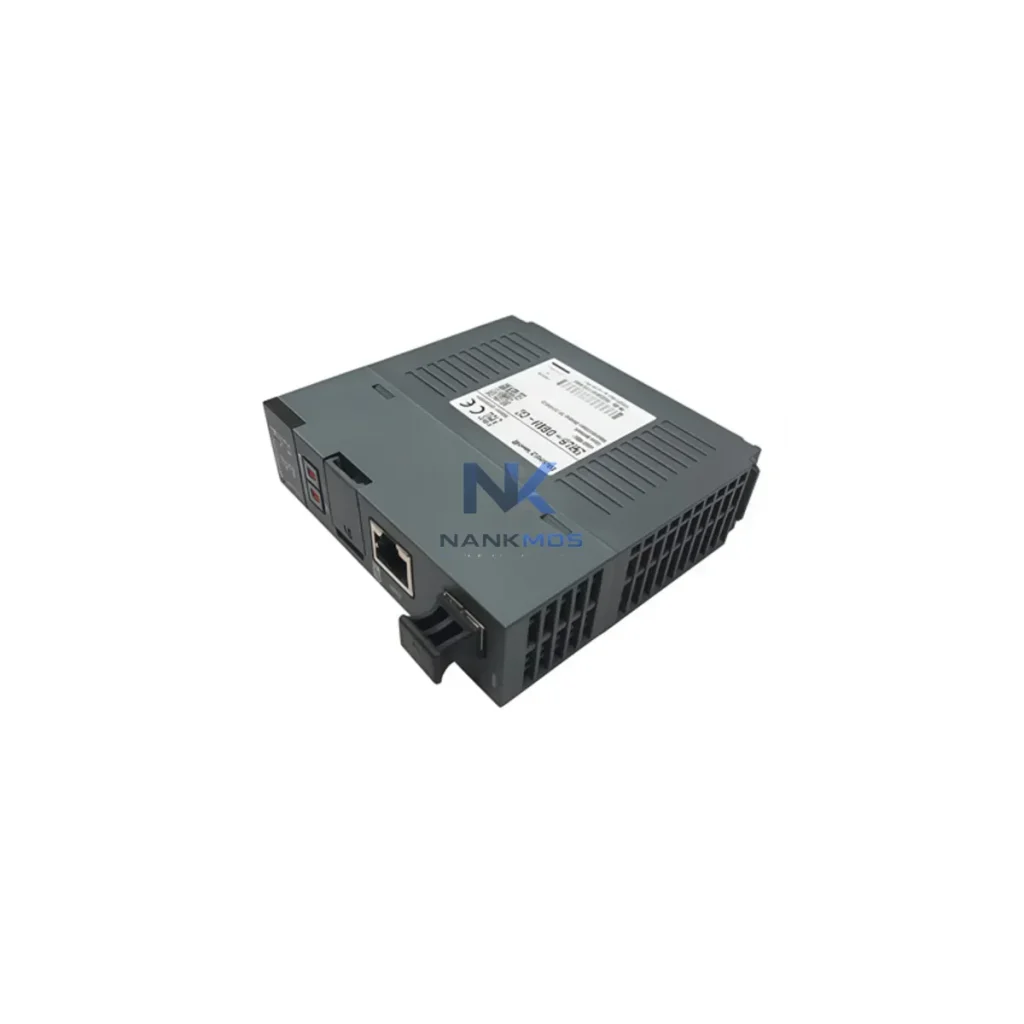

2MLR-DBSHS Product Description

The Honeywell 2MLR-DBSHS is a dedicated Safety I/O module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) platform — one of the most widely adopted safety-rated control architectures in process-critical industries. Designed to operate at the intersection of the I/O layer and the safety control layer, this module delivers deterministic signal handling, redundant channel management, and seamless integration into multi-tier automation systems where SIL 2 and SIL 3 compliance is mandatory. Whether deployed in a greenfield safety instrumented system (SIS) or integrated into an existing FSC rack expansion, the 2MLR-DBSHS provides the signal integrity, diagnostic transparency, and architectural consistency that modern industrial control engineers demand.

The 2MLR-DBSHS does not operate in isolation — its value is fully realized when positioned within a complete FSC-based safety architecture. In a typical SIS deployment, the FSC CPU module (such as the FSC 10201/2/1 or FSC 10201/3/1) serves as the central processing unit, executing the safety logic and managing all I/O communication across the backplane. The 2MLR-DBSHS slots directly into the FSC rack alongside other I/O modules, sharing the internal bus and contributing to the system's overall diagnostic coverage.

On the power layer, the FSC Power Supply Module 10006/1/1 or its redundant counterpart ensures stable 24 VDC delivery to all rack-mounted modules, including the 2MLR-DBSHS. Redundant power configurations are strongly recommended in SIL 3 applications to eliminate single points of failure at the power distribution level. The 2MLR-DBSHS itself supports dual-channel input architectures, enabling 1oo2 or 2oo3 voting logic configurations that are essential for high-demand safety functions.

For communication beyond the FSC rack, the Honeywell FSC Gateway Module or Modbus/PROFIBUS communication interface cards bridge the safety layer to the supervisory DCS or SCADA platform — commonly a Honeywell Experion PKS or TDC 3000 system. This Contextual Integration ensures that safety status, diagnostic alarms, and I/O health data are visible at the operator HMI level without compromising the integrity of the safety loop.

At the field device level, the 2MLR-DBSHS interfaces with safety-rated sensors, emergency shutdown (ESD) pushbuttons, pressure switches, and solenoid valve drivers. Terminal modules such as the Honeywell 2MLR-TBxx series provide the physical wiring interface between field cables and the I/O module, simplifying installation and enabling hot-swap maintenance without disrupting live safety loops. Signal isolators — for example, the Honeywell SPS series or equivalent HART-compatible isolators — may be inserted between field devices and the 2MLR-DBSHS to protect against ground loops, voltage transients, and EMI in electrically noisy environments such as petrochemical plants or offshore platforms.

In redundant FSC architectures, a secondary FSC CPU and mirrored I/O rack can be configured for hot-standby operation. The 2MLR-DBSHS supports this redundancy model, ensuring that a CPU failover does not interrupt safety I/O scanning or cause spurious trips. This is particularly critical in continuous process industries — refineries, LNG terminals, and chemical reactors — where unplanned shutdowns carry significant safety and financial consequences.

Oil, Gas & Petrochemical: The 2MLR-DBSHS is widely deployed in emergency shutdown (ESD) systems, fire and gas (F&G) detection panels, and high-integrity pressure protection systems (HIPPS) across upstream and downstream oil and gas facilities. Its SIL-rated architecture satisfies IEC 61511 requirements for process safety instrumented functions, making it a preferred choice for SIS engineers specifying FSC-based solutions in refineries, compressor stations, and LNG liquefaction trains.

Power Generation & Utilities: In thermal, nuclear, and combined-cycle power plants, the 2MLR-DBSHS supports turbine protection systems, boiler safety interlocks, and generator trip logic. Its deterministic response time and dual-channel design align with the stringent reliability requirements of IEC 61513 and IEEE 603 standards applicable to nuclear instrumentation and control.

Water Treatment & Municipal Infrastructure: Pump station ESD systems, chemical dosing interlocks, and overflow protection circuits in water and wastewater treatment plants benefit from the 2MLR-DBSHS's compact form factor and FSC platform compatibility. The module's diagnostic self-test capability reduces the need for manual proof testing, lowering operational maintenance costs in remote or unmanned installations.

Mining & Metals: Conveyor belt emergency stops, crusher protection systems, and hoisting machine safety interlocks in underground and surface mining operations rely on SIL-rated I/O modules for personnel protection. The 2MLR-DBSHS, integrated into an FSC rack with appropriate ATEX-rated field devices, meets the safety requirements of these high-risk environments.

Marine & Offshore: Vessel automation systems, ballast control, and cargo handling ESD panels on FPSOs and offshore platforms frequently specify Honeywell FSC-based safety systems. The 2MLR-DBSHS's robust design and wide operating temperature range support reliable operation in the vibration, humidity, and salt-air conditions characteristic of marine installations.

Q1: Is the Honeywell 2MLR-DBSHS compatible with all FSC rack configurations, and can it be mixed with other FSC I/O modules in the same rack? Yes. The 2MLR-DBSHS is designed for standard FSC rack deployment and is compatible with the full range of FSC I/O modules, CPU cards, and power supply units within the Honeywell FSC platform. Mixed-module rack configurations are supported, allowing engineers to combine digital safety I/O, analog I/O, and communication modules in a single rack to optimize slot utilization and minimize cabinet footprint. Always verify firmware revision compatibility between the CPU and I/O modules during system commissioning.

Q2: What is the recommended maintenance and proof-test interval for the 2MLR-DBSHS in a SIL 2 application, and does the module support online diagnostics? The 2MLR-DBSHS incorporates continuous self-diagnostic routines that monitor channel integrity, power supply status, and communication health in real time. These diagnostics significantly extend the allowable proof-test interval compared to non-diagnostic I/O modules, reducing maintenance burden in high-availability processes. For SIL 2 applications, the proof-test interval should be determined by the SIL verification calculation for the specific safety function, referencing the module's PFD (Probability of Failure on Demand) data from the Honeywell FSC safety manual. NANKMOS provides full technical documentation support for SIL verification activities.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's stock and lead-time commitment for the 2MLR-DBSHS? All 2MLR-DBSHS units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, every unit undergoes functional verification testing to confirm I/O channel integrity and communication performance. NANKMOS maintains dedicated inventory of Honeywell FSC platform components to support urgent MRO (maintenance, repair, and operations) requirements, with expedited shipping available for critical plant shutdowns. For current stock levels, lead times, and volume pricing, contact [email protected] or call +86 18359268345.
