Honeywell FS-SAI-0410 Safety Analog Input Module

Product Details

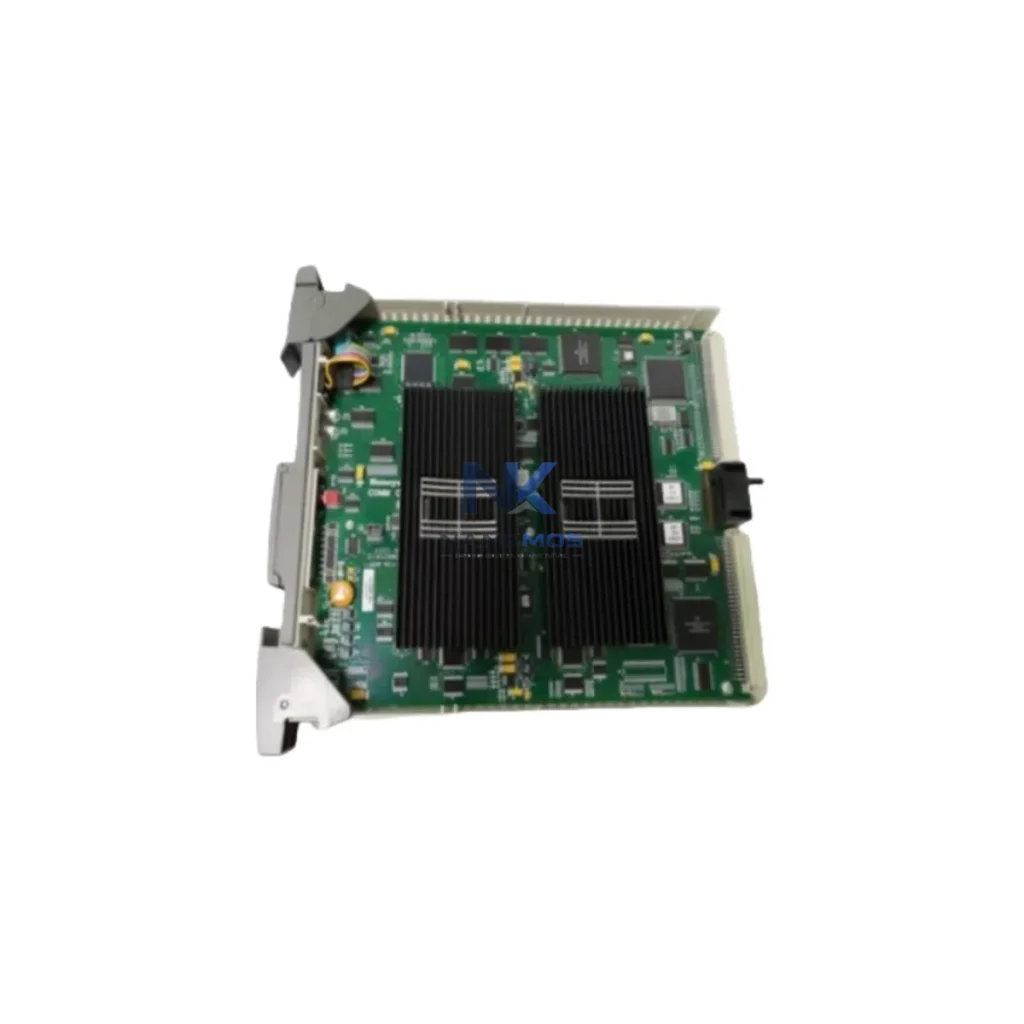

FS-SAI-0410 Product Description

The Honeywell FS-SAI-0410 is a SIL 3-rated, 4-channel safety analog input module engineered for deployment within Honeywell Safety Manager (SM) architectures. Designed to bridge field-level instrumentation with safety-critical control logic, the FS-SAI-0410 serves as a precision data acquisition node in functional safety systems — capturing 4–20 mA and voltage signals from pressure transmitters, temperature sensors, flow meters, and gas detectors, then delivering validated process values directly to the Safety Manager controller over the SM bus. In smart factory environments where data integrity and deterministic response times are non-negotiable, this module provides the analog front-end that underpins reliable safety instrumented functions (SIFs).

As industrial facilities evolve toward connected, data-transparent operations, the FS-SAI-0410 plays a central role in the field-to-cloud data chain. Signals acquired at the module level are processed by the Safety Manager CPU, then surfaced through OPC DA/UA gateways to SCADA platforms such as Honeywell Experion PKS, Emerson DeltaV, or third-party supervisory systems. This architecture enables real-time monitoring, alarm management, and remote diagnostics — all without compromising the integrity of the safety loop.

In a fully integrated safety and process automation architecture, the FS-SAI-0410 sits at the critical junction between field instrumentation and the safety logic solver. Consider a typical smart factory data flow: a pressure transmitter or gas detector wired to the FS-SAI-0410 delivers a 4–20 mA signal that is digitized, validated against SIL 3 diagnostic thresholds, and passed to the Honeywell Safety Manager SM-CPU over the backplane bus. The CPU executes the safety function — trip, alarm, or permissive — within the required response time, while simultaneously forwarding process values to the Honeywell Experion PKS SCADA layer via an OPC UA server.

At the network level, the Safety Manager communicates with the plant DCS through a Honeywell FS-ETH Ethernet communication module or equivalent gateway, enabling the SCADA historian to log every analog value with millisecond-level timestamps. Operators at the HMI workstation — running Experion Station or a third-party HMI such as Wonderware InTouch — can view live process values, trend historical data, and acknowledge safety alarms without ever entering the hazardous area.

For facilities running parallel process control alongside safety systems, the FS-SAI-0410 data chain integrates naturally with Honeywell HC900 hybrid controllers or Experion C300 process controllers via the plant Ethernet backbone. Industrial managed switches — such as those in the Hirschmann MACH or Phoenix Contact FL SWITCH series — provide the PROFINET or Modbus TCP/IP backbone that carries both safety status data and process telemetry to edge gateways. These edge nodes aggregate data from multiple safety zones, compress it, and forward it to cloud-based analytics platforms or on-premise MES/ERP systems for production transparency.

Remote I/O expansion within the safety architecture is handled by companion modules such as the Honeywell FS-SDO-0824 Safety Digital Output and FS-SDI-0810 Safety Digital Input modules, which share the same SM chassis and backplane bus as the FS-SAI-0410. This modular approach allows engineers to scale the safety I/O footprint without redesigning the network topology. Variable frequency drives (VFDs) connected to the process — such as ABB ACS880 or Siemens SINAMICS G120 — receive trip commands from the Safety Manager digital outputs, while their status feedback loops back through digital input modules on the same chassis.

For facilities requiring HART pass-through for asset management, the FS-SAI-0410's HART-compatible inputs allow field device diagnostics — valve position, sensor health, loop integrity — to be surfaced through a Honeywell Field Device Manager (FDM) or compatible HART multiplexer, feeding device health data into the plant asset management system (AMS) without interrupting the safety loop. This closes the loop on predictive maintenance: sensor degradation is detected before it becomes a safety event.

Many industrial sites operate with fragmented safety and process data — analog signals that never reach the SCADA historian, safety trips that generate no digital audit trail, and field devices whose health status is invisible to maintenance teams. The FS-SAI-0410 directly addresses these gaps within the Honeywell Safety Manager ecosystem:

Q1: What communication protocols does the FS-SAI-0410 support for SCADA integration? The FS-SAI-0410 communicates natively over the Honeywell Safety Manager backplane bus. For SCADA integration, the Safety Manager system uses OPC DA/UA via an Ethernet gateway module (e.g., FS-ETH), enabling connectivity to Experion PKS, third-party DCS platforms, and any OPC-compliant SCADA or historian. HART pass-through is supported for asset management applications.

Q2: Is the FS-SAI-0410 compatible with redundant Safety Manager configurations? Yes. The FS-SAI-0410 is designed for use within redundant SM controller architectures. In a redundant configuration, both the primary and secondary SM CPUs have access to the analog input data, ensuring that a controller failover does not interrupt safety function execution or data logging. Network stability is maintained through the deterministic backplane bus, which is not subject to Ethernet collision or latency variability.

Q3: How is remote diagnostics performed on the FS-SAI-0410 without interrupting the safety loop? The FS-SAI-0410 supports online self-diagnostics that run continuously in the background without affecting the safety function. Diagnostic results — including channel health, signal range violations, and internal fault codes — are accessible through the Safety Manager engineering workstation and, via OPC UA, through connected SCADA or asset management systems. HART-enabled field devices connected to the module can also be interrogated remotely using Honeywell FDM or a compatible HART communicator, providing full loop diagnostics without process interruption.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the FS-SAI-0410? All FS-SAI-0410 units supplied by NANKMOS carry a 12-month warranty and undergo functional testing prior to shipment. Testing covers channel signal integrity, backplane communication verification, and diagnostic self-test confirmation. In-stock units are available for immediate dispatch with full traceability documentation. For volume orders or urgent project requirements, contact our team at [email protected] or +86 18359268345 for lead time confirmation and technical support.
